StarTech Make VGA video and audio connections using a single, high quality cable MXTHQMM5MA
Model # MXTHQMM5MA
-
SKU: MXTHQMM5MA
- Pick Up Available
- Australian Warranty
- Checkout Securely

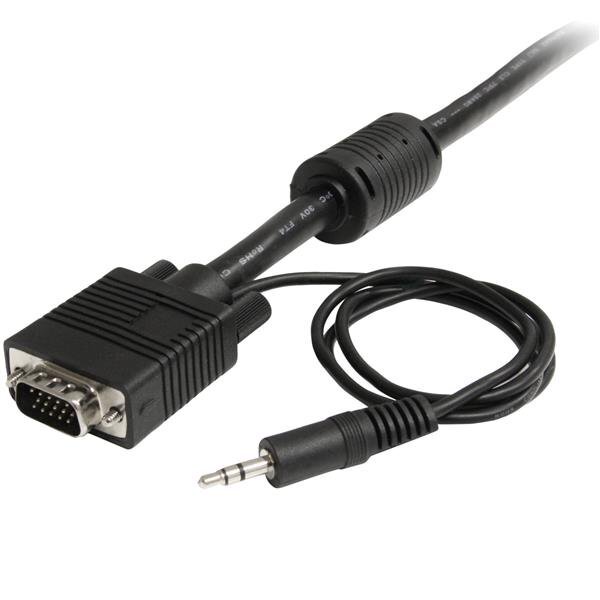

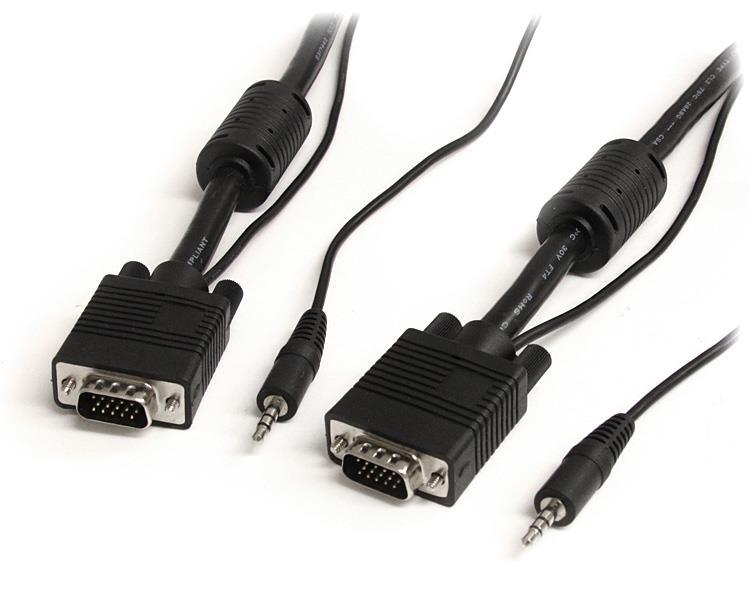

The MXTHQMM5MA 5-meter High Resolution VGA Cable with Audio is a high quality SVGA cable designed to provide the highest video quality possible through VGA - a single cable solution for connecting both video between a VGA video card and monitor, and audio connections between a sound card and external audio device.
StarTech.com’s high resolution VGA cable with audio features high quality male-to-male coaxial VGA cable, and is designed to eliminate picture "ghosting" and fuzzy images that are inherent to non-coaxial cables, while providing superior EMI interference protection by using ferrite cores near the connector ends.
The 5-meter SVGA cable (VGA Cable with Audio) is backed by StarTech.com’s Lifetime Warranty.
(MXTHQMM5MA)
| Warranty Information | ||
|---|---|---|
| Warranty | Lifetime | |
| Hardware | ||
| Cable Jacket Type | PVC - Polyvinyl Chloride | |
| Cable Shield Type | Aluminum-Mylar Foil with Braid | |
| Connector Plating | Nickel | |
| Fire Rating | CMG Rated (General Purpose) | |
| Number of Conductors | 14 | |
| Number of Ferrites | 2 | |
| Regulatory Approvals | UL2919 | |
| Performance | ||
| Impedance | 75 Ohm | |
| Connector(s) | ||
| Connector A | 1 - 3.5 mm Mini-Jack (3 Position) Male | |
| 1 - VGA (15 pin, High Density D-Sub) Male | ||
| Connector B | 1 - 3.5 mm Mini-Jack (3 Position) Male | |
| 1 - VGA (15 pin, High Density D-Sub) Male | ||
| Environmental | ||
| Humidity | 0 - 80 %RH | |
| Operating Temperature | 0 to 60 ¡C | |
| Storage Temperature | -20 to 80 ¡C | |
| Physical Characteristics | ||
| Cable Length | 16.4 ft [5 m] | |
| Color | Black | |
| Connector Style | Straight | |
| Product Length | 16.4 ft [5 m] | |
| Weight of Product | 20.9 oz [592 g] | |
| Wire Gauge | 28 AWG | |
| Packaging Information | ||
| Package Height | 24.6 in [62.5 cm] | |
| Package Length | 10 in [25.5 cm] | |
| Package Quantity | 1 | |
| Package Width | 2.2 in [56 mm] | |
| Shipping (Package) Weight | 1.3 lb [0.6 kg] | |
| What's in the Box | ||
| Included in Package | 1 - 5 m Coax High Resolution Monitor VGA Cable with Audio HD15 M/M | |
| SKU | MXTHQMM5MA |
| Barcode # | 65030846882 |
| Brand | Startech |
| Shipping Weight | 0.6100kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.160m |
| Shipping Cubic | 0.000800000m3 |
