1920 x 1200 VGA output
Connect one VGA monitor or projector at up to 1920 x 1200 at 60Hz, including 1080p.
StarTech 1m USB Type-C to VGA Adapter Cable - CDP2VGAMM1MB
Model # CDP2VGAMM1MB
-
SKU: CDP2VGAMM1MB
$20.00
Stock Availability
🟢Live
In Stock · 10+ available
Pickup from Vermont, VIC
Allow 1–2 business days for stock transfer
Allow 1–2 business days for stock transfer
- Pick Up Available
- Australian Warranty
- Checkout Securely
StarTech.com · CDP2VGAMM1MB

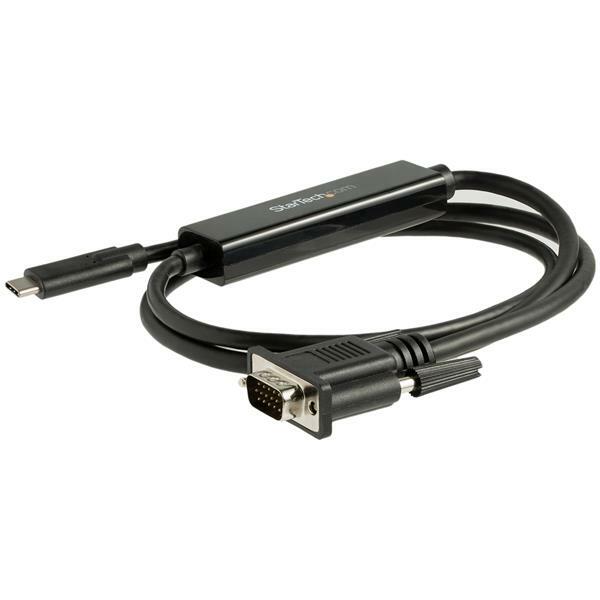

StarTech 1m USB-C to VGA Adapter Cable - 1920 x 1200
Connect a USB-C or Thunderbolt host directly to one VGA monitor or projector with a 1m active cable supporting 1920 x 1200.
1m (3.3ft)1920 x 1200VGA · no audio3-year warranty
Product overview
CDP2VGAMM1MB converts digital DisplayPort Alt Mode video to analogue VGA in one integrated cable. It supports EDID/DDC pass-through, carries no audio and is one-way.
Features that matter
Adapter and cable in one
The integrated male-to-male cable creates a direct workstation or classroom connection with fewer joins and less clutter.
Digital-to-analogue conversion
Integrated electronics convert DisplayPort Alt Mode video to an analogue VGA signal.
Driverless operation
Designed for plug-and-play use with compatible USB-C and Thunderbolt hosts across supported operating systems.
What to know before ordering
Host requirement
The USB-C or Thunderbolt port must support DisplayPort Alt Mode video output.
No audio over VGA
VGA carries video only. Use a separate audio connection when sound is required.
One-way connection
Connect USB-C to the host and VGA to one display. The connection is not bidirectional and has no Power Delivery pass-through.
Warranty confidence in Australia
Australian version · Official StarTech.com warranty
This item is the Australian version supplied by DeviceDeal and is covered by the official 3 years StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
Frequently asked questions
What is StarTech CDP2VGAMM1MB?
CDP2VGAMM1MB is a 1m active cable USB-C to VGA adapter for connecting one DP Alt Mode host to a VGA display.
What is the maximum resolution?
The verified maximum is 1920 x 1200 at 60Hz, with 1080p and lower resolutions also supported.
What must the USB-C port support?
The host USB-C or Thunderbolt port must support DisplayPort Alt Mode video output.
Does VGA carry audio?
No. VGA carries video only, so a separate audio connection is required.
Is the connection bidirectional?
No. It converts video from a USB-C DP Alt Mode host to a VGA display.
Does it require a driver?
No additional display driver is required for a compatible host.
What is included in the package?
The package contains one 1m USB-C to VGA adapter cable.
What warranty applies in Australia?
CDP2VGAMM1MB is the Australian version supplied by DeviceDeal and is covered by the official 3 years StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms, eligibility and product assessment.
(CDP2VGAMM1MB)
Features and highlights
CDP2VGAMM1MB key capabilities
Product-specific highlights verified for this exact StarTech.com model.
1920 x 1200 VGA output
Connect one VGA monitor or projector at up to 1920 x 1200 at 60Hz, including 1080p.
Adapter and cable in one
The integrated male-to-male cable creates a direct workstation or classroom connection with fewer joins and less clutter.
Digital-to-analogue conversion
Integrated electronics convert DisplayPort Alt Mode video to an analogue VGA signal.
Driverless operation
Designed for plug-and-play use with compatible USB-C and Thunderbolt hosts across supported operating systems.
Key highlights
- 1m (3.3ft)
- Up to 1920 x 1200 at 60Hz
- Single VGA display
- Video only · no audio
- Official 3 years StarTech.com manufacturer warranty in Australia
Technical specifications
StarTech CDP2VGAMM1MB
Verified specifications and package details for the exact model.
General and Connectivity
Product type
Active USB-C to VGA adapter cable
Cable length
1m (3.3ft)
Connectors
USB-C DP Alt Mode male to VGA male
Displays supported
1
Colour
Black
Warranty
3 Years
UPC
065030865555
Video
Maximum resolution
1920 x 1200 or 1080p at 60Hz
Bandwidth mode
DisplayPort 1.2 Alt Mode HBR2
EDID / DDC pass-through
Yes
Audio
Not supported over VGA
HDR
No
Power Delivery
No PD pass-through
Hardware and Requirements
Chipsets
VIA Labs VL103; NXP PTN3355
Host requirement
USB-C DisplayPort Alt Mode
Direction
USB-C host to VGA display only
Driver requirement
No additional display driver
Physical and Packaging
Product dimensions (L x W x H)
1040 x 35 x 15mm
Product weight
93g
Operating temperature
070°C
Storage temperature
-1080°C
Humidity
590% RH, non-condensing
Package dimensions (W x D x H)
135 x 124 x 23mm
Shipping weight
82g
Package contents
1 x USB-C to VGA adapter cable
| SKU | CDP2VGAMM1MB |
| Barcode # | 65030865555 |
| Brand | Startech |
| Shipping Weight | 0.1000kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.150m |
| Shipping Cubic | 0.000750000m3 |
Official StarTech.com manufacturer warranty
3 Years
This item is the Australian version supplied by DeviceDeal and is covered by the official 3 years StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
This warranty statement applies to StarTech CDP2VGAMM1MB.
