StarTech 30cm VGA to 2x VGA Video Splitter Cable - VGASPL1VV
Model # VGASPL1VV
-
SKU: VGASPL1VV
- Pick Up Available
- Australian Warranty
- Checkout Securely

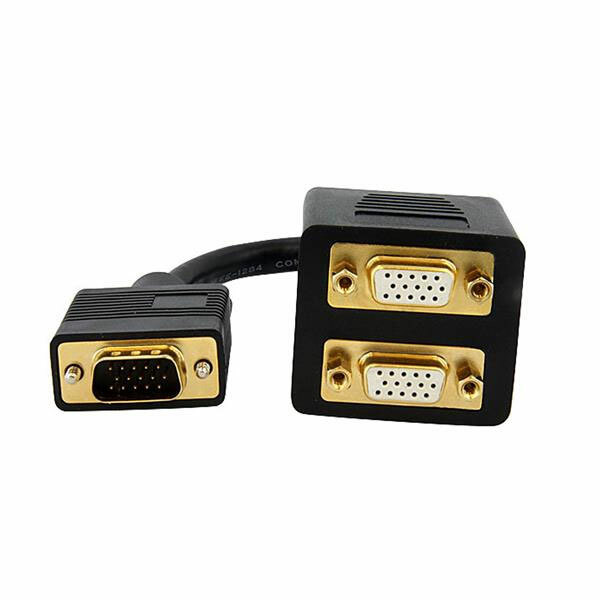

StarTech.com 30cm VGA to Dual-VGA Splitter Cable
A passive VGA splitter cable that sends one analogue VGA source to two VGA displays, showing the same image and resolution on both screens without an external power adapter.
Why choose VGASPL1VV?
Splits one VGA source to two VGA display connections.
Passive design requires no external power adapter.
Supports analogue resolutions up to 2048 x 1536 at 85Hz.
Best-fit applications
- Mirror a presentation on two VGA displays
- Duplicate a test-bench or monitoring screen
- Feed identical signage content to two nearby VGA displays
Australian warranty assurance
Australian version supplied by DeviceDeal. Covered by the official StarTech.com manufacturer warranty in Australia for lifetime. Retain your DeviceDeal tax invoice. Warranty service is subject to StarTech terms, eligibility and product assessment.
Information verified against the supplied DeviceDeal source workbook, the exact DeviceDeal product page and exact-SKU official StarTech.com product data.
Read DeviceDeal buying guidesFrequently asked questions
What does StarTech.com VGASPL1VV do?
A passive VGA splitter cable that sends one analogue VGA source to two VGA displays, showing the same image and resolution on both screens without an external power adapter.
Which devices or systems work with VGASPL1VV?
It requires one VGA source and two VGA displays that support a common analogue resolution. Signal quality also depends on the displays and any additional cable lengths.
What connectors does VGASPL1VV use?
One VGA 15-pin high-density D-Sub male input and two VGA 15-pin high-density D-Sub female outputs.
What performance does VGASPL1VV support?
The maximum listed resolution is 2048 x 1536 at 85Hz; both displays show an identical signal and resolution.
Does VGASPL1VV need external power?
No external power adapter is required because the splitter is passive.
What is included with VGASPL1VV?
One VGA male-to-two-VGA-female passive splitter cable.
What should I check before buying VGASPL1VV?
Both displays receive the same image at the same resolution. This cable cannot extend the desktop, span one image across two screens or display different content on each output.
What warranty applies to VGASPL1VV in Australia?
This Australian version supplied by DeviceDeal carries the official StarTech.com lifetime manufacturer warranty in Australia. Retain your DeviceDeal tax invoice; eligibility and assessment are subject to StarTech terms.
(VGASPL1VV)
Features and highlights
- Splits one VGA source to two VGA display connections
- Passive design requires no external power adapter
- Supports analogue resolutions up to 2048 x 1536 at 85Hz
- Gold-plated connectors with foil-and-braid shielding
- CMG-rated black PVC jacket with 28AWG conductors
StarTech.com 30cm VGA to Dual-VGA Splitter Cable
Product ID: VGASPL1VV
Connectivity
| Input | 1 x VGA 15-pin male |
|---|---|
| Outputs | 2 x VGA 15-pin female |
| Function | Mirrored analogue video splitter |
Performance
| Maximum resolution | 2048 x 1536 at 85Hz |
|---|---|
| Display mode | Identical image and resolution on both outputs |
| Power | Passive; no adapter required |
Cable and warranty
| Nominal length | 30cm (1ft) |
|---|---|
| Colour | Black |
| Jacket | PVC, CMG rated |
| Wire gauge | 28 AWG |
| Warranty | Lifetime |
| SKU | VGASPL1VV |
| Barcode # | 65030837781 |
| Brand | STARTECH |
| Shipping Weight | 0.1700kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.140m |
| Shipping Cubic | 0.000700000m3 |
Lifetime StarTech.com warranty
Australian version supplied by DeviceDeal. Covered by the official StarTech.com manufacturer warranty in Australia for lifetime. Retain your DeviceDeal tax invoice. Warranty service is subject to StarTech terms, eligibility and product assessment.
Keep your proof of purchase: retain the DeviceDeal tax invoice supplied with your order.
