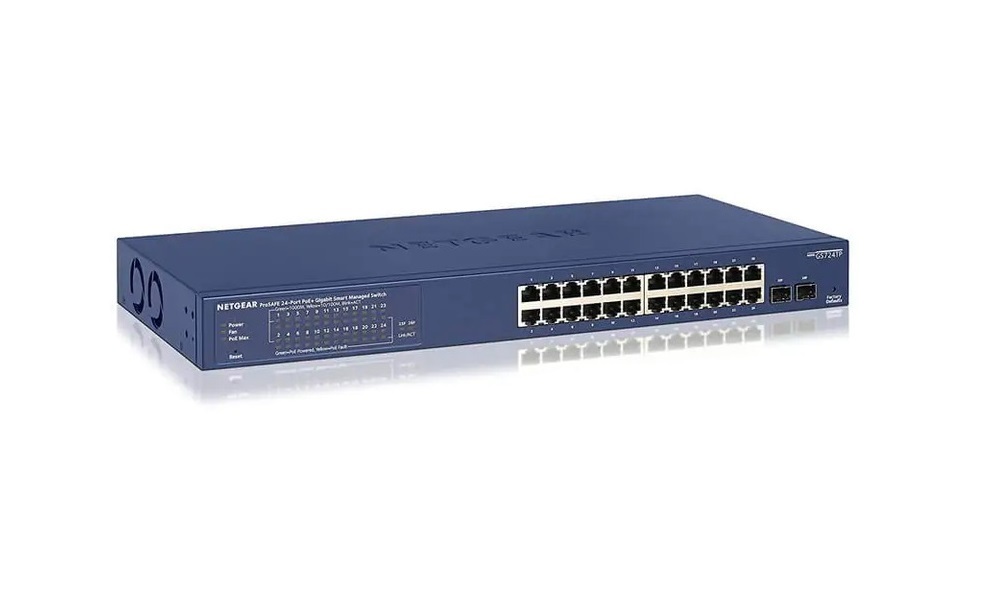

GS724TPv2: 24-port Gigabit PoE+ Smart Managed Pro Switch

• 24 x 1000BASE-T PoE+ Copper ports

• 2 x 1000BASE-X Dedicated Fiber SFP ports

• 190W PoE budget (max 32.4dB @ 25°C / 77°F ambient)



Going Gigabit and PoE+ Just Got More Cost-Effective!

As a leading provider of network equipment for SMBs, NETGEAR® understands the importance of providing great choice of PoE port counts and power budgets that can adapt to the business’s needs, whether in the hospitality, catering, education or retail domains.

The GS724TPv2 24-Port Gigabit Switch with PoE+ and 2 SFP Ports joins the NETGEAR Standalone Smart Managed Pro Switches family, adding full 24 port PoE+ support for deployment of modern high-power PoE devices. Cautious spender organizations can now deploy denser PoE+ devices connected to a cost-effective switch, with a reasonable PoE power budget of 190W.

NETGEAR Smart Managed Pro Switches offer powerful Layer 2 features, great PoE functionality, and enhanced performance and usability. These switches are the ideal solution even for the most advanced small and medium organizations looking for the best combination of features, performance, and value: they are purposely designed for converged networks where voice, video, data are all carried on a single network platform.

Temperature- and load-based fan-speed control combines accurate monitoring with minimized system acoustic noise: the GS724TPv2 supports quiet rack mounting operation with a maximum of 32.4dB even at full power and 25°C (77°F) ambient.

Highlights

The GS724TPv2 24-Port Gigabit Smart Managed Pro Switch provides a great value, with configurable L2 network features like VLANs and PoE operation scheduling, allowing SMB customers to deploy PoE-based VoIP phones and IP surveillance. Advanced features such as Access Control Lists (ACLs), L2/L3/L4 QoS (DiffServ), LACP link aggregation and Spanning Tree will satisfy even the most advanced small business networks.

Key features include:

• Advanced VLAN support for better network segmentation

• L2/L3/L4 access control lists (ACLs) for granular network access control including 802.1x port authentication

• Advanced per port PoE controls for remote power management of PoE connected devices including operation scheduling (e.g. Wireless APs, IP security cameras, LED lighting, secure access door locks, IoT devices…)

• Advanced QoS (Quality of Service) for traffic prioritization including port-based, 802.1p and L2/L3/L4 DSCP-based • Auto “denial-of-service” (DoS) prevention

• IGMP Snooping and Querier for multicast optimization

• Rate limiting and priority queuing for better bandwidth allocation

• Port mirroring for network monitoring

• Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings

• Cable test to troubleshoot connection issues • SNMP v1, v2c, v3 and RMON remote monitoring

Build a high-value network with NETGEAR:

• Solid performance with 52Gbps nonblocking architecture, 8K MAC addresses, 256 VLANs, 100 shared ACLs and 128 Multicast groups

• PoE+ support on all ports, providing flexibility in the future to add more power-hungry devices such as video phone, PTZ camera and 11ac Wireless APs into the network

• 2 Dedicated SFPs, not only providing fiber uplinks, but also uplink redundancy and failover, improving reliability and availability for the network

Smart IT, not Big IT

• Easy-to-use Web browser-based management GUI makes setup and management simple

• Standards-based technology ensures interoperability with any standards-based devices in the existing network

• Dual firmware images improve reliability and uptime to your network

• Worry-free with NETGEAR ProSAFE® LIFETIME Hardware Warranty*

• Minimal down-time with NETGEAR ProSAFE LIFETIME Next-Business-Day Replacement Warranty

• Get deployment assistance with 90-days Free 24x7 Advanced Technical Phone Support**

• LIFETIME Online Chat Technical Support



Link to Data GS724TP Sheet





(GS724TP)

Hardware at a Glance


FRONT
REAR
SIDE
Model Name
Form-Factor
10/100/
1000BASE-T RJ45 Ports
100/1000X
Fiber SFP Ports
PoE+ 802.3at Ports (Budget)
PowerSupply

Fans

GS724TPv2
Rackmount
24
2
24 PoE+ (190W)
1 internal PSU, fixed
2 internalfans, fixed

Differences between GS724TPv2 and GS728TP

Model Name
Gigabit Ports
PoE
Layer 2 Smart Switch Features
Layer 3 Static Routing
IPv6 Support
GS724TPv2
24 x 1G and 2 dedicated SFP
24 x PoE+ 190W
Yes, ACLs, STP, LACP, etc.
No
No
GS728TP
24 x 1G and 4 dedicated SFP
24 x PoE  (8 x PoE+) 192W
Yes, ACLs, STP, LACP, etc.
Yes
Yes







Link to  GS724TP Data Sheet

General Information
Product Name 24-Port Gigabit PoE+ Ethernet
Manufacturer Part Number GS724TP-200AJS
Product Model GS724TPv2
Interfaces/Ports
Total Number of Network Ports 24
Modular Yes
Port / Expansion Slot Details 24 x Gigabit Ethernet Network

2 x Gigabit Ethernet Expansion Slot

I/O Expansions
Number of Total Expansion Slots 2
Expansion Slot Type SFP
Number of SFP Slots 2
Media & Performance
Media Type Supported Optical Fiber

Twisted Pair

Ethernet Technology Gigabit Ethernet
Network Technology 1000Base-T

1000Base-X

Network & Communication
Layer Supported 2
Power Description
Power Source Power Supply
Redundant Power Supply Supported No
Management & Protocols
Manageable Yes
Physical Characteristics
Form Factor Desktop

Rack-mountable

Height 1.7"
Width 17.3"
Depth 8"


SKU GS724TP
Barcode # 606449119220
Brand Netgear
Shipping Weight 4.7000kg
Shipping Width 31.800m
Shipping Height 0.890m
Shipping Length 56.400m
Shipping Cubic 0.017920000m3
Manufacturer Warranty
Limited Product Lifetime Warranty
Manufacturer Contact Info
http://www.netgear.com.au/
(02) 8117 6800
