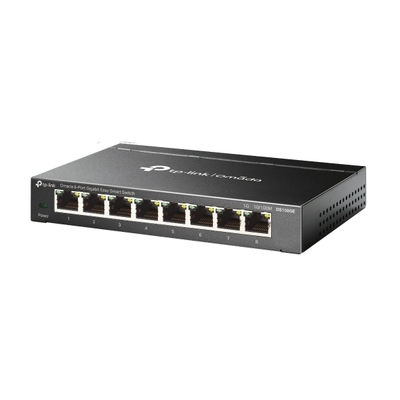

TP-LINK DS108GE Omada 8-Port Gigabit Easy Smart Switch
Model # DS108GE
-
SKU: DS108GE
- Pick Up Available
- Australian Warranty
- Checkout Securely
TP-LINK DS108GE Omada 8-Port Gigabit Easy Smart Switch
- 8× 10/100/1000Mbps RJ45 ports
- Plug and play for instant connectivity
- Simple configuration via web-based user interface and management utility*
- Durable metal casing of superior quality and professional appearance
- Green technology reduces power consumption
- Note: This Omada Easy Smart switch does not support Omada SDN central management.
(DS108GE)
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
|---|---|
| Interface | • 8× 10/100/1000 Mbps RJ45 Ports • AUTO Negotiation/AUTO MDI/MDIX |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| Power Supply | External Power Adapter(Output: 5 VDC/ 0.6 A) |
| Dimensions ( W x D x H ) | 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm) |
| Max Power Consumption | 3.68 W (220 V/ 50 Hz) |
| Max Heat Dissipation | 12.55 BTU/h |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 16 Gbps |
| Packet Forwarding Rate | 11.9 Mpps |
| MAC Address Table | 4 K |
| Packet Buffer Memory | 1.5 Mb |
| Jumbo Frame | 16 KB |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | • Port/802.1p/DSCP priority • Support 4 priority queues • Rate Limit • Storm Control |
| L2 Features | • IGMP Snooping • Static Link Aggregation • Port Mirroring • Cable Diagnostics • Loop Prevention |
| VLAN | • Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) • MTU/Port/Tag VLAN |
| Transmission Method | Store-And-Forward |
| OTHERS | |
|---|---|
| Certification | FCC, CE, RoHS |
| Package Contents | • DS108GE • Power Adapter • Installation Guide |
| System Requirements | Microsoft® Windows® for running Utility |
| Environment | • Operating Temperature: 0℃~40℃ (32℉~104℉) • Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing |
| SKU | DS108GE |
| Brand | TP-LINK |
| Shipping Weight | 0.7100kg |
