Powerful Enterprise Switch Models

The UniFi® Switch delivers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. Total non-blocking throughput: up to 26 Gbps for 24-port models and up to 70 Gbps for 48-port models.





Advanced Port Management

Each switch port offers custom settings: port name, PoE, network/VLAN configuration, and operation mode (switching, mirroring, or aggregate) - as well as 802.1X Authentication and Radius VLAN support.





Optical Fiber Connectivity

Two SFP ports support uplinks of up to 1 Gbps. For high-capacity uplinks, each 48-port model includes two SFP+ ports for uplinks of up to 10 Gbps.




Convenient PoE+ Support

The UniFi® Switch features auto-sensing IEEE 802.3af/at and 24V passive PoE to power multiple devices on the network.




Breakthrough Value

The UniFi® Switch provides top price/performance value: a full-featured, enterprise-class switch starting at $399 USD MSRP.




Seamless Integration

The UniFi® Switch integrates seamlessly into the UniFi Software-Defined Networking (SDN) platform to create a highly scalable, end-to-end system of network devices across multiple locations — all controlled from a single interface.

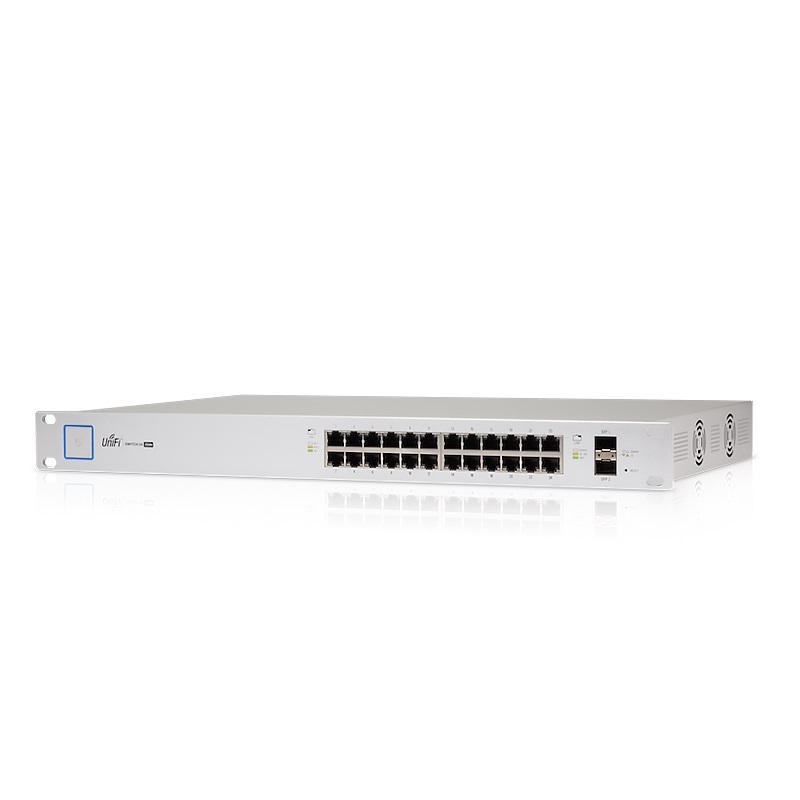

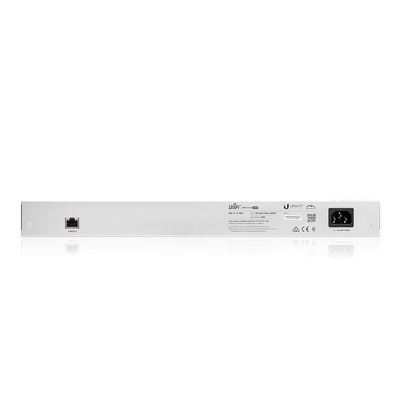

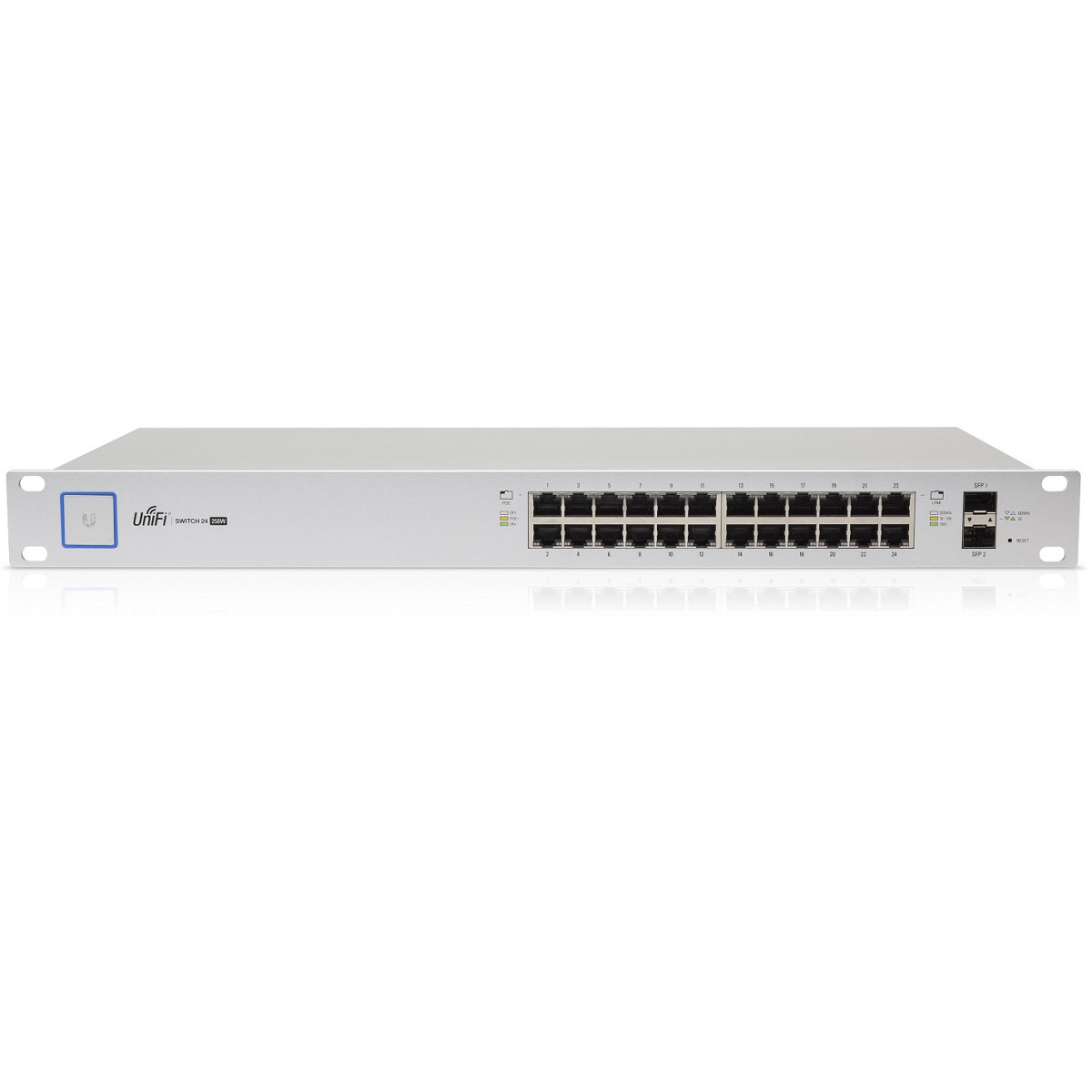

Ubiquiti Networks UniFi Switch US-24-250W 24 Port Managed PoE+ Gigabit Switch

24x Gigabit RJ45 ports - 2x SFP ports - 1x Serial console port - 52 Gbps Switching capacity - Supports POE+ IEEE 802.3at/af and 24V Passive PoE - Rackmountable

Layer 2, PoE switch with (24) GbE, PoE+ and 24V passive PoE RJ45 ports and (2) 1G SFP ports.

(24) GbE PoE+ ports

(2) 1G SFP ports

250W total PoE availability

(US-24-250W-AU)

Mechanical
Dimensions 485 x 285.4 x 43.7 mm (19.1 x 11.2 x 1.7")
Weight 4.8 kg (10.6 lb)
Enclosure material SGCC steel
Hardware
Management interface Ethernet In-Band
(1) RJ45 Serial port Out-of-Band
Networking interface (24) GbE RJ45 ports
(2) 1G SFP ports
PoE interface (24) PoE/PoE+ (Pins 1, 2+; 3, 6-)
24V DC passive PoE (Pins 4, 5+; 7, 8-)
Total non-blocking throughput 26 Gbps
Switching capacity 52 Gbps
Forwarding rate 38.69 Mpps
Power method Universal input, 100—240V AC, 50/60 Hz
Power supply AC/DC, internal, 2500W
Supported voltage range 100—240V AC
Max. power consumption Excluding PoE output: 30W
Including PoE output: 250W
Total available PoE 250W
Max. PoE wattage per port by PSE 24V Passive PoE: 17W
PoE+: 34W
Voltage range PoE mode 24V Passive PoE: 20–27V
PoE+: 50—57V
ESD/EMP protection Air: ± 24kV, contact: ± 24kV
Sound level*
Fan level 0
Fan level 1
Fan level 2
Fan level 3

9.1 dBr
14.2 dBr
16.8 dBr
21.2 dBr
* Background noise level: 27.5 dBa.
Shock and vibration ETSI300-019-1.4 Standard
Operating temperature -5 to 40° C (23 to 104° F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
LEDs
System Status
Ethernet PoE
Speed/Link/Activity
SFP Speed/Link/Activity



SKU US-24-250W-AU
Barcode # 817882023061
Brand UBIQUITI
Shipping Weight 4.6427kg
Shipping Width 0.332m
Shipping Height 0.079m
Shipping Length 0.571m
Shipping Cubic 0.014976000m3

Manufacturer Warranty : 1 Year Manufacturer Warranty
