Mechanical

Dimensions

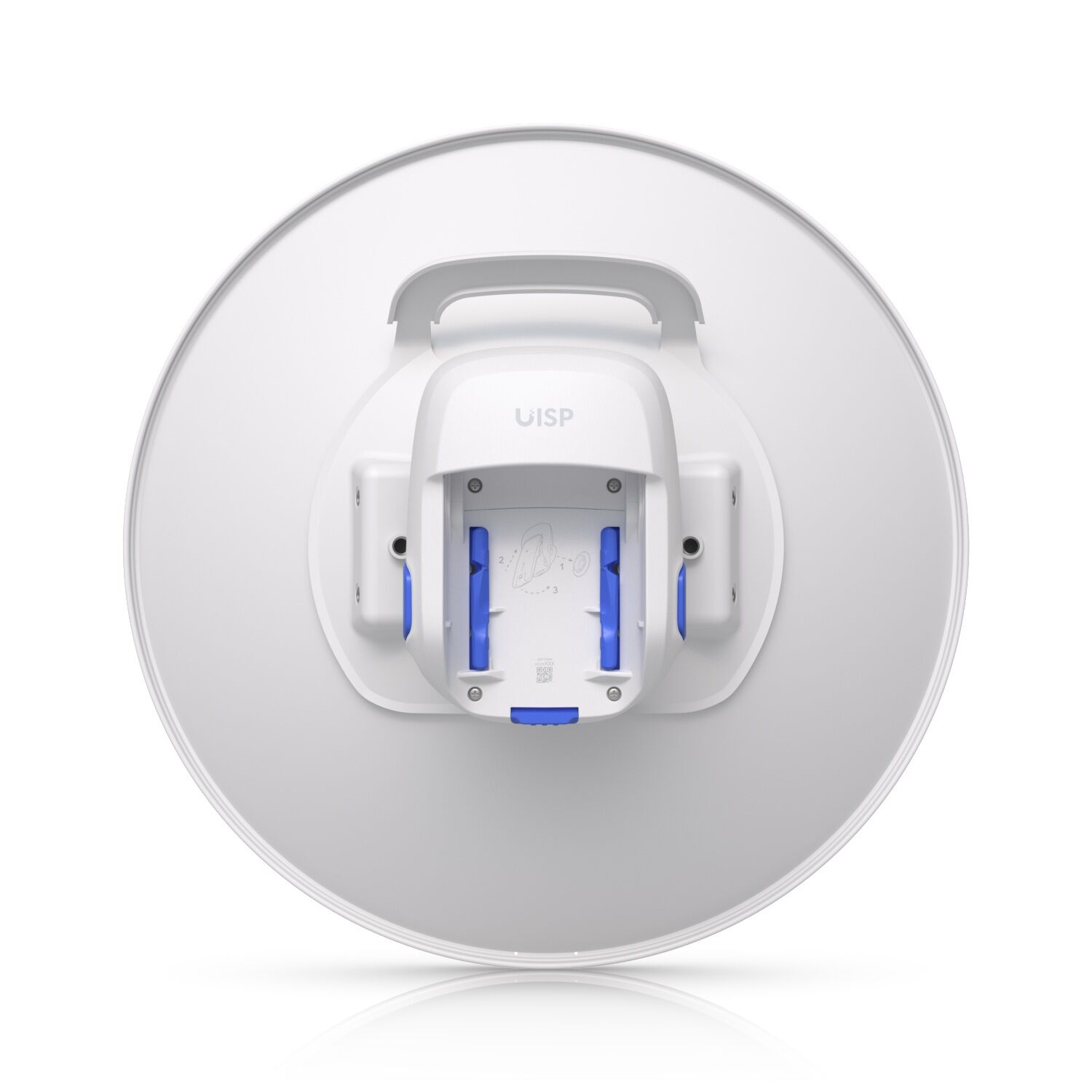

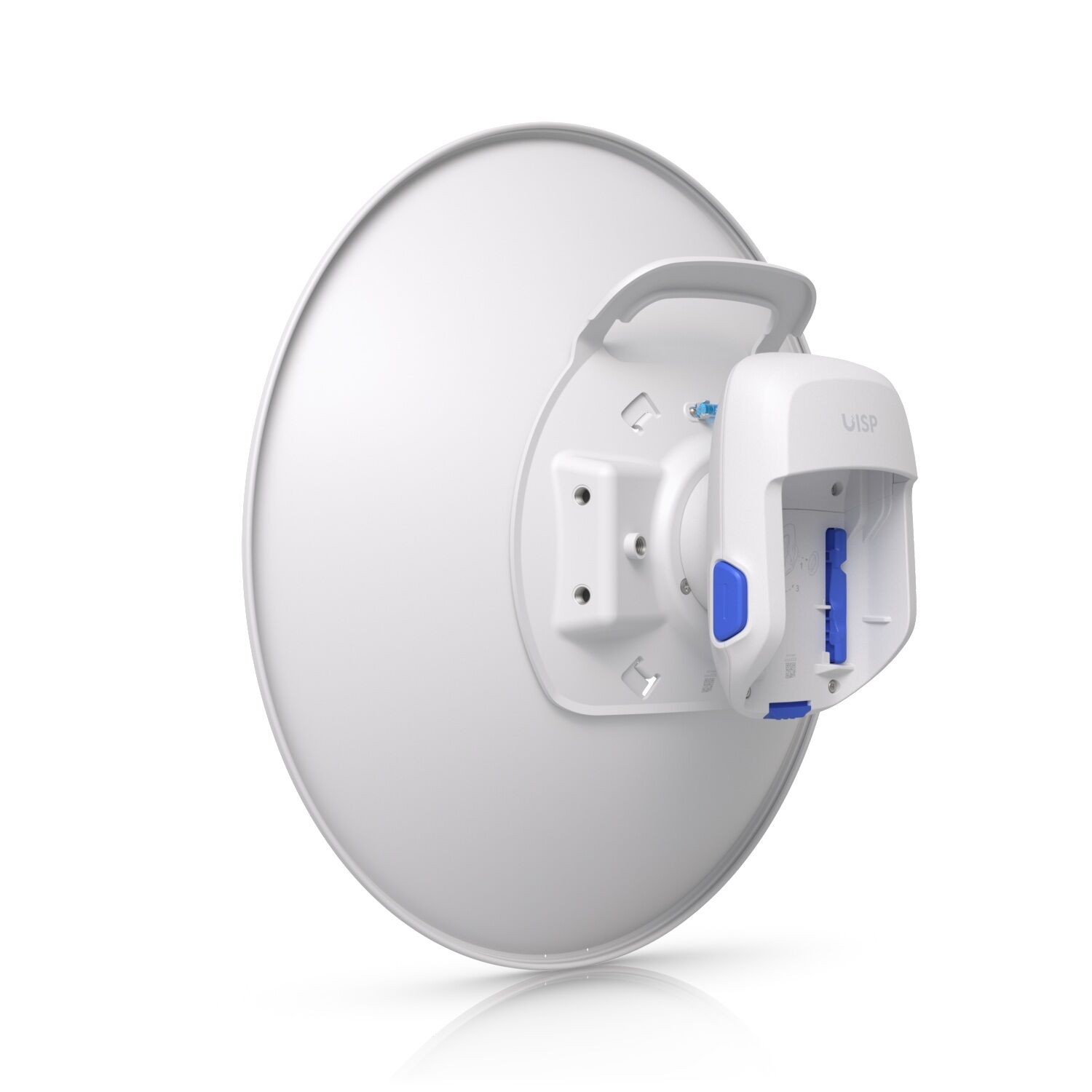

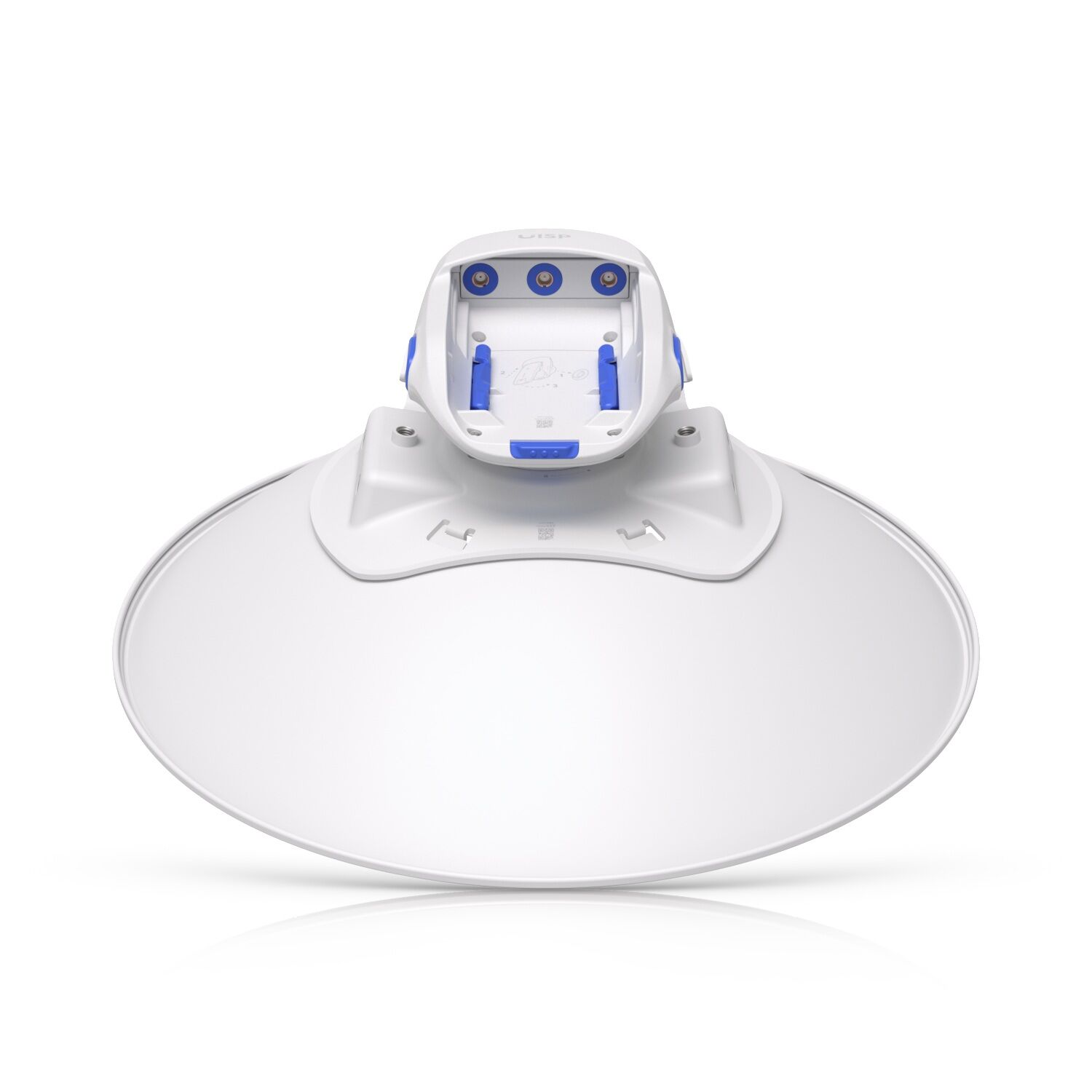

Antenna dish: Ø420 x 140 mm (Ø25.6 x 7.9") Antenna dish with Waveguide: Ø420 x 211.3 mm (Ø25.6 x 8.3")

Weight

Antenna dish: 1.95 kg (4.3 lb) Mount: 1 kg (2.2 lb) Waveguide: 0.45 kg (1 lb)

Enclosure Material

Antenna dish: Powder-coated galvanized steel, UV-stabilized polycarbonate Waveguide: Aluminum alloy, UV-stabilized polycarbonate

Mount Material

Powder-coated galvanized steel, aluminum alloy

Wind Survivability

Up to 200 km/h (124 mph)

Wind Loading

348 N at 200 km/h (78 lbf at 124 mph)

Mounting

Pole mount Alignment mounting kit (Included) Mechanical adjustment: ±20° elevation

Pole Mount Diameter

Ø1.25–3" (Ø32–76 mm)

Weatherproofing

IPX6

Hardware

Frequency Range

5.15 to 6.875 GHz

Gain

26 dBi

Beamwidth

Azimuth: 5.8 to 9° (3 dB) / 7.6 to 12.5° (6 dB) Elevation: 5.8 to 9° (3 dB) / 7.6 to 12.5° (6 dB)

Electrical Downtilt

0°

Max. VSWR

2:1

Polarization

Dual-Linear

Cross-Pol Isolation

15 dB

NDAA Compliant

✓

Manufacturer Warranty

1 Year Manufacturer Warranty
