Atdec mounting solution

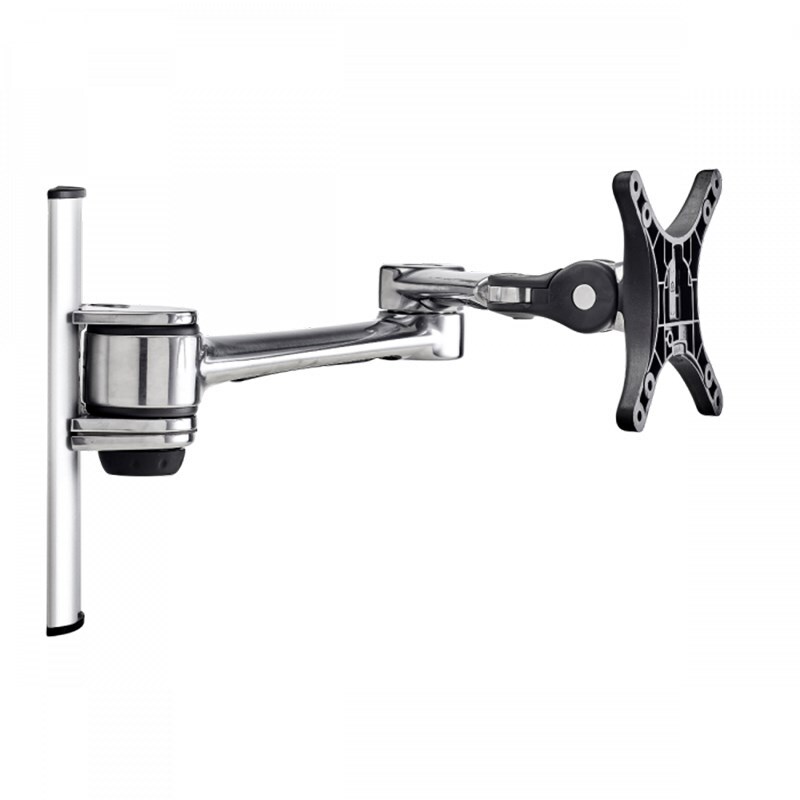

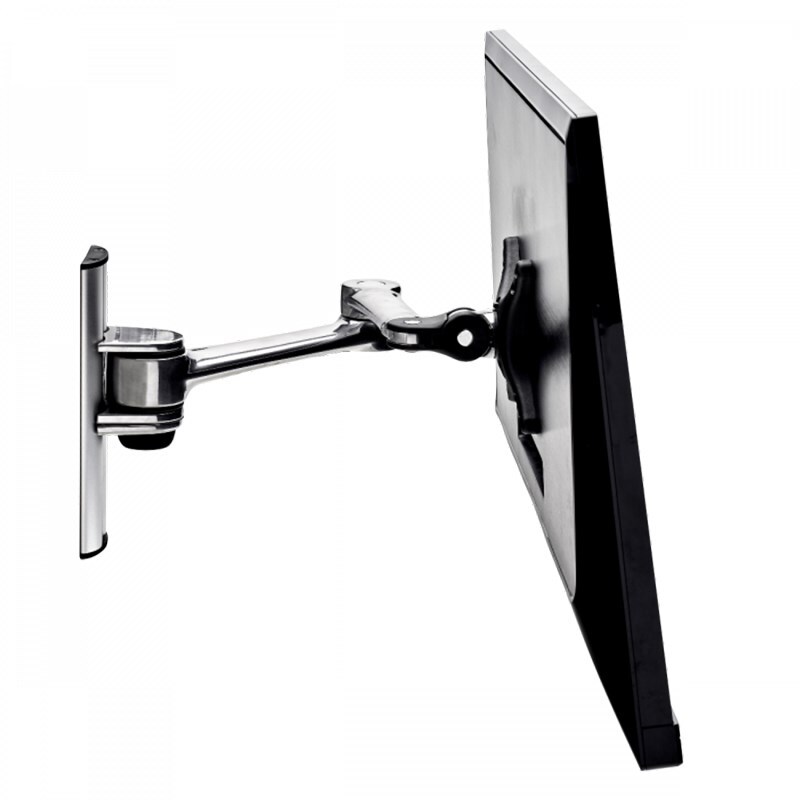

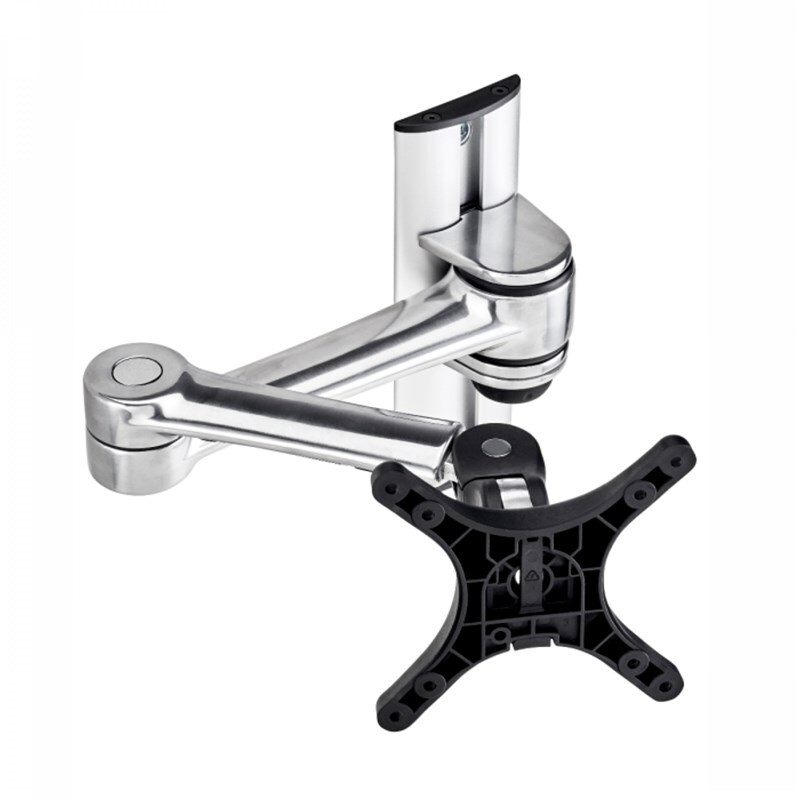

Atdec AF-AT-W-P Full-Motion Monitor Wall Mount - Silver

A silver full-motion wall mounting arm for one monitor, supporting flat screens up to 8kg or curved screens up to 5.5kg with VESA 75 x 75 or 100 x 100 mounting.

Atdec AF-AT-W-P silver full-motion monitor wall mount

Flat or curved monitor support

Supports flat screens up to 8kg and curved screens up to 5.5kg.

Three pivot points

Provides articulated movement with tilt and pan adjustment.

Tool-less height adjustment

Allows the monitor height to be changed without tools.

Full-motion wall mounting

The AF-AT-W-P mounts one compatible monitor to a wall while supporting flexible positioning.

Flat and curved load limits

The supplied limits distinguish between flat-screen and curved-screen monitor configurations.

Compact articulated reach

The mounting arm has a supplied depth of 45.4cm and uses three pivot points for positioning.

Installation hardware included

The supplied package contains the mounting arm and the required installation hardware.

Frequently asked questions

What weight can the AF-AT-W-P support?

It supports flat-screen monitors up to 8kg and curved monitors up to 5.5kg.

Which VESA patterns are supported?

The supplied VESA patterns are 75 x 75 and 100 x 100mm.

What warranty is supplied?

The supplied manufacturer warranty period is 10 years.

(AF-AT-W-P)

Atdec AF-AT-W-P Full-Motion Monitor Wall Mount - Silver features

Dual load ratings

Provides separate limits for flat and curved monitors.

Articulated positioning

Uses three pivot points with tilt and pan.

Tool-less height

Adjusts monitor height without additional tools.

Two VESA patterns

Supports 75 x 75 and 100 x 100mm mounting.

Confirm screen type, weight, VESA pattern and wall structure before installation.

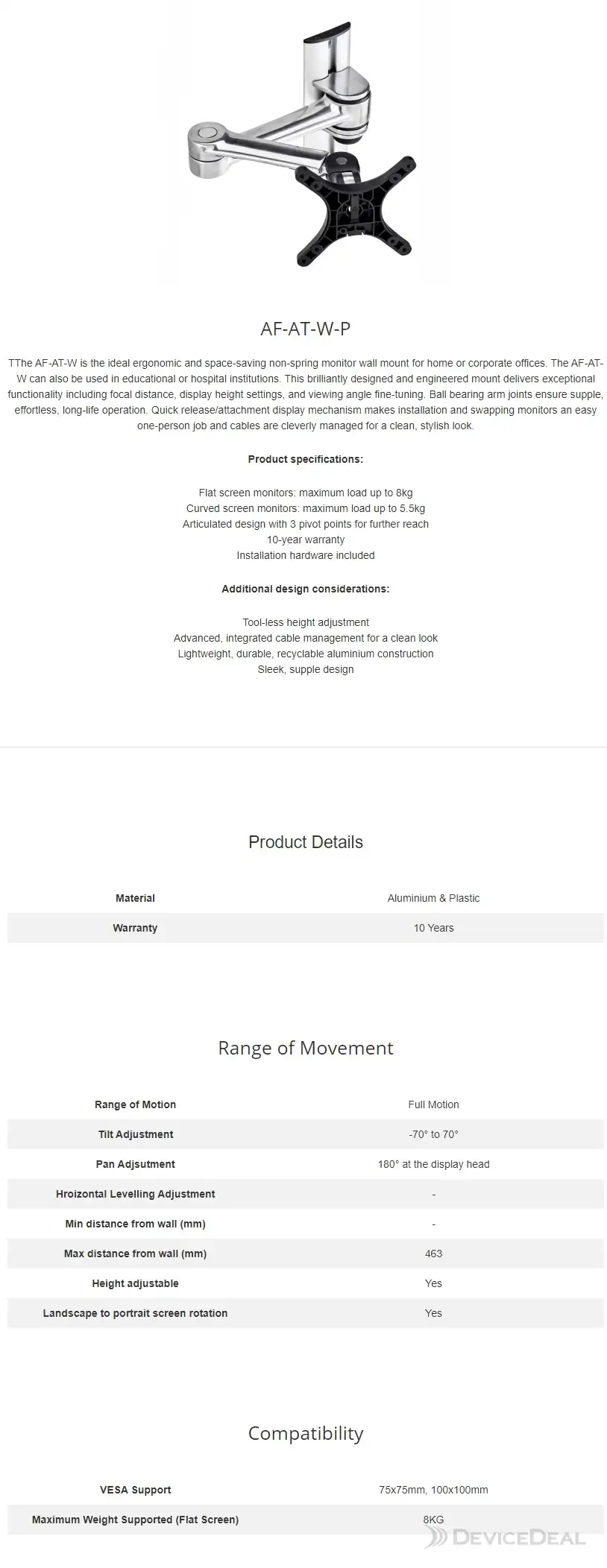

Atdec AF-AT-W-P Full-Motion Monitor Wall Mount - Silver specifications

Product details

Product type	Full-motion monitor wall mounting arm
Model	AF-AT-W-P
Colour	Silver
Number of displays	1
Flat-screen maximum load	8kg
Curved-screen maximum load	5.5kg
VESA support	75 x 75 and 100 x 100mm
Pivot points	3
Adjustment	Tool-less height, tilt and pan
Depth	45.4cm
Materials	Aluminium and plastic
Package contents	Mounting arm and installation hardware
Warranty	10 years

SKU	AF-AT-W-P
Barcode #	881493010918
Brand	ATDEC
Shipping Weight	5.5000kg
Shipping Width	0.180m
Shipping Height	0.300m
Shipping Length	0.110m

10 yearsManufacturer warranty

Buy with confidence from DeviceDeal

DeviceDeal is an authorised Atdec reseller. The Atdec AF-AT-W-P Full-Motion Monitor Wall Mount - Silver is supplied with the stated 10 years manufacturer warranty.
