Atdec mounting solution

Atdec Telehook TH-3070-UT Heavy-Duty Tilt Wall Mount

Support a large display weighing up to 91kg with a durable tilt wall mount offering 20 degrees of adjustment and a padlock-ready security bar.

91kg maximum load

Provides heavy-duty support for large displays weighing up to 91kg.

20-degree tilt range

Adjusts from 15 degrees positive tilt to 5 degrees negative tilt after installation.

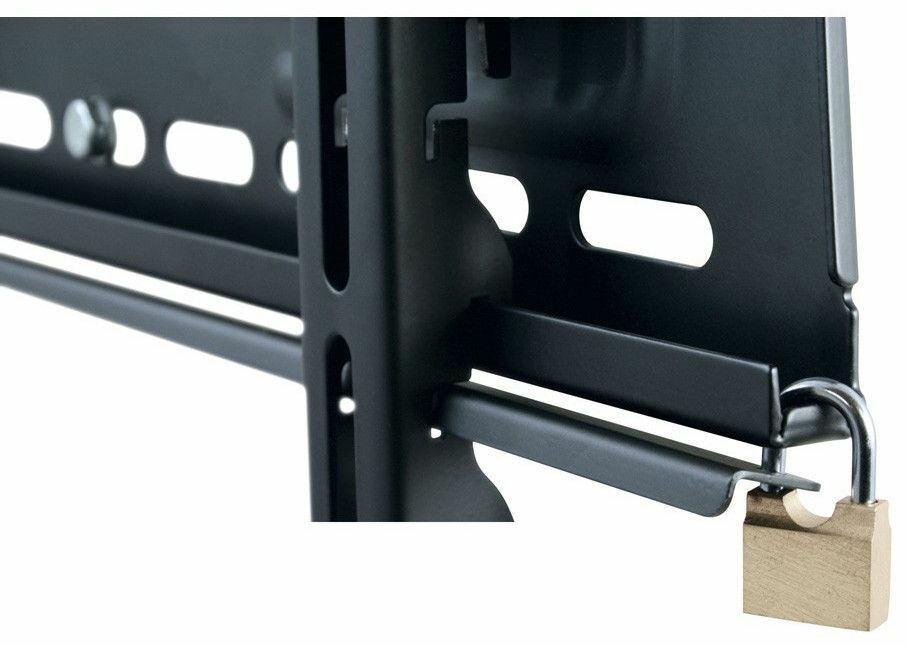

Security bar

Accepts a small padlock to help deter display theft.

Heavy-duty tilted viewing

The mount combines a high load rating with post-installation tilt adjustment for large displays.

Defined wall clearance

The installed screen is held 72.5mm from the wall, balancing tilt movement with a streamlined position.

Broad display mounting support

Supports VESA mounting patterns up to 800 x 500mm.

Lockable protection

A built-in security bar can be secured with a small padlock supplied separately.

Buy with confidence from DeviceDeal

DeviceDeal is an authorised Atdec reseller. This product is supplied with the 10-year manufacturer warranty.

Frequently asked questions

How much tilt is available?

The mount provides 20 degrees of adjustment, from 15 degrees positive to 5 degrees negative tilt.

What is the maximum display load?

The TH-3070-UT supports a display weighing up to 91kg.

How far does the screen sit from the wall?

The supplied product information specifies 72.5mm from the wall.

(TH-3070-UT)

Atdec Telehook TH-3070-UT Heavy-Duty Tilt Wall Mount features

High-capacity support

Mounts large displays weighing up to 91kg.

Post-installation tilt

Fine-tune the viewing angle after the display has been mounted.

Universal VESA range

Supports mounting patterns up to 800 x 500mm.

Padlock-ready security

Provides a straightforward theft-deterrent option for the installed display.

The TH-3070-UT provides heavy-duty display support, a defined 20-degree tilt range and an integrated security-bar option.

Atdec Telehook TH-3070-UT Heavy-Duty Tilt Wall Mount specifications

Product details

Model	TH-3070-UT
Mount type	Heavy-duty tilt wall mount
Maximum display load	91kg
VESA compatibility	Up to 800 x 500mm
Tilt range	20 degrees total: +15 to -5 degrees
Wall clearance	72.5mm
Security	Lockable security bar; small padlock required
Mounting hardware	Included

Warranty

Coverage	10 years

SKU	TH-3070-UT
Barcode #	881493004788
Brand	ATDEC
Shipping Weight	6.6000kg
Shipping Width	0.280m
Shipping Height	0.880m
Shipping Length	0.080m
Shipping Cubic	0.016632000m3

10 yearsManufacturer warranty

Buy with confidence from DeviceDeal

DeviceDeal is an authorised Atdec reseller. The Atdec Telehook TH-3070-UT Heavy-Duty Tilt Wall Mount is supplied with the stated 10-year manufacturer warranty.
