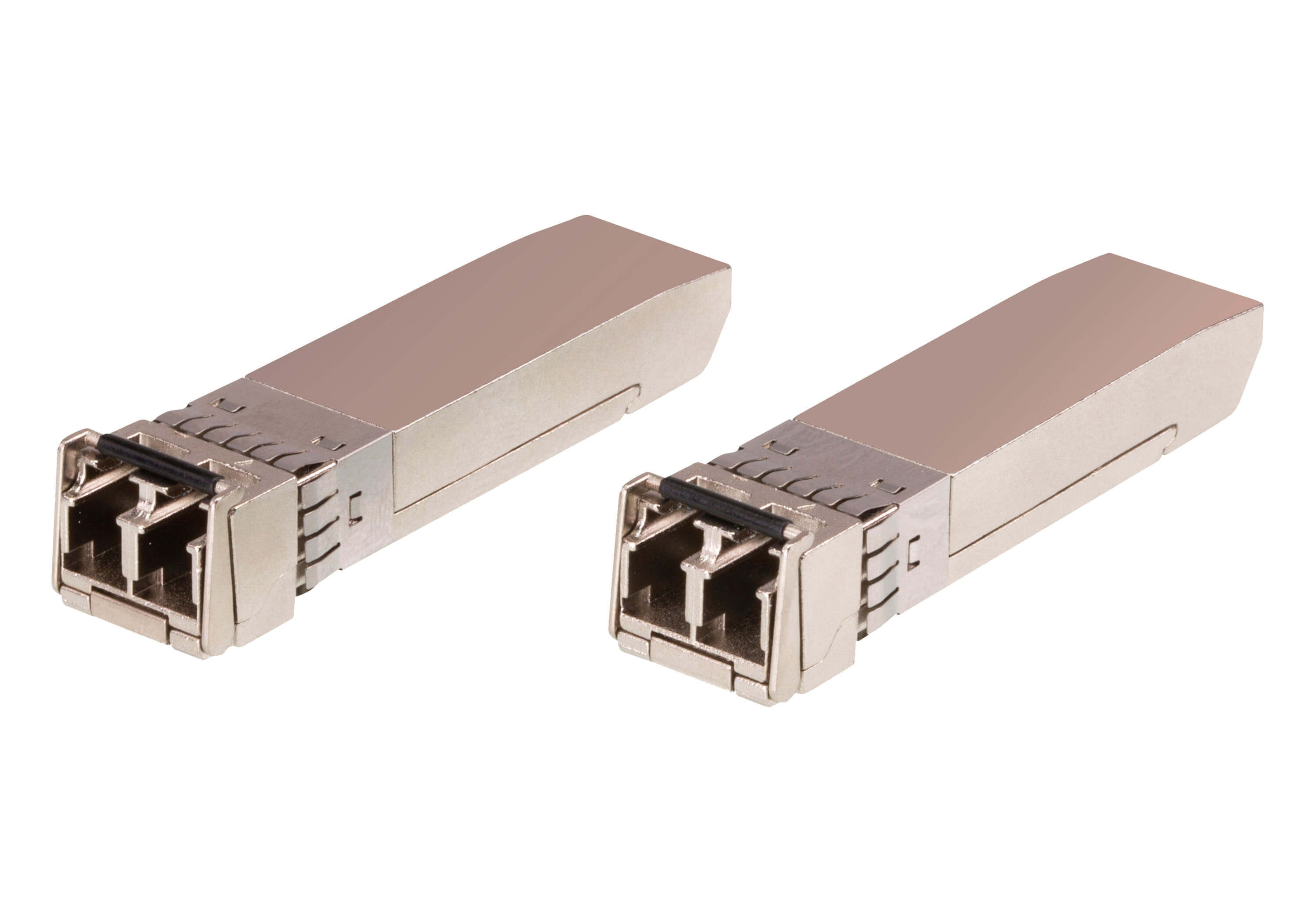

The 2A-141G 10G Multi-Mode/300M Fiber SFP+ Module is designed for use in 10GbE Ethernet environment that allows you to connect a multi-mode Gigabit Ethernet network cable to a network switch’s SFP+ port. The 2A-141G provides 10GbE connectivity at distances up to 300 meters. As a hotpluggable module with a standard duplex connector for fiber communications, the 2A-141G works with multi-mode-fiber (MMF) connections and operates at a nominal wavelength of 850 nm. This makes the module a cost-effective and highperformance transceiver to substantially increase the span of a compatible network switch.

Package Contents

2 x 10G Multi-Mode/300M Fiber SFP+ Module

(2A-141G)

Fiber Optics
Data Rate	10 Gbps
Operating Distance	300 m
Fiber Type	Multi Mode
Connector Type	LC
DDM	Yes
Environmental
Operating Temperature	0-70°C
Storage Temperature	-40-85°C
Physical Properties
Weight	0.02 kg ( 0.04 lb )
Dimensions (L x W x H)	5.59 x 1.46 x 1.30 cm (2.2 x 0.57 x 0.51 in.)
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
