StarTech.com · J9152D-ST

StarTech J9152D-ST HPE J9152D-Compatible 10GBASE-LRM SFP+ Transceiver

HPE J9152D-Compatible 10GBASE-LRM SFP+ Transceiver for professional networking or ergonomic workstation applications.

Quick answer: J9152D-ST provides a 10GbE 10GBASE-LRM link over multimode fibre through LC duplex.

Best forCompatible HPE network links using multimode fibre and requiring up to 200m reach at 1310nm.

Check before orderingConfirm HPE J9152D coding, SFP+ host support, 10GBASE-LRM compatibility, LC duplex multimode fibre and link distance.

Answers before you buy

Frequently asked questions

What is StarTech J9152D-ST?

It is a HPE-compatible multimode SFP+ transceiver that provides a 10GbE 10GBASE-LRM link over multimode fibre through LC duplex.

Which connections or mounting method are provided?

SFP+ slot to LC duplex fibre

What performance is specified?

10GBASE-LRM; up to 10.31Gbps; 1310nm; multimode fibre; up to 200m

Does it require power?

Less than 1W

Is this an SR or LRM module?

J9152D-ST is a 10GBASE-LRM transceiver operating at 1310nm over multimode fibre, with reach up to 200m.

Does it support DDM?

Yes. DDM is supported for compatible host and network-management environments.

What should be checked before ordering?

Confirm HPE J9152D coding, SFP+ host support, 10GBASE-LRM compatibility, LC duplex multimode fibre and link distance.

What warranty applies?

J9152D-ST carries a StarTech.com limited lifetime manufacturer warranty, subject to the manufacturer's terms and eligibility requirements.

Planning a broader setup? Browse the DeviceDeal buying guides.

(J9152D-ST)

Features & highlights

Why choose J9152D-ST?

?Purpose-built designSFP+ slot to LC duplex fibre

?Specified performance10GBASE-LRM; up to 10.31Gbps; 1310nm; multimode fibre; up to 200m

?Power arrangementLess than 1W

?Construction and deploymentHot-swappable steel SFP+ module with DDM

?Key capabilitySupports 10GBASE-LRM for 10GbE operation over compatible multimode fibre links up to 200m.

?Installation advantageDesigned, programmed and tested for HPE J9152D host compatibility.

Compatibility reminder: Confirm HPE J9152D coding, SFP+ host support, 10GBASE-LRM compatibility, LC duplex multimode fibre and link distance.

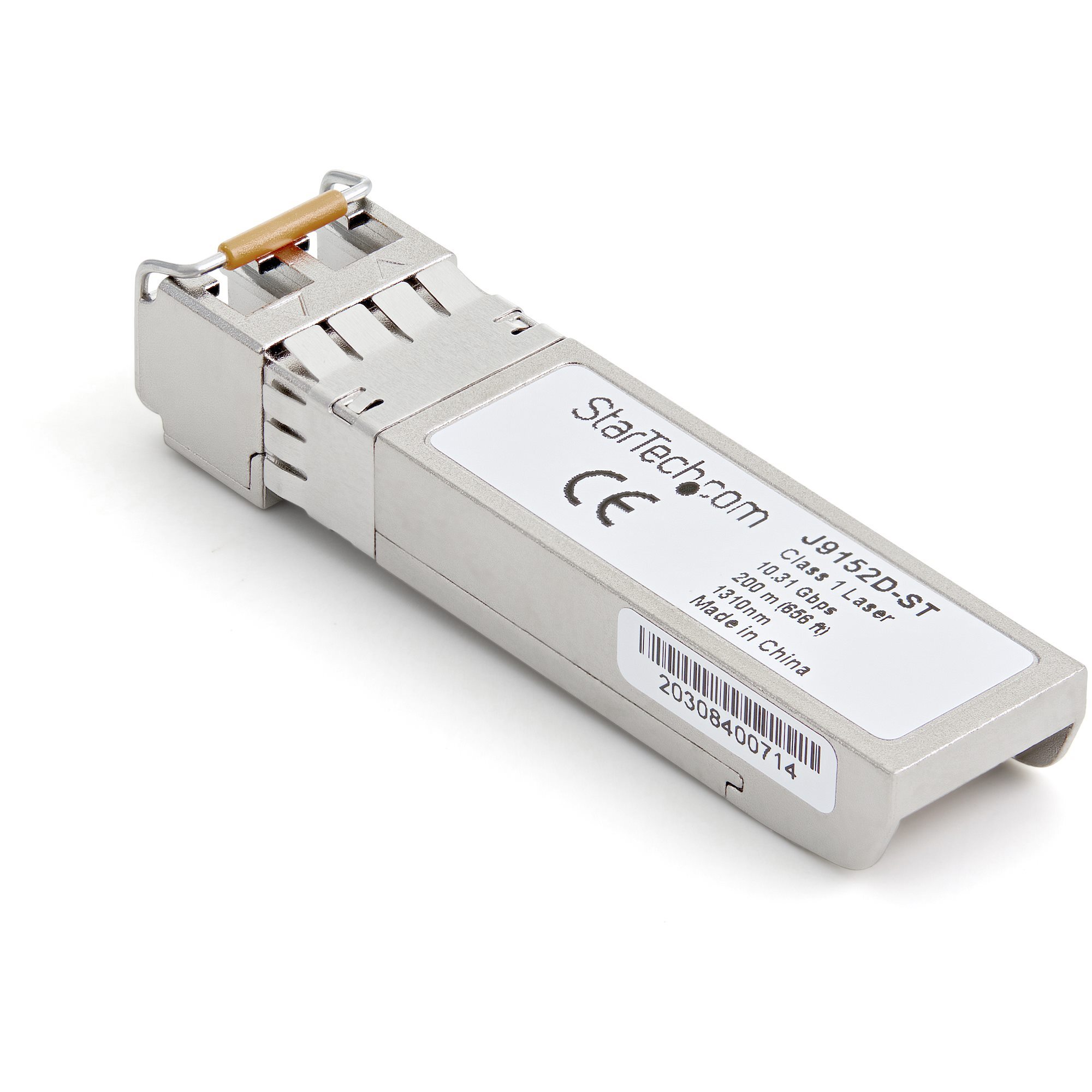

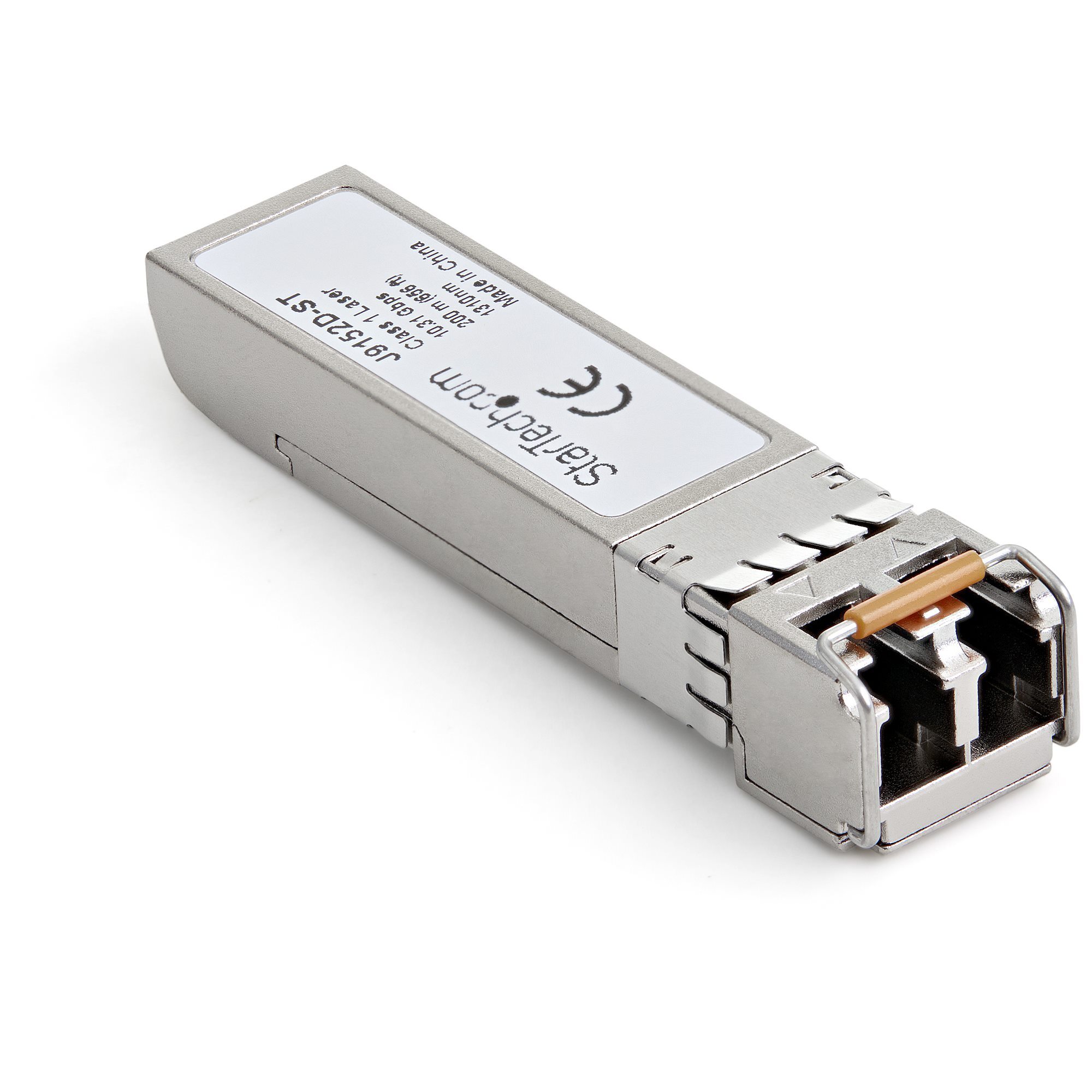

StarTech J9152D-ST HPE J9152D-Compatible 10GBASE-LRM SFP+ Transceiver product image

Technical specifications

J9152D-ST specifications

Exact-model specifications for compatibility checking. Measurements may be rounded.

Warranty Information
Warranty	Lifetime
Hardware
Compatible Brand	HPE
Industry Standard	IEEE 802.3aq 10GBASE-LRM
Material	Steel
Performance
Maximum Data Transfer Rate	10.31Gbps
Fibre Type	Multimode
Wavelength	1310nm
Maximum Distance	200m
DDM	Yes
Power Consumption	<1W
MTBF	145,858,878 hours
Connectors
Connector A	SFP+ slot
Connector B	LC duplex fibre
Environmental
Operating Temperature	0°C to 70°C
Storage Temperature	-40°C to 85°C
Physical Characteristics
Dimensions	58 × 14 × 14mm
Weight	21g
What's in the Box
Included	1 × SFP+ transceiver module

Sources: https://www.devicedeal.com.au/startech-j9152d-st-sfp-hp-j9152d-compatible and https://www.startech.com/

SKU	J9152D-ST
Barcode #	65030886154
Brand	Startech
Shipping Weight	0.0500kg
Shipping Width	0.003m
Shipping Height	0.011m
Shipping Length	0.009m

Manufacturer warranty

Lifetime

This Australian-version product is supplied by DeviceDeal and is covered by the limited lifetime manufacturer warranty term listed for this exact product.

Keep your DeviceDeal tax invoice as proof of purchase.
Coverage is subject to StarTech.com warranty terms, eligibility and product assessment.
Warranty service does not replace rights that may apply under Australian Consumer Law.
