StarTech.com · J8177CST

StarTech J8177CST HPE J8177C-Compatible 1000BASE-T Copper SFP

HPE J8177C-Compatible 1000BASE-T Copper SFP for professional networking or ergonomic workstation applications.

Quick answer: J8177CST adds a 1GbE 1000BASE-T RJ45 copper connection to a compatible SFP slot.

Best forConnecting compatible HPE fibre-capable network equipment to existing Cat5e or better copper Ethernet cabling up to 100m.

Check before orderingConfirm the host supports an HPE J8177C-coded copper SFP; this is a 1000BASE-T RJ45 module, not a fibre transceiver.

Answers before you buy

Frequently asked questions

What is StarTech J8177CST?

It is a HPE-compatible copper SFP transceiver that adds a 1GbE 1000BASE-T RJ45 copper connection to a compatible SFP slot.

Which connections or mounting method are provided?

SFP slot to RJ45 copper Ethernet

What performance is specified?

1000BASE-T; up to 1Gbps; Cat5e or better; up to 100m; Auto-MDIX

Does it require power?

Less than 1.3W

Is this module for fibre cabling?

No. J8177CST is a copper 1000BASE-T module with an RJ45 connection for Cat5e or better Ethernet cable.

Does it support DDM?

No. Digital Diagnostic Monitoring is not supported on this copper SFP module.

What should be checked before ordering?

Confirm the host supports an HPE J8177C-coded copper SFP; this is a 1000BASE-T RJ45 module, not a fibre transceiver.

What warranty applies?

J8177CST carries a StarTech.com limited lifetime manufacturer warranty, subject to the manufacturer's terms and eligibility requirements.

Planning a broader setup? Browse the DeviceDeal buying guides.

(J8177CST)

Features & highlights

Why choose J8177CST?

?Purpose-built designSFP slot to RJ45 copper Ethernet

?Specified performance1000BASE-T; up to 1Gbps; Cat5e or better; up to 100m; Auto-MDIX

?Power arrangementLess than 1.3W

?Construction and deploymentHot-swappable copper SFP module; DDM is not supported

?Key capabilityConverts a compatible SFP slot into a standard RJ45 Gigabit Ethernet port without a media converter.

?Installation advantageAuto-MDIX simplifies straight-through or crossover cable selection on supported links.

Compatibility reminder: Confirm the host supports an HPE J8177C-coded copper SFP; this is a 1000BASE-T RJ45 module, not a fibre transceiver.

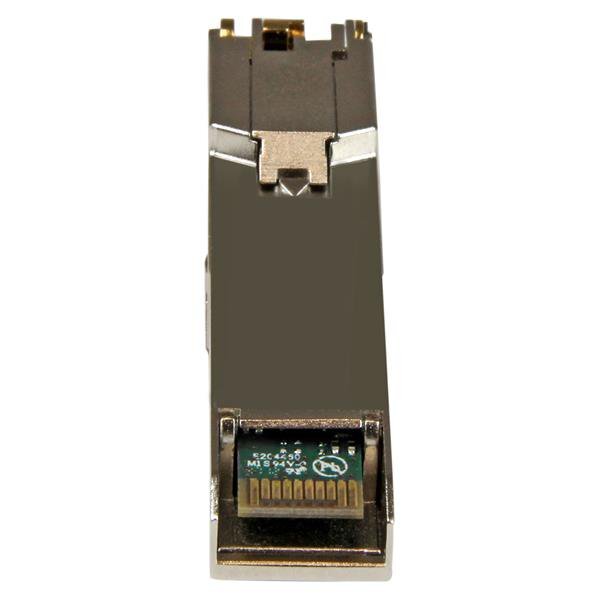

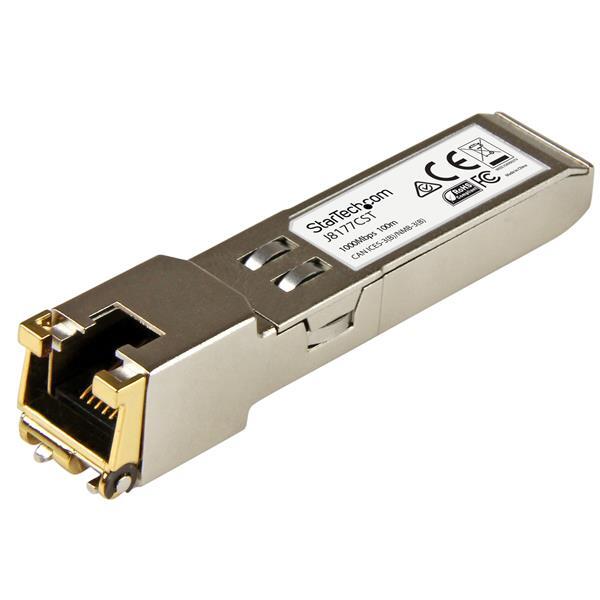

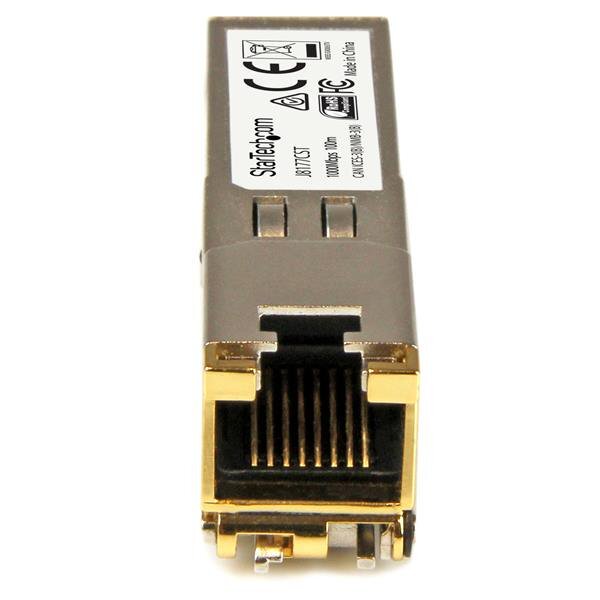

StarTech J8177CST HPE J8177C-Compatible 1000BASE-T Copper SFP product image

Technical specifications

J8177CST specifications

Exact-model specifications for compatibility checking. Measurements may be rounded.

Warranty Information
Warranty	Lifetime
Hardware
Compatible Brand	HPE
Industry Standard	IEEE 802.3ab 1000BASE-T
Media Type	Copper Cat5e or better
Performance
Maximum Data Transfer Rate	1Gbps
Maximum Distance	100m
Auto-MDIX	Yes
DDM	No
Power Consumption	<1.3W
MTBF	4,655,371 hours
Connectors
Connector A	SFP slot
Connector B	RJ45 female
Environmental
Operating Temperature	0°C to 70°C
Physical Characteristics
Dimensions	68 × 14 × 14mm
Weight	25g
What's in the Box
Included	1 × SFP transceiver module

Sources: https://www.devicedeal.com.au/startech-hp-j8177c-compatible-sfp-transceiver-modu~155179 and https://www.startech.com/

SKU	J8177CST
Barcode #	65030865234
Brand	STARTECH
Shipping Weight	0.0500kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.110m
Shipping Cubic	0.000550000m3
