Full-motion positioning
Tilt, swivel and screen rotation support flexible monitor positioning.
Brateck Single Arm Economical Articulating 13"-32" Monitor Mount
Model # LDT12-C01
-
SKU: LDT12-C01
Don't pay: $49.00
$44.00
SAVE $5.00 (10%)
- Pick Up Available
- Australian Warranty
- Checkout Securely
Brateck · LDT12-C01

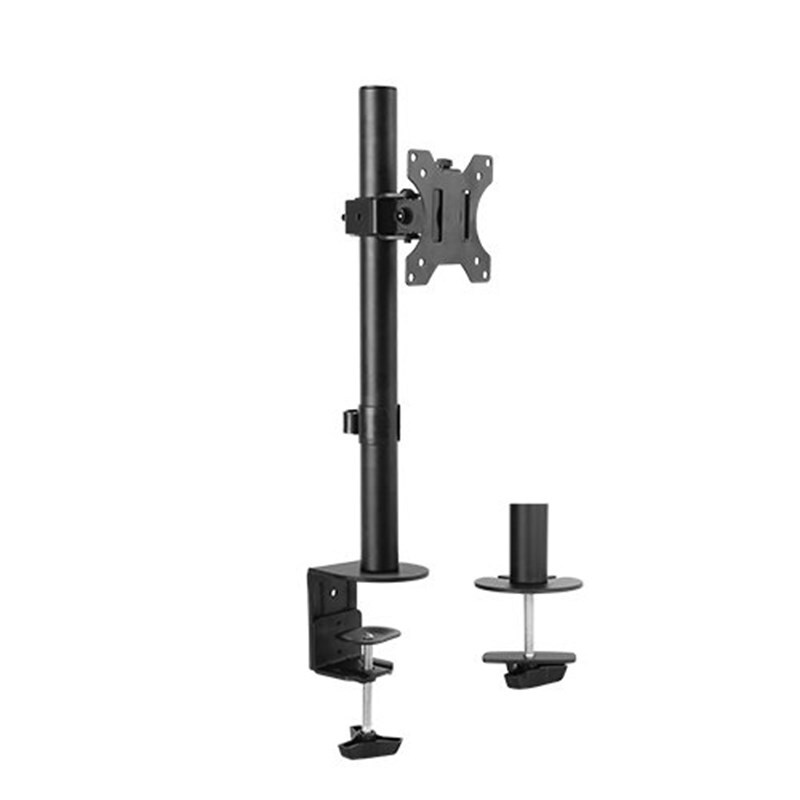

Brateck LDT12-C01 Single-Screen Articulating Steel Monitor Arm
An economical articulating steel monitor arm for one 13-inch to 32-inch flat monitor up to 8 kg, with clamp and grommet mounting, full-motion adjustment and cable management.
1332-inch monitorUp to 8 kgClamp and grommet mounting
Product highlights
Two mounting options
Both desk-clamp and grommet mounting options are included in the supplied product information.
Detachable VESA plate
The detachable quick-release VESA plate is designed to simplify screen installation.
Cable management
An included cable clip helps keep cables organised and protected.
Australian warranty confidence
Purchase from an authorised reseller
DeviceDeal is an authorised reseller of Brateck products. This product is supplied under the Brateck manufacturer's warranty in Australia.
Keep your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to the manufacturer's terms, eligibility requirements and product assessment.
Frequently asked questions
What monitor sizes fit the Brateck LDT12-C01?
It supports one 13-inch to 32-inch flat monitor up to 8 kg.
Which desk-mounting options are included?
The supplied source lists both clamp and grommet mounting.
What adjustments are available?
The arm provides tilt, swivel, screen rotation and height adjustment along the pole.
Does it include cable management?
Yes. A cable clip is included to organise and protect cables.
What warranty applies?
DeviceDeal is an authorised Brateck reseller, and LDT12-C01 is supplied under the Brateck manufacturer's warranty in Australia.
(LDT12-C01)
Features and highlights
Single-screen support
Fits one 13-inch to 32-inch flat monitor up to 8 kg (17.6 lb).
VESA support
75 × 75 mm and 100 × 100 mm.

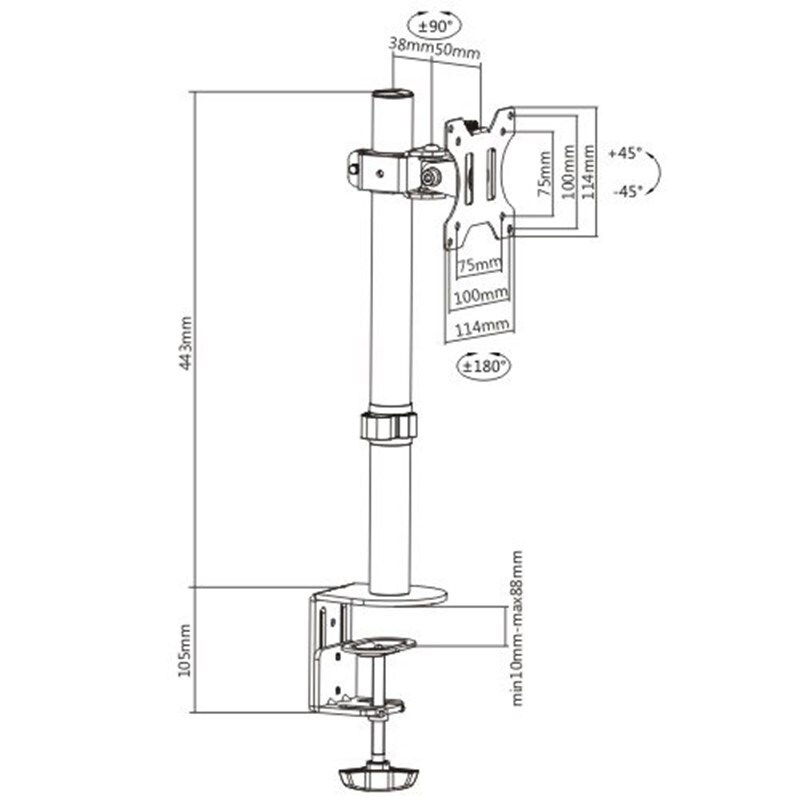

Adjustment ranges
Tilt +45° to -45°; swivel +90° to -90°; screen rotation +180° to -180°.
Height positioning
Monitor height can be adjusted along the 443 mm pole.
Mounting options
Desk clamp and grommet mounting are included.
Cable organisation
Integrated cable clip supports cable management.
Technical specifications
Product details
| Brand | Brateck |
|---|---|
| Model | LDT12-C01 |
| Product category | Articulating monitor arm |
| Rank | Economy |
| Material | Steel |
| Surface finish | Powder coating |
| Colour | Matte black |
Display support
| Screen quantity | 1 |
|---|---|
| Screen size | 1332 inches |
| Curved-monitor support | No |
| Weight capacity per screen | 8 kg (17.6 lb) |
| VESA compatibility | 75 × 75 mm; 100 × 100 mm |
Adjustment
| Tilt range | +45° to -45° |
|---|---|
| Swivel range | +90° to -90° |
| Screen rotation | +180° to -180° |
| Pole height | 443 mm (17.4 inches) |
Physical and installation
| Dimensions | 114 × 148 × 548 mm (4.5 × 5.8 × 21.6 inches) |
|---|---|
| Installation | Grommet; clamp |
| Suggested desktop thickness clamp | 1088 mm (0.393.5 inches) |
| Suggested desktop thickness grommet | 1075 mm (0.393 inches) |
| Quick-release VESA plate | Yes |
| Cable management | Yes |
| SKU | LDT12-C01 |
| Barcode # | 6956745159937 |
| Brand | BRATECK |
| Shipping Weight | 0.0200kg |
| Shipping Width | 0.148m |
| Shipping Height | 0.548m |
| Shipping Length | 0.114m |
| Shipping Cubic | 0.009246000m3 |
Warranty information
Manufacturer warranty in Australia
DeviceDeal is an authorised reseller of Brateck products. Brateck LDT12-C01 Single-Screen Articulating Steel Monitor Arm is supplied under the Brateck manufacturer's warranty in Australia. Retain the DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims remain subject to the manufacturer's warranty terms, eligibility requirements and product assessment.
