Brateck · LDT20-C036UP

Brateck LDT20-C036UP Triple Monitor Mount with Dual USB 3.0

A premium mechanical-spring mount for three 17-inch to 27-inch monitors, including curved screens, with up to 7 kg capacity per screen and two USB 3.0 ports.

Three 1727-inch monitorsUp to 7 kg per screenTwo USB 3.0 ports

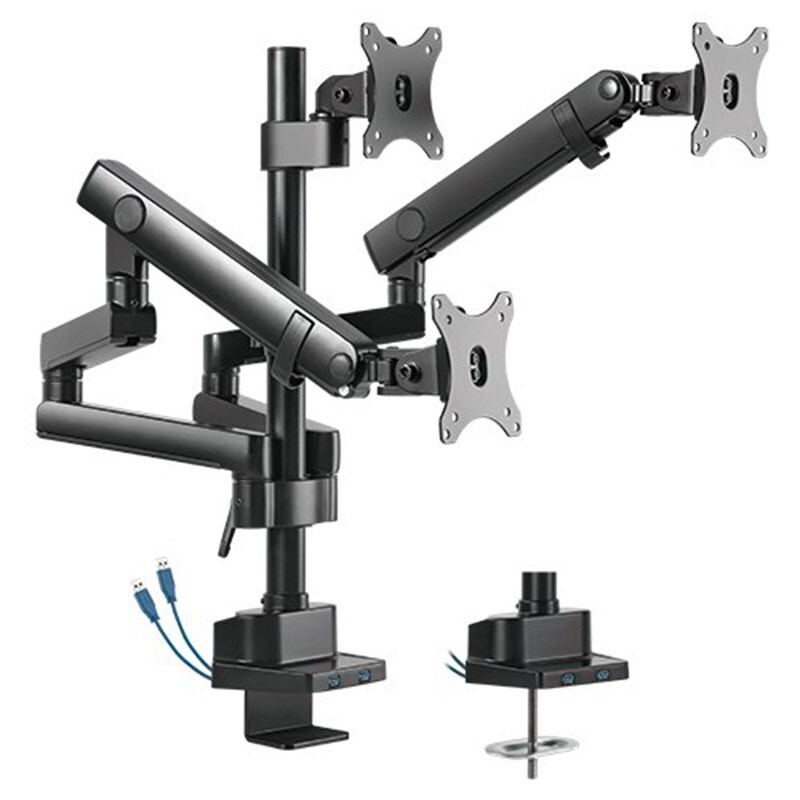

Brateck LDT20-C036UP triple mechanical-spring monitor mount with USB ports

Product highlights

Triple-screen support

Supports three monitors in the supplied 17-inch to 27-inch range, including curved monitors.

Mechanical-spring arms

The mechanical-spring structure supports weight adjustment across the three monitor positions.

Accessible USB ports

Two USB 3.0 ports are positioned for easier desktop access.

Top-fix installation

The supplied top-fix fitting is intended for desks with limited space beneath the desktop.

Australian warranty confidence

Purchase from an authorised reseller

DeviceDeal is an authorised reseller of Brateck products. This product is supplied with the stated 12 months limited warranty and manufacturer warranty coverage in Australia.

Keep your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to the manufacturer's terms, eligibility requirements and product assessment.

Frequently asked questions

How many monitors does the Brateck LDT20-C036UP support?

It supports three 17-inch to 27-inch monitors, including curved screens.

What is the capacity per screen?

The supplied weight range is 07 kg (015.4 lb) per screen.

How many USB ports are included?

The mount includes two USB 3.0 ports.

Which installation methods are listed?

The supplied specification lists clamp and grommet installation with 1050 mm desktop-thickness support.

What warranty is supplied?

DeviceDeal is an authorised Brateck reseller, and the supplied source states a 12 Months Limited Warranty.

(LDT20-C036UP)

Features and highlights

Triple-monitor capacity

Fits three 17-inch to 27-inch monitors, including curved screens.

Per-screen load

07 kg (015.4 lb).

VESA support

75 × 75 mm and 100 × 100 mm.

Full-motion adjustment

Tilt, swivel and screen rotation each range from +90° to -90°.

Reach and pole height

689 mm full arm extension and 562 mm pole height.

Installation and connectivity

Clamp or grommet installation, quick-release VESA plates, cable management and two USB 3.0 ports.

Technical specifications

Product details

Brand	Brateck
Model	LDT20-C036UP
Product category	Mechanical-spring monitor arm
Rank	Premium
Materials	Aluminium; plastic; steel
Surface finish	Powder coating
Colour	Matte black

Display support

Screen quantity	3
Screen size	1727 inches
Curved-monitor support	Yes
Weight capacity per screen	07 kg (015.4 lb)
VESA compatibility	75 × 75 mm; 100 × 100 mm

Adjustment

Tilt range	+90° to -90°
Swivel range	+90° to -90°
Screen rotation	+90° to -90°
Full arm extension	689 mm (27.1 inches)
Pole height	562 mm (22.1 inches)

Physical and installation

Dimensions	1416 × 176 × 649 mm (55.7 × 6.9 × 25.6 inches)
Installation	Grommet; clamp
Suggested desktop thickness clamp	1050 mm (0.392 inches)
Suggested desktop thickness grommet	1050 mm (0.392 inches)
Quick-release VESA plate	Yes
Cable management	Yes

Connectivity

USB ports	2 × USB 3.0

Packaging

Accessory kit package	Normal / ziplock polybag; compartment polybag
Instruction manual included	Yes

Warranty

Warranty	12 Months Limited Warranty

SKU	LDT20-C036UP
Barcode #	6956745159470
Brand	BRATECK
Shipping Weight	19.0000kg
Shipping Width	0.470m
Shipping Height	0.250m
Shipping Length	0.570m
Shipping Cubic	0.066975000m3

Warranty information

12 Months Limited Warranty

DeviceDeal is an authorised reseller of Brateck products. Brateck LDT20-C036UP Triple Monitor Mount with Dual USB 3.0 is supplied with the stated 12 months limited warranty and manufacturer warranty coverage in Australia. Retain the DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims remain subject to the manufacturer's warranty terms, eligibility requirements and product assessment.
