Outdoor managed switching
IP66 dustproof and waterproof construction protects against rain, snow and high temperatures.
GRANDSTREAM GWN7710R WATERPROOF MANAGED SWITCH 5 x POE 1 x SFP POE OUTPUT AC/DC POWERED
Model # GWN7710R
-
SKU: GWN7710R
- Pick Up Available
- Australian Warranty
- Checkout Securely
Grandstream outdoor L2 Lite managed PoE switch

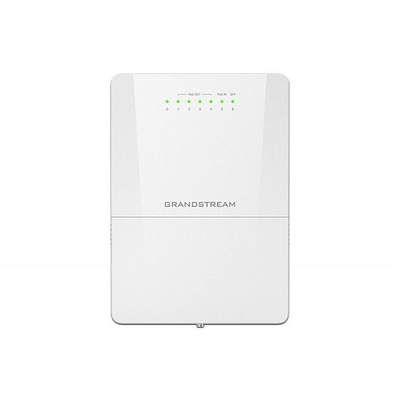

Grandstream GWN7710R Outdoor 6-Port L2 Lite Managed PoE Switch
An IP66-rated outdoor managed switch with five Gigabit RJ45 ports, one SFP fibre port, PoE input and four PoE output ports for harsh environments.
- 5 × Gigabit RJ45 + 1 × SFP
- 4 PoE outputs + 1 PoE input
- IP66 outdoor enclosure
- -40°C to 60°C operation
Product highlights
Six-port connectivity
Provides five Gigabit RJ45 ports and one SFP fibre port for long-distance transmission.
PoE input and output
Includes one PoE input plus four PoE output ports supporting IEEE 802.3af/at or 24V/48V passive PoE output.
Higher-power output
The supplied data states up to 60W on Port 1 and up to 30W on Ports 24.
What to know before ordering
Review the stated model, capacity and compatibility details for SKU GWN7710R. Only the specifications supplied for this exact product are shown.
Frequently asked questions
What is the Grandstream GWN7710R?
The GWN7710R is a six-port outdoor L2 Lite managed PoE switch.
How many network ports are included?
It includes five Gigabit RJ45 ports and one SFP fibre port.
How many PoE output ports are included?
Four PoE output ports are supplied, plus one PoE input port.
What PoE output power is stated?
The supplied data states up to 60W on Port 1 and up to 30W on Ports 24.
Is it weatherproof?
Yes. It has an IP66 dustproof and waterproof rating.
What temperature range is supported?
The supplied data states -40°C to 60°C.
Which management options are supported?
Local web configuration, GWN Manager and GDMS Networking are supported.
Which network protections are included?
DHCP Snooping, STP/RSTP, PoE Watchdog and built-in QoS are listed.
What is the SFP port used for?
It supports fibre connectivity for long-distance transmission.
What warranty applies to the GWN7710R?
DeviceDeal is an authorised Grandstream reseller. The applicable Grandstream manufacturer warranty is subject to Grandstream terms; no exact warranty period was supplied.
(GWN7710R)
Features and highlights
Outdoor managed switching
IP66 dustproof and waterproof construction protects against rain, snow and high temperatures.
Six-port connectivity
Provides five Gigabit RJ45 ports and one SFP fibre port for long-distance transmission.
PoE input and output
Includes one PoE input plus four PoE output ports supporting IEEE 802.3af/at or 24V/48V passive PoE output.
Higher-power output
The supplied data states up to 60W on Port 1 and up to 30W on Ports 24.
PoE Watchdog
PoE Watchdog support helps monitor powered endpoints.
Network protection
DHCP Snooping, STP and RSTP support network stability, redundancy and trusted DHCP operation.
Traffic prioritisation
Built-in QoS prioritises network traffic.
Flexible management
Supports local web configuration, GWN Manager and GDMS Networking.
Key points
- 5 × Gigabit RJ45 + 1 × SFP
- 4 PoE outputs + 1 PoE input
- IP66 outdoor enclosure
- -40°C to 60°C operation
Technical specifications
Grandstream GWN7710R Outdoor 6-Port L2 Lite Managed PoE Switch
Specifications below are organised from the information supplied for SKU GWN7710R.
| Ports and PoE | |
| Gigabit RJ45 ports | 5 |
|---|---|
| PoE input ports | 1 |
| PoE output ports | 4 |
| Fibre port | 1 × SFP |
| PoE output | IEEE 802.3af/at or 24V/48V passive |
| Port 1 output | Up to 60W |
| Ports 24 output | Up to 30W each |
| Environmental | |
| Ingress protection | IP66 |
| Operating temperature | -40°C to 60°C |
| Use | Outdoor |
| Management and protocols | |
| Local management | Web configuration |
| Cloud/platform management | GWN Manager and GDMS Networking |
| Security | DHCP Snooping |
| Resilience | STP/RSTP |
| QoS | Built in |
| PoE Watchdog | Supported |
| SKU | GWN7710R |
| Barcode # | 6947273705246 |
| Brand | Grandstream |
| Shipping Weight | 1.9000kg |
Manufacturer warranty
Grandstream warranty information
DeviceDeal is an authorised Grandstream reseller. This product is covered by the applicable Grandstream manufacturer warranty, subject to Grandstream warranty terms, eligibility requirements and product assessment. No exact warranty period was supplied for this SKU.
Please retain your DeviceDeal tax invoice or order record as proof of purchase for any eligible claim or service request.
