Kingston • enterprise 2.5-inch SATA solid-state drive

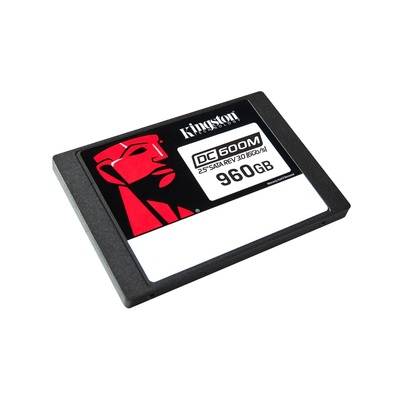

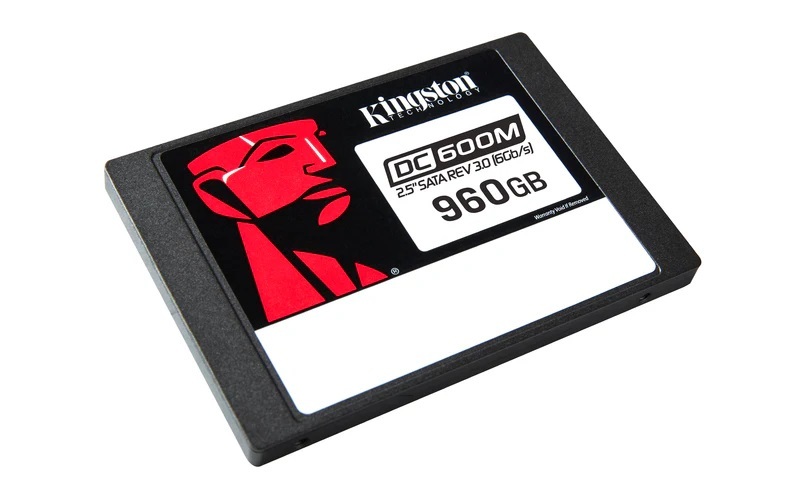

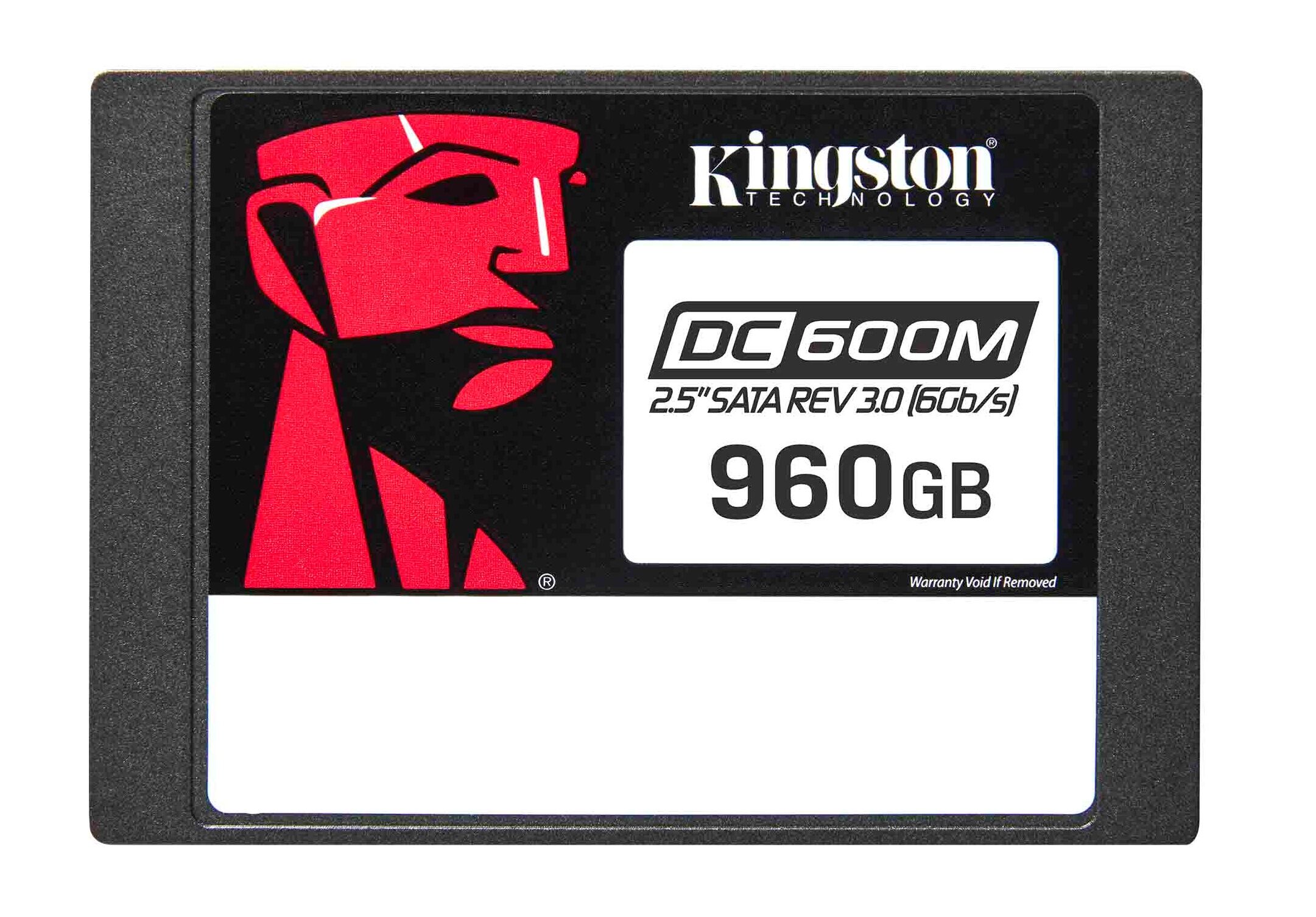

Kingston DC600M 960GB 2.5-inch SATA Enterprise SSD

A 960GB Kingston DC600M mixed-use data-centre SSD with a 2.5-inch SATA 6Gb/s interface, 3D TLC NAND, hardware power-loss protection, up to 560MB/s read and 530MB/s write, and 1,752TBW endurance.

  • 960GB capacity
  • 2.5-inch SATA 6Gb/s
  • Up to 560MB/s / 530MB/s
  • PLP and 1,752TBW
Kingston DC600M 960GB 2.5-inch SATA Enterprise SSD — SEDC600M-960G

Product highlights

Mixed-use enterprise storage

The supplied product information positions the Kingston DC600M for mixed-use server workloads in data-centre environments.

Capacity-specific performance

This exact capacity is specified at up to 560MB/s sequential read, 530MB/s sequential write and 94,000/65,000 IOPS steady-state 4K IOPS.

Hardware power-loss protection

On-board hold-up capacitors are identified to protect data during an unexpected power interruption and support successful reinitialisation.

DC600M model distinction

The supplied series description assigns AES 256-bit encryption and TCG Opal 2.0 to DC600ME; those features are not promoted for this DC600M SKU.

Frequently asked questions

What is the Kingston SEDC600M-960G?

It is a 960GB Kingston DC600M 2.5-inch SATA enterprise SSD for mixed-use server workloads.

What sequential performance is stated?

This exact capacity is specified at up to 560MB/s read and 530MB/s write.

What steady-state 4K performance is stated?

The supplied capacity table states 94,000 read IOPS and 65,000 IOPS write IOPS.

What is the endurance rating?

1,752TBW and 1 DWPD over five years are supplied for this capacity.

Which interface does it use?

SATA Rev. 3.0 at 6Gb/s is specified, with backward compatibility to SATA Rev. 2.0 at 3Gb/s.

Does it have power-loss protection?

Yes. Hardware-based on-board power-loss protection via hold-up capacitors is identified.

Does this model support hardware encryption?

The supplied series information identifies TCG Opal 2.0 and AES 256-bit encryption for DC600ME, not this DC600M SKU.

Which monitoring features are identified?

Enterprise SMART tools cover reliability, usage, life remaining, wear levelling and temperature.

Will it work in every server?

No. Confirm 2.5-inch SATA, capacity, power, thermal, hot-plug and server-platform requirements before ordering.

What warranty applies?

DeviceDeal is an authorised Kingston reseller, and the supplied specifications state a limited five-year Kingston manufacturer warranty with free technical support.

(SEDC600M-960G)

SEDC600M-960G

Features and highlights

Mixed-use enterprise storage

The supplied product information positions the Kingston DC600M for mixed-use server workloads in data-centre environments.

Capacity-specific performance

This exact capacity is specified at up to 560MB/s sequential read, 530MB/s sequential write and 94,000/65,000 IOPS steady-state 4K IOPS.

Hardware power-loss protection

On-board hold-up capacitors are identified to protect data during an unexpected power interruption and support successful reinitialisation.

DC600M model distinction

The supplied series description assigns AES 256-bit encryption and TCG Opal 2.0 to DC600ME; those features are not promoted for this DC600M SKU.

3D TLC with DRAM cache

The supplied specifications identify 3D TLC NAND and a DRAM cache.

Latency and IOPS consistency

The supplied 99.999% quality-of-service read/write latency figure for this exact model and capacity is 200/300 µs.

Enterprise SMART tools

Reliability tracking, usage statistics, life remaining, wear levelling and temperature monitoring are identified.

Endurance and reliability

This exact capacity is specified at 1,752TBW, 1 DWPD over five years and a 2 million-hour MTBF.

Five-year warranty

The supplied specifications state a limited five-year Kingston manufacturer warranty with free technical support.

Key points

  • 960GB capacity
  • 2.5-inch SATA 6Gb/s
  • Up to 560MB/s / 530MB/s
  • PLP and 1,752TBW
Technical specifications

Kingston DC600M 960GB 2.5-inch SATA Enterprise SSD

Specifications are organised from the information supplied for SKU SEDC600M-960G.

Kingston DC600M 960GB 2.5-inch SATA Enterprise SSD specifications
Product details
Brand Kingston
Series DC600M
Model SEDC600M-960G
Capacity 960GB
Form factor 2.5-inch
Interface SATA Rev. 3.0, 6Gb/s; backward compatible with SATA Rev. 2.0, 3Gb/s
NAND 3D TLC
DRAM cache Yes
Capacity-specific performance
Sequential read Up to 560MB/s
Sequential write Up to 530MB/s
Steady-state 4K read 94,000 IOPS
Steady-state 4K write 65,000 IOPS
99.999% QoS read/write latency 200/300 µs
Protection and management
Hardware power-loss protection Yes
Encryption Not identified for DC600M in the supplied product information
Enterprise SMART tools Reliability tracking, usage statistics, life remaining, wear levelling and temperature
Wear levelling Static and dynamic
Endurance and physical
Endurance 1,752TBW; 1 DWPD over 5 years; 1.66 DWPD over 3 years
Power consumption Idle 1.30W; average 1.45W; max read 1.6W; max write 3.6W
Storage temperature -40°C to 85°C
Operating temperature 0°C to 70°C
Dimensions 69.9 × 100 × 7 mm
Weight 92.34 g
Operating vibration 2.17G peak, 7–800Hz
Non-operating vibration 20G peak, 10–2,000Hz
MTBF 2 million hours
Warranty
Manufacturer warranty / support Limited 5 years with free technical support
SKU SEDC600M-960G
Barcode # 740617334913
Brand Kingston
Shipping Weight 0.0900kg
Shipping Width 0.001m
Shipping Height 0.018m
Shipping Length 0.013m
Manufacturer warranty

Kingston warranty information

DeviceDeal is an authorised Kingston reseller. This product is supplied with the applicable Kingston manufacturer warranty in Australia, subject to the manufacturer's warranty terms, eligibility requirements and product assessment. The supplied product specification states a limited five-year warranty with free technical support.

Please retain your DeviceDeal tax invoice or order record as proof of purchase for any eligible warranty claim.
