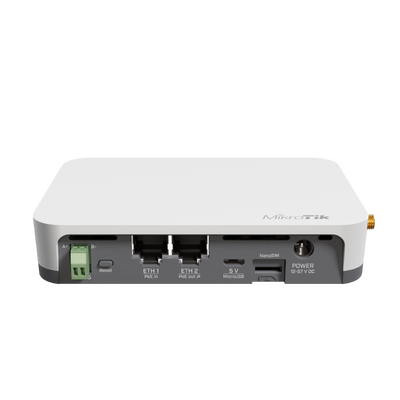

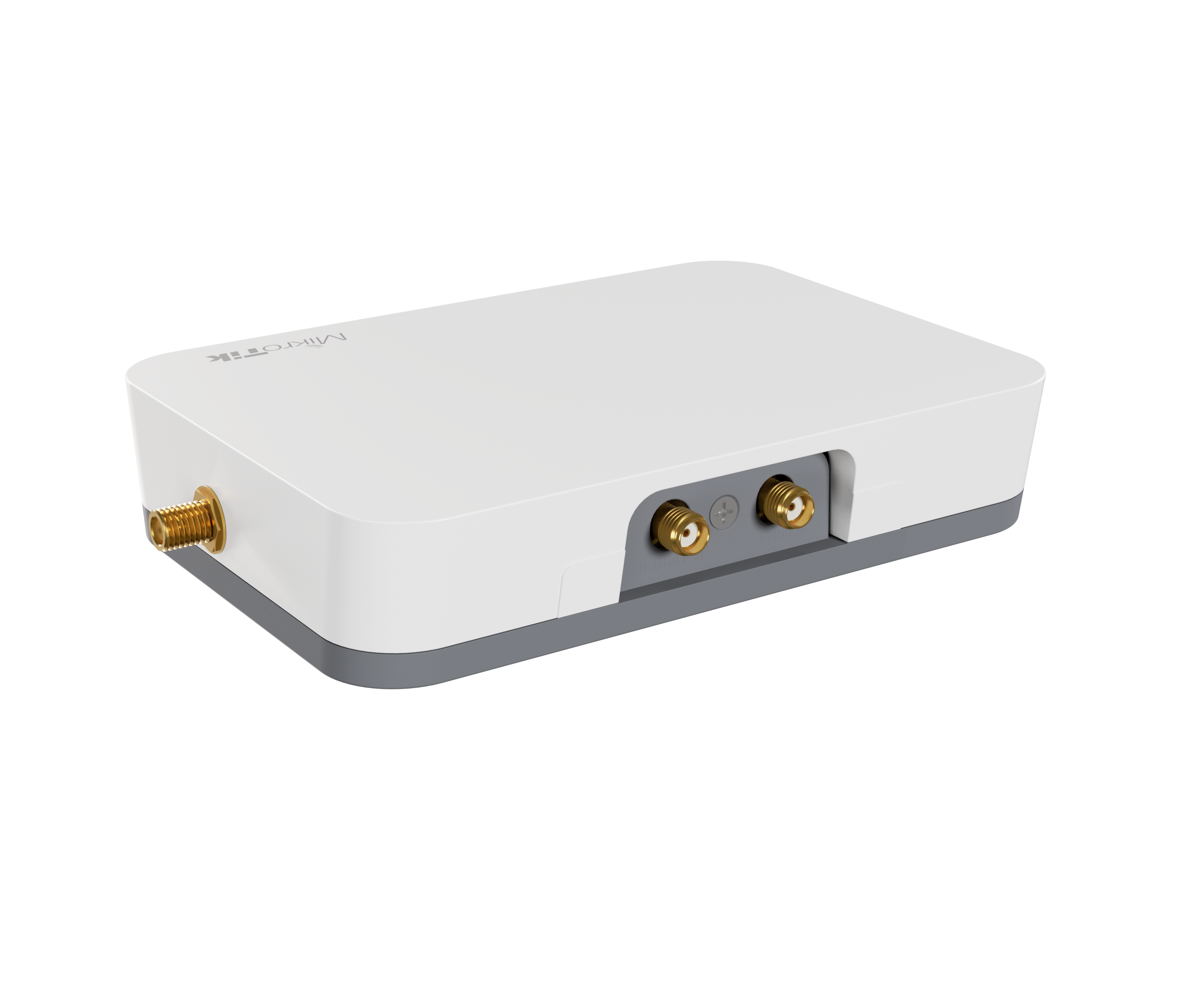

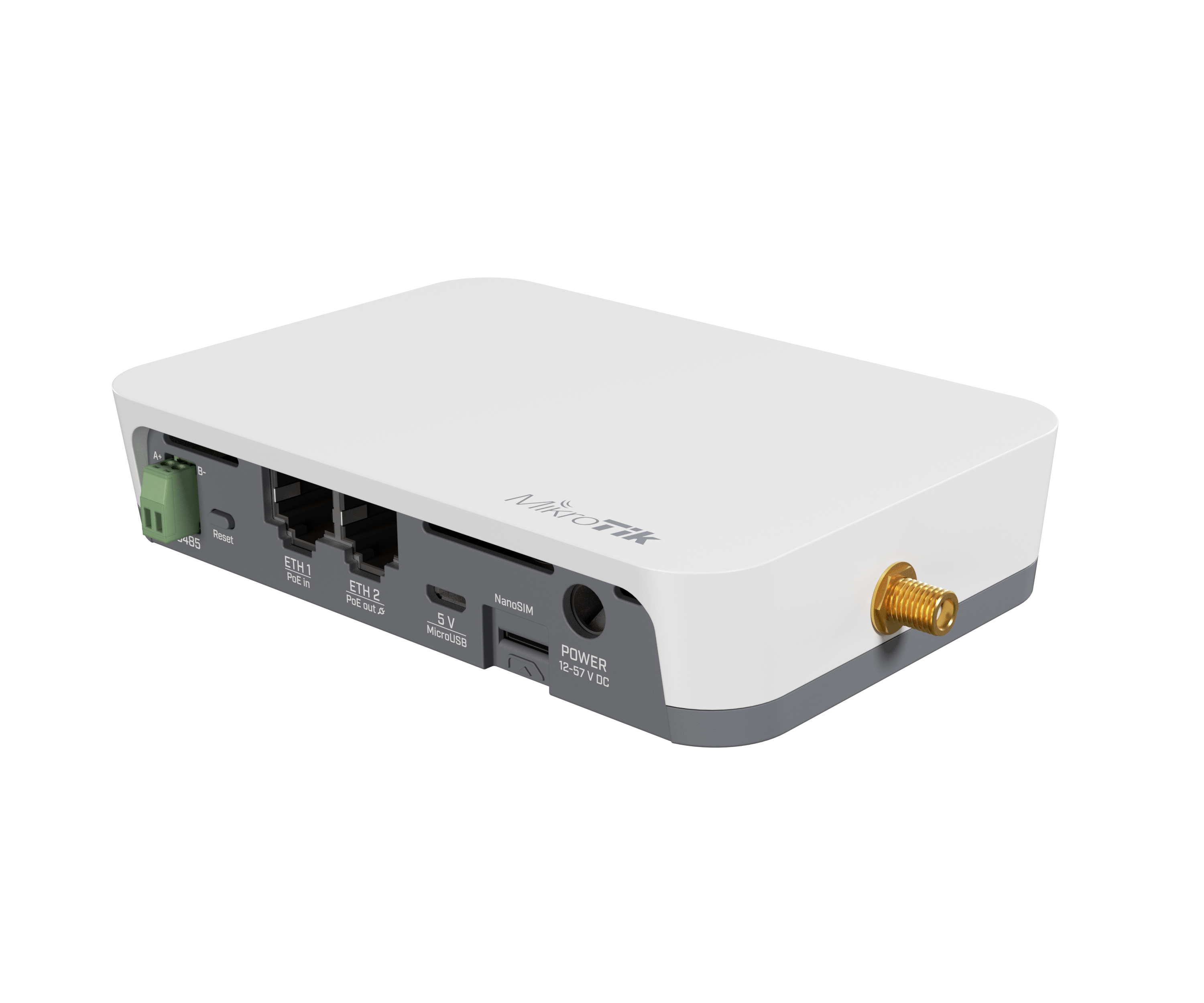

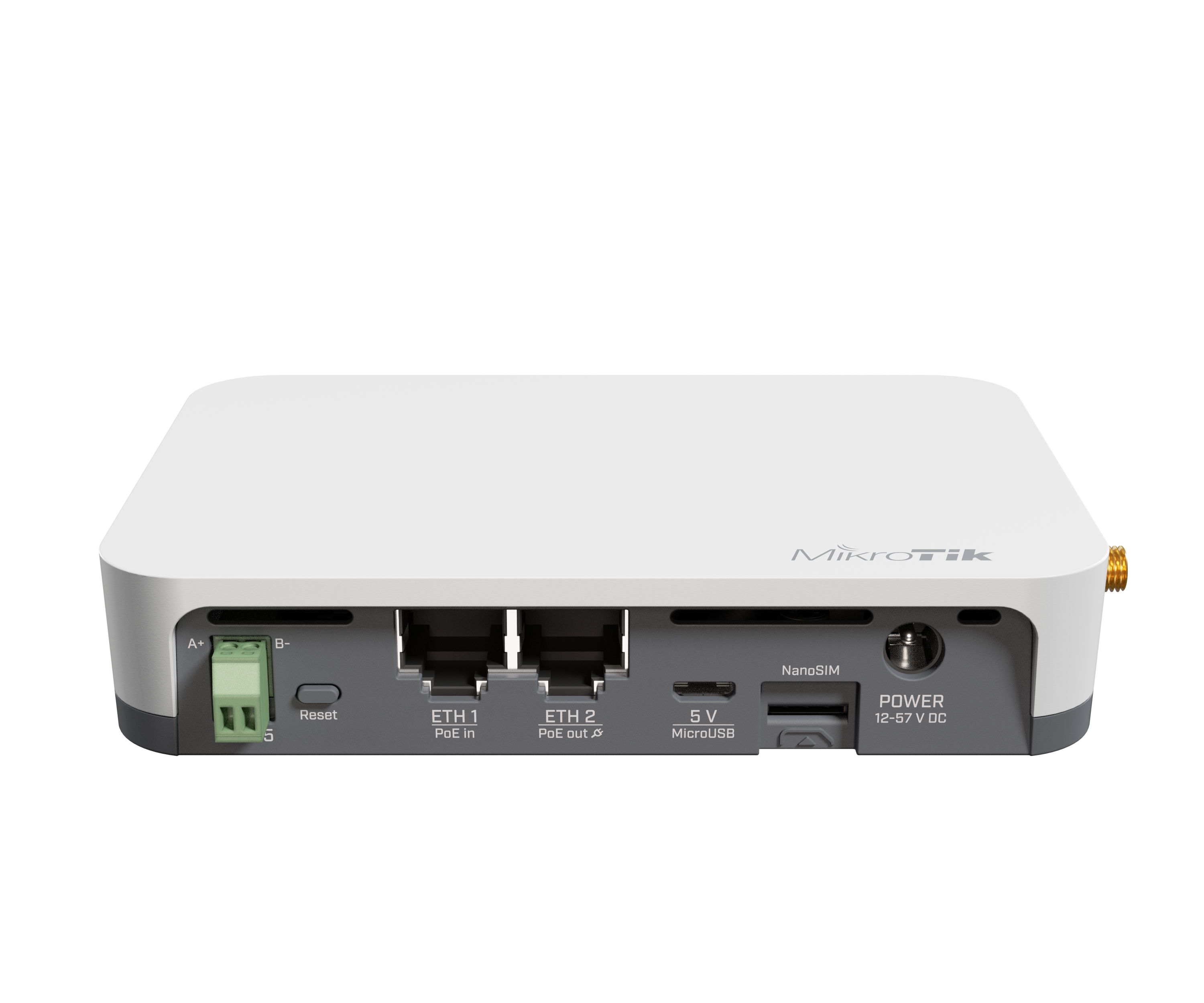

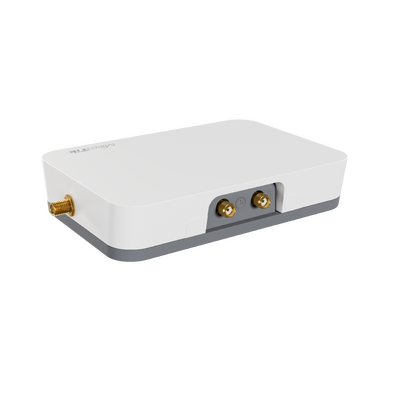

MikroTik RB924iR-2nD-BT5&BG770A&R11e-LR9G KNOT LR9 Kit IoT Gateway with Lora900MHz Radio
Model# RB924iR-2nD-BT5&BG770A&R11e-LR9G
-
SKU: RB924IR-2ND-BT5-BG77-R11E
- Pick Up Available
- Australian Warranty
- Checkout Securely
KNOT LR9G kit
An industrial-grade IoT gateway for smart asset tracking, remote monitoring, and efficient automation – now with enhanced LoRa® reception, concurrent GPS + LTE CAT-M, and a lower price. This is the 915 MHz version.
LoRa® 915MHz
CAT-M/NB technology
2.4 GHz wireless
RS485/Modbus
2x 100 Mbps Ethernet ports
PoE-in & PoE-out
GNSS
GPIO
Bluetooth
Smart IoT Connectivity That Just Works
The KNOT LR9G is a compact, out-of-the-box gateway for LoRa®-based networks, designed to bring affordable, reliable connectivity to even the most remote or infrastructure-light environments. It supports LTE CAT-M1 and NB2, Bluetooth 5.2, 2.4 GHz Wi-Fi, GPS, and Ethernet with PoE, making it a flexible centrepiece for any IoT deployment.
CAT-M1 and NB2 mobile internet connectivity allows you to save tons of money and remotely monitor and manage equipment without needing high-cost data plans or full LTE coverage.
Whether you’re tracking high-value assets across a hospital, managing a vending machine in a shopping mall, or monitoring sensors in an agricultural field – the KNOT LR9G ties everything together and keeps everything connected.
(RB924IR-2ND-BT5-BG77-R11E)
- Product codeRB924iR-2nD-BT5&BG770A&R11e-LR9G
- Suggested price$179.00
- ArchitectureMIPSBE
- CPUQCA9531
- CPU core count1
- CPU nominal frequency650 MHz
- Switch chip modelQCA9531
- RouterOS license4
- Operating SystemRouterOS v7
- Size of RAM64 MB
- Storage size128 MB
- Storage typeNAND
- MTBFApproximately 200'000 hours at 25C
- Tested ambient temperature-40°C to 70°C
Powering
- MicroUSB input Voltage5 V
- Number of DC inputs3 (DC jack, PoE-IN, MicroUSB)
- DC jack input Voltage12-57 V
- Max power consumption23 W
- Max power consumption without attachments6 W
- PoE in802.3af/at
- Cooling typePassive
- PoE in input Voltage18-57 V
PoE-out
- PoE-out portsEther2
- PoE out802.3af
- Low voltage PoE-Out current limit650 mA
- High voltage PoE-Out current limit450 mA
Wireless specifications
- Wireless 2.4 GHz Max data rate300 Mbit/s
- Wireless 2.4 GHz Number of chains2
- Wireless 2.4 GHz standards802.11b/g/n
- Antenna gain dBi for 2.4 GHz1.5
- Wireless 2.4 GHz chip modelQCA9531
- Wireless 2.4 GHz generationWi-Fi 4
Ethernet
- 10/100 Ethernet ports2
Peripherals
- Number of SIM slots1 Smart card (Nano SIM)
- MiniPCI-e slots1
- Serial console portRS485
- Number of USB ports1
- USB slot typemicroUSB type AB
- Max USB current (A)1
Other
- PCB temperature monitorYes
- Voltage MonitorYes
- Bluetooth version5.2
- Bluetooth RF connector typeuUFL
Certification & Approvals
- CertificationFCC, IC, EAC
- IP20
| SKU | RB924IR-2ND-BT5-BG77-R11E |
| Barcode # | 4752224007865 |
| Brand | MIKROTIK |
