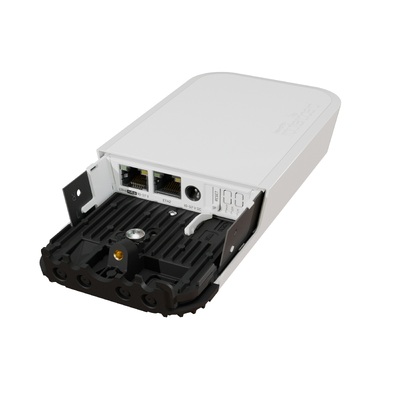

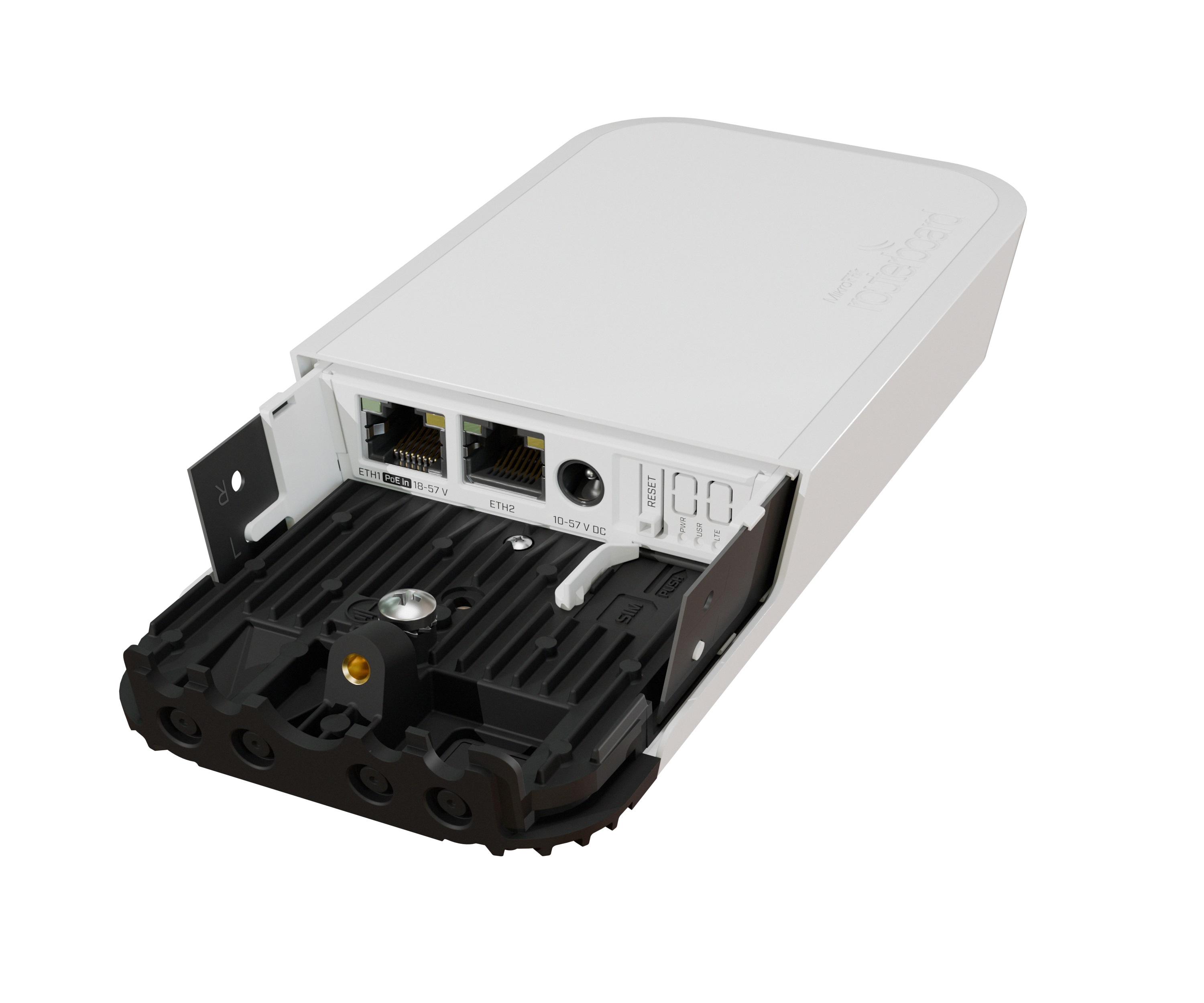

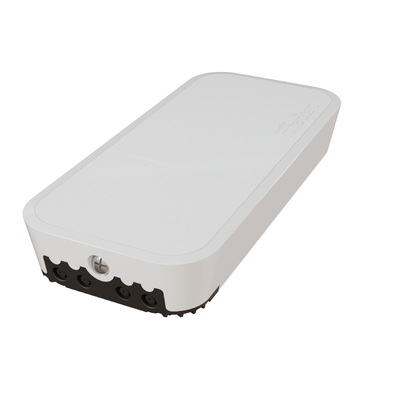

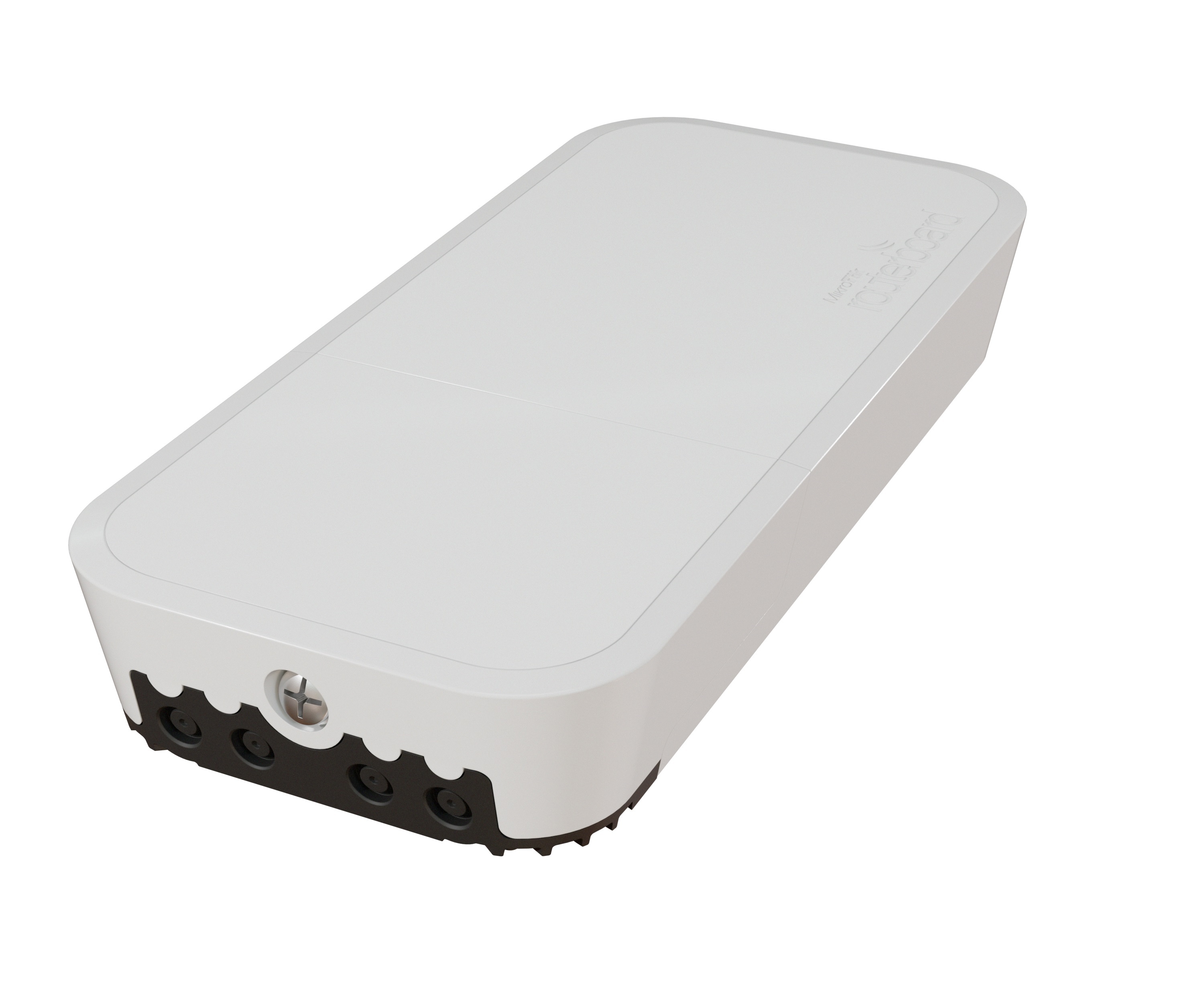

MIKROTIK wAPGR-5HacD2HnDEC200A-EU wAP ac LTE kit dual-band wAP LTE kit with Gigabit Ethernet

wAP ac LTE kit (2024)A refresh of the classic dual-band wAP LTE kit with Gigabit Ethernet – this time with a brand new LTE modem that brings the PRICE DOWN and the performance UP!

wAP ac LTE kit is a tiny dual-band weatherproof wireless access point for installation outside your house, in the garden, on your porch, or in any other challenging environment where you need a capable wireless connection on a tight budget. Two Gigabit ports allow using the speedy built-in LTE modem as a mobile internet backup connection, in case you already have a wired ISP.

The new revision features a new LTE modem that offers improved connectivity, the addition of the popular B28 band, and a serious price drop!

wAP ac LTE kit is weatherproof and can be fixed to any external wall from the inside of the case – for extra security and less visible attachments. The bottom part can also be secured with a special anti- vandal screw, which can only be opened by the owner.

There is an opening in the back of the case, allowing you to run the Ethernet cable directly behind the unit and through the wall. This way the wAP attracts less attention and blends into any environment.

(wAPGR-5HacD2HnDEC200A-EU)

Details
Product code wAPGR-5HacD2HnD&EC200A-EU
Architecture ARM 32bit
CPU IPQ-4018
CPU core count 4
CPU nominal frequency auto MHz
Switch chip model IPQ-4018
RouterOS license 4
Operating System RouterOS v7
Size of RAM 128 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -30°C to 60°C
IPsec hardware acceleration Yes

Powering

Details
Number of DC inputs 2 (PoE-IN, DC jack)
DC jack input Voltage 10-57 V
Max power consumption 12 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 18-57 V

Mobile

Details
2G Category Class12
2G bands 8 (900MHz) / 3 (1800MHz)
3G Category R7 (21Mbps Downlinks, 5.76Mbps Uplink)
3G bands 5 (850MHz) / 8 (900MHz) / 1 (2100MHz)
LTE Category 4 (150Mbps Downlink, 50Mbps Uplink)
LTE FDD bands 20 (800MHz) / 3 (1800MHz) / 1 (2100MHz) / 7 (2600MHz) / 8 (900 MHz) / 5 (850MHz) / 28 (700MHz)
LTE TDD bands 40 (2300MHz) / 38 (2600MHz) / 41 (2500MHz)
TAC 86314105

Wireless specifications

Details
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 2.5
Wireless 2.4 GHz chip model IPQ-4018
Wireless 2.4 GHz generation Wi-Fi 4
Wireless 5 GHz Max data rate 867 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 2.5
Wireless 5 GHz chip model IPQ-4018
Wireless 5 GHz generation Wi-Fi 5

Ethernet

Details
10/100/1000 Ethernet ports 2

Peripherals

Details
Number of SIM slots 1 Modem (Micro SIM)
MiniPCI-e slots 1

Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes

Certification & Approvals

Details
Certification CE, E-MARK, EAC, ROHS
IP 54

Wireless specifications

5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 24 -95
54MBit/s 20 -78
MCS0 24 -95
MCS7 19 -73
MCS9 17 -68
SKU wAPGR-5HacD2HnDEC200A-EU
Brand MIKROTIK

Manufacturer Warranty

Be The First To Review This Product!

Help other Device Deal users shop smarter by writing reviews for products you have purchased.

Write a product review

MIKROTIK wAPGR-5HacD2HnDEC200A-EU wAP ac LTE kit dual-band wAP LTE kit with Gigabit Ethernet

Model # wAP ac LTE kit

  • SKU: wAPGR-5HacD2HnDEC200A-EU

$304.20
