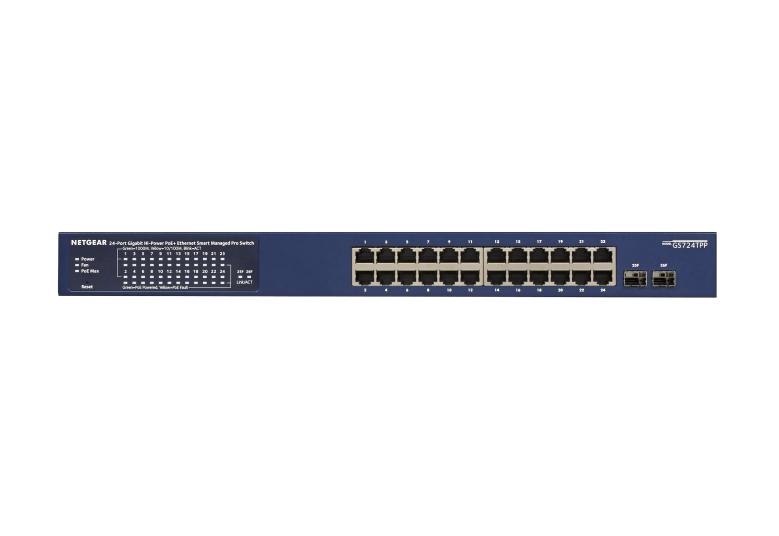

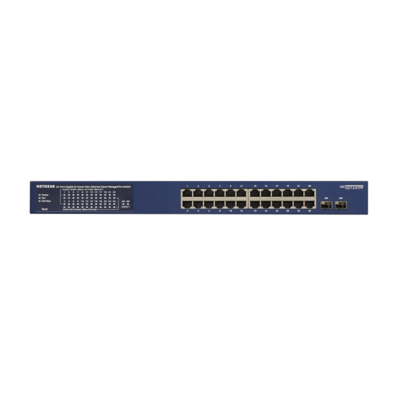

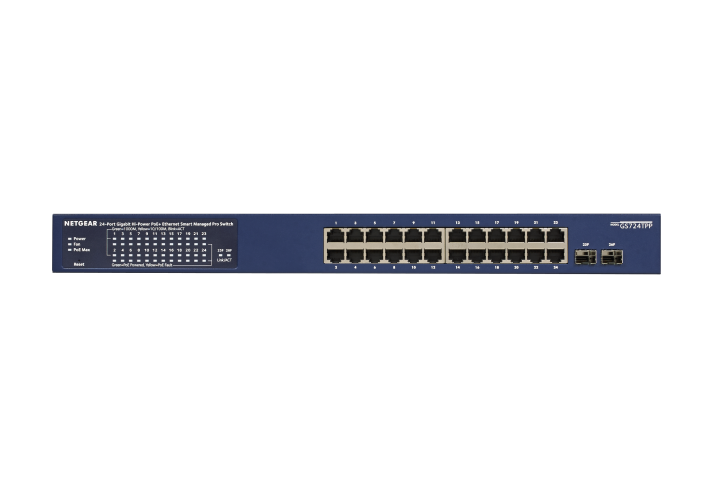

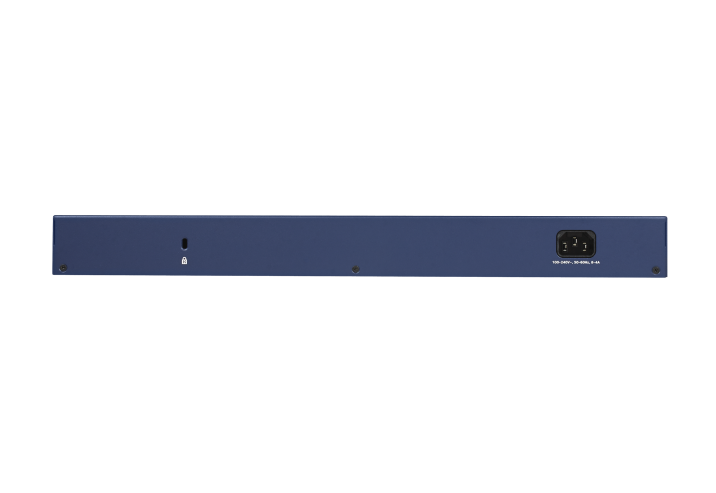

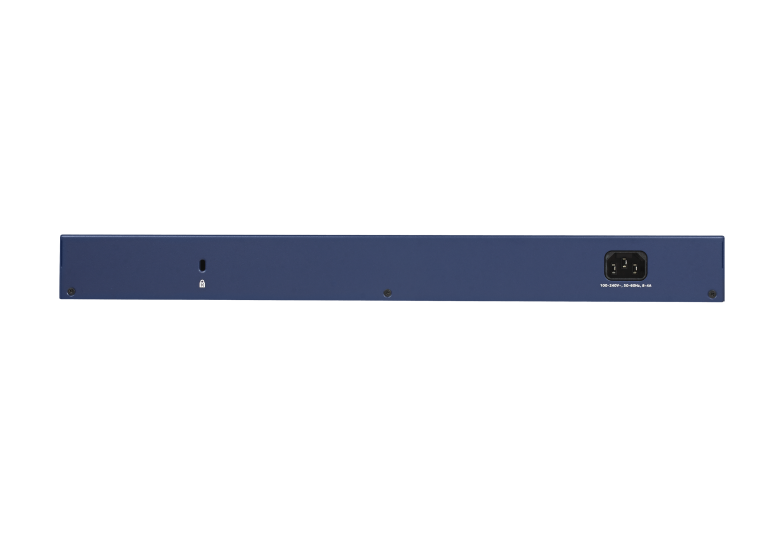

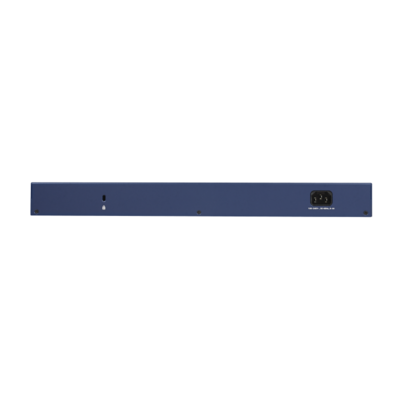

NETGEAR GS724TPP-300AUS
NETGEAR (GS724TPP) 24-PORT SMART MANAGED SWITCH, POE+(24) 380W, SFP(2)

Name: NETGEAR GS724TPP 24-PORT POE+ Gigait Managed Switch
Brand: Netgear
SKU: GS724TPP-100AJS
Price: 804 AUD
Availability: OutOfStock

24-Port Gigabit PoE+ Smart Managed Pro Switch

Optional Remote/Cloud Management

2 SFP Ports (GS724TPP)

Total PoE Power budget (Watts) : 380W

Overview:

Going Gigabit and PoE+ Just Got More Cost-Effective!

As a leading provider of network equipment for SMBs, NETGEAR® understands the importance of providing a great choice of PoE port counts and power budgets that can adapt to your business’ needs, whether in the hospitality, catering, education or retail domains.

The GS724TP and GS724TPP 24-port Gigabit Switch with PoE+ and 2 SFP ports join the NETGEAR standalone Smart switches family, adding full 24 port PoE+ support for deployment of modern highpower PoE devices. Cautious spender organizations can now deploy denser PoE+ devices connected to a costeffective switch, with a reasonable PoE power budget of 190W (GS724TP) or 380W (GS724TPP).

NETGEAR Smart switches offer powerful Layer 2 features, great PoE functionality, and enhanced performance and usability. These switches are the ideal solution even for the most advanced small and medium organizations looking for the best combination of features, performance, and value: they are purposely designed for converged networks where voice, video, data are all carried on a single network platform. Temperature- and load-based fan-speed control combines accurate monitoring with minimized system acoustic noise: the GS724TP and GS724TPP support quiet rack mounting operation with a maximum of 32.4 dBA (GS724TP) and 35.0 dBA (GS724TPP) even at full power and 25°C (77°F) ambient.

To empower the PoE applications, NETGEAR Insight Remote/Cloud management is added to these two new switch models as an optional management mode. By activating the NETGEAR Insight Cloud management, the users will enable management features allowing businesses simpler configuration and deployment from anywhere using the NETGEAR Insight app from mobile devices or the Insight Cloud portal from any device with a web browser.

Highlights

More Powerful Switch for High Power Devices

• 24 x PoE+ Gigabit ports with 190W PoE budget (GS724TP) or 380W PoE budget (GS724TPP)
• 2 dedicated Gigabit SFP fiber uplink ports

Fast and flexible solution for SMB data, voice and video converged network

• Non-blocking switching with 52Gbps
• Flexible rack-mounting option

Powerful Connectivity and Security

• Advanced VLAN support for better network segmentation
• L2/L3/L4 access control lists (ACLs) for granular network access control including 802.1x port authentication
• Advanced per port PoE controls for remote power management of PoE connected devices including operation scheduling
• Advanced QoS (Quality of Service) for traffic prioritization including portbased, 802.1p and L2/L3/L4 DSCPbased
• Auto DoS (Denial of Service) prevention
• IGMP Snooping and Querier for multicast optimization
• Egress Rate limiting and priority queuing for better bandwidth allocation
• Port mirroring for network monitoring
• Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings
• IPv6 management: IPv6 QoS, IPv6 ACL, IPv6 Multicast, and static and dynamic IPv6 address assignment
• Cable test to troubleshoot connection issues
• Easy-to-use Web browser-based management GUI available in English, German and Japanese
• SNMP v1, v2c, v3 and RMON remote monitoring

Fully-integrated cloud-manageable devices

Remote/Cloud management capability with NETGEAR Insight. Instantly activate NETGEAR Insight Cloud management from the web GUI, for simpler configuration and deployment from anywhere using the NETGEAR Insight app on mobile devices or the Insight Cloud portal through a web browser

Smart IT, not Big IT

• Easy to manage via web-based Management interface for multi-switch deployment
• NETGEAR Insight Remote/Cloud management, monitoring and maintenance using the NETGEAR Insight mobile app or Insight Cloud portal for network-level management
• NETGEAR Switch Discovery Tool (NSDT) to discover, register and access to the local browser interface to configure the switches
• Network Management System (NMS300), allowing all NETGEAR business products to be deployed and managed through this single interface

NETGEAR Quality and Reliability

• Worry-free limited lifetime warranty*, online technical chat support and Next Business Day (NBD) replacement.

Features:

Management FEATURES

Traffic Management

Auto Negotiation of speed and duplex modes
IEEE 802.3x Flow Control
Dynamic MAC address management
IEEE 802.1Q-based VLAN
Auto Voice VLAN
Auto Video VLAN (selected models)
VLAN routing (selected models)
QoS based on WRR, strict priority, or both
Port-based and IEEE 801.2p-based QoS
TCP/UDP-based QoS
DiffServ
IPv4 and IPv6-based QoS (selected models)
DSCP Support
Rate Limiting (ingress, or egress)
Link Aggregation and LACP

Switch Management

Insight mobile app or Insight Cloud Portal
Web browser-based management GUI
Smart Lite CLI Software for multi-switch management
IP Access List
IPv6 Management
Configurable Management VLAN
SNMP v1/v2c and v3
Standard MIBs (RFC1213, RFC1643, and RFC1493)
RMON group 1, 2, 3, 9
Firmware download (to switch) and upload (to server) through TFTP/HTTP
Configuration and Image Upload (to PC) through HTTP
Configuration Download (to Switch) thru TFTP/HTTP and upload (to server)
Memory & FLASH log
Syslog (server)
System password protection

Security and More FEATURES

Security

MAC lockdown
MAC lockdown by number of MACs
IEEE 802.1x port authentication
Dynamic VLAN Assignment
Guest VLAN
TACACS+
3 HTTPS /SSL versions
TLS session
Trusted MAC
IPv4, L4-based Access Control List (ACL)
IPv6-based ACL (selected models)

Multicast Efficiency

IGMP snooping, v1, v2 and v3
IGMP Snooping querier
Blocking of unknown multicast traffic
MLD snooping

Spanning Tree, Routing and Stacking

IEEE 802.1D, IEEE 802.1w RSTP and MSTP
Option to enable/disable BPDU flooding when STP is disabled
Static routing with 32 static routes (Selected models)
Hosted ARP table size of 512 (Selected models)

RELIABILITY FEATURES

Reliability, Performance and Troubleshooting

Port mirroring both on ingress and egress traffic
Jumbo frame support
Broadcast Storm control
Cable diagnostics
Loop Detection
DoS Prevention
IEEE 802.1ab LLDP
LLDP-MED
Dual Image
SNTP
Option to enable/disable the flooding of EAPOL when 802.1x is disabled
Protected ports
DNS client
DHCP clients
DHCP snooping
Ping and traceroute client
Energy Efficient Ethernet (IEEE 802.3az) compliant (Selected models)

(GS724TPP-100AJS)

Specifications:

NETGEAR GS724TPP-300AUS Specifications
Physical Specification	Dimensions (WxDxH) @mm : 440 x 204 x 43 mm Weight (kg) : 3.7 kg
Technical Specification	Model Description : 24-Port Gigabit PoE+ Smart Managed Pro Switch w/ optional Remote/Cloud Management and 2 SFP Ports (GS724TPP) 10/100Mbps ports : N/A Gigabit ports : 24 SFP ports : 2 Number of PoE ports : 24 PoE+ (802.3at) : 24 Total PoE Power budget (Watts) : 380W Max MAC entries : 8K Buffer size : 4.1MB VLAN (Number Supported) : 64 VLAN routing : N/A Dynamic VLAN assignment : Yes MLD Snooping : N/A Static route : N/A Host ARP table : N/A EEE : Yes DoS Prevention : Yes Internal/External : Internal 100-240VAC 50-60Hz Max consumption (Watts) : 446.7W FAN : 2 Acoustic Noise Level @25C (dBA) : 35 dBA Operating Temperature : 0° to 50° C MTBF : 634,966 hrs
Support & Warranty	Warranty: This product is backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty . Lifetime Next Business Day Hardware Replacement. Support : ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts. ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
