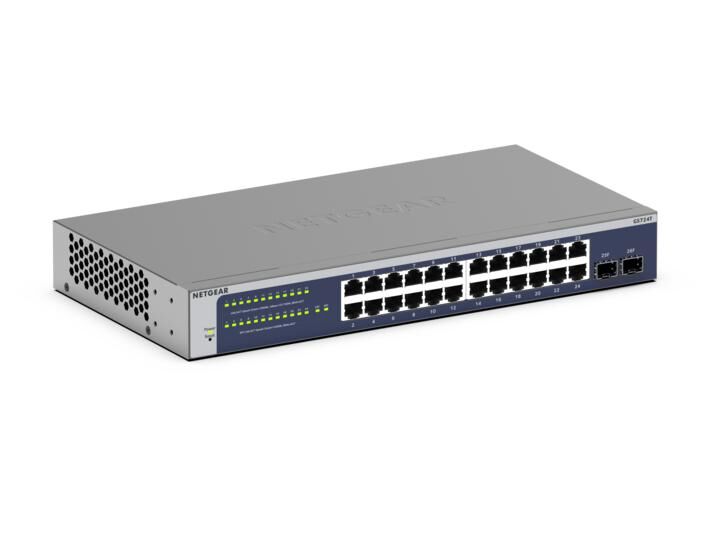

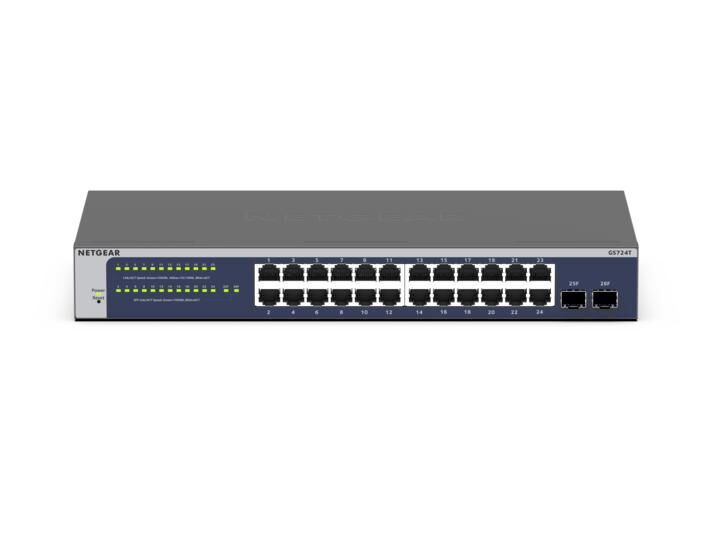

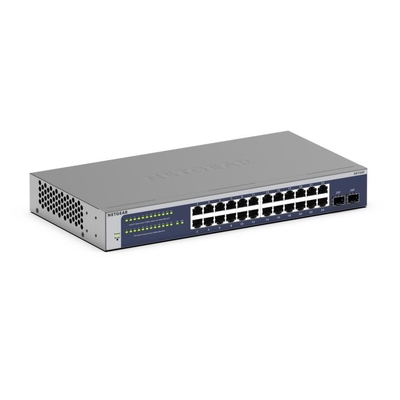

NETGEAR GS724T-600AJS
NETGEAR (GS724T) 24-PORT SMART MANAGED SWITCH, GbE(24), SFP(2), DESK/RACK

Speed : Gigabit
Gigabit ports : 24
Max MAC entries : 16K
Internal/External : Internal 100-240VAC 50-60Hz

Overview:

NETGEAR INSIGHT REMOTE MANAGEMENT

Manage locally or remotely through the Cloud for simple yet powerful control of your network anytime, anywhere.
Includes 1-year subscription.

Experience the New Generation of Gigabit Smart Switch with Remote/Cloud Management

The NETGEAR® GS724Tv6 Gigabit Smart switch offers new, powerful L2+/Layer 3 Lite features with enhanced performance and usability. It is purposely designed for the future where increased traffic and application-oriented tasks demands more intelligence at the edge, higher realiability and improved network efficiency on top of operational cost savings and ease of management.

The GS724Tv6 comes with 24 Gigabit Ethernet ports with 2 dedicated Gigabit SFP ports, all with increased number of simultaneously connected ports.

This Gigabit Smart switch GS724Tv6 with Remote/Cloud Management from NETGEAR is the optimized solution providing the best value at an affordable price point.

Highlights

Designed for Converged Network, Big or Small

Gigabit speed with non-blocking architecture supporting 100% Gigabit throughput
Auto Voice VLAN for fast and reliable deployment of VoIP
Auto Video VLAN, following the same concept of Auto Voice, help speed up your deployment of IP-based surveillance system
Static routing, helps to route internal traffic for more efficient use of network resources
IGMP and MLD snooping, providing advanced multicast filtering

Build a Future-proof Network with NETGEAR

Solid performance with nonblocking architecture, 16K MAC addresses, 256 VLANs, 100 shared ACL entries, 32static routes, and 512 Multicast Groups
Comprehensive IPv6 supporting management, QoS and ACL, ensuring investment protection and a smooth migration to IPv6-based network
Up to 2 SFP ports offer more connectivity ports and providing better value and usability at no extra cost
Energy Efficient Ethernet (IEEE802.3az) support for more energy saving in the future when more IEEE-compliant end devices come to market
Advanced QoS with IPv4/IPv6 traffic filtering and prioritization
Dynamic VLAN assignment for easy user authentication and location-independent access to network
Multicast VLAN Registration for eliminating unnecessary multicast traffic and improve the efficiency of network utilization

Network Development Made Easy

Auto Voice VLAN for easy development of VoIP
Auto Video for simple deployment of IP Surveillance
ACL Wizard for a guided tour to set up your network access control

Fully-integrated cloud-manageable devices

Remote/Cloud Management capability with NETGEAR Insight. Instantly activate NETGEAR Insight Cloud management from the web GUI, for simpler configuration and deployment from anywhere using the NETGEAR Insight app on mobile devices or the Insight Cloud portal through a web browser

Small IT, not Big IT

Easy to manage via web-based management GUI for multi-switch deployment
Standard-based technology, ensuring interoperability with any standard-based devices in the existing network
Dual firmware images, improving reliability and uptime to your network
Worry-free with NETGEAR limited zlifetime hardware warranty*

Diagram:

Total Network Solution helps you get the most out of your network

Easily deploy, manage, and monitor NETGEAR Insight managed routers, switches, and access points all from a single pane-of-glass.

Features & Benefits:

Features	Benefits
Dedicated SFP Fiber uplinks	Dedicated SFP ports provides fiber uplinks without sacrificing any downlink Gigabit port. 4 SFP ports provide not only redundant uplinks, but can also build dual redundancy by a trunked uplink with link aggregation and failover, the dual-redundancy, a powerful design for the network virtualization
Fanless Design (GS716T and GS724T)	Quiet operation makes these switches ideal solution for business environments which favor no noise from networking gears such as libraries, class rooms, offices and etc.
Energy Efficient Ethernet (IEEE802.3az)	Maximum power reduction for onging operational cost savings
Dynamic VLAN Assignment	IP phones and PCs can authenticate on the same port but under different VLAN assignment policies. Users are free to move around and enjoy the same level of network access regardless of their physical location in the network
Static Routing	A simple way to provide segmentation of the network with internal routing through the switch - reserving the router for external traffic routing only, making the entire network more efficient
Comprehensive IPv6 Support for Management, ACL and QoS	Build current network with future in mind. Ensure investment protection and a smooth migration to IPv6-based network without switch replacement
IGMP Snooping and MLD Snooping	Facilitate fast receiver joins and leaves for multicast streams. Save cost and improve network efficiency by ensuring multicast traffic only reaches designated receivers without the need of an extra multicast router.
Robust Security Features: 802.1x authentication DHCP Snooping Port-based security by locked MAC ACL filtering to permit or deny traffic based on MAC and IP addresses	Build a secured, converged network with all types of traffic by preventing external attacks and blocking malware while allowing secure access for authorised users
Auto Voice and Auto Video	Automatic Voice over IP prioritization with Auto-VoIP simplifies most complex multi-vendor IP telephones deployments either based on protocols (SIP, H323 and SCCP) or on OUI bytes (default database and user-based OUIs) in the phone source MAC address; providing the best class of service to VoIP streams (both data and signaling) over other ordinary traffic by classifying traffic, and enabling correct egress queue configuration. When deployed IP phones are LLDP-MED compliant, the Voice VLAN will use LLDP-MED to pass on the VLAN ID, 802.1P priority and DSCP values to the IP phones, accelerating convergent deployments
Comprehensive QoS Features: Port-based or 802.1p-based prioritization Layer 3-based (DSCP) prioritization Port-based ingress and egress rate limiting	Advanced controls for optimized network performance and better delivery of mission-critical traffic such as voice and video
DHCP Snooping	Ensure IP address allocation integrity by allowing only clients with specific IP/MAC addresses to have access to the network
Dual Firmware Images and Configuration Files	Dual firmware image and dual configuration file for transparent firmware updates/configuration changes with minimum service interruption
Protected Ports	Ensure no exchange of unicast, broadcast, or multicast traffic between the protected ports on the switch, therefore, improve the security of your converged network where your sensitive phone conversation can stay private and your surveillance video clips can be forwarded to their designated storage device without leakage or alteration.
Dynamic ARP Inspection	Prevents a class of man-in-the-middle attacks, where an unfriendly station intercepts traffic for other stations by poisoning the ARP caches of its unsuspecting neighbors.
Multicast VLAN Registration	Eliminates the replication of the same multicast traffic for every VLAN by sending multicast traffic only on to the dedicated multicast/source VLAN, resulting in more efficient utilization of network bandwidth.
EAV (Ethernet Audio/Video Bridging) Support*	Extends Ethernet usage to support multimedia streaming. The Ethernet AVB standard adds QoS (Quality of Service) features like time-synchronized low latency streaming services and bandwidth reservation to make it possible to carry professional quanity audio and video signals on a standard Ethernet line.

* EAV support can be acquired through the purchase of EAV software license that is sold separately from the switch. Please refer to ordering information for part numbers of these licenses.

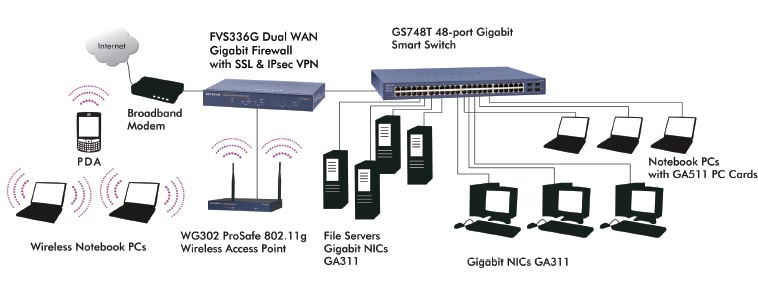

Network Application Diagram

NETGEAR GS724T-400AJS Diagram

Why is the NETGEAR latest generation of Gigabit Smart Switch the right choice for SMBs?

NETGEAR Gigabit Smart Switches offer the best Return on your Investment: Well-staged for future network upgrade with Gigabit to desktop and network virtualization Cost-Effectively bring intelligence to the edge of the network with traffic management features from the Smart Switches Improved usability for easier and smoother deployment of voice, video and WLAN on the same converged platform Lifetime warranty and 1-year Free Advanced Tech Support for peace-of-mind

(GS724T)

Smart Switch Series (GS724Tv6)

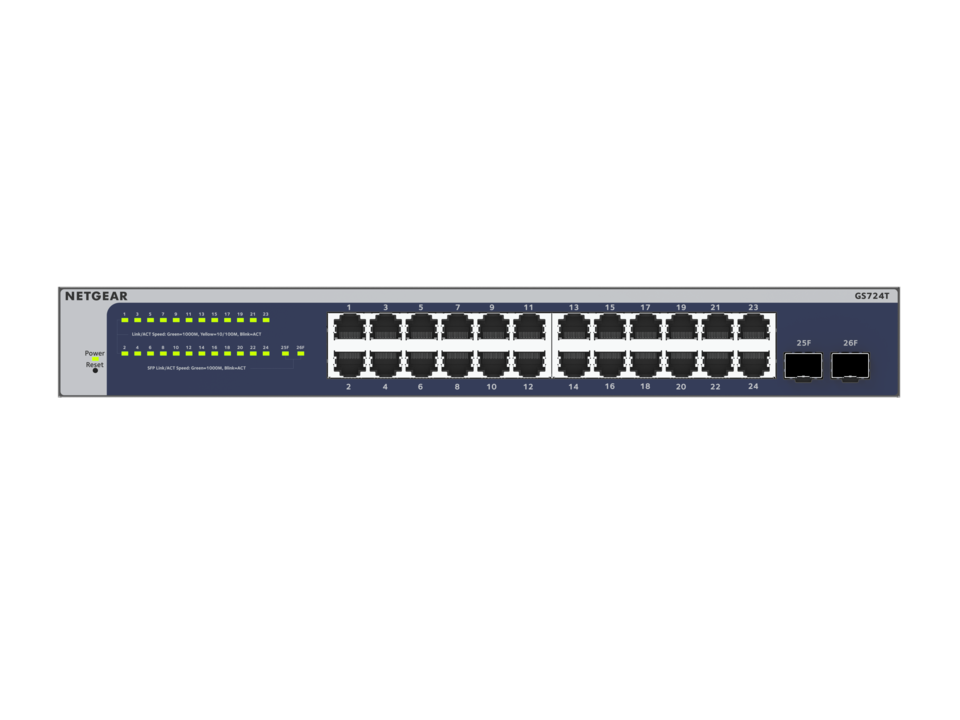

24-Port Gigabit Ethernet Smart Switch with 2 Dedicated SFP Ports

NETGEAR GS724T Smart Cloud Switch offers powerful L2 and L2+/Layer 3 Lite features and enhanced performance and usability. Manage remotely with Insight Cloud Management

Specifications:

Product name : 24-Port Gigabit Ethernet Smart Switch With 2 Dedicated SFP Ports
Speed : Gigabit
Gigabit ports : 24
SFP ports : 2 dedicated
Number of PoE ports : N/A
Total PoE Power budget (Watts) : N/A
Max MAC entries : 16K
Buffer size : 2MB
VLAN (Number Supported) : 256
VLAN routing : Yes
Dynamic VLAN assignment : Yes
MLD Snooping : Yes
Static route : Yes
Host ARP table : 512
EEE : Yes
DoS Prevention : Yes
Internal/External : Internal 100-240VAC 50-60Hz
Max consumption (Watts) : 13.5W
FAN : 0
Acoustic Noise Level @25C (dBA) : 0 (Fanless)
Operating Temperature : 0° to 50° C
MTBF : 1,999,946 hrs (228 years)

Dimensions : 328 x 169 x 43 mm (12.9 x 6.7 x 1.7 in)
Weight : 1.62 kg (3.57 lb)
