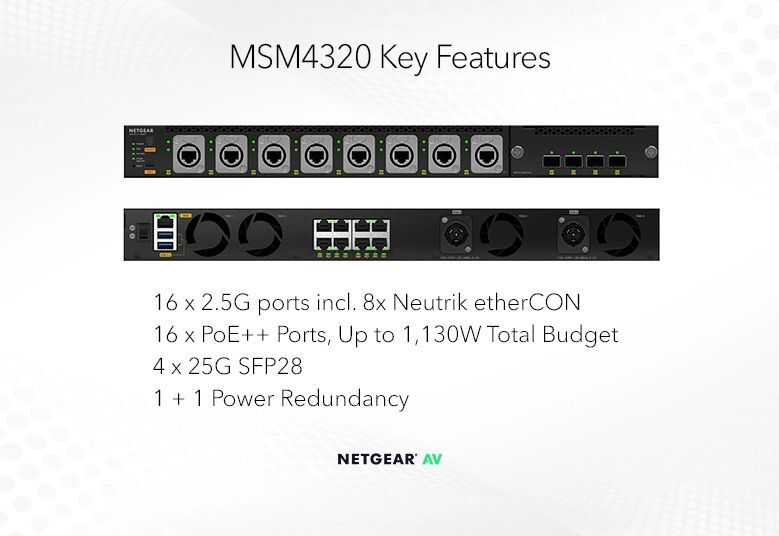

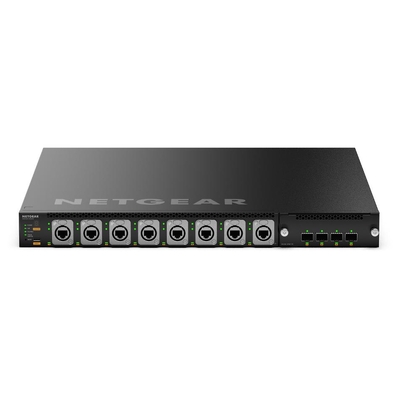

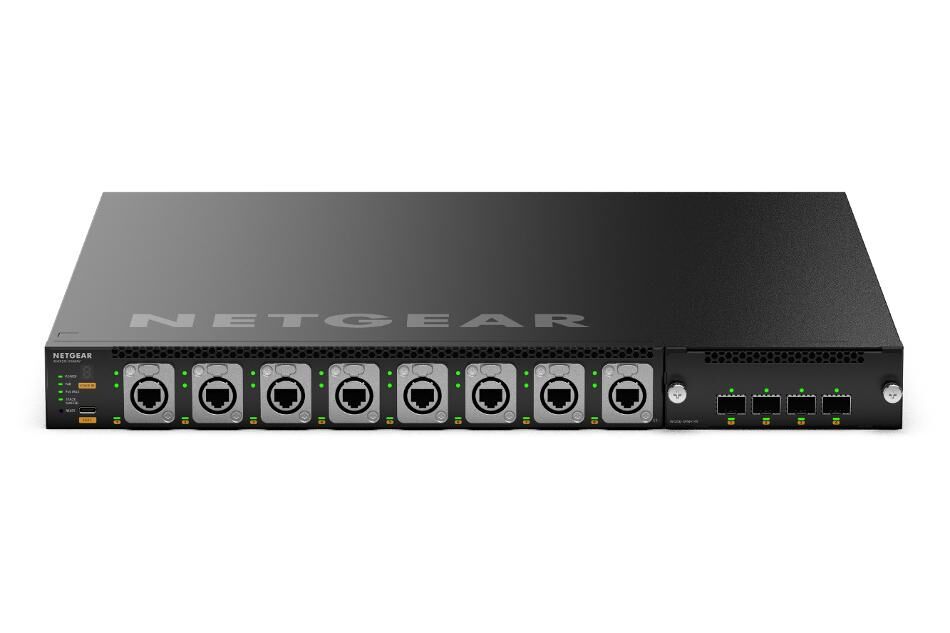

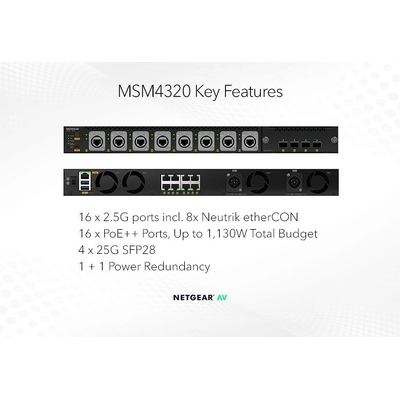

NETGEAR M4350-16M4V Fully Managed Switch (MSM4320)

16x 2.5G PoE++ (530W base, up to 1,130W) incl. 8x Neutrik etherCON and 4xSFP28 25G Managed Switch

16x 2.5G PoE++ ports incl. 8x Neutrik etherCON connectors with 4x 25G SFP28 uplinks
Two internal 800W power supplies providing 530W of redundant base PoE budget
Switch ships with one APM414V interface card with 4x 25G SFP28 ports
Optional APM414C Interface Card with 4x 10G RJ-45 ports
Optional APM414SD Interface Card with 2x Neutrik opticalCON DUO connectors for 4x MMF transceivers
Optional APM414LD Interface Card with 2x Neutrik opticalCON DUO connectors for 4x SMF transceivers
2x Neutrik powerCON connectors and C14 male power cord adapters for standard IEC 320 C13 cords
Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
Layer 3 feature set includes static, policy-based, and dynamic routing
NETGEAR IGMP Plus™, NETGEAR AV OS™, and NETGEAR Engage™ Controller speed up AV installations
SMPTE ST 2110 Grandmaster Clock and Boundary Clock for AES67 and ST2059-2 applications
Multi-color LED on each physical port reflecting the profile color in the NETGEAR AV OS™ and Engage Controller
NETGEAR ProSAFE^® Limited Lifetime Hardware Warranty
Lifetime Next Business Day Hardware Replacement

POWER AND
THROUGHPUT

Edge to core flexible platform, from 1 Gigabit to 100 Gigabit, good for projects of all sizes.

Groundbreaking AV GUI

A simplified user interface makes it easy to assign configuration profiles to each port.
Multicast in an Instant

NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.
Sleek, Quiet Design

Less fan noise, and mounting ears included for rack mounting.
Automatic Configuration

Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.

FAST, EASY
CONFIGURATION
FOR AV PROS

A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

FOCUS ON THE EVENT
NOT FAN NOISE

Most models have quiet mode which greatly reduces fan noise.

DESIGNED FOR
AV OVER IP
RIGHT OUT OF
THE BOX

With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless audio and video delivery. Enable multicasting right out of the box.

(MSM4320-100AJS)

Width

440mm

Depth

432mm

Height

43.2mm

Weight

7.85kg (17.31lb)

Primary Port Speed

2.5 Gigabit

Number of Ports

20 (16 x 2.5G PoE++ incl. 8x Neutrik etherCON, and 4x 25G SFP28)

IGMP Support

Enhanced (NETGEAR IGMP Plus™)

Jumbo Frame Support

Yes, up to 12kb

AVB Support

Yes, included

Acoustics

Quiet Mode 35.6dB@25ºC

Power Consumption

With max PoE: 1359.8W/4,639.64Btu/hr

Without PoE: 109.6W/373.96Btu/hr

Standby w/o any port connection

50.6W/170.60Btu/hr

PSU Compatible Models

Internal only

Internal PSUs

2 internal 800W PSUs with PowerCON connectors

Compatible Interface Cards

APM414SD (2x Neutrik opticalCON DUO for 4x MMF Transceivers)

APM414LD (2x Neutrik opticalCON DUO for 4x SMF Transceivers)

APM414V (4x Standard 25G SFP28 ports) ships with the switch

APM414C (4x Standard 10G RJ5 ports)

SKU	MSM4320-100AJS
Brand	NETGEAR

This product is backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty. Phone and chat technical support provided for 90 days from purchase date. This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller, and covers unmodified hardware, fans and internal power supplies – not software or external power supplies, and requires product registration at https://www.netgear.com/business/registration within 90 days of purchase; see https://www.netgear.com/about/warranty for details. Intended for indoor use only.
