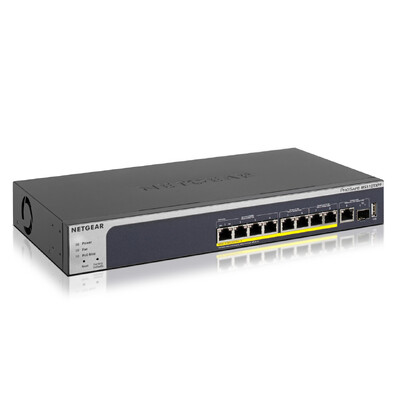

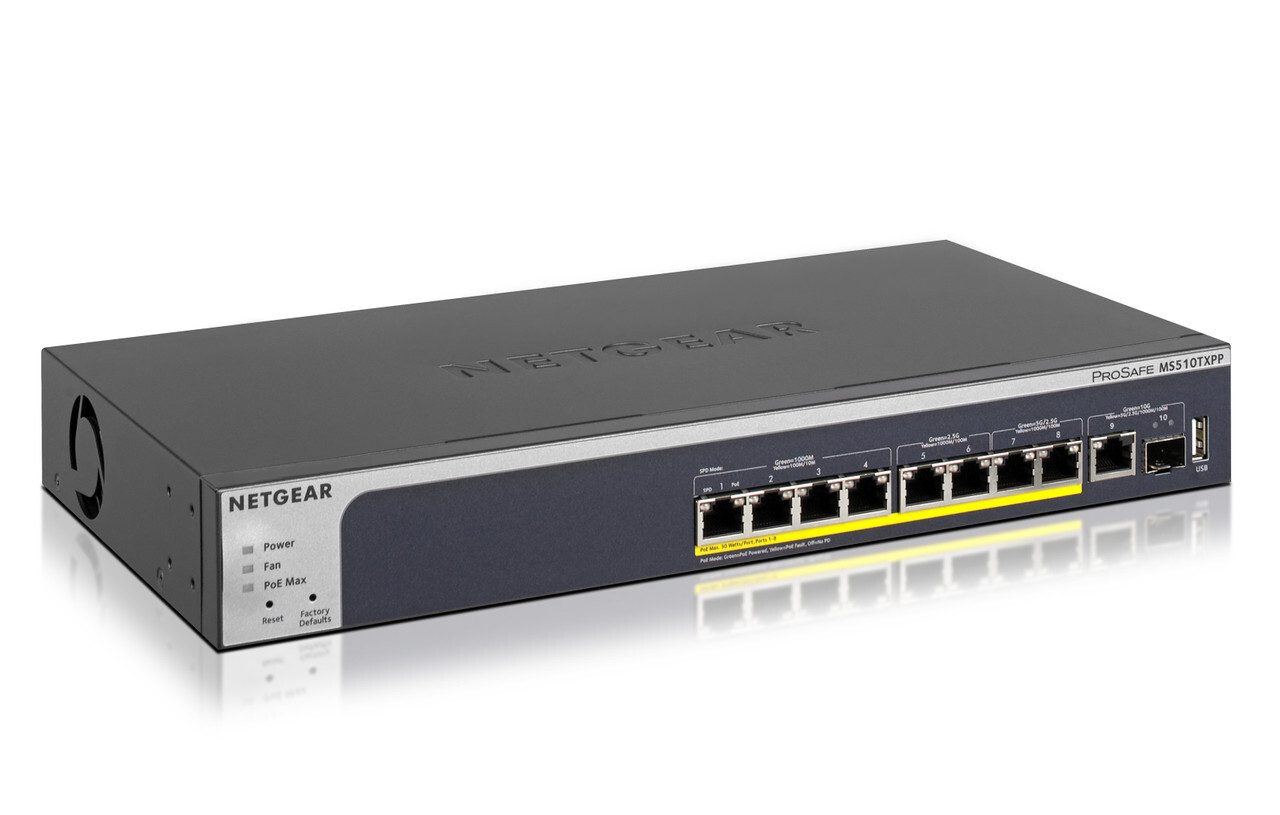

NETGEAR MS510TXPP-100EUS
NETGEAR (MS510TXPP) 10-PORT MULTI-GIG SMART SWITCH, POE+ (8) 180W, 10GBASE-T (1), SFP+ (1)

Name: Netgear MS510TXPP Managed L2/L3/L4 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) Grey
Brand: Netgear
SKU: MS510TXPP-100EUS
Price: 960 AUD
Availability: OutOfStock

Gigabit ports : 4 (10M/100M/1G)

Switching fabric : 78 Gbps line rate

Number of PoE ports : 8

Total PoE Power budget (Watts) : 180W

Overview:

Introducing a new Gigabit, Multi-Gigabit and 10-Gigabit Smart Switch Family for future-proof deployments

Businesses need to be ready for future expansion: with incoming new multispeed devices, their wired network needs to expand its reach and scope to support speeds greater than 1 Gigabit. The IEEE 802.3bz standard paved the way for new 2.5 Gigabit and 5 Gigabit speeds in addition to legacy 1 Gigabit and 10 Gigabit per second. New servers, workstations, storage devices, and motherboards are coming with 802.3bz (NBASE-T) Multi-Gigabit Ethernet for 2.5X to 5X faster speeds up to 100 meters (323 feet) on legacy CAT5e / CAT6 cables.

That is why NETGEAR launched its new Multi-Gigabit Smart Switches with 10G Copper/Fiber Uplinks. Each port automatically detects which speed is needed by the connected device and provides the adequate speed. As opposed to regular 10-Gigabit switches that will only provide 1-Gigabit connectivity to any device that require less than 10-Gigabit, the MS510TX and MS510TXPP give the exact speed required, with no downgrade. Also, the new NETGEAR Multi-Gigabit switch ports can connect regular CAT5e Ethernet cables, without the need to upgrade to CAT6 wiring, therefore reducing wiring costs and hassle.

Access, Aggregation or Collapsed Core: You can now have your PCs, printers and routers/firewalls connected at 1G and aggregate Multi-Gigabit Ethernet new devices on the same switch, all line-rate. 10G copper and fiber ports are ready for local servers and storage, or high-speed aggregation to your network core.

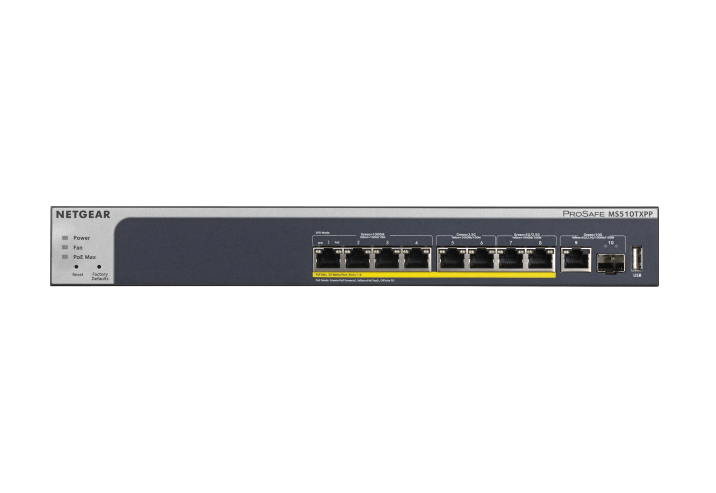

Highlights

Plenty of headroom with 1G, 2.5G, 5G and even 10G!

• Two Multi-Gigabit RJ-45 ports that support 5G, 2.5G, and 1G
• Two Multi-Gigabit RJ-45 ports that support 2.5G and 1G
• Four 1G RJ-45 ports
• One dedicated 10G RJ-45 port (which also supports 5G, 2.5G and 1G) for uplink or local server / storage
• One dedicated SFP+ fiber uplink port that supports 10G and 1G for uplink or local server / storage

Key features include:

• MS510TXPP: 180W PoE budget available across 8 Gigabit and MultiGigabit PoE+ ports (802.3at)
• Multi-Gigabit, multi-speed ports to connect any type of device to a single switch
• Quiet desktop operation or rack mounting with 21dB (MS510TX) or 28.8dB max (MS510TXPP) at 25°C (77°F) ambient
• Layer 3 static routing with 32 routes (IPv4 and IPv6) for interVLAN local routing
• Non-blocking 78Gbps fabric for 2x5G bps+2x2.5Gbps+4x1Gbps+2x10Gbps full duplex switching and routing
• Advanced VLAN support for better network segmentation
• L2/L3/L4 access control lists (ACLs) for granular network access control including 802.1x port authentication
• MS510TXPP: Advanced per port PoE controls for remote power management of PoE connected devices including operation scheduling (e.g. Wireless APs, IP security cameras, LED lighting, secure access door locks, IoT devices…)
• Advanced QoS (Quality of Service) for traffic prioritization including portbased, 802.1p and L2/L3/L4 DSCPbased
• Auto “denial-of-service” (DoS) prevention
• IGMP Snooping and Querier for multicast optimization
• Rate limiting and priority queuing for better bandwidth allocation
• Port mirroring for network monitoring
• Energy Efficient Ethernet (IEEE 802.3az) or maximum power savings
• Cable test to troubleshoot connection issues
• Easy-to-use Web browser-based management GUI
• SNMP v1, v2c, v3 and RMON remote monitoring

Smart IT, not Big IT

• Easy-to-use Web browser-based management GUI makes setup and management simple
• Standards-based technology ensures interoperability with any standardsbased devices in the existing network
• Dual firmware images improve reliability and uptime to your network
• Worry-free with NETGEAR Limited Lifetime* hardware warranty
• Minimal down-time with NETGEAR Limited Lifetime* Next-Business-Day Replacement Warranty
• Get deployment assistance with 90-days Free 24x7 Advanced Technical Phone Support**
• Limited Lifetime* Online Chat Technical Support

Features:

Management Features

Traffic Management

Auto Negotiation of speed and duplex modes
IEEE 802.3x Flow Control
Dynamic MAC address management
IEEE 802.1Q-based VLAN
Auto Voice VLAN
Auto Video VLAN (selected models)
VLAN routing (selected models)
QoS based on WRR, strict priority, or both
Port-based and IEEE 801.2p-based QoS
TCP/UDP-based QoS
DiffServ
IPv4 and IPv6-based QoS (selected models)
DSCP Support
Rate Limiting (ingress, or egress)
Link Aggregation and LACP

Switch Management

Web browser-based management GUI
Smart Control Center Software for multi-switch management
IP Access List
IPv6 Management
Configurable Management VLAN
SNMP v1/v2c and v3
Standard MIBs (RFC1213, RFC1643, and RFC1493)
RMON group 1, 2, 3, 9
Firmware Upgrade through Smart Control Center (TFTP)
Firmware download (to switch) and upload (to server) through TFTP/HTTP
Configuration and Image Upload (to PC) through HTTP
Configuration Download (to Switch) thru TFTP/HTTP and upload (to server)
Memory & FLASH log
Syslog (server)
System password protection

Security Features

Security

MAC lockdown
MAC lockdown by number of MACs
IEEE 802.1x port authentication
Dynamic VLAN Assignment
Guest VLAN
TACACS+
3 HTTPS /SSL versions
TLS session
Trusted MAC
IPv4, L4-based Access Control List (ACL)
IPv6-based ACL (selected models)

Multicast Efficiency

IGMP snooping, v1, v2 and v3
IGMP Snooping querier
Blocking of unknown multicast traffic
MLD snooping

Spanning Tree, Routing and Stacking

IEEE 802.1D, IEEE 802.1w RSTP and MSTP
Option to enable/disable BPDU flooding when STP is disabled
Static routing with 32 static routes (Selected models)
Hosted ARP table size of 512 (Selected models)

Reliability Features

Reliability, Performance and Troubleshooting

Port mirroring both on ingress and egress traffic
Jumbo frame support
Broadcast Storm control
Cable diagnostics
Loop Detection
DoS Prevention
IEEE 802.1ab LLDP
LLDP-MED
Dual Image
SNTP
Option to enable/disable the flooding of EAPOL when 802.1x is disabled
Protected ports
DNS client
DHCP clients
DHCP snooping
Ping and traceroute client
Energy Efficient Ethernet (IEEE 802.3az) compliant (Selected models)

(MS510TXPP-100EUS)

Specifications:

NETGEAR MS510TXPP-100EUS Specifications
Physical Specification	Dimensions (WxDxH) @mm : 440 x 204 x 43 mm (17.3 x 8 x 1.7 in) Weight (kg) : 2.61 kg (5.76 lb)
Technical Specification	Gigabit ports : 4 (10M/100M/1G) 2.5-Gigabit ports : 2 (100M/1G/2.5G) 5-Gigabit ports : 2 (100M/1G/2.5G/5G) 10-Gigabit copper ports : 1 (100M/1G/2.5G/5G/10GBASE-T) 10-Gigabit fiber SFP+ ports : 1 (1G/10GBASE-X SFP+) Switching fabric : 78 Gbps line rate Number of PoE ports : 8 PoE+ (802.3at) : 8 Total PoE Power budget (Watts) : 180W Max MAC entries : 16K Buffer size : 3MB VLAN (Number Supported) : 256 VLAN routing : Yes Dynamic VLAN assignment : Yes MLD Snooping : Yes Static route : Yes (32 IPv4 + 32 IPv6) Host ARP table : Yes (512) EEE : Yes DoS Prevention : Yes Internal/External : Internal 100-240VAC 50-60Hz Max consumption (Watts) : 234.31W FAN : 1 Acoustic Noise Level @25C (dBA) : 28.8 Operating Temperature : 0° to 50° C MTBF at 25° C : 376,434 hrs
Support & Warranty	Warranty: This product is backed by a NETGEAR ProSAFE® Limited Lifetime Hardware Warranty. Lifetime Next Business Day Hardware Replacement. Support : ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts. ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
