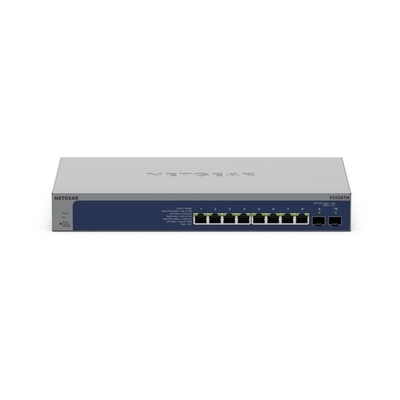

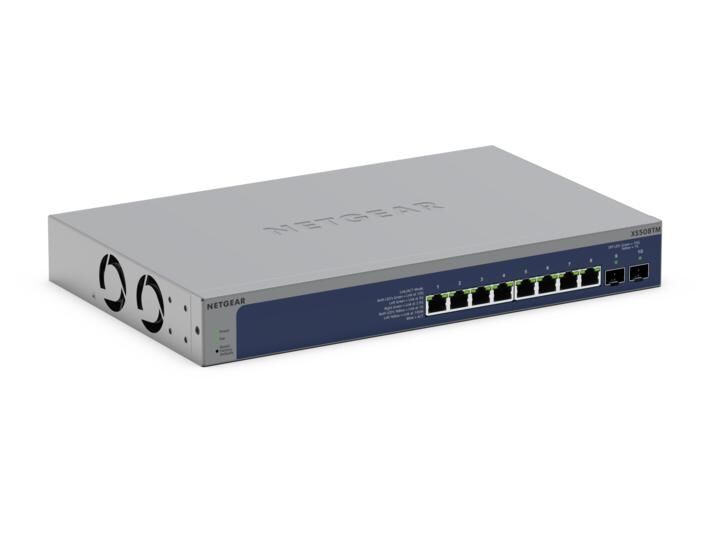

View PDF BrochureNETGEAR XS508TM-100AUS 8-PORT SMART 10G/MULTIGIG SWITCH, SFP+ (2)
Model # XS508TM-100AUS
-
SKU: XS508TM
- Pick Up Available
- Australian Warranty
- Checkout Securely
1-Year NETGEAR Insight Subscription Included
S3600 Series 10G/Multi-Gigabit Ethernet Smart Switches (XS508TM)
8-Port 10G/Multi-Gigabit Ethernet Smart Switch with 2 10G SFP+ Ports
- 8 x 10G/Multi-Gigabit ports with 2 dedicated 10G SFP+ ports
- Energy Efficient Ethernet for maximum power savings
- Desktop, wall mount or rack mount placement
- Configurable L2+/L3 Lite network features
- 1-year of NETGEAR Insight Cloud Management included
WHAT'S INCLUDED:
- NETGEAR XS508TM 8-port 10G/Multi-Gigabit Smart Switch with Insight Cloud Management
- Power cord (varies by region)
- Wall mount kit
- Rackmount kit
- Installation guide
HARDWARE DETAILS:
-
Width330mm (13in)
-
Depth206mm (8.12in)
-
Height43mm (1.7in)
-
Weight2.2kg (4.85lb)
-
10G/Multi-Gigabit ports8
-
10G SFP+ ports2
-
Max MAC entries16K
-
Buffer size2MB
-
VLAN (Number Supported)512
-
VLAN routingYes
-
Dynamic VLAN assignmentYes
-
MLD SnoopingYes
-
Static routeYes
-
Host ARP table1024
-
EEEYes
-
DoS PreventionYes
-
Internal/External Power Supply/AdapterInternal Power Supply
-
Max consumption (Watts)32.7W
-
FAN2
-
Acoustic Noise Level @25C (dBA)28.63 dBA
-
Operating Temperature0° to 50° C
-
MTBF818,977.9 hours (93.5 years)
(XS508TM)
1-Year NETGEAR Insight Subscription Included
S3600 Series 10G/Multi-Gigabit Ethernet Smart Switches (XS508TM)
8-Port 10G/Multi-Gigabit Ethernet Smart Switch with 2 10G SFP+ Ports
Specifications:
| NETGEAR XS508M-100AJS Specifications | |
|---|---|
| Physical Specification | Dimensions (WxDxH) @mm : 328 x 169 x 43.2 mm (12.91 x 6.65 x 1.7 in) Weight (kg) : 1.49 Kg (3.28lb) |
| Technical Specification | 100M/1G/2.5G/5G/10G RJ-45 copper ports : 7 10G SFP+ ports : 1 x 10G/1G SFP+ and Copper (combo) Form Factor : Desktop/Rackmount Packet buffer memory : 128KB Bandwidth : 160Gbps MAC Address database size : 2 K Number of priority queues : 8 Jumbo frame support : Up to 9K packet size Fan(s) : 1 Low-Noise Active Fan IEEE 802.3az (Energy Efficient Ethernet) : Yes Max power consumption (Watts) : 39W LEDs : Power, Fan, Speed, Link/Activity Acoustic noise level @ 25° C (dBA) : 28dB Operating temperature : 0° to 40° C MTBF (@ 25° C) : 22.5dBA Electromagnetic compliance (A or B) : B |
| Support & Warranty | This product is backed by a 5-year Hardware Limited Warranty (Switch); 2-year warranty for external power adapters. Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions. Support : ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts. ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat. |
| SKU | XS508TM |
| Brand | Netgear |
| Shipping Weight | 2.4000kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.460m |
| Shipping Cubic | 0.002300000m3 |
Manufacturer Warranty: Limited Life Time Warranty
