NETGEAR XS512EM-100AJS
NETGEAR (XS512EM) 12-PORT 10G MULTI-GbE PLUS SWITCH, 10G SFP+(2), DESKTOP/RACKMOUNT

100M/1G/2.5G/5G/10G RJ-45 copper ports : 12

brSFP+ Ports : 2 (shared)

LEDs : Power, Speed, Fan, Link/Activity

Bandwidth : 240Gbps

Overview:

Unlock your Network Potential with 10-Gigabit/Multi-Gigabit 5-Speed Networking Switches

Revolutionary 5-speed 10-Gigabit/MultiGigabit technology built in the NETGEAR multi-speed switches allows your devices to speed past the Gigabit barrier.

With the growth of virtualization, flash Storage, 4K videos , video streaming and IP surveillance, SMB networks need to extend beyond 1 Gigabit 10-Gigabit/Multi-Gigabit Plus series from NETGEAR presents the right solution for this requirement; delivering unprecedented 10-Gigabit/Multi-Gigabit bandwith at an affordable cost.

Each port automatically detects which speed is needed by the connected device and provides the adequate speed. As opposed to regular 10-Gigabit switches that will only provide 1-Gigabit connectivity to any device that require less than 10-Gigabit, the XS512EM and XS724EM gives the exact speed required, no downgrade. Also, the new NETGEAR Multi-speed switch ports can be connected with regular Cat5E Ethernet cables, without the need to upgrade to Cat6/Cat6A wiring, therefore reducing wiring costs and hassle

Highlights

Hardware Highlights

5-speed Networking :
- XS512EM-12-port 10-Gigabit/Multi-Gigabit
- XS724EM-24-port 10-Gigabit/Multi-Gigabit
2 -Port SFP+ (combo) for fiber uplinks
Rackmount or Desktop
Internal power supply to eliminate power brick
Active fans for whisper quiet operation
50°C Maximum Operating Temperature
Compact Small Form Factor (XS512EM)

Software Highlights

VLAN support for traffic segmentation
Quality of Service (QoS) for traffic prioritization
Auto “denial-of-service” (DoS) prevention
Link Aggregation to add redundancy and increase your network speed (Static LAC and LACP supported)
Loop prevention and broadcast storm controls
IGMP snooping v1, v2 and v3 support for multicast optimization
Rate limiting for better bandwidth allocation
Port mirroring for network monitoring
Jumbo frame support
Energy Efficient Ethernet (IEEE802.3az) support for maximum power savings
Troubleshoot connection issues via cable test

Industry leading warranty

Limited Lifetime* 24/7 Technical Support
Limited Lifetime* Hardware Warranty

Features:

HARDWARE FEATURES

10GBASE-T Connections

Support low-latency, line-rate 10G Copper “BASE-T” technology with backward compatibility to Gigabit Ethernet and Fast Ethernet. Cost-effectively migrate current network to 10G capacity by utilizing the existing Cat 6 RJ45 short connections (up to 45m) and Cat 6a / Cat 7 connections up to 100m.

10GBASE-X SFP+ ports

Providing flexibility to uplink to 10G-capable core or aggregation switches that support fiber links. Backward compatible to Gigabit fiber. Support copper or fiber modules.

Multi-Gigabit Connections

Support line-rate 2.5G/5G "NBASE-T" technology with backward compatibility to Gigabit Ethernet and Fast Ethernet. Upgrade your current network without upgrading your existing cabling, thanks to Multi-Gigabit you will be able to run 5G and 2.5G over connections up to 100m.

SOFTWARE FEATURES

Comprehensive QoS Features

Advanced controls for optimized network performance and better delivery of mission-critical traffic such as voice and video. Ingress and egress rate limiting allows for bandwidth shaping for mitigating network resources constraints or for optimizing guest access bandwidth on the network.

Port-based or 802.1p-based prioritization

Layer 3-based (DSCP) prioritization

Port-based ingress and egress rate limiting

IGMP Snooping

For improved network efficiency on delivering multicast traffic. Save cost and improve network efficiency by ensuring multicast traffic only reaches designated receivers without the need of an extra multicast router.

Loop Detection / Auto DoS Prevention

Detect accidental network loops and protect against DoS (Denial of Service) attacks.

Diagram:

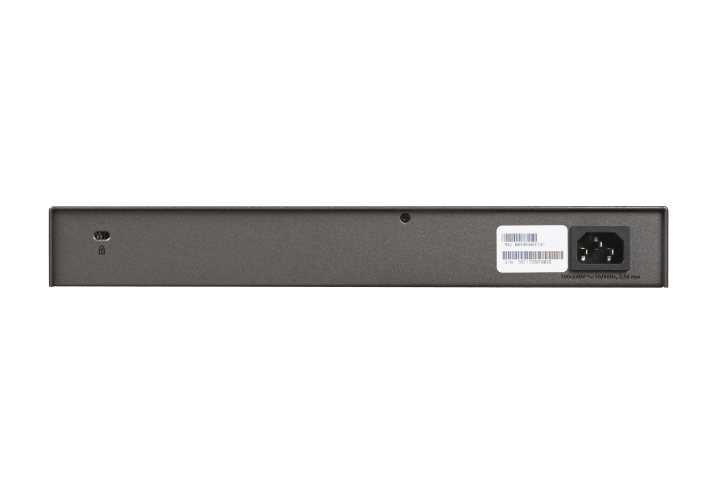

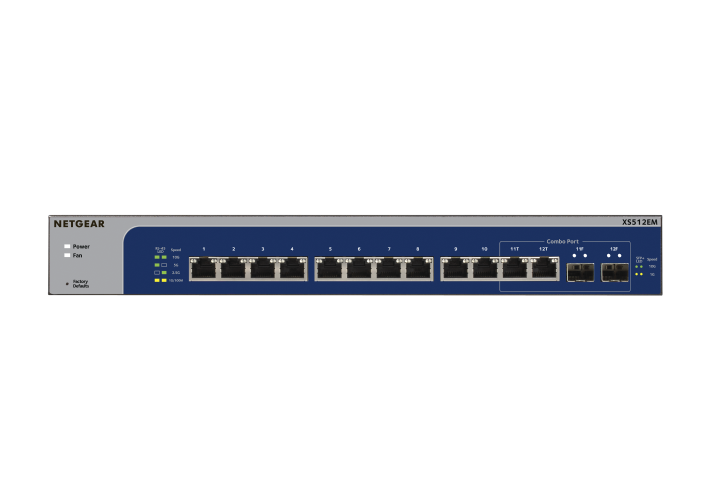

NETGEAR XS512EM-100AJS Diagram

(XS512EM-100AJS)

L2 Services - VLANs

IEEE 802.1Q VLAN tagging
Port-based VLANs (physical)

L2 Services - Availability

Broadcast, multicast, unknown unicast storm control
Static manual LAGs (port trunking)
IEEE 802.3x (full duplex and flow control)

L2 Services - Multicast Filtering

IGMP snooping (v1, v2 and v3)
Block unknown multicast

L3 Services - DHCP

DHCP client

Link Aggregation

Static manual LAGs (port trunking)
4 LAGs (XS708Ev2) or 8 LAGs (XS716E) with max 8 members in each LAG
GS110EMX, XS512EM, XS724EM supports LACP

Network Security

Broadcast, multicast, unknown unicast storm control
DoS attacks prevention

Quality of Service (QoS)

Port-based rate limiting (ingress and egress)
Port-based QoS
IEEE 802.1p COS
IPv4 DSCP
IPv4 ToS
Weighted Round Robin (WRR)

Management

Password management
Web browser-based graphical user interface (GUI) for advanced configuration and management
ProSAFE Plus Configuration Utility (PCU) for multi-switch management (requires Windows PC)
Firmware upgrade via HTTP (Web GUI) or TFTP (Plus Utility)
Config file transfers (backup, restore) using web browser-based management GUI or Plus Utility
Port mirroring; many-to-one port mirroring
Energy Efficient Ethernet (EEE) IEEE 802.3az (deactivated by default)
Short cable power reduction
Auto power-down

Specifications:

NETGEAR XS512EM-100AJS Specifications
Physical Specification	Dimensions (WxDxH) @mm : 328 x 204 x 43 mm (12.9 x 8.0 x 1.7 in) Weight (kg) : 2.51kg (5.54 lb)
Technical Specification	100M/1G/2.5G/5G/10G RJ-45 copper ports : 12 brSFP+ Ports : 2 (shared) Form Factor : Rackmount Packet buffer memory : 3MB Bandwidth : 240Gbps MAC Address database size : 32K VLAN (# supported) : 64 Number of LAGs & number of members : 8 LAGs with max 8 members in each LAG Supported multicast groups : 128 Max number of source ports allowed (many to one port mirroring) : 11 Fan(s) : 2 (active fans) IEEE 802.3az (Energy Efficient Ethernet) : Yes Max power consumption (Watts) : 76.56W LEDs : Power, Speed, Fan, Link/Activity Acoustic noise level @ 25° C (dBA) : 29.3dBA Operating temperature : 0° to 50° C Electromagnetic compliance (A or B) : A
Support & Warranty	Warranty: This product is backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty . Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions. Support : ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts. ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.

SKU	XS512EM-100AJS
Barcode #	606449129434
Brand	Netgear
Shipping Weight	3.5000kg
Shipping Width	0.299m
Shipping Height	0.487m
Shipping Length	0.477m
Shipping Cubic	0.069457000m3

Manufacturer Warranty: Limited Product Lifetime Warranty
Manufacturer Contact Info: http://www.netgear.com.au/
(02) 8117 6800
