NETGEAR® continues to lead the networking industry with its 2nd Generation of ProSAFE® 10-Gigabit Web Managed (Plus) Switches, the XS708Ev2 8-Port and the XS716E 16-Port models, the market’s most cost-efficient 10-Gigabit switches. Built for SMBs, workgroups, and even home offices, both the XS708Ev2 and XS716E provide 10-Gigabit Copper ports and SFP+ fiber ports, all at an affordable price.

The XS708Ev2 and XS716E are purposely designed as a cost-effective way to provide 10G connections to 10G-capable servers and NAS (Network Attached Storage) systems. As part of the ProSAFE Web Managed (Plus) switch product family, the XS708Ev2 and the XS716E comes with configurable L2 network features such as VLAN, QoS, IGMP snooping, port trunking and rate limiting. These features help to further optimize business network performance, delivering great value and empowering the SMB network.

The XS708Ev2 provides 8 (eight) 10-Gigabit Copper ports and 1 Shared (Combo) Copper/SFP+ fiber port, while the XS716E provides 16 (sixteen) 10-Gigabit Copper ports and 1 Shared (Combo) Copper/SFP+ fiber port, all at an affordable price.  Either the XS708Ev2 or XS716E can be used at the “center of a small business or home office network” or as an aggregation / access switch in a larger organization including workgroup access, connecting to a NETGEAR ProSAFE 10-Gigabit Fully Managed Switch on one end and extending the 10G connections to the edge.  The NETGEAR® 10-Gigabit Web Managed (Plus) switches are also ideal for smaller workgroups that need high bandwidth for sharing, collaborating, editing, and publishing high-density content like video or animation.

Configurable L2 Networking Features

The ProSAFE 10G Web Managed (Plus) Switches provide plug-and-play connectivity, in addition to configurable L2 network features in order to meet current and future needs on virtualization, converged networking and mobility. Some of the main features include:

  • Advanced VLAN support for traffic segmentation including port-based and 802.1Q-based
  • Advanced QoS (Quality of Service) for traffic prioritization including port-based and 802.1p/DSCP-based
  • Auto “denial-of-service” (DoS) prevention
  • IGMP snooping support for multicast optimization
  • Loop detection and broadcast storm controls
  • Rate limiting and priority queuing for better bandwidth allocation
  • Port mirroring for network monitoring
  • Port trunking/link aggregation (LAG) allows for increased throughput beyond 10G or to provide redundancy across the link(s)
  • Jumbo frame support

10-Gigabit Transition with BASE-T

With 10GBASE-T support, the ProSAFE 10G Web Managed (Plus) Switches enable a standard RJ45 Ethernet jack and existing Cat 6 or Cat 7 network cables to be used, delivering a 10X increase in network performance with minimum network changes and upgrades.

  • 10GBASE-T is backward compatible, auto-negotiating between higher and lower speeds, thereby not forcing an all-at-once network equipment upgrade
  • Cat 5/Cat 5e are supported for Gigabit speeds only, up to 100 meters
  • Cat 6 twisted pair copper cabling supports 10-Gigabit speeds up to 45 meters
  • Cat 6a or newer Cat 7 cabling will allow for up to 100 meter 10GBASE-T connections

Designed as Core Switch for SMB Networks

  • 10G connection to 10G-capable servers and network storage
  • L2 configurable features make them the most cost-effective core switches SMB and home office/business environments
  • Future-proof your network with 10G bandwidth and advanced traffic management
  • IGMP snooping provides advanced multicast filtering

Act as Aggregation Switch for Medium Sized Networks

  • 10-Gigabit switches help to resolve the congestion issue between network edge and core, which is caused by the broader adoption of Gigabit-to-the-desktop
  • 10-Gigabit Ethernet provides greater scalability than multiple Gigabit Ethernet links, resulting in a simplified and highly efficient network infrastructure
  • Up to four 10-Gigabit Ethernet links can be aggregated into 40-Gbps uplink/downlink connections
  • 10-Gigabit Ethernet reduces cabling complexity and uses existing cabling efficiently



Smart IT, not Big IT

  • Easy-to-use web browser-based management GUI makes setup and management simple
  • Standards-based technology, ensuring interoperability with any standards-based devices in the existing network
  • Worry-free with NETGEAR ProSAFE LIFETIME Hardware Warranty
  • Minimal down-time with NETGEAR ProSAFE LIFETIME Next-Business-Day (NBD) Replacement Warranty
  • Get deployment assistance with 90-days Free 24x7 Advanced Technical Phone Support
  • LIFETIME 24x7 Online Chat Technical Support

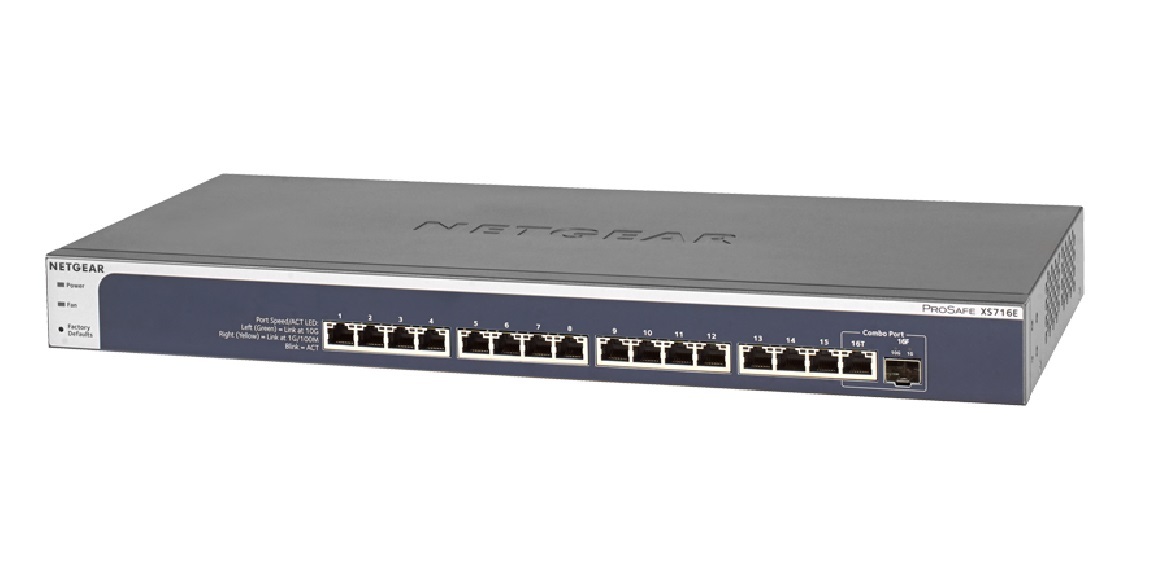

(XS716E)



Performance

  • 2MB packet buffer memory (dynamically shared across only used ports)
  • 160 Gbps (XS708Ev2) or 320 Gbps (XS716E) non-blocking fabric (bandwidth)
  • 8 Priority queues
  • Weighted Round Robin (WRR) priority queuing
  • 16K Media Access Control (MAC) addresses with 48-bit MAC address
  • 128 Multicast groups
  • 128 VLANs
  • 119.0 Mfps (XS708Ev2) or 238.1 Mfps (XS716E) packet forwarding rate (64 byte packet size)
  • Copper latency @ 10Gbps: <3.70 μs (XS708Ev2) or <3.43 μs (XS716E)
  • SFP+ Fiber latency @ 10Gbps: <3.67 μs (XS708Ev2) or <2.41 μs (XS716E)
  • Jumbo frames up to 9K packet size supported

L2 Services - VLANs

  • IEEE 802.1Q VLAN tagging
  • Port-based VLANs (physical)

L2 Services - Availability

  • Broadcast, multicast, unknown unicast storm control
  • Static manual LAGs (port trunking)
  • IEEE 802.3x (full duplex and flow control)

L2 Services - Multicast Filtering

  • IGMP snooping (v1, v2 and v3)
  • Block unknown multicast

L3 Services - DHCP

  • DHCP client

Link Aggregation

  • Static manual LAGs (port trunking)
  • 4 LAGs (XS708Ev2) or 8 LAGs (XS716E) with max 8 members in each LAG

Network Security

  • Broadcast, multicast, unknown unicast storm control
  • DoS attacks prevention

Quality of Service (QoS)

  • Port-based rate limiting (ingress and egress)
  • Port-based QoS
  • IEEE 802.1p COS
  • IPv4 DSCP
  • IPv4 ToS
  • Weighted Round Robin (WRR)

Management

  • Password management
  • Web browser-based graphical user interface (GUI) for advanced configuration and management
  • ProSAFE Plus Configuration Utility (PCU) for multi-switch management (requires Windows PC)
  • Firmware upgrade via HTTP (Web GUI) or TFTP (Plus Utility)
  • Config file transfers (backup, restore) using web browser-based management GUI or Plus Utility
  • Port mirroring; many-to-one port mirroring
  • Energy Efficient Ethernet (EEE) IEEE 802.3az (deactivated by default)
  • Short cable power reduction
  • Auto power-down

NETGEAR Warranty

  • This product is backed by a NETGEAR ProSAFE® Limited Lifetime Hardware Warranty.
  • Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.
  • ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
  • ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat. (Remote diagnostics performed by our technical experts for prompt resolution of technical issues).
10-Gigabit copper ports
  • 16 x 10GBASE-T Copper (RJ45)
SFP ports
  • 1 x SFP+ 1000/10GBASE-X fiber port (shared/combo)
Datasheet
Buffer size
  • 2MB
MAC address database size
  • 16K
VLAN (# supported)
  • 128
Number of LAGs & number of members
  • 8 LAGS with max 8 members in each LAG (Static manual LAG)
Number of priority queues
  • 8
Supported multicast groups
  • 128
Max number of source ports allowed (many to one port mirroring)
  • 15
Jumbo frame support
  • Up to 9K packets
Power supply
  • Internal: 100-240VAC, 50-60Hz, 2.5A max (power cord localized to country of sale)
Max power consumption (Watts)
  • 62.7 W
Fan(s)
  • 2
Acoustic noise level @ 25° C (dBA)
  • 33.9 dBA
Operating temperature
  • 0° to 50°C (32° to 122°F)
MTBF (@ 25° C)
  • 348,257 hours
Electromagnetic compliance (A or B)
  • Class A
Dimensions (W x D x H)
  • 440 x 204 x 43 mm (17.3 x 8.0 x 1.7 in)
Weight
  • 3.20 kg (7.07 lb)
SKU XS716E
Barcode # 606449115239
Brand Netgear
Shipping Weight 4.3000kg
Shipping Width 31.800m
Shipping Height 8.900m
Shipping Length 56.400m
Manufacturer Warranty
Limited Product Lifetime Warranty
Manufacturer Contact Info
http://www.netgear.com.au/
(02) 8117 6800
