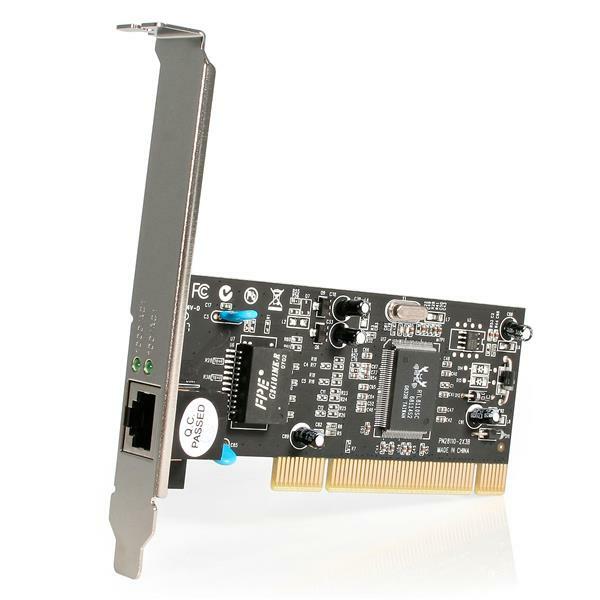

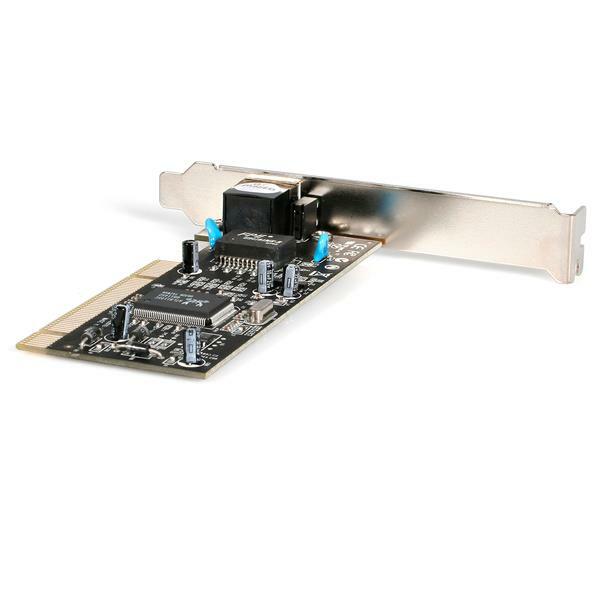

This PCI-based 10/100/1000 Mbps Gigabit Ethernet Network Adapter Card provides a simple connection to a Gigabit Ethernet network, and is fully compatible with IEEE 802.3, 802.3u, 802.3ab and 802.3x standards.

Suitable for any PCI-enabled client, server or workstation, the Gigabit Ethernet Network Adapter Card supports high performance dual channel networking and maximum data transfer speeds of 1000Mbps in each direction (2000 Mbps total) - up to ten times faster than 10/100 Ethernet.

Compatible with a broad range of operating systems, including Linux, Windows 10, 8/8.1, ME, 2000, XP, XP-64bit, Vista, Vista-64bit, 7, 7-64bit as well as Mac OS 10.4, this high quality PCI Gigabit NIC includes an optional low profile bracket that makes it easy to install the card in a small form factor/low profile computer case/server.


Applications

  • Add an additional Ethernet port to a workstation or server computer for redundancy
  • Upgrade a computers 10/100 Ethernet port to a 1000 compatible port
  • Add networking capabilities to an old system with no Ethernet port

(ST1000BT32)

Warranty Information
Warranty Lifetime
Hardware
Bus Type PCI / PCI-X (5 / 3.3V)
Card Type Standard Profile (LP bracket incl.)
Chipset ID Realtek - RTL8110SC
Industry Standards IEEE 802.3, IEEE 802.3ab, IEEE 802.11u
PCI 2.1, 2.2
Interface RJ45 (Gigabit Ethernet)
Ports 1
Performance
Compatible Networks 10/100/1000 Mbps
Full Duplex Support Yes
Maximum Data Transfer Rate 1000 Mbps
MTBF 36,000 Hours
Supported Protocols CSMA/CD
Connector(s)
Connector Type(s) 1 - PCI / PCI-X (Universal 3.3 & 5V, 32-bit) Male
External Ports 1 - RJ-45 Female
Software
OS Compatibility Windows® NT, ME, 2000, XP, Vista, 7, 8, 8.1, 10
Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
Netware Server 5.x, Netware ODI for DOS
Linux 2.6.x to 4.11.x, Unix
Mac OS X 10.4
Special Notes / Requirements
Note IRQ Line & I/O Address allocated by system
Indicators

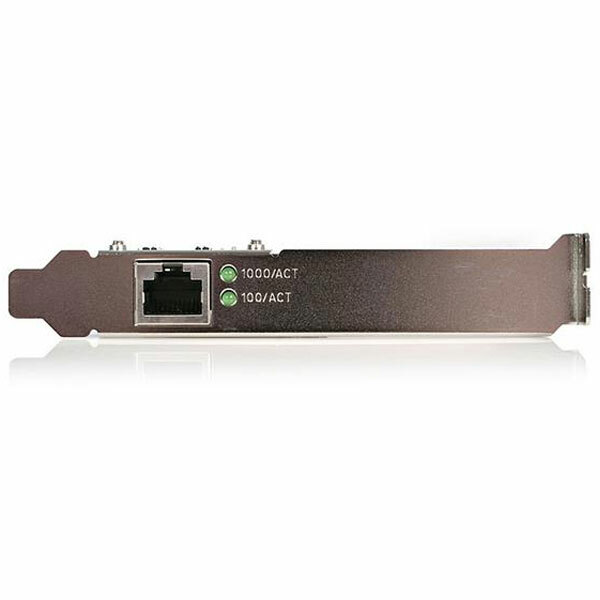

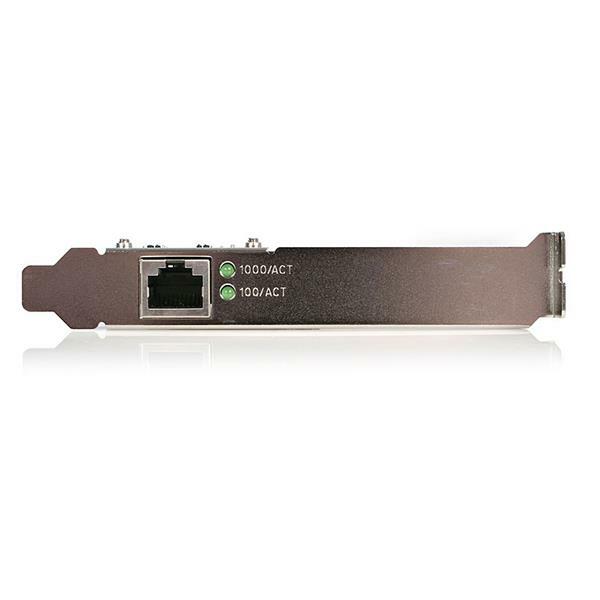

LED Indicators 1 - 10/100/1000 Mbits/sec Link/Activity
Environmental
Humidity 10% ~ 95% RH
Operating Temperature 0°C to 55°C (32°F to 131°F)
Physical Characteristics
Product Height 2.5 in [6.3 cm]
Product Length 4.8 in [12.3 cm]
Product Width 0.8 in [20 mm]
Weight of Product 1.9 oz [53 g]
Packaging Information
Package Height 1.2 in [30 mm]
Package Length 5.6 in [14.3 cm]
Package Quantity 1
Package Width 6.7 in [17 cm]
Shipping (Package) Weight 5 oz [142 g]
What's in the Box
Included in Package 1 - Gigabit Ethernet PCI Card
1 - Low Profile bracket
1 - Driver CD
1 - Instruction Manual
SKU ST1000BT32
Barcode # 65030795807
Brand Startech
Shipping Weight 0.5000kg
Manufacturer Warranty: Limited Product Lifetime Warranty
