StarTech.com · PEX1000SFP2

StarTech PCIe GbE Fiber Network Card, Open SFP - PEX1000SFP2

Single-port PCIe Gigabit fibre network card with an open SFP slot for selecting a compatible multimode or singlemode transceiver.

Quick answer: Adds one open Gigabit SFP slot to a PCIe x1 or larger system, allowing fibre type, connector and distance to be selected by the module.

Best forFlexible direct fibre connections for desktops, servers and 1U systems that need a replaceable Gigabit optical transceiver.

Check before orderingA compatible Gigabit fibre SFP is required and sold separately. The official page states copper and 100Mbps SFP modules are not supported.

Answers before you buy

Frequently asked questions

What does PEX1000SFP2 do?

Adds one open Gigabit SFP slot to a PCIe x1 or larger system, allowing fibre type, connector and distance to be selected by the module.

Who is this product best for?

Flexible direct fibre connections for desktops, servers and 1U systems that need a replaceable Gigabit optical transceiver.

What should I check before ordering?

A compatible Gigabit fibre SFP is required and sold separately. The official page states copper and 100Mbps SFP modules are not supported.

Does it require drivers or software?

Drivers support listed Windows, Windows Server, older macOS, Linux and Microsoft Hyper-V versions; confirm the target OS.

What is included in the package?

Gigabit open-SFP network card, low-profile bracket and instruction manual.

What is the key installation requirement?

Install in a PCIe x1 or larger slot and select a compatible Gigabit fibre SFP for the required optical mode, connector and distance.

Is it suitable for an Australian setup?

Yes. DeviceDeal supplies the Australian-market version; always confirm the available ports, power and system compatibility for your installation.

What warranty applies?

PEX1000SFP2 carries a StarTech.com 2 years manufacturer warranty, subject to the manufacturers terms and eligibility requirements.

Planning a broader setup? Browse the DeviceDeal buying guides. View the DeviceDeal product page.

(PEX1000SFP2)

Features & highlights

Why choose PEX1000SFP2?

?Open Gigabit SFP slotSelect a compatible fibre transceiver for the required network design.

?1Gbps full duplexProvides up to 2Gbps aggregate bidirectional throughput.

?Flexible fibre deploymentSupports compatible 1000BASE-SX/LX optical modules.

?EMI-resistant connectionDirect fibre avoids electromagnetic interference affecting copper links.

?VLAN and flow controlSupports common managed-network standards and full-duplex operation.

?Dual-profile cardStandard bracket fitted with low-profile bracket included.

Compatibility reminder: A compatible Gigabit fibre SFP is required and sold separately. The official page states copper and 100Mbps SFP modules are not supported.

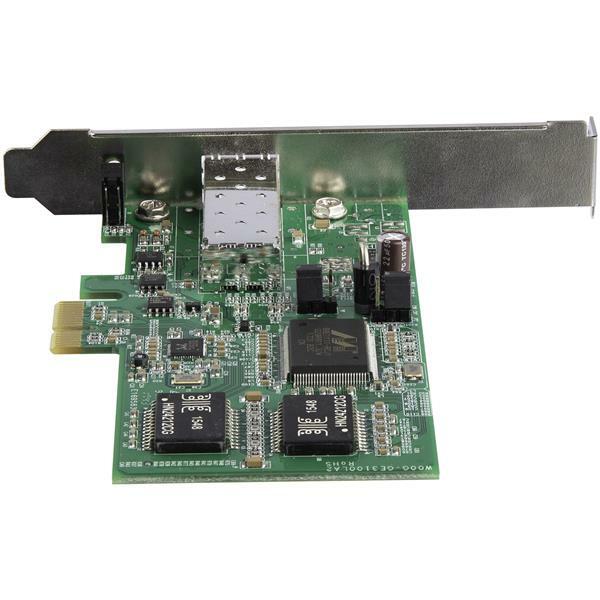

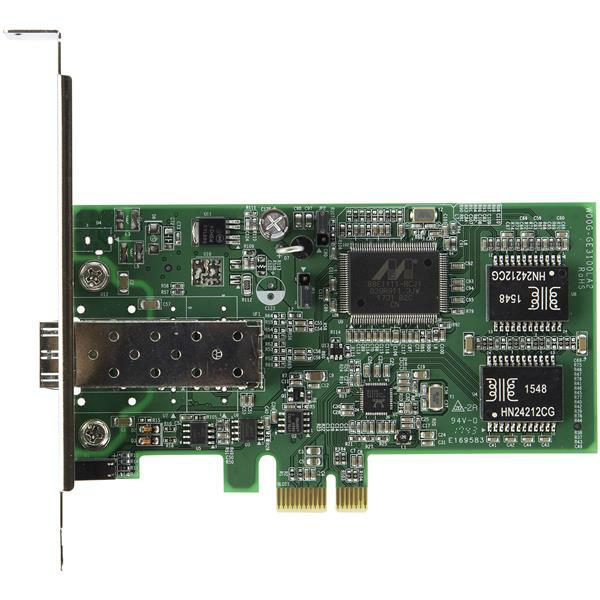

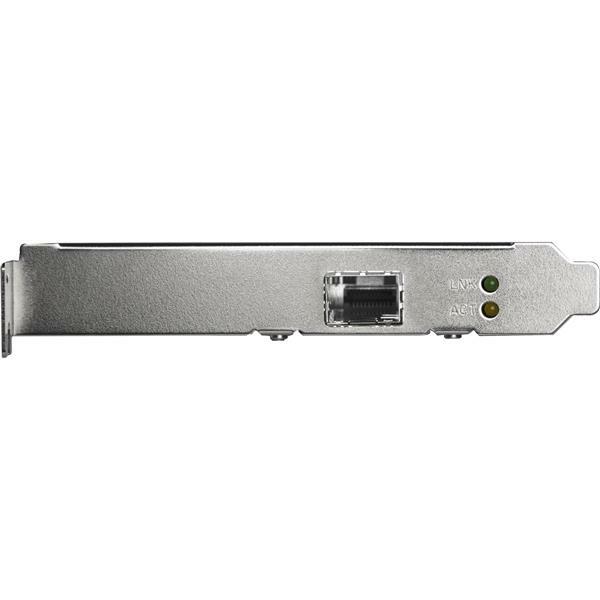

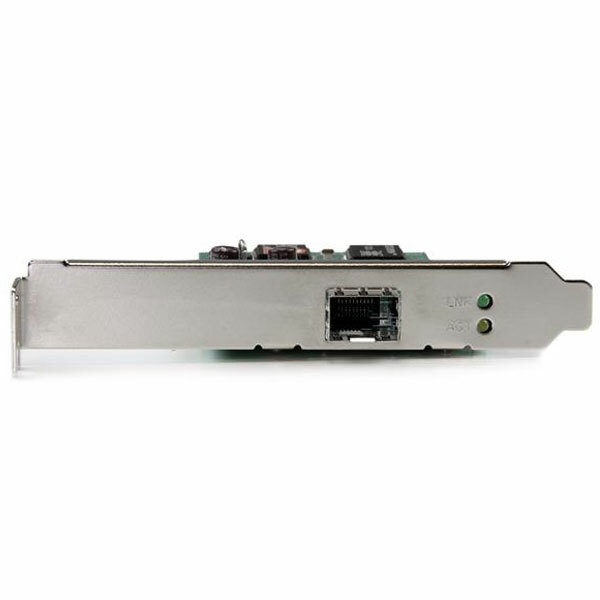

StarTech PCIe GbE Fiber Network Card, Open SFP - PEX1000SFP2 product image

Technical specifications

PEX1000SFP2 specifications

Exact-model specifications for compatibility checking.

Warranty Information
Warranty	2 Years
Hardware
Bus Type	PCI Express
Card Type	Standard Profile (LP bracket incl.)
Chipset ID	Realtek - RTL8168E ; Marvell - 88E1111B1
Industry Standards	IEEE802.3z 1000BASE-SX/LX, IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 Priority Encoding, IEEE 802.3x full duplex flow control, RFC 1157 SNMP v1
Interface	Fiber Ethernet
Ports	1
Performance
Auto MDIX	Yes
Buffer Size	48 KB
Compatible Networks	1000 Mbps (1 Gbps)
Full Duplex Support	Yes
Maximum Data Transfer Rate	2000 Mbps (2 Gbps) - Full-Duplex
MTBF	770,619 hours
Connector(s)
Connector Type(s)	1 - PCI Express x1 Male
External Ports	1 - SFP Slot Female
Software
OS Compatibility	Windows® XP, Vista, 7, 8, 8.1, 10; Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016; Mac OS X® 10.5 to 10.9; Linux 2.4.x to 4.11.x LTS Versions only ; Microsoft Hyper-V®
Special Notes / Requirements
Note	Fiber data transfer speeds and distances are dependent on the SFP used (sold separately)
System and Cable Requirements	Not compatible with 100Mbps SFP transceivers, Gigabit SFP transceiver required
Indicators
LED Indicators	1 - Link (Green)
Power
Power Consumption (In Watts)	3.2W Max
Environmental
Humidity	5~95% RH (Non-Condensing)
Operating Temperature	0°C to 45°C (32°F to 113°F)
Storage Temperature	-20°C to 70°C (-4°F to 158°F)
Physical Characteristics
Product Height	4.6 in [11.8 cm]
Product Length	5 in [12.8 cm]
Product Width	0.7 in [18 mm]
Weight of Product	2 oz [57 g]
Packaging Information
Package Height	2 in [52 mm]
Package Length	8.5 in [21.7 cm]
Package Width	6.7 in [17.1 cm]
Shipping (Package) Weight	7.1 oz [200 g]
What's in the Box
Included in Package	1 - 1 Port PCI Express Gigabit SFP Network Card
Additional Items	1 - low-profile bracket; 1 - instruction manual
Compatibility
SFP Support	Gigabit fibre SFP modules only; 100Mbps and copper SFP modules are not supported

Sources: supplied product file, DeviceDeal product page and official StarTech.com specifications. Product appearance and specifications may change; confirm critical deployment requirements before ordering.

SKU	PEX1000SFP2
Barcode #	65030857383
Brand	Startech
Shipping Weight	0.2000kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.210m
Shipping Cubic	0.001050000m3

Manufacturer warranty

2 Years

This Australian-version product is supplied by DeviceDeal and is covered by the official StarTech.com 2 years manufacturer warranty in Australia.

Keep your DeviceDeal tax invoice as proof of purchase.
Coverage is subject to StarTech.com warranty terms, eligibility and product assessment.
Warranty service does not replace rights that may apply under Australian Consumer Law.
