StarTech 16in DB25 Parallel Female to IDC 25 Pin Header Slot Plate - PLATE25F16
Model # PLATE25F16
-
SKU: PLATE25F16
Stock Availability
🟢Live
Allow 1–2 business days for stock transfer
- Pick Up Available
- Australian Warranty
- Checkout Securely

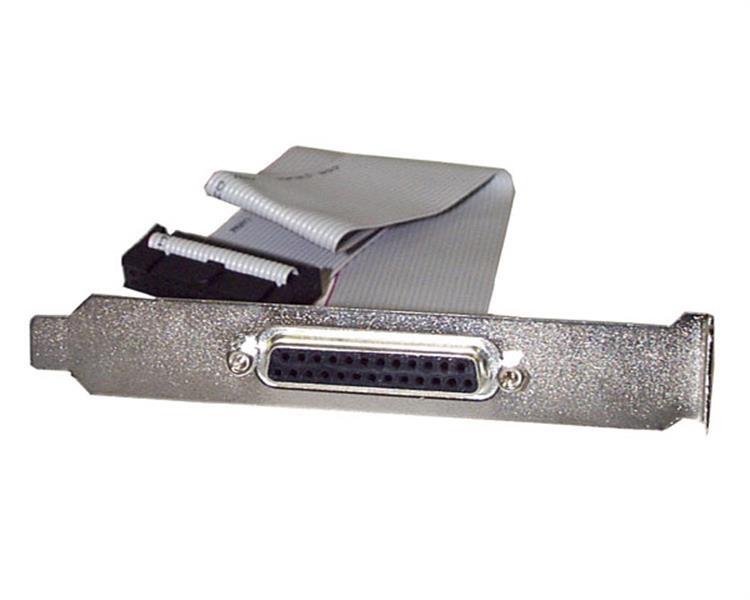

StarTech 16in DB25 Parallel Female to IDC 25 Pin Header Slot Plate - PLATE25F16
16-inch slot-plate cable converting a compatible motherboard IDC26 parallel header to a rear-panel female DB25 port.
Frequently asked questions
What does PLATE25F16 do?
Adds one female DB25 parallel port to a standard expansion slot by connecting to a compatible IDC26 motherboard header.
Who is this product best for?
PC builds and repair jobs that need access to a motherboard parallel header for a legacy printer or parallel peripheral.
What should I check before ordering?
Confirm the motherboard has a compatible IDC26 parallel header and verify its pinout before connection; this is not a PCIe controller.
Does it require drivers or software?
No driver is required for the cable itself; the motherboard parallel controller and operating system must support the attached device.
What is included in the package?
One 16-inch DB25 female to IDC26 motherboard-header slot plate.
What is the key installation requirement?
Connect the IDC26 plug only to a verified compatible parallel header, then secure the DB25 bracket in a standard expansion-slot opening.
Is it suitable for an Australian setup?
Yes. DeviceDeal supplies the Australian-market version; always confirm the available ports, power and system compatibility for your installation.
What warranty applies?
PLATE25F16 carries a StarTech.com limited lifetime manufacturer warranty, subject to the manufacturers terms and eligibility requirements.
Planning a broader setup? Browse the DeviceDeal buying guides. View the DeviceDeal product page.
(PLATE25F16)
Why choose PLATE25F16?
PLATE25F16 specifications
Exact-model specifications for compatibility checking.
| Warranty Information | |
|---|---|
| Warranty | Lifetime |
| Connector(s) | |
| Connector A | 1 - DB-25 (25 pin, D-Sub) Female |
| Connector B | 1 - IDC (26 pin, Motherboard Header) |
| Hardware | |
| Cable Jacket Material | PVC |
| Wire Gauge | 28 AWG |
| Physical Characteristics | |
| Colour | Grey |
| Cable Length | 406.4mm (16in) |
| Product Dimensions | 40.6 x 12.0 x 1.2cm |
| Product Weight | 50g |
| Packaging Information | |
| Package Quantity | 1 |
| Shipping Weight | 58g |
| What's in the Box | |
| Included | 1 - 16in DB25 parallel female to IDC 26-pin header slot plate |
Sources: supplied product file, DeviceDeal product page and official StarTech.com specifications. Product appearance and specifications may change; confirm critical deployment requirements before ordering.
| SKU | PLATE25F16 |
| Barcode # | 65030828468 |
| Brand | Startech |
| Shipping Weight | 0.0500kg |
| Shipping Width | 0.080m |
| Shipping Height | 0.010m |
| Shipping Length | 0.130m |
| Shipping Cubic | 0.000104000m3 |
This Australian-version product is supplied by DeviceDeal and is covered by the official StarTech.com limited lifetime manufacturer warranty in Australia.
- Keep your DeviceDeal tax invoice as proof of purchase.
- Coverage is subject to StarTech.com warranty terms, eligibility and product assessment.
- Warranty service does not replace rights that may apply under Australian Consumer Law.
