StarTech.com SATA24RA1

24in SATA III cable with right-angle connector

A 24-inch SATA data cable with one straight and one 90-degree right-angle SATA receptacle, supporting up to 6Gbps SATA 3.0 bandwidth.

24in / 61cmSATA III / 6Gbps90° right-angleLifetime warranty

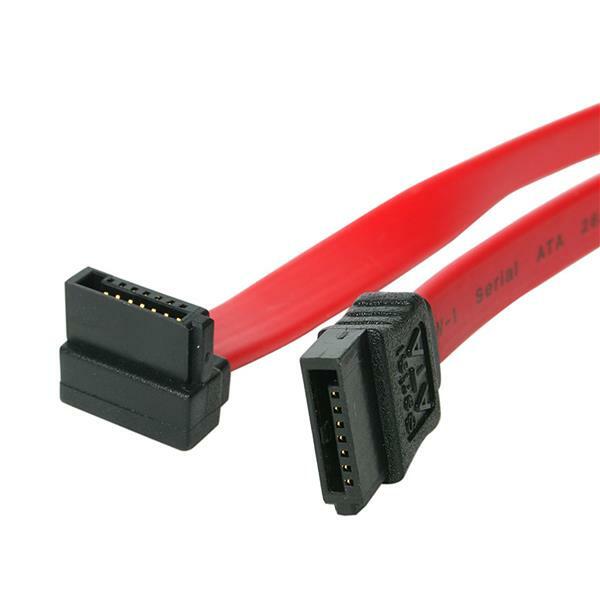

StarTech SATA24RA1 24-inch right-angle SATA data cable

Key capabilities

Right-angle routing

A 90-degree connector helps where drive clearance is limited.

6Gbps SATA III

Supports SATA 3.0 bandwidth up to 6Gbps.

Straight-to-angle layout

One straight SATA receptacle and one right-angle receptacle.

Flexible design

Helps reduce clutter inside the chassis.

What to know before buying

This exact SKU is the right-angle version. Check cable bend direction before ordering. It carries data only.

Australian version and manufacturer warranty

This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com Lifetime manufacturer warranty in Australia.

Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

What is the StarTech SATA24RA1 used for?

It connects a SATA controller to a SATA drive where a right-angle plug helps with clearance.

How long is it?

24 inches.

What connectors does it use?

One straight 7-pin SATA receptacle and one 90-degree right-angle 7-pin receptacle.

Does it require software or drivers?

No. This is a passive internal cable or adapter.

What should I check before buying?

It is the right-angle model and does not provide drive power.

Is it intended for internal computer/storage use?

Yes. The exact product is designed for internal storage or power connectivity.

What is included in the package?

One unit of the exact StarTech product is included.

What warranty applies to the StarTech SATA24RA1 in Australia?

The Australian version supplied by DeviceDeal is covered by the official StarTech.com lifetime manufacturer warranty in Australia, subject to StarTech.com terms and product assessment.

(SATA24RA1)

Features and highlights

Right-angle routing

A 90-degree connector helps where drive clearance is limited.

6Gbps SATA III

Supports SATA 3.0 bandwidth up to 6Gbps.

Straight-to-angle layout

One straight SATA receptacle and one right-angle receptacle.

Flexible design

Helps reduce clutter inside the chassis.

24in / 61cm
SATA III / 6Gbps
90° right-angle
Lifetime warranty

Warranty confidence: Official StarTech.com lifetime manufacturer warranty in Australia, subject to StarTech.com terms and assessment.

Specifications

Verified specifications for StarTech SATA24RA1.

General

Warranty	Lifetime
Cable length	24 in [approximately 61 cm]
Orientation	Straight to right-angle

Performance

SATA standard	SATA 3.0
Maximum bandwidth	6Gbps

Connectors

Connector A	Straight SATA 7-pin data receptacle
Connector B	90-degree right-angle SATA 7-pin data receptacle

Power

Drive power	Not provided

SKU	SATA24RA1
Barcode #	65030805360
Brand	Startech
Shipping Weight	0.0200kg
Shipping Width	0.090m
Shipping Height	0.010m
Shipping Length	0.180m
Shipping Cubic	0.000162000m3
