StarTech LSATA6 6in Latching SATA III Data Cable

6in Latching SATA III Data Cable designed for professional IT, electronics, security or workstation use.

Quick answer: LSATA6 connects a SATA drive to a compatible controller with two latching connectors and up to 6Gbps bandwidth.

Best forCompact computer cases, servers and storage systems where a short 6in SATA data cable reduces excess cable.

Check before orderingBoth ends are straight 7-pin SATA data connectors; latch retention requires ports that support latching connectors.

Answers before you buy

Frequently asked questions

What is StarTech LSATA6?

It is a short latching SATA data cable that connects a SATA drive to a compatible controller with two latching connectors and up to 6Gbps bandwidth.

Which connections or mounting method are provided?

Straight latching SATA 7-pin data connector at each end

What performance is specified?

SATA III up to 6Gbps; 500 insertion-cycle MTBF

How is the product constructed?

Low-profile flexible red PVC cable with two conductors and 26AWG wire gauge

How long is the cable?

The cable is 152.4mm / 6in long.

What data rate is supported?

It supports SATA III operation up to 6Gbps with compliant equipment.

What should be checked before ordering?

Both ends are straight 7-pin SATA data connectors; latch retention requires ports that support latching connectors.

What warranty applies?

LSATA6 carries a StarTech.com limited lifetime manufacturer warranty, subject to the manufacturers terms and eligibility requirements.

Planning a broader setup? Browse the DeviceDeal buying guides.

(LSATA6)

Features & highlights

Why choose LSATA6?

?Purpose-built designStraight latching SATA 7-pin data connector at each end

?Specified performanceSATA III up to 6Gbps; 500 insertion-cycle MTBF

?Professional constructionLow-profile flexible red PVC cable with two conductors and 26AWG wire gauge

?Key capabilityShort 152.4mm length helps reduce cable clutter and improve airflow inside compact systems.

?Deployment advantageSecure latching ends help prevent accidental disconnection on compatible ports.

?Order with confidenceBoth ends are straight 7-pin SATA data connectors; latch retention requires ports that support latching connectors.

Compatibility reminder: Both ends are straight 7-pin SATA data connectors; latch retention requires ports that support latching connectors.

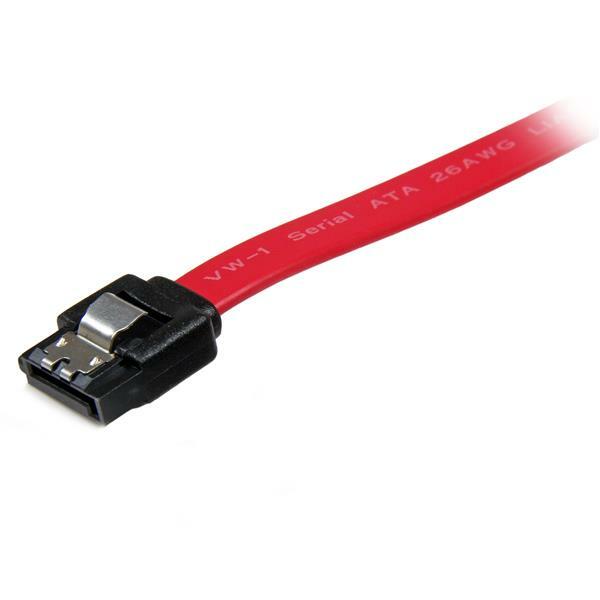

StarTech LSATA6 6in Latching SATA III Data Cable product image

Technical specifications

LSATA6 specifications

Exact-model specifications for compatibility checking. Measurements may be rounded.

Warranty Information
Warranty	Lifetime
Connectors
Connector A	1 × SATA 7-pin data
Connector B	1 × SATA 7-pin data
Connector Style	Latching at both ends
Hardware
Number of Conductors	2
Cable Jacket	PVC
Wire Gauge	26AWG
Performance
Type and Rate	SATA III 6Gbps
MTBF	500 insertion cycles
Physical Characteristics
Colour	Red
Cable Length	152.4mm / 6in
Product Dimensions	152 × 14 × 6mm
Product Weight	6g
Packaging Information
Package Dimensions	169 × 64 × 16mm
Package Weight	10g
What's in the Box
Included	6in latching SATA cable
