StarTech 50cm Internal Mini SAS Cable, SFF8087 to 4x SFF8482 - SAS808782P50
Model # SAS808782P50
-
SKU: SAS808782P50
- Pick Up Available
- Australian Warranty
- Checkout Securely

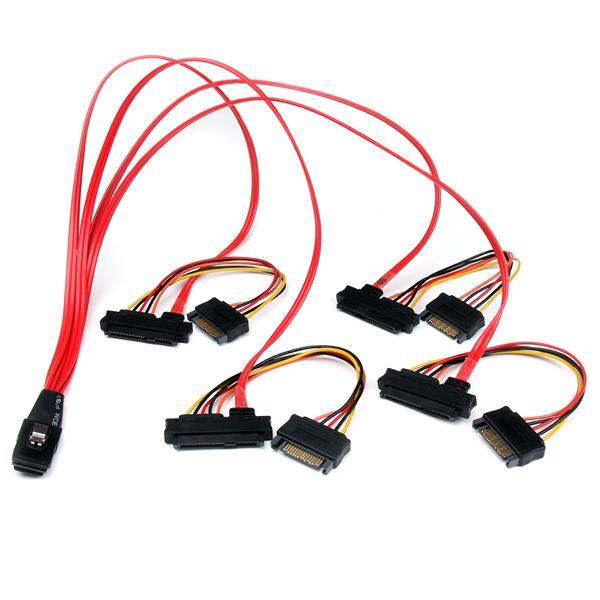

50cm SFF-8087 Mini-SAS to 4 × SFF-8482 SAS cable
A 50 cm internal Mini-SAS breakout cable with one SFF-8087 plug fanning out to four SFF-8482 SAS drive receptacles, with SATA power plugs for drive power connections.
Key capabilities
Four SAS-drive breakout
One SFF-8087 Mini-SAS controller connection fans out to four SFF-8482 drive connections.
Data and power drive-side design
Each SFF-8482 branch provides SAS data/power connectivity alongside SATA power plugs.
50cm internal cable
Compact 50 cm length suits internal server and storage chassis wiring.
30AWG construction
The supplied exact specification lists 30AWG conductors.
What to know before buying
Confirm that the controller uses SFF-8087 and that the target drives/connectors require SFF-8482. Power must be connected according to the system's storage power arrangement.
Australian version and manufacturer warranty
This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com Lifetime manufacturer warranty in Australia.
Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
Frequently asked questions
What does the StarTech SAS808782P50 connect?
How long is the cable?
How many drive branches are provided?
What is the controller-side connector?
Are power connections included?
What wire gauge is specified?
What colour is the cable?
What warranty applies in Australia?
(SAS808782P50)
Features and highlights
Four SAS-drive breakout
One SFF-8087 Mini-SAS controller connection fans out to four SFF-8482 drive connections.
Data and power drive-side design
Each SFF-8482 branch provides SAS data/power connectivity alongside SATA power plugs.
50cm internal cable
Compact 50 cm length suits internal server and storage chassis wiring.
30AWG construction
The supplied exact specification lists 30AWG conductors.
- 50cm / 1.6ft
- SFF-8087 to 4 × SFF-8482
- 30AWG
- Lifetime warranty
Specifications
Verified specifications for StarTech SAS808782P50.
Specifications
| Product Width | 50 mm [2 in] |
|---|---|
| Weight of Product | 94 g [3.3 oz] |
| Wire Gauge | 30 AWG |
| Included in Package | 50cm Serial Attached SCSI SAS Cable - SFF8087 to 4x SFF8482 |
| Product Length | 0.5 m [1.6 ft] |
| Product Height | 1.5 cm [0.6 in] |
| Color | Red |
| Cable Length | 0.5 m [1.6 ft] |
| Shipping (Package) Weight | 98 g [3.5 oz] |
| Package Width | 60 mm [2.4 in] |
| Package Quantity | 1 |
| Package Length | 14 cm [5.5 in] |
| Package Height | 60 mm [2.4 in] |

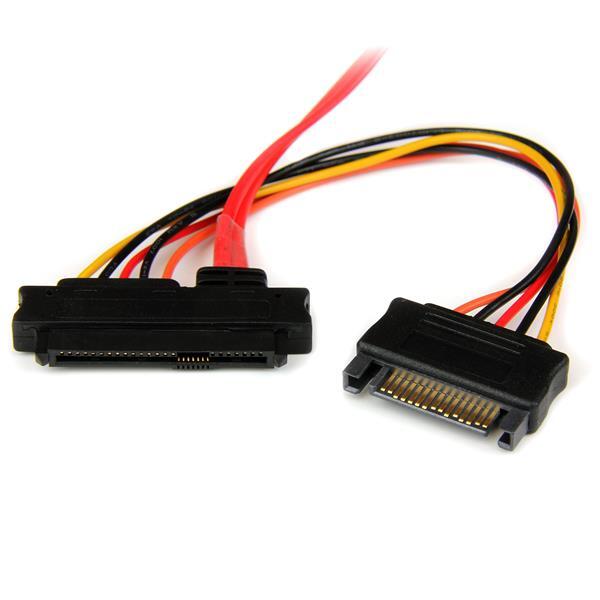

| Connector B | SFF-8482 (29 pin, Data & Power, Internal SAS) Receptacle |
| Connector B | SATA Power (15 pin) Plug |

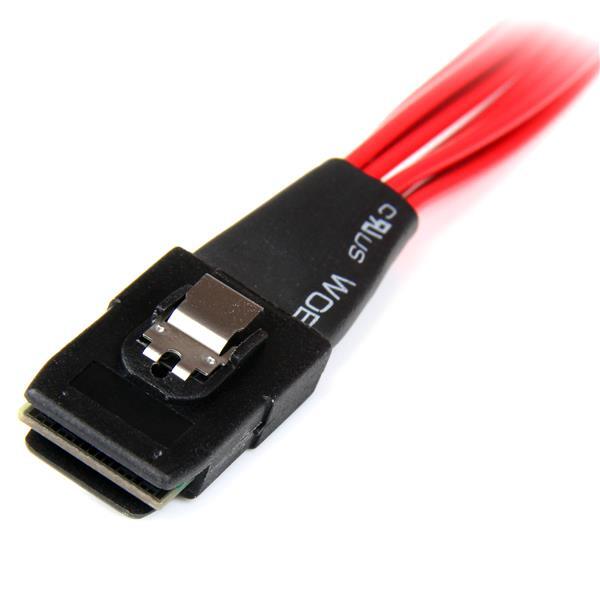

| Connector A | SFF-8087 (36 Pin, Internal Mini-SAS) Plug |
Warranty
| Warranty | Lifetime |
|---|
| SKU | SAS808782P50 |
| Barcode # | 65030848039 |
| Brand | Startech |
| Shipping Weight | 0.0900kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.170m |
| Shipping Cubic | 0.000850000m3 |
StarTech.com warranty in Australia
This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com Lifetime manufacturer warranty in Australia.
Please retain your DeviceDeal tax invoice as proof of purchase.
Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment. This wording does not promise automatic replacement or guaranteed claim approval.
