StarTech.com SATA22PEXT

12in 22-pin SATA power and data extension cable

A 12-inch male-to-female 22-pin SATA extension that adds reach to an existing combined SATA power-and-data connection.

12in / 30cm22-pin SATA power + dataMale-to-femaleLifetime warranty

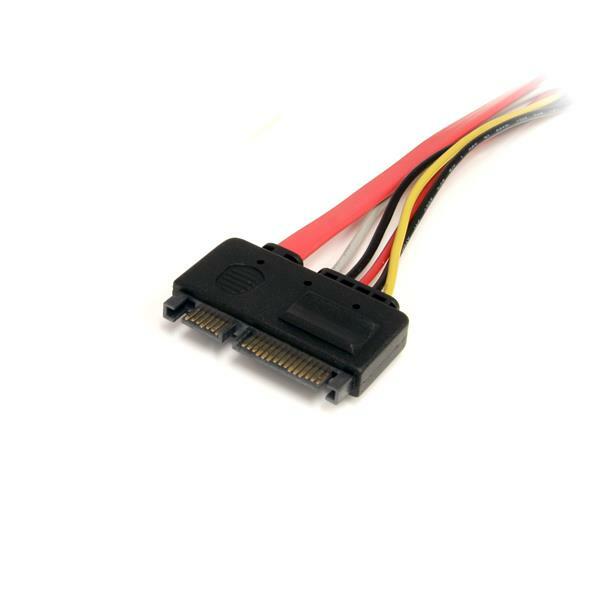

StarTech SATA22PEXT 12-inch SATA power and data extension cable

Key capabilities

Extend SATA power and data

Adds up to 12 inches of reach between existing SATA cabling and a drive.

Combined 22-pin connection

Extends both SATA data and SATA power together.

Reduce connector strain

Avoids stretching short internal SATA leads.

Passive cable

No software, drivers or active electronics are required.

What to know before buying

This cable extends an existing combined SATA data-and-power connection. It does not add a new SATA port or convert connector standards.

Australian version and manufacturer warranty

This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com Lifetime manufacturer warranty in Australia.

Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

What is the StarTech SATA22PEXT used for?

It extends an existing combined SATA power-and-data connection.

How long is it?

12.0in / 304.8mm cable length; product length is approximately 30cm.

What connectors does it use?

22-pin SATA data+power plug to 22-pin SATA data+power receptacle.

Does it require software or drivers?

No. This is a passive internal cable or adapter.

What should I check before buying?

Confirm you need a combined 22-pin SATA extension rather than separate data or power cables.

Is it intended for internal computer/storage use?

Yes. The exact product is designed for internal storage or power connectivity.

What is included in the package?

One unit of the exact StarTech product is included.

What warranty applies to the StarTech SATA22PEXT in Australia?

The Australian version supplied by DeviceDeal is covered by the official StarTech.com lifetime manufacturer warranty in Australia, subject to StarTech.com terms and product assessment.

(SATA22PEXT)

Features and highlights

Extend SATA power and data

Adds up to 12 inches of reach between existing SATA cabling and a drive.

Combined 22-pin connection

Extends both SATA data and SATA power together.

Reduce connector strain

Avoids stretching short internal SATA leads.

Passive cable

No software, drivers or active electronics are required.

12in / 30cm
22-pin SATA power + data
Male-to-female
Lifetime warranty

Warranty confidence: Official StarTech.com lifetime manufacturer warranty in Australia, subject to StarTech.com terms and assessment.

Specifications

Verified specifications for StarTech SATA22PEXT.

General

Warranty	Lifetime
Cable length	12.0 in [304.8 mm]
Product length	11.8 in [30.0 cm]

Connectors

Connector A	22-pin SATA data + power plug
Connector B	22-pin SATA data + power receptacle

Physical

Product width	0.6 in [1.4 cm]
Product height	0.2 in [0.6 cm]
Weight	1.2 oz [34.0 g]

Packaging

Package length	5.4 in [13.6 cm]
Package width	5.0 in [12.7 cm]
Package height	0.9 in [2.3 cm]
Shipping weight	1.3 oz [38.0 g]

SKU	SATA22PEXT
Barcode #	65030845304
Brand	Startech
Shipping Weight	0.0400kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.150m
Shipping Cubic	0.000750000m3

Lifetime official manufacturer warranty

StarTech.com warranty in Australia

This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com Lifetime manufacturer warranty in Australia.

Please retain your DeviceDeal tax invoice as proof of purchase.

Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
