StarTech SAS Cable SFF-8087 to 4x Latching SATA - SAS8087S450
Model # SAS8087S450
-
SKU: SAS8087S450
- Pick Up Available
- Australian Warranty
- Checkout Securely
50cm SFF-8087 Mini-SAS to 4 × latching SATA cable
A 50 cm internal breakout cable with one SFF-8087 Mini-SAS plug fanning out to four latching SATA data connectors for connecting compatible SATA drives to a SAS controller or backplane.
Key capabilities
Four SATA branches
One SFF-8087 connection fans out to four SATA 7-pin data connectors.

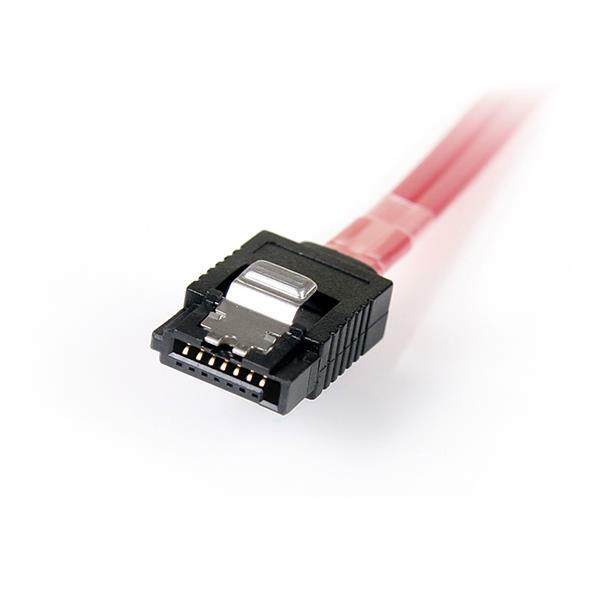

Latching SATA connectors
Each SATA branch uses a latching connector for a more secure internal connection.
Up to 6Gbps per channel
The exact StarTech source lists SATA III 6Gbps support.
30AWG internal cable
Designed as a multi-lane internal storage cable with 30AWG conductors.
What to know before buying
This cable carries data only to SATA drives; drive power must be provided separately. Confirm the controller/backplane uses SFF-8087 and that the cable direction matches the intended installation.
Australian version and manufacturer warranty
This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com Lifetime manufacturer warranty in Australia.
Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
Frequently asked questions
What does the StarTech SAS8087S450 connect?
How many SATA connectors are provided?
How long is the cable?
What speed does it support?
What is the controller-side connector?
Does this cable provide drive power?
What wire gauge is used?
What warranty applies in Australia?
(SAS8087S450)
Features and highlights
Four SATA branches
One SFF-8087 connection fans out to four SATA 7-pin data connectors.
Latching SATA connectors
Each SATA branch uses a latching connector for a more secure internal connection.
Up to 6Gbps per channel
The exact StarTech source lists SATA III 6Gbps support.
30AWG internal cable
Designed as a multi-lane internal storage cable with 30AWG conductors.
- 50cm / 19.7in
- SFF-8087 to 4 × SATA
- Latching SATA
- Lifetime warranty
Specifications
Verified specifications for StarTech SAS8087S450.
General
| Warranty | Lifetime |
|---|---|
| Colour | Red |
| Connector style | Latching |
| Cable length | 1.6 ft [0.5 m] |
Hardware
| Number of conductors | 2 |
|---|---|
| Wire gauge | 30 AWG |
Performance
| Type and rate | SATA III - 6Gbps |
|---|
Connectors

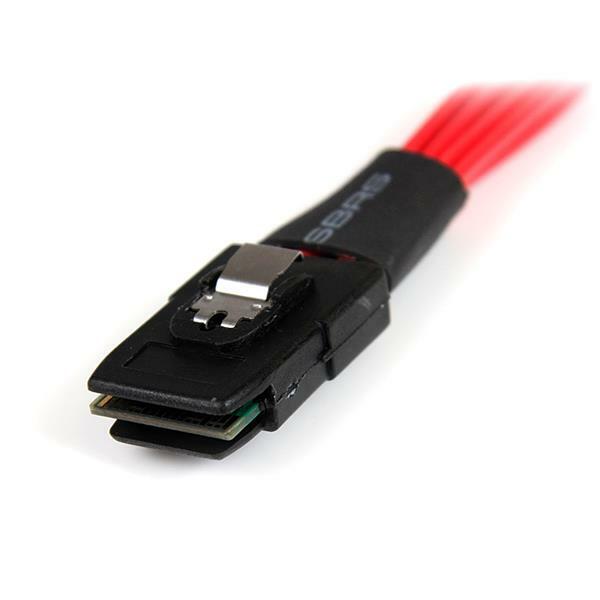

| Connector A | 1 × SFF-8087 (36-pin, Internal Mini-SAS) |
|---|---|
| Connector B | 4 × SATA (7-pin, Data) |
Physical Characteristics
| Product length | 19.7 in [50.0 cm] |
|---|---|
| Product width | 0.5 in [1.2 cm] |
| Product height | 0.4 in [1.0 cm] |
| Weight | 1.7 oz [47 g] |
What's in the Box
| Included in package | 1 × 50cm SFF-8087 to 4 × latching SATA cable |
|---|
| SKU | SAS8087S450 |
| Barcode # | 65030841672 |
| Brand | Startech |
| Shipping Weight | 0.0500kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.200m |
| Shipping Cubic | 0.001000000m3 |
StarTech.com warranty in Australia
This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com Lifetime manufacturer warranty in Australia.
Please retain your DeviceDeal tax invoice as proof of purchase.
Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment. This wording does not promise automatic replacement or guaranteed claim approval.
