StarTech.com SATA18LA1

18in SATA III cable with left-angle connector

A 18in / 45.7cm SATA data cable supporting SATA 3.0 bandwidth up to 6Gbps, with one straight and one 90-degree left-angle 7-pin SATA connector.

18in / 45.7cmSATA III / 6Gbps90° left-angleLifetime warranty

StarTech SATA18LA1 18in sata iii cable with left-angle connector

Key capabilities

SATA III 6Gbps

Supports SATA 3.0 bandwidth up to 6Gbps with compliant equipment.

90-degree left-angle connection

One connector is 90-degree left-angle for tighter routing.

Low-profile flexible cable

Designed to reduce clutter and help airflow inside the chassis.

2.5-inch and 3.5-inch SATA compatibility

Suitable for standard SATA drives using 7-pin data connections.

What to know before buying

This is a SATA data cable only. Confirm the required bend direction: this SKU uses a left-angle connector.

Australian version and manufacturer warranty

This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com Lifetime manufacturer warranty in Australia.

Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

What is the StarTech SATA18LA1 used for?

It connects a SATA controller or motherboard port to a compatible SATA drive.

What SATA speed does it support?

Up to 6Gbps SATA 3.0 bandwidth.

How long is the cable?

The cable length is 18in / 45.7cm.

Does it provide drive power?

No. Drive power must be supplied separately.

What connectors are fitted?

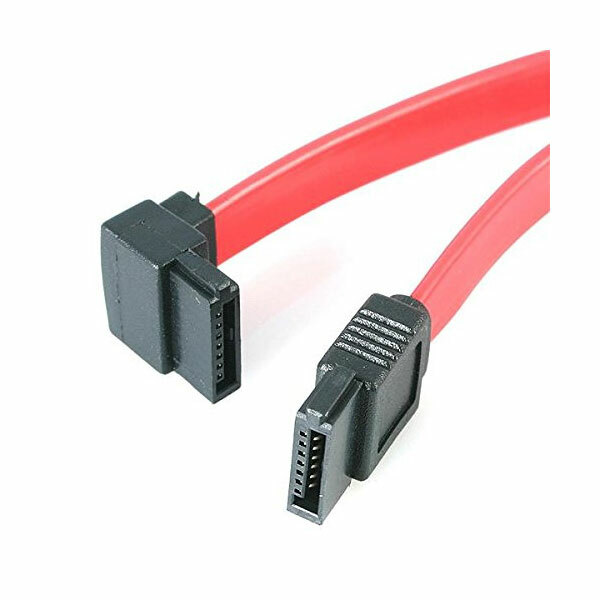

One straight 7-pin SATA connector and one 90-degree left-angle 7-pin SATA connector.

Can it be used with 2.5-inch and 3.5-inch SATA drives?

Yes.

Why use this connector style?

The left-angle connector can help where clearance is limited.

What warranty applies to the StarTech SATA18LA1 in Australia?

The Australian version supplied by DeviceDeal is covered by the official StarTech.com lifetime manufacturer warranty in Australia, subject to StarTech.com terms and product assessment.

(SATA18LA1)

Features and highlights

SATA III 6Gbps

Supports SATA 3.0 bandwidth up to 6Gbps with compliant equipment.

90-degree left-angle connection

One connector is 90-degree left-angle for tighter routing.

Low-profile flexible cable

Designed to reduce clutter and help airflow inside the chassis.

2.5-inch and 3.5-inch SATA compatibility

Suitable for standard SATA drives using 7-pin data connections.

18in / 45.7cm
SATA III / 6Gbps
90° left-angle
Lifetime warranty

Warranty confidence: Official StarTech.com lifetime manufacturer warranty in Australia, subject to StarTech.com warranty terms and assessment.

Specifications

Verified specifications for StarTech SATA18LA1.

General

Warranty	Lifetime
Cable length	18in / 45.7cm
Cable type	Internal SATA data cable
Connector orientation	Straight to 90-degree left-angle

Performance

SATA standard	SATA 3.0
Maximum bandwidth	6Gbps

Connectors

Connector A	1 × SATA 7-pin data receptacle
Connector B	1 × 90-degree left-angle SATA 7-pin data receptacle

Compatibility

Drive formats	2.5-inch and 3.5-inch SATA drives
Power delivery	No - separate SATA power required

What's in the Box

Included in package	1 × SATA data cable

SKU	SATA18LA1
Barcode #	65030819640
Brand	Startech
Shipping Weight	0.0200kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.210m
Shipping Cubic	0.001050000m3

Lifetime official manufacturer warranty

StarTech.com warranty in Australia

This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com Lifetime manufacturer warranty in Australia.

Please retain your DeviceDeal tax invoice as proof of purchase.

Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
