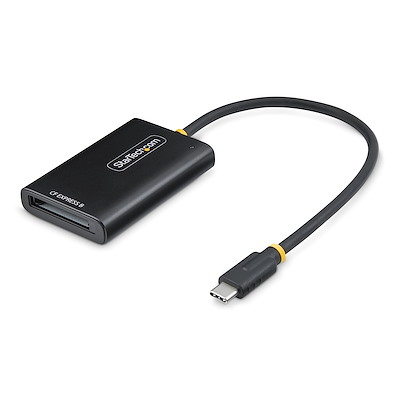

StarTech 1B-USB-C-CFE-ADAPTER USB-C CFexpress Type B Card Reader
A USB-C card reader for CFexpress 2.0 Type B and compatible XQD media, with a USB 3.2 Gen 2 connection rated up to 10Gbps.
CFexpress 2.0 Type BCompatible XQD mediaUSB-C 10Gbps20cm attached cableBus poweredDriverless
Product highlights
Key features
USB transfer up to 10Gbps
The supplied specification lists USB 3.2 Gen 2 with a maximum data transfer rate of 10Gbps.
CFexpress Type B and XQD
The reader supports CFexpress 2.0 Type B media and compatible XQD cards.
Driverless operation
The supplied software specification states no drivers or software are required.
Portable aluminium design
The supplied information lists a 20cm attached USB-C cable, bus power and an aluminium housing.
Buy with confidence from DeviceDeal
DeviceDeal is an authorised reseller. This product is supplied with the manufacturer warranty stated for this SKU: 2 Years. Warranty coverage and claims remain subject to the manufacturer's applicable terms and assessment.
Before you buy
Frequently asked questions
Which media does this reader support?
The supplied specifications list CFexpress 2.0 Type B and compatible XQD media.
What is the maximum listed transfer rate?
The supplied specification lists up to 10Gbps over USB 3.2 Gen 2.
Does it need external power?
No. The supplied information lists it as USB bus-powered.
Are drivers required?
No drivers or software are required according to the supplied specification.
What warranty is listed?
The supplied warranty information lists 2 years.
(1B-USB-C-CFE-ADAPTER)
Features and highlights
A USB-C card reader for CFexpress 2.0 Type B and compatible XQD media, with a USB 3.2 Gen 2 connection rated up to 10Gbps.
USB transfer up to 10Gbps
The supplied specification lists USB 3.2 Gen 2 with a maximum data transfer rate of 10Gbps.
CFexpress Type B and XQD
The reader supports CFexpress 2.0 Type B media and compatible XQD cards.
Driverless operation
The supplied software specification states no drivers or software are required.
Portable aluminium design
The supplied information lists a 20cm attached USB-C cable, bus power and an aluminium housing.
Technical specifications
Specifications below are based only on the information supplied for SKU 1B-USB-C-CFE-ADAPTER.
Connectors and media
Drive Connector
1 - CFexpress 2.0 Type-B/XQD
Host Connector
1 - USB 3.2 Type-C (24 pin, Gen 2, 10Gbps)
Memory Media Type
CFexpress 2.0 Type-B/XQD
Ports
1
Bus Type
USB-C
Industry Standards
CFexpress 2.0
Chipset ID
JMicron - JMS583
Performance and indicators
Maximum Data Transfer Rate
10Gbps
Type and Rate
USB 3.2 Gen 2 - 10 Gbit/s
MTBF
1,159,305 Hours
LED Indicator
Solid White: driver installed and USB connection enumerated; Flashes White: drive activity
Power and software
Power Source
Bus Powered
OS Compatibility
No Drivers or Software Required
Environmental
Operating Temperature
5°C to 40°C (41°F to 104°F)
Storage Temperature
5°C to 40°C (41°F to 104°F)
Humidity
5% ~ 90% RH
Physical
Color
Black
Product Height
0.5 in [1.2 cm]
Product Length
12.1 in [30.7 cm]
Product Width
1.8 in [4.5 cm]
Weight of Product
1.8 oz [50.0 g]
Cable Length
7.9 in [20 cm]
Packaging and included
Package Height
1.3 in [3.3 cm]
Package Length
6.9 in [17.4 cm]
Package Width
4.1 in [10.3 cm]
Shipping Weight
3.9 oz [110.0 g]
Included in Package
CFexpress Card Reader; Quick-Start Guide
SKU
1B-USB-C-CFE-ADAPTER
Barcode #
65030905480
Brand
STARTECH
Shipping Weight
0.1100kg
Shipping Width
0.003m
Shipping Height
0.018m
Shipping Length
0.010m
Manufacturer warranty
2 Years
DeviceDeal is an authorised reseller. The product is supplied with the manufacturer warranty stated above. Keep your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to the manufacturer's applicable warranty terms, eligibility requirements and product assessment.
