StarTech USBDUP15 Standalone 1:5 USB Flash Drive Duplicator and Eraser

Copy one USB flash drive to five destinations or erase up to five drives without a computer, using standalone controls, an LCD menu and multiple copy and overwrite modes.

1 source to 5 targets Up to 1.5 GB per minute Three erase methods 2-year warranty

StarTech USBDUP15 Standalone 1:5 USB Flash Drive Duplicator and Eraser

Standalone operation

The duplicator and eraser works without a host computer.

Two copy approaches

Use System and File copy or sector-by-sector whole-drive duplication.

Multiple erase methods

Quick Erase, one-pass Clear and three-pass overwrite are supplied.

Up to five targets

One source drive can be copied to as many as five destination drives.

Product overview

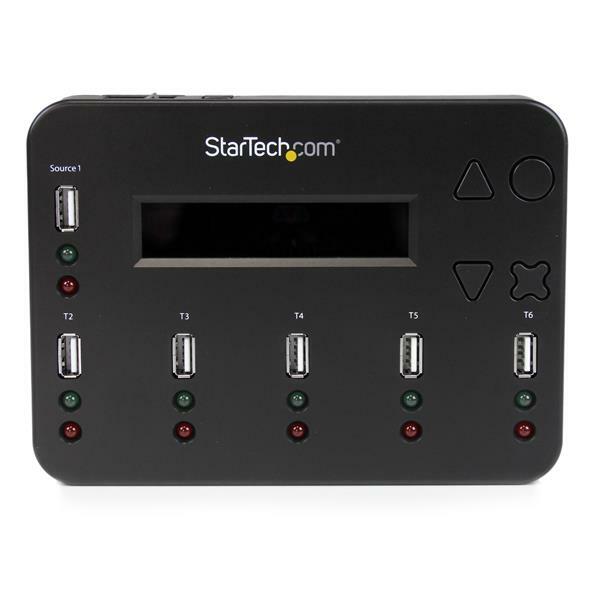

The USBDUP15 is a standalone 1-to-5 USB flash drive duplicator and eraser with an integrated LCD display and four-button menu.

System and File copy supports FAT16/32, NTFS and Linux ext2, ext3 and ext4. A sector-by-sector mode is also supplied for whole-drive duplication.

The specified duplication speed is up to 1.5 GB per minute, the listed maximum drive capacity is 2TB, and asynchronous operation uses a 64MB buffer when source content is under 64MB.

Every destination drive must have equal or greater capacity than the source. During erase operations, only the destination ports are active, and compatible external USB storage may require its own power source.

This Australian version is supplied with a 2-year StarTech.com manufacturer warranty in Australia. DeviceDeal is an authorised reseller.

Check before you buy

Destination capacity must be equal to or greater than the source, and externally powered USB storage may require its own power supply.

Suitable applications

Preparing multiple USB boot or deployment drives
Distributing software, media or marketing files across several drives
Erasing batches of USB drives before controlled reuse

Frequently asked questions

How many drives can the StarTech USBDUP15 copy at once?

It copies one source USB drive to as many as five destination drives.

Does the USBDUP15 need a computer?

No. It operates as a standalone duplicator and eraser with its own LCD menu.

What duplication modes are available?

It supports System and File copy plus sector-by-sector whole-drive copy.

How fast can it duplicate data?

The specified duplication speed is up to 1.5 GB per minute.

Which erase modes are available?

It supports Quick Erase, one-pass NIST SP 800-88 Rev. 1 Clear and three-pass overwrite.

Can destination drives be smaller than the source?

No. Each destination drive must be equal to or larger than the source drive.

What is included with the USBDUP15?

The package includes the duplicator, an Australia and New Zealand-ready power adapter and an instruction manual.

What warranty applies in Australia?

This Australian version is supplied by DeviceDeal with a 2-year StarTech.com manufacturer warranty in Australia. DeviceDeal is an authorised reseller, and coverage is subject to StarTech terms and assessment.

(USBDUP15)

Features and highlights

StarTech USBDUP15 Standalone 1:5 USB Flash Drive Duplicator and Eraser key product details from the supplied information.

Standalone 1-to-5 duplication

Copy one source USB drive to as many as five destination drives without a host computer.

Up to 1.5 GB per minute

The supplied maximum duplication speed is 1.5 GB per minute.

System and File copy

Supported file systems are FAT16/32, NTFS and Linux ext2, ext3 and ext4.

Whole-drive copy

Sector-by-sector duplication is supplied for whole-drive copying.

Three erase methods

Quick Erase, one-pass NIST SP 800-88 Rev. 1 Clear and three-pass overwrite are listed.

LCD control interface

An LCD display and four-button menu are built into the standalone unit.

USB 3.0 and USB 2.0 media

The supplied compatible-media list includes USB 3.0 and USB 2.0 flash drives and compatible USB external storage.

2-year manufacturer warranty

The Australian version is supplied with a 2-year StarTech.com manufacturer warranty in Australia.

Technical specifications

USBDUP15

General information

Brand	StarTech.com
Product ID	USBDUP15
Product type	Standalone USB flash drive duplicator and eraser
Configuration	1 source to 5 destination drives

Duplication and erasing

Duplication modes	System and File; sector-by-sector whole drive
Duplication speed	Up to 1.5 GB per minute
Erase modes	Quick Erase; 1-pass NIST SP 800-88 Rev. 1 Clear; 3-pass overwrite
Maximum drive capacity	2TB
Asynchronous buffer	64MB; source content must be under 64MB
File systems for System and File copy	FAT16/32, NTFS and Linux ext2/ext3/ext4

Hardware and operation

Drive connectors	6 × USB 2.0 Type-A female, 480 Mbps
Compatible media	USB 3.0 / 2.0 flash drives and compatible USB external storage
Operating system	OS independent; no software or drivers required
Controls	LCD display and four-button menu
Indicators	5 green activity/success LEDs and 5 red error LEDs
MTBF	176,549 hours
TAA compliant	Yes

Power, physical and package

Power	AC adapter included; 100240V AC input, 12V DC / 3A output, 36W
Material / colour	Black plastic
Dimensions	167 × 120 × 25 mm
Weight	318 g
Operating temperature	5°C to 45°C
Storage temperature	-20°C to 85°C
Humidity	5% to 95% RH

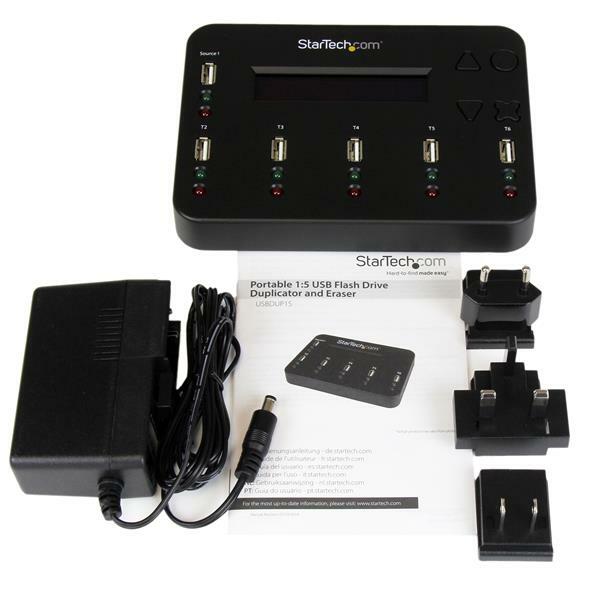

Included	Duplicator, Australia and New Zealand-ready power adapter and instruction manual
Manufacturer warranty	2-year StarTech.com manufacturer warranty in Australia

SKU	USBDUP15
Barcode #	65030856508
