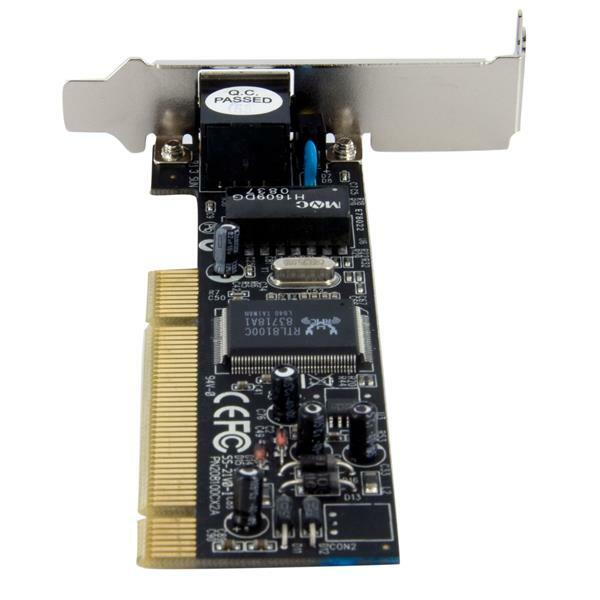

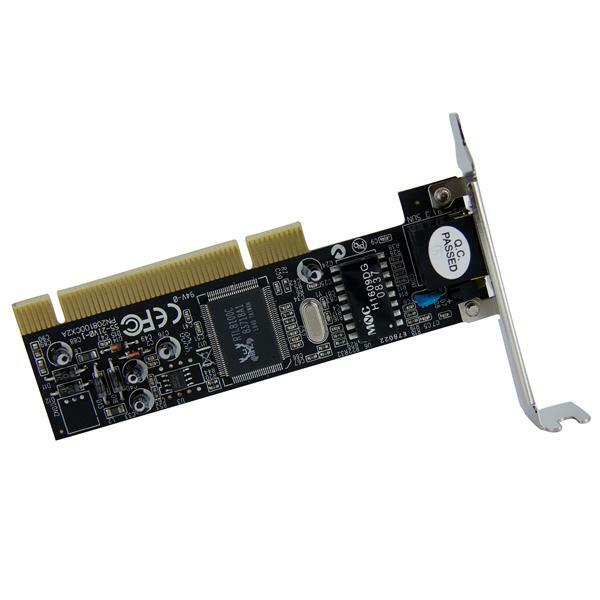

StarTech Low Profile PCI 10/100 Network Adapter Card - ST100SLP
Model # ST100SLP
-
SKU: ST100SLP
- Pick Up Available
- Australian Warranty
- Checkout Securely
This 1 Port PCI Fast Ethernet Network Adapter Card offers a reliable, cost-effective Ethernet network connection that's ideal for small form factor computers.
Delivering a simple connection to 10/100Mbps (Fast) Ethernet networks, the NIC features auto-negotiation that senses speed and duplex capabilities of connected devices and full duplex support for data transfer rates up to 200Mbps.
A versatile network interface solution, the NIC features a low profile mounting bracket that's suitable for small form factor computers, and is supported by all popular operating systems including Windows, Linux, Mac OS and Novell platforms. Backed by StarTech.com's Lifetime Warranty.
Applications
- Replace a failed Ethernet port in a small form factor computer
- Add networking capabilities to an old system with no Ethernet port
- Add an additional Ethernet port to a desktop or workstation computer for redundancy
(ST100SLP)
| Warranty Information | ||
|---|---|---|
| Warranty | Lifetime | |
| Hardware | ||
| Bus Type | PCI / PCI-X (5 / 3.3V) | |

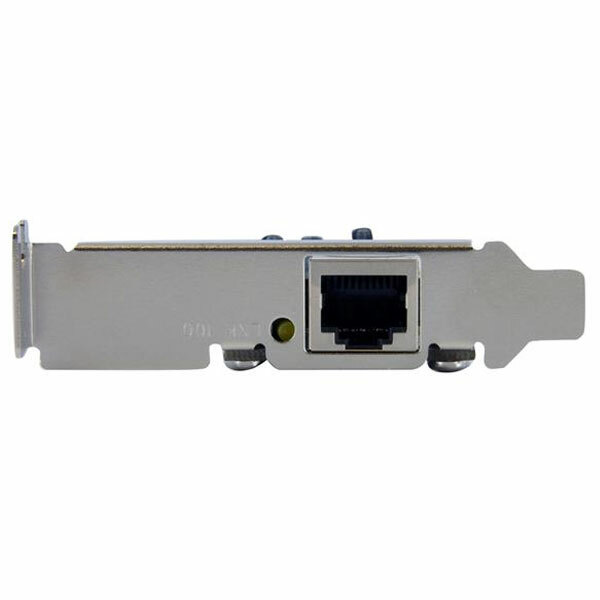

| Card Type | Low Profile (SP bracket incl.) | |
| Chipset ID | Realtek - RTL8100C | |
| Industry Standards | IEEE 802.3/802.3u | |
| Interface | RJ45 (10/100 Ethernet) | |
| Ports | 1 | |
| Performance | ||
| Compatible Networks | 10/100 Mbps | |
| Full Duplex Support | Yes | |
| Maximum Data Transfer Rate | 200 Mbits/Sec | |
| Connector(s) | ||
| Connector Type(s) | 1 - PCI / PCI-X (Universal 3.3 & 5V, 32-bit) Male | |
| External Ports | 1 - RJ-45 Female | |
| Software | ||
| OS Compatibility | Windows® NT, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10 Windows Server® 2008 R2, 2012, 2016, 2019 Mac OS® 10.0.4, 9.1 / 9.0 Unix, Linux 2.6 to 4.11.x LTS Versions Only NetWare 3.x/4.x | |
| Special Notes / Requirements | ||
| Note | IRQ Line and I/O Address Assigned by system | |
| Indicators | ||
| LED Indicators | 1 - 10/100Mbps selection | |
| 1 - Network link/activity | ||
| Environmental | ||
| Humidity | 10~90% RH Non-condensing | |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) | |
| Physical Characteristics | ||
| Product Height | 3.1 in [8 cm] | |
| Product Length | 4.7 in [12 cm] | |
| Product Width | 0.8 in [20 mm] | |
| Weight of Product | 1.5 oz [42 g] | |
| Packaging Information | ||
| Package Height | 1.2 in [30 mm] | |
| Package Length | 6.7 in [17.1 cm] | |
| Package Width | 5.6 in [14.2 cm] | |
| Shipping (Package) Weight | 4.7 oz [132 g] | |
| What's in the Box | ||
| Included in Package | 1 - Low Profile 10/100 Mbps Ethernet PCI Card | |
| 1 - Full Profile bracket | ||
| 1 - Driver CD | ||
| 1 - Instruction Manual | ||
| SKU | ST100SLP |
| Barcode # | 65030793599 |
| Brand | Startech |
| Shipping Weight | 0.1300kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.070m |
| Shipping Cubic | 0.000350000m3 |
