1-Port 2.5GbE M.2 2280 Network Card, Multi-Gigabit Speeds (2.5G/1G/100M/10M), NBASE-T (802.3bz) NIC, M.2 B+M Key, PCIe Ethernet Interface, For SFF/Desktop PCs - TAA

Name: STARTECH MR12GI-NETWORK-CARD 1Port 2.5G M.2 NBASE-T PCIe Ethernet NIC
Brand: Startech
SKU: MR12GI-NETWORK-CARD
Price: 135 AUD
Availability: OutOfStock

M.2 PCIe network card featuring the Intel® I225-V-chip, offering multi-gigabit speeds with support for NBASE-T

1-PORT 2.5GbE M.2 NETWORK CARD: High-performance M.2 Ethernet 2.5Gbps network card with Intel I225-V-chip; Multi-gigabit; Leverage existing Cat5e/Cat6 cabling (or better); NBASE-T (802.3bz); PCI Express M2 2280 B or M key compatible

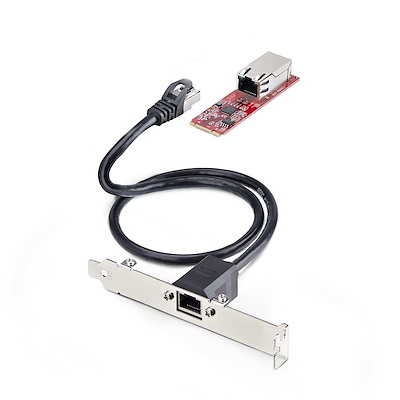

M.2 INTERFACE: M.2 2280 form factor is ideal for upgrading systems that do not have PCIe expansion slots or where slots are already in use; Includes 2ft (60cm) M/F Cat6 cable adapter for running Ethernet port to full/low-profile bracket on the rear of the PC

COMPATIBILITY: 2.5GBASE-T variable speed options (2.5/1Gbps and 100/10Mbps) with auto-negotiation; Supports B or M key M.2 PCIe Gen 2 slots; Network interface card for PC is compatible with Windows/Linux; Full and low profile bracket included

IT MANAGEMENT: Intel vPro® for remote management and troubleshooting; PXE boot enabled for faster deployment/updates; 9K jumbo frame for reduced packet overhead; Remotely boot a system using WoL; VLAN support for efficient network management

THE IT PRO'S CHOICE: Designed and built for IT Professionals, this 2.5 GbE M.2 NIC is backed for two years, including free lifetime 24/5 multi-lingual technical assistance

This 2.5 GbE M.2 Network Interface Card (NIC) features an Intel I225-V chipset with Intel vPro® technology, for enhanced performance and data integrity. Variable multispeed options (2.5/1Gbps and 100/10Mbps) enable support of new and legacy network hardware. Leverage existing Cat5e or CAT6 cabling infrastructure while adding 2.5GBASE-T (802.3bz) compatibility for seamless integration.

Increased Network Speed

The PCIe network card takes advantage of Intel vPro® technology for remote management and troubleshooting capabilities. Improve bandwidth for data-intensive applications, network sharing, FTPs, online or local storage/backup, and online content streaming or uploading while reducing network slowdowns. Access up to 2.5GBASE-T speeds using Cat5e (or better) cabling, to maximize existing networks and equipment.

Enhance Existing Hardware

The network adapter card connects to an available M.2 2280 PCIe slot (B or M key compatible). Standard and low-profile brackets and a 2ft (60cm) Cat6 adapter cable are included for versatile installation. Compatible with Windows, and Linux.

Advanced Features

This Ethernet card supports the following advanced features: PXE Boot, Wake-on-Lan (WoL), VLAN tagging, 9K jumbo frame, half-duplex, auto-negotiation, and Error Correcting Memory (ECC) for optimal network functionality.

Partner Numbers

Dicker Data AustraliaMR12GI-NETWORK-CARD

Ingram Micro AustraliaMR12GI-NETWORK-CARD

UPC065030901611

(MR12GI-NETWORK-CARD)

Warranty Information

Warranty

2 Years

Connector(s)

Connector Type(s)

1 - M.2 (B+M-Key, PCIe)

External Ports

1 - RJ-45

Hardware

Ports

Interface

RJ45 (2.5G Ethernet)

M.2 PCIe

Bus Type

M.2

Card Type

Standard Profile (LP bracket incl.)

Industry Standards

IEEE 802.3bz (2.5GBASE-T)
IEEE 802.3ab (1000BASE-T )
IEEE 802.3u (100BASE-TX )
IEEE 802.3i (10BASE-TX)
IEEE 802.1Q (VLAN)
IEEE 802.1p (QoS)
IEEE 802.1AS (AVB)
IEEE P802.3az (EEE)
IEEE 1588 (PTP)
PCI Express Version 2.0

Chipset ID

Intel - I225-V

Indicators

LED Indicators

1 - Left LED Indicator is Link Status
Solid Green: Active Link
Flashing Green: Activity

1 - Right LED Indicator is Link Speed
Solid Green: 2.5 Gbps
Solid Amber: 1.0 Gbps
Off: 100 or 10 Mbps

Packaging Information

Package Height

1.3 in [3.3 cm]

Package Length

6.9 in [17.6 cm]

Shipping (Package) Weight
