STARTECH OM4RLCLC7M 7m (23ft) LC to LC (UPC) OM4 Multimode Fiber Optic Cable
Model # OM4RLCLC7M
-
SKU: OM4RLCLC7M
Stock Availability
🟢Live
Allow 1–2 business days for stock transfer
- Pick Up Available
- Australian Warranty
- Checkout Securely
STARTECH OM4RLCLC7M 7m (23ft) LC to LC (UPC) OM4 Multimode Fiber Optic Cable
7m LC-to-LC duplex OM4 multimode fibre cable for high-speed data-centre and commercial network links.
Frequently asked questions
What is OM4RLCLC7M?
OM4RLCLC7M is an LC-to-LC duplex OM4 50/125µm multimode fibre optic patch cable.
What network speeds does it support?
StarTech rates this cable for 1, 10, 40 and 100 Gigabit Ethernet applications with compatible equipment.
Which connectors are fitted?

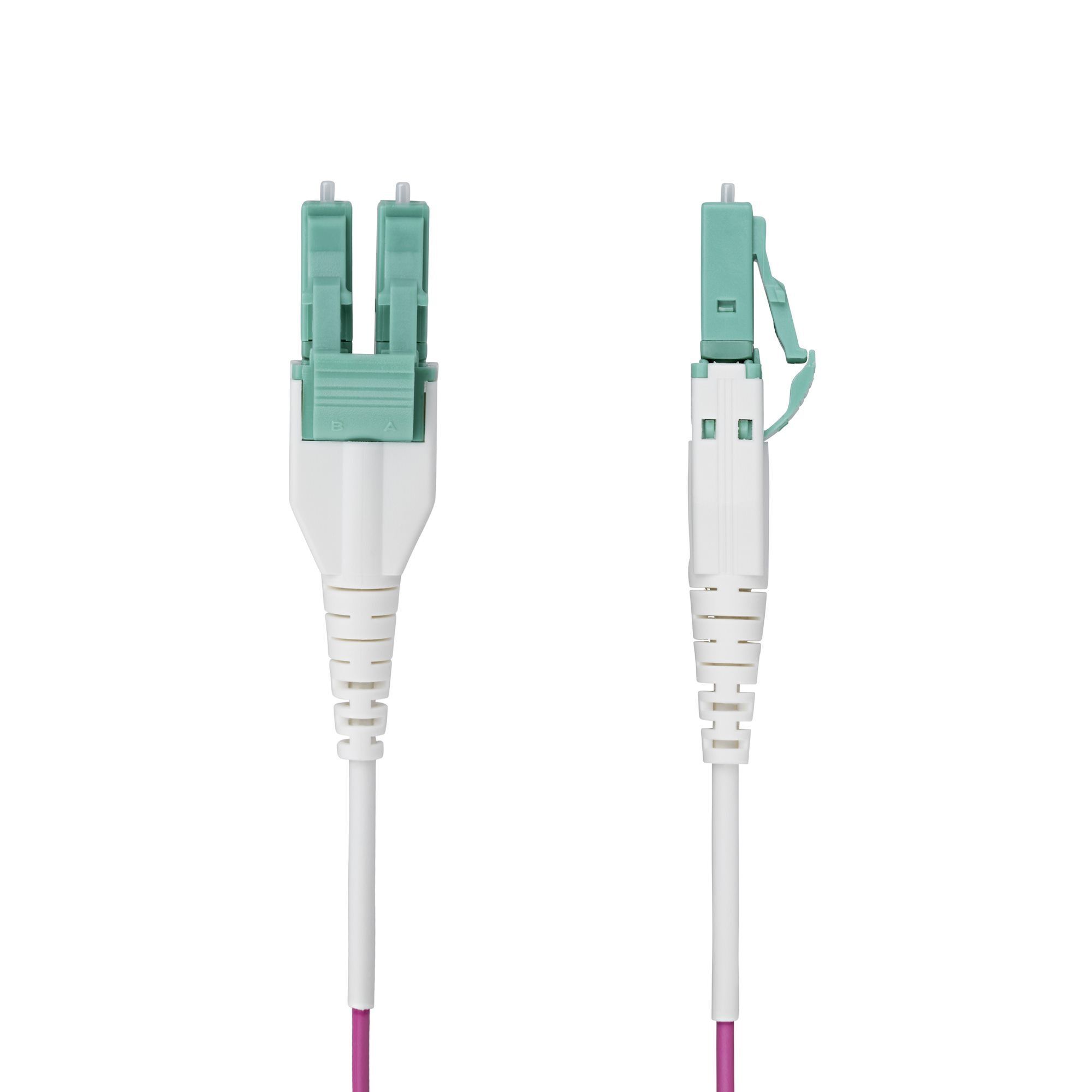

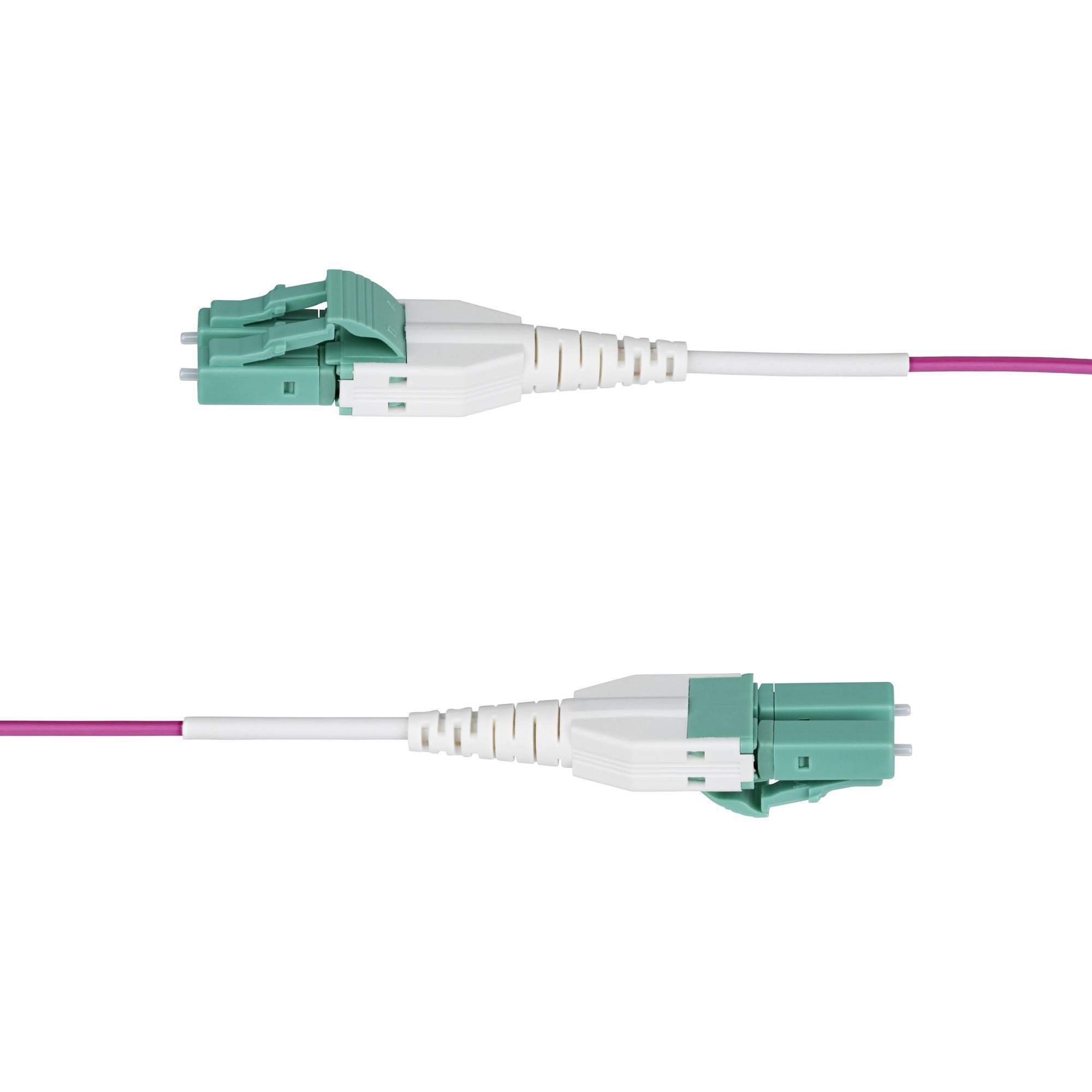

Both ends use LC duplex male connectors with UPC-polished fibre ends.
Is it multimode or singlemode?
It is OM4 laser-optimised multimode fibre and is not a singlemode cable.
What do I need to check before ordering?
This is an LC duplex UPC multimode cable. Confirm transceiver wavelength, distance budget and OFNR pathway requirements.
Is the jacket riser rated?
Yes. The cable has an OFNR flame-retardant riser-rated jacket for suitable vertical pathways.
Is it backward compatible with OM3?
Yes, it can be used in compatible OM3 environments, while the link capability remains limited by every component in the channel.
What warranty applies?
OM4RLCLC7M carries a StarTech.com limited lifetime manufacturer warranty, subject to the manufacturers terms and eligibility requirements.
Planning a broader setup? Browse the DeviceDeal buying guides. View the DeviceDeal product page.
(OM4RLCLC7M)
Why choose OM4RLCLC7M?
OM4RLCLC7M specifications
Exact-model specifications for compatibility checking.
| Warranty Information | |
|---|---|
| Warranty | Lifetime |
| Hardware | |
| Cable Type | OM4 laser-optimised multimode fibre (LOMMF) |
| Fibre Size | 50/125µm |
| Cable Jacket Rating | OFNR Riser |
| Connector Polish | UPC |
| Cable Construction | Duplex uniboot with ceramic ferrules |
| Performance | |
| Maximum Data Rate | 100Gbps |
| Network Compatibility | 1/10/40/100Gbps |
| Optical Wavelengths | 850nm and 1300nm |
| Fibre Mode | Multimode |
| Connectors | |
| Connector A | 2 - LC Duplex Male |
| Connector B | 2 - LC Duplex Male |
| Physical Characteristics | |
| Colour | Erika Violet |
| Cable Length | 7m |
| Cable Outside Diameter | 1.6mm |
| Product Weight | 26g |
| Environmental | |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -20°C to 60°C |
| Humidity | 0% to 90% RH |
| What's in the Box | |
| Included | 1 - LC to LC OM4 multimode fibre cable |
Sources: supplied product file, DeviceDeal product page and official StarTech.com specifications. Product appearance and specifications may change; confirm critical deployment requirements before ordering.
| SKU | OM4RLCLC7M |
| Barcode # | 65030920742 |
| Brand | Startech |
| Shipping Weight | 0.0600kg |
| Shipping Width | 0.002m |
| Shipping Height | 0.023m |
| Shipping Length | 0.018m |
This Australian-version product is supplied by DeviceDeal and is covered by the official StarTech.com limited lifetime manufacturer warranty in Australia.
- Keep your DeviceDeal tax invoice as proof of purchase.
- Coverage is subject to StarTech.com warranty terms, eligibility and product assessment.
- Warranty service does not replace rights that may apply under Australian Consumer Law.
