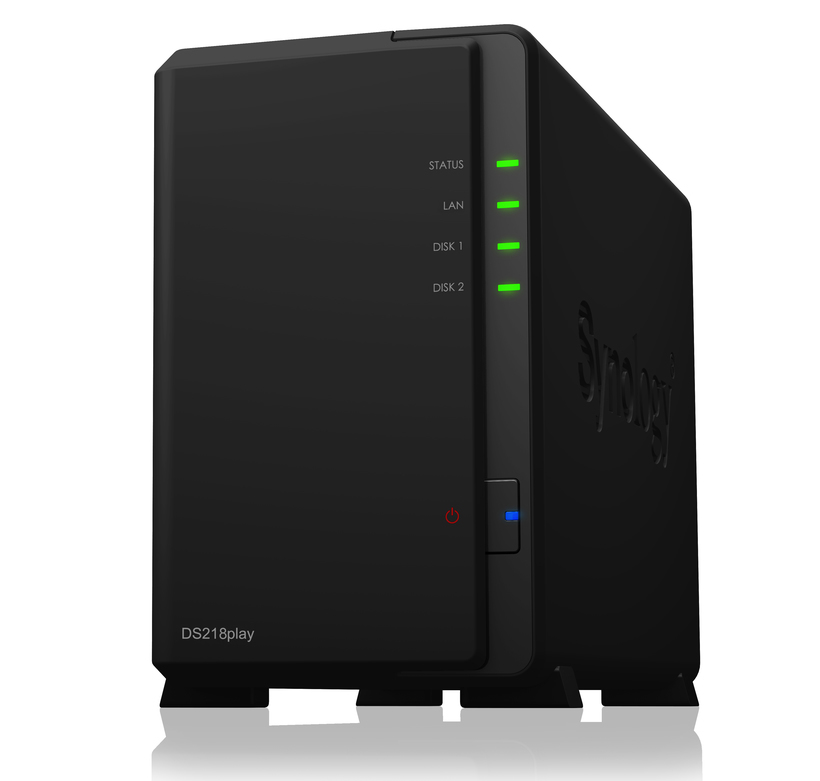

DiskStation DS218play

Your personal multimedia library











Ideal Entertainment Center with 4K Ultra HD Capability

Designed for multimedia enthusiasts, DS218play supports real-time transcoding of 4K Ultra HD source content. With the availability of centralized management, DS218play is ideal for fast file sharing and reliable backup for all types of devices.











Enjoy 4K videos on the go

Access and stream your 4K media content anytime and anywhere. DS218play supports 4K live transcoding via Video Station and DS video, allowing 4K videos to be instantly converted and played on TV, smartphone, and other media players that originally do not support Ultra HD formats.













Multimedia powerhouse

Access your multimedia content anytime, anywhere with an intuitive web-based interface.







Photo Station







Seamless integration with your mobile devices

Synology mobile applications are designed to allow quick and secure access to your data wherever you are.







Easy file access with QuickConnect

Access files on your Synology NAS over the Internet without the hassle of setting up port forwarding rules, DDNS, or other complicated network settings. QuickConnect allows you to connect via a simple customizable address (e.g. https://customID.quickconnect.to), so that you can instantly access media and work files on any Windows/Mac/Linux computer, laptop, or mobile device without additional charge.

















(DS218Play)

Hardware Specifications
CPU
CPU Model Realtek RTD1296
CPU Architecture 64-bit
CPU Frequency Quad Core 1.4 GHz
Hardware Encryption Engine Y
Hardware Transcoding Engine 10-bit H.265 (HEVC), MPEG-4 Part 2, MPEG-2, VC-1; maximum resolution: 4K (4096 x 2160); maximum frame rate per second (FPS): 30
Memory
System Memory 1 GB DDR4
Storage
Drive Bays 2
Compatible Drive
  • 3.5" SATA HDD
  • 2.5" SATA HDD (with optional 2.5" Disk Holder)
  • 2.5" SATA SSD (with optional 2.5" Disk Holder)
Maximum Internal Raw Capacity 24 TB (12 TB drive x 2) (Capacity may vary by RAID types)
Maximum Single Volume Size 108 TB
Notes
  • "Compatible drive type" indicates the drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
  • The maximum single volume size is not directly related to the maximum raw capacity. (Learn more)
External Ports
RJ-45 1GbE LAN Port 1
USB 3.0 Port 2
File System
Internal Drives EXT4
External Drives
  • EXT4
  • EXT3
  • FAT
  • NTFS
  • HFS+
  • exFAT*
Notes exFAT Access is purchased separately in Package Center.
Appearance
Size (Height x Width x Depth) 165 mm x 100 mm x 225.5 mm
Weight 0.87 kg
Others
System Fan 92 mm x 92 mm x 1 pcs
Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
Brightness adjustable front LED indicators Y
Power Recovery Y
Noise Level* 19.9 dB(A)
Scheduled Power On/Off Y
Wake on LAN/WAN Y
Power Supply Unit / Adapter 60W
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption* 16.79 W (Access)
5.16 W (HDD Hibernation)
British Thermal Unit 57.29 BTU/hr (Access)
17.61 BTU/hr (HDD Hibernation)
Environment Temperature
Operating Temperature 5°C to 40°C (40°F to 104°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Certification
  • FCC Class B
  • CE Class B
  • BSMI Class B
Warranty 2 Years
DSM Specifications
Storage Management
Maximum Internal Volume Number 256
Maximum iSCSI Target Number 10
Maximum iSCSI LUN 10
Supported RAID Type
  • Synology Hybrid RAID
  • Basic
  • JBOD
  • RAID 0
  • RAID 1
RAID Migration Basic to RAID 1
Volume Expansion with Larger HDDs
  • Synology Hybrid RAID
  • RAID 1
Volume Expansion by Adding a HDD Synology Hybrid RAID
SSD Support
SSD TRIM Y
File Sharing Capacity
Maximum Local User Accounts 2048
Maximum Local Groups 256
Maximum Shared Folder 256
Maximum Shared Folder Sync Tasks 4
Maximum Concurrent CIFS/AFP/FTP Connections 200
Windows Access Control List (ACL) Integration Y
NFS Kerberos Authentication Y
Log Center Y
Syslog Events per Second 400
Add-on Packages
Chat Y
Maximum Users 500
Notes
  • The number of concurrent HTTP connections for Chat was configured to the maximum.
  • CPU and RAM usage were both under 80% when the number of maximum users was reached.
Cloud Station Server Y
Maximum Number of Concurrently Connected Devices 200
Maximum Number of Synced Files (ext4) 200,000 / single file reaction time 687 ms
Notes
  • The maximum number of concurrently connected devices refers to the maximum number of devices that can remain connected at the same time. For more information on file processing capability, please refer to the reaction time for file processing.
  • File reaction time refers to the preparation time required for other devices to start downloading a 1KByte file from a Synology NAS after the file has been added to the NAS. RAM expansion was not used during testing.
  • Non-encrypted shared folders were used during the aforementioned testing.
Download Station Y
Maximum Concurrent Download Tasks 50
exFAT Access (optional) Y
Media Server Y
DLNA Compliance Y
Office Y
Maximum Users 100
Maximum Simultaneous Editing Users 30
Notes
  • CPU and RAM usage were both under 80% when the number of maximum users was reached.
  • For tested models with expandable memory, the maximum amount of RAM was installed.
  • Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM
Surveillance Station Y
Maximum IP cam (Licenses required) 15 (including 2 Free License)
Total FPS (H.264)* 450 FPS @ 720p (1280x720)
180 FPS @ 1080p (1920×1080)
110 FPS @ 3M (2048x1536)
80 FPS @ 5M (2591x1944)
40 FPS @ 4K (3840x2160)
Total FPS (H.265)* 450 FPS @ 720p (1280x720)
450 FPS @ 1080p (1920×1080)
210 FPS @ 3M (2048x1536)
120 FPS @ 5M (2591x1944)
60 FPS @ 4K (3840x2160)
Total FPS (MJPEG)* 210 FPS @ 720p (1280x720)
70 FPS @ 1080p (1920×1080)
50 FPS @ 3M (2048x1536)
30 FPS @ 5M (2591x1944)
Notes Surveillance Station throughput is tested with Axis network camera, using continuous recording with live view from Surveillance Station and motion detection by camera. Live view and recording are sharing the same stream from the camera.
Video Station Y
Video Transcoding 4K Group 3
Maximum Transcoding Channel Number 1 channel, 30 FPS @ 4K (4096 x 2160), H.265 (HEVC), 10-bit or
1 channel, 30 FPS @ 1080p (1920×1080), H.264 (AVC)/H.265 (HEVC)/MPEG-4 Part 2 (XVID, DIVX5)/MPEG-2/VC-1
VPN Server Y
Maximum Connections 15
Environment & Packaging
Environment RoHS Compliant
Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Adapter X 1
  • AC Power Cord X 1
  • RJ-45 LAN Cable X 1
  • Quick Installation Guide X 1
Optional Accessories
  • Surveillance Device License Pack
  • Disk Holder: Type C
  • VS360HD
  • VS960HD
SKU DS218Play
Barcode # 846504002887
Brand SYNOLOGY
Shipping Weight 1.7000kg
Shipping Width 0.290m
Shipping Height 0.120m
Shipping Length 0.260m
