Asustor AS3304T 4 bay NAS Realtek RTD1296 Quad-Core 1.4GHz 2GB DDR4 2.5GbE 3xUSB3.2
Model # AS3304T
-
SKU: AS3304T
- Pick Up Available
- Australian Warranty
- Checkout Securely

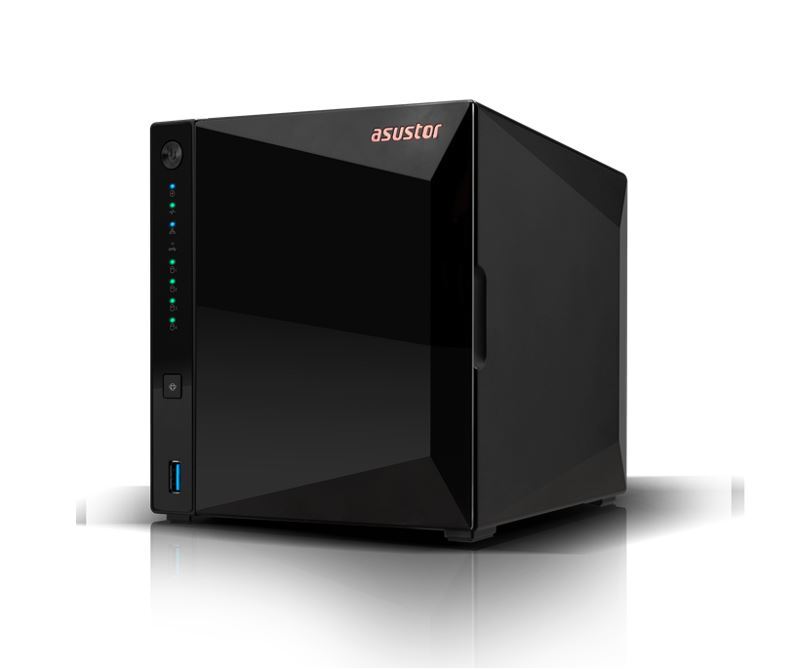

ASUSTOR AS3304T Drivestor 4 Bay NAS
A four-bay NAS with a Realtek RTD1296 quad-core processor, 2GB DDR4 memory, 2.5-Gigabit Ethernet and 4K transcoding.
Key Features
- Realtek RTD1296 Quad-Core 1.4 GHz CPU
- Uses 2 GB DDR4 – 40% more efficient
- Superfast 2.5-Gigabit Ethernet
- Enjoy, download, upload and stream content with 4K transcoding
- Supports Wake on LAN and Wake on WAN
- New Rose Gold logo
- Tool-free installation
- Hot-swappable tray
- 3-year warranty
Technical Specifications
| CPU Model | Realtek RTD1296 |
|---|---|
| CPU Architecture | ARM64 64-bit |
| CPU Frequency | Quad-Core 1.4GHz |
| Memory | 2GB DDR4 |
| Memory Expandable Up To | Not expandable |
| Flash Memory | 8GB eMMC |
| HDD | 4 x SATA3 6Gb/s; 3.5" HDD |
| Maximum Internal Raw Capacity | 72 TB (18 TB HDD X 4, capacity may vary by RAID types) |
| Maximum Drive Bays with Expansion Unit | 16 |
| Maximum Raw Capacity with Expansion Units | 288 TB (18 TB HDD X 16, capacity may vary by RAID types) |
| Expansion | USB 3.2 Gen 1 x3 |
| Network | 2.5 Gigabit Ethernet (2.5G/1G/100M) x 1 |
| HDMI Output | N/A |
| System Fan | 120 mm x 1 |
| Power Supply Unit / Adapter | 90W x1 |
| Input Power Voltage | 100V to 240V AC |
| Certification | FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC |
| Power Consumption | 23.1W (Operation); 10.1W (Disk Hibernation) |
| Noise Level | 19.7dB (HDD idle) |
| Operation Temperature | 0°C~40°C (32°F~104°F) |
| Humidity | 5% to 95% RH |
Product FAQs
Answers based on the product information supplied for this item.
What processor does the ASUSTOR AS3304T use?
The supplied specifications list a Realtek RTD1296 quad-core 1.4GHz CPU with ARM64 64-bit architecture.
How much memory does the AS3304T have?
It includes 2GB DDR4 memory, which is listed as not expandable.
How many drive bays does the AS3304T have?
It has four SATA3 6Gb/s bays for 3.5-inch hard drives.
What network connection does the AS3304T include?
It includes one 2.5 Gigabit Ethernet port supporting 2.5G, 1G and 100M connections.
Does the AS3304T support 4K transcoding?
Yes. The supplied feature list states that it can download, upload and stream content with 4K transcoding.
Does the AS3304T support Wake on LAN and Wake on WAN?
Yes. Both Wake on LAN and Wake on WAN are listed among the supplied features.
What is the listed warranty for the AS3304T?
The supplied description lists a 3-year warranty.
(AS3304T)
Hardware Specifications |
||
|---|---|---|
CPU |
CPU Model | Realtek RTD1296 |
| CPU Architecture | ARM64 64-bit | |
| CPU Frequency | Quad-Core 1.4GHz | |
Memory |
Memory | 2GB DDR4 |
| Memory Expandable up to | not expandable | |
| Flash Memory | 8GB eMMC | |
Storage |
Drive Bays | 4 |
| Compatible Drive Type |
|
|
| Maximum Drive Bays with | 16 | |
| Supports Hot Swappable Drives | ||
External Ports |
Expansion | 3x USB 3.2 Gen 1 |
| Network | 1x 2.5 Gigabit Ethernet (2.5G/1G/100M) | |
|
|
Multimedia Output | N/A |
Others |
System Fan | 1x 120mm |
| Power Supply Unit / Adapter | 90W x1 | |
| Input Power Voltage | 100V to 240V AC | |
| Certification | FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC | |
| Warranty | 3 Years | |
Operation |
Power Consumption | 23.1W (Operation) 10.1W (Disk Hibernation); |
| Noise Level | 19.7dB (HDD idle) | |
| Operation Temperature | 0°C~40°C (32°F~104°F) | |
| Storage Temperature | -20°C~70°C (-4°F~158°F) | |
| Humidity | 5% to 95% RH | |
Size and Weight |
Size | 170(H) x 174(W) x 230(D) mm |
| Weight | 2.2 kg / 4.85 lbs | |
| SKU | AS3304T |
| Barcode # | 887372138353 |
| Brand | ASUSTOR |
| Shipping Weight | 4.0000kg |
Manufacturer Warranty: 3 Years Manufacturer Warranty
