Dual 10GbE SFP+
Two SFP+ ports support high-speed file transmission and backup workflows.

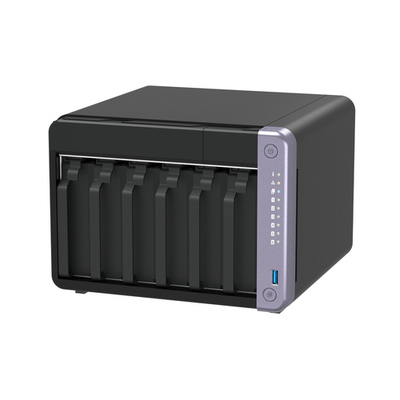

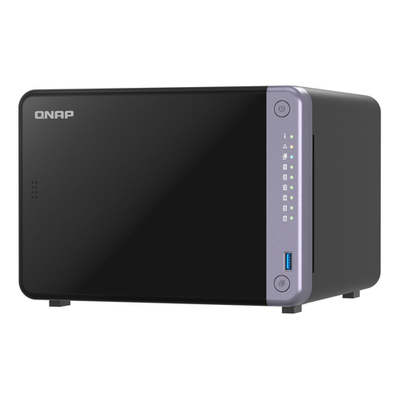

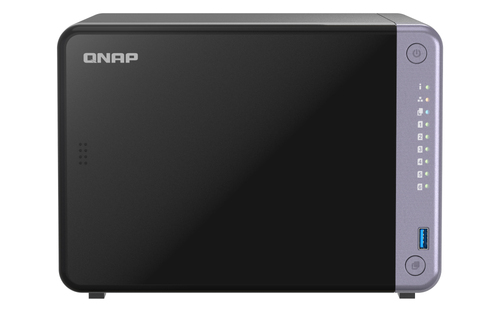

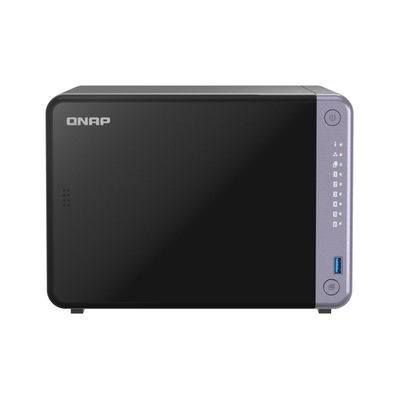

QNAP TS-632X-4G 6-Bay 10GbE Tower NAS - 4GB DDR4
Model # TS-632X-4G
-
SKU: TS-632X-4G
- Pick Up Available
- Australian Warranty
- Checkout Securely
6-bay 10GbE NAS for office storage
QNAP TS-632X-4G 6-Bay 10GbE NAS with Dual SFP+
A six-bay tower NAS with an AnnapurnaLabs Alpine AL524 quad-core 2.0GHz processor, 4GB DDR4 memory, dual 10GbE SFP+, dual 2.5GbE and PCIe expansion.
6 drive baysDual 10GbE SFP+Dual 2.5GbE2-year manufacturer warranty
What is the QNAP TS-632X-4G?
The TS-632X-4G is a six-bay tower NAS for centralised storage, backup, file transmission, snapshots and container applications. It combines dual 10GbE SFP+, dual 2.5GbE, expandable memory and PCIe Gen 3 connectivity.
6 BaysHot-swappable SATA storage
2 × 10GbESFP+ network ports
2 × 2.5GbEMulti-gigabit ports
PCIe Gen 3 x4Expansion slot
Need help choosing a NAS?
Read NAS Buying Guide Explore the DeviceDeal NAS Buying Guide
Compare NAS types, storage considerations and practical features before selecting your next network storage system.
Quad-core processing and ECC-capable memory
The AnnapurnaLabs Alpine AL524 64-bit ARM processor provides four cores at 2.0GHz. The supplied configuration includes 4GB SODIMM DDR4 memory and supports up to 16GB.
- One SODIMM DDR4 slot is provided.
- ECC memory is supported.
- The supplied encryption engine supports AES 256-bit encryption.
Dual 10GbE SFP+ and dual 2.5GbE networking

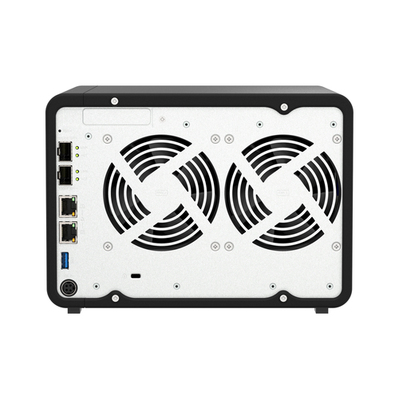

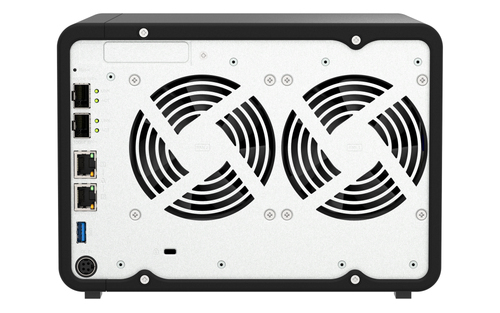

Two 10GbE SFP+ ports support high-speed data transmission, while two 2.5GbE ports support 2.5G, 1G and 100M connections.
- SMB Multichannel or Port Trunking can combine network paths under the supplied deployment guidance.
- Wake on LAN and Jumbo Frame support are listed.
- The supplied guidance positions SMB Multichannel for direct client connections and Port Trunking for switched multi-user environments.
Six-bay storage, PCIe expansion and USB backup

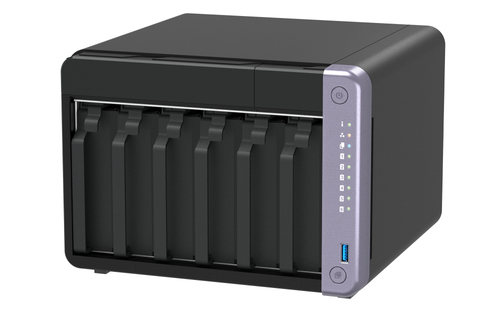

Six hot-swappable SATA bays support compatible 3.5-inch SATA hard drives, 2.5-inch SATA hard drives and 2.5-inch SATA solid state drives.
- One PCIe Gen 3 x4 slot supports compatible networking or M.2 expansion cards.
- SSD cache acceleration is supported.
- Two USB 3.2 Gen 1 5Gbps ports support connected storage, with One Touch Copy described in the supplied information.
Backup, snapshots and supplied throughput
The supplied information describes endpoint backup and regular snapshots to help protect data from ransomware and other data-loss events.
590MB/sSupplied read and write using two 2.5GbE connections
2,251MB/s readSupplied SMB sequential result using two 10GbE connections
1,082MB/s writeSupplied SMB sequential result using two 10GbE connections
The figures were measured in QNAP laboratories using the stated RAID 5 test environment and may vary with hardware, software, usage and network conditions.
Important purchasing and deployment notes
- The supplied source does not state whether hard drives are included, so no diskless claim has been added.
- The source lists SSD cache acceleration but does not identify built-in M.2 slots; any M.2 expansion requires compatible hardware.
- Use compatible QNAP memory modules to maintain stability and performance.
- The supplied performance results depend on the stated test configuration and network environment.
Frequently asked questions
What is the QNAP TS-632X-4G?
It is a six-bay tower NAS with a quad-core 2.0GHz ARM processor, 4GB memory, dual 10GbE SFP+, dual 2.5GbE and PCIe expansion.
How many drive bays does the TS-632X-4G have?
It has six hot-swappable 3.5-inch SATA 6Gb/s and 3Gb/s bays.
Which drives are supported?
The supplied specifications list 3.5-inch SATA hard drives, 2.5-inch SATA hard drives and 2.5-inch SATA solid state drives.
Are hard drives included with the TS-632X-4G?
The supplied product information does not state whether hard drives are included. Confirm the required compatible drives before ordering.
Which processor is installed?
It uses an AnnapurnaLabs Alpine AL524 four-core 2.0GHz 64-bit ARM processor.
How much memory is installed and supported?
The supplied configuration includes 4GB SODIMM DDR4 memory and supports up to 16GB using one memory slot.
Does the TS-632X-4G support ECC memory?
Yes. The supplied specifications state that the memory slot supports ECC memory.
Which network ports are included?
It includes two 10GbE SFP+ ports and two 2.5GbE ports supporting 2.5G, 1G and 100M network speeds.
Does it support PCIe expansion?
Yes. It has one PCIe Gen 3 x4 slot for compatible expansion cards.
Does the TS-632X-4G support SSD cache acceleration?
Yes. SSD cache acceleration is listed as supported, but the supplied specifications do not identify built-in M.2 slots.
What performance was reported?
The supplied QNAP laboratory results list 590MB/s read and write using two 2.5GbE connections, and 2,251MB/s read with 1,082MB/s write using two 10GbE connections.
What warranty applies to the TS-632X-4G?
The supplied specifications list a two-year QNAP manufacturer warranty.
(TS-632X-4G)
Features and highlights
Key capabilities below are organised from the supplied product information for TS-632X-4G.
Dual 2.5GbE ports
Two multi-gigabit interfaces support SMB Multichannel or Port Trunking under the supplied guidance.
Six hot-swappable bays
The SATA bays support supplied 3.5-inch and 2.5-inch hard-drive options plus 2.5-inch SSDs.
Quad-core ARM processor
The AnnapurnaLabs Alpine AL524 provides four cores at 2.0GHz.
Expandable ECC-capable memory
The supplied 4GB memory can be expanded to 16GB, and ECC memory is supported.
PCIe Gen 3 x4 expansion
One expansion slot supports compatible networking or storage-enhancement cards.
Important: The source does not state whether drives are included. SSD cache acceleration is listed, but no built-in M.2 slots are specified.
TS-632X-4G specifications
Specifications below are organised from the supplied QNAP product information for TS-632X-4G.
Processor and Memory
| CPU | AnnapurnaLabs, an Amazon company Alpine AL524, 4-core, 2.0GHz |
|---|---|
| CPU Architecture | 64-bit ARM |
| Encryption Engine | Yes (supports AES 256-bit encryption) |
| System Memory | 4GB SODIMM DDR4 |
| Maximum Memory | 16GB (1 x 16GB) |
| Memory Slot | 1 x SODIMM DDR4; supports ECC memory |
Storage
| Drive Bays | 6 x 3.5-inch SATA 6Gb/s, 3Gb/s |
|---|---|
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-Swappable | Yes |
| SSD Cache Acceleration | Supported |
Networking
| 2.5 Gigabit Ethernet | 2 x 2.5GbE ports (2.5G/1G/100M) |
|---|---|
| 10 Gigabit Ethernet | 2 x 10GbE SFP+ |
| Wake on LAN | Yes |
| Jumbo Frame | Yes |
Expansion and Connectivity
| PCIe Slot | 1 x PCIe Gen 3 x4 Supported card dimensions: 190 x 68.9 x 18.76mm / 7.48 x 2.71 x 0.74 inches. |
|---|---|
| USB Ports | 2 x USB 3.2 Gen 1 5Gbps ports |
Performance
| SMB Sequential Throughput, 1MB 2 x 2.5GbE | Read: 590MB/s Write: 590MB/s |
|---|---|
| SMB Sequential Throughput, 1MB 2 x 10GbE | Read: 2251MB/s Write: 1082MB/s Tested in QNAP Labs. Figures may vary by environment. |
| Test Environment | NAS: TS-632X OS: QTS 5.1.7.2743 Volume: 6 x Samsung 860 PRO 512GB, RAID 5, thick volume Client PC: Windows Server 2019, Intel Core i7-6700 3.4GHz, 64GB RAM, with QXG-10G2SFCX4 and QXG-2G4T-I225 IOmeter: 16MB, 30-second ramp-up, 3-minute sequential run, 16 workers, 4 outstanding |
Physical Specifications
| Form Factor | Tower |
|---|---|
| LED Indicators | Power, Status, LAN, USB, HDD1-6 |
| Buttons | Power, Reset, USB Auto Copy |
| Dimensions (H x W x D) | 226.5 x 235 x 165mm |
| Net Weight | 2.5kg |
| Gross Weight | 4.96kg |
| Kensington Security Slot | Yes |
Power and Cooling
| Power Supply | 120W adapter (12VDC), 100-240VAC |
|---|---|
| Fan | 2 x 90mm, 12VDC |
| System Warning | Buzzer |
Operating Environment
| Operating Temperature | 0-40°C (32-104°F) |
|---|---|
| Storage Temperature | -20-70°C (-4-158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27°C (80.6°F) |
Warranty
| Standard Warranty | 2 years |
|---|
Important notes
| Drive inclusion | The supplied source does not state whether hard drives are included. |
|---|---|
| SSD cache scope | SSD cache acceleration is supported, but the supplied specifications do not identify built-in M.2 slots. |
| Memory installation | Use compatible QNAP memory modules to maintain system performance and stability. |
| Performance scope | Supplied throughput figures were measured in QNAP laboratories and may vary by environment. |
| SKU | TS-632X-4G |
| Model # | TS-632X |
| Barcode # | 0885022027545 |
| Brand | QNAP |
| Shipping Weight | 4.9000kg |
2 YearsQNAP manufacturer warranty
2-year QNAP manufacturer warranty
The supplied specifications list a 2-year standard manufacturer warranty for the QNAP TS-632X-4G.
