RackStation

RS2825RP+

Name: Synology RackStation RS2825RP+ ,16-Bay AMD Ryzen V1780B ,8GB DDR4 ,NAS Enclosure
Brand: SYNOLOGY
SKU: RS2825RPplus
Price: 6187 AUD
Availability: InStock

Enterprise-grade rackstation storage solution

The RS2825RP+ can be flexibly configured to meet evolving needs through faster networking, local SSD cache, or increased storage.

Uncompromising performance

CPU

12-core AMD EPYC 7272 @ 2.9 (base) / 3.2 (turbo) GHz

Memory

32 GB DDR4 ECC RDIMM, expandable to 1024 GB (64 GB x 16)

Storage

12 drive bays, expandable to 108 (RX1223RP x 8)

Network

4x RJ-45 1GbE, 2x RJ-45 10GbE, 1x Out-of-Band Management, 15x Max. Number ofs

Performance backed by Synology drives

Designed for Synology systems, Synology drives deliver consistent performance and unmatched reliability for your deployments.

Hardware Overview

Trusted by professionals across all industries.

Powered by Synology DiskStation Manager

Enterprise-grade software solutions included

Synology High Availability

Seamless transition between clustered servers in the event of a server failure

Central Management

Centrally manage and monitor multiple Synology NAS devices

Snapshot Replication

Schedulable and instantaneous data protection for shared folders

Security

Comprehensive built-in security tools to protect your devices

(RS2825RPplus)

Technical Specifications

Complete hardware and software specifications

CPU

CPU Model AMD Ryzen V1780B

CPU Quantity 1

CPU Cores 4

CPU Threads 8

CPU Architecture 64-bit

CPU Frequency 3.35 (base) / 3.6 (turbo) GHz

Hardware Encryption Engine Yes

Memory

System Memory 8 GB DDR4 ECC UDIMM

Total Memory Slots 2

Maximum Memory Capacity 32 GB (16 GB x 2)

Notes Synology may revise pre-installed memory module specifications in response to component lifecycle and supply conditions. All revised components undergo the same rigorous validation to ensure equivalent compatibility, stability, and performance. Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion. For multi-module memory configurations, all modules must be identical and share the same model number. Check the Product Manual of your Synology product for recommended memory configurations.

Storage

Drive Bays 16

Maximum Drive Bays with Expansion Unit 28 (RX1225RP x 1)

Drive Type(See all supported drives) 3.5" SATA HDD 2.5" SATA SSD

Hot Swappable Drive* Yes

Notes Compatible drives are mandatory. Please consult our compatibility list before purchasing hard drives. For more details, please refer to this article .

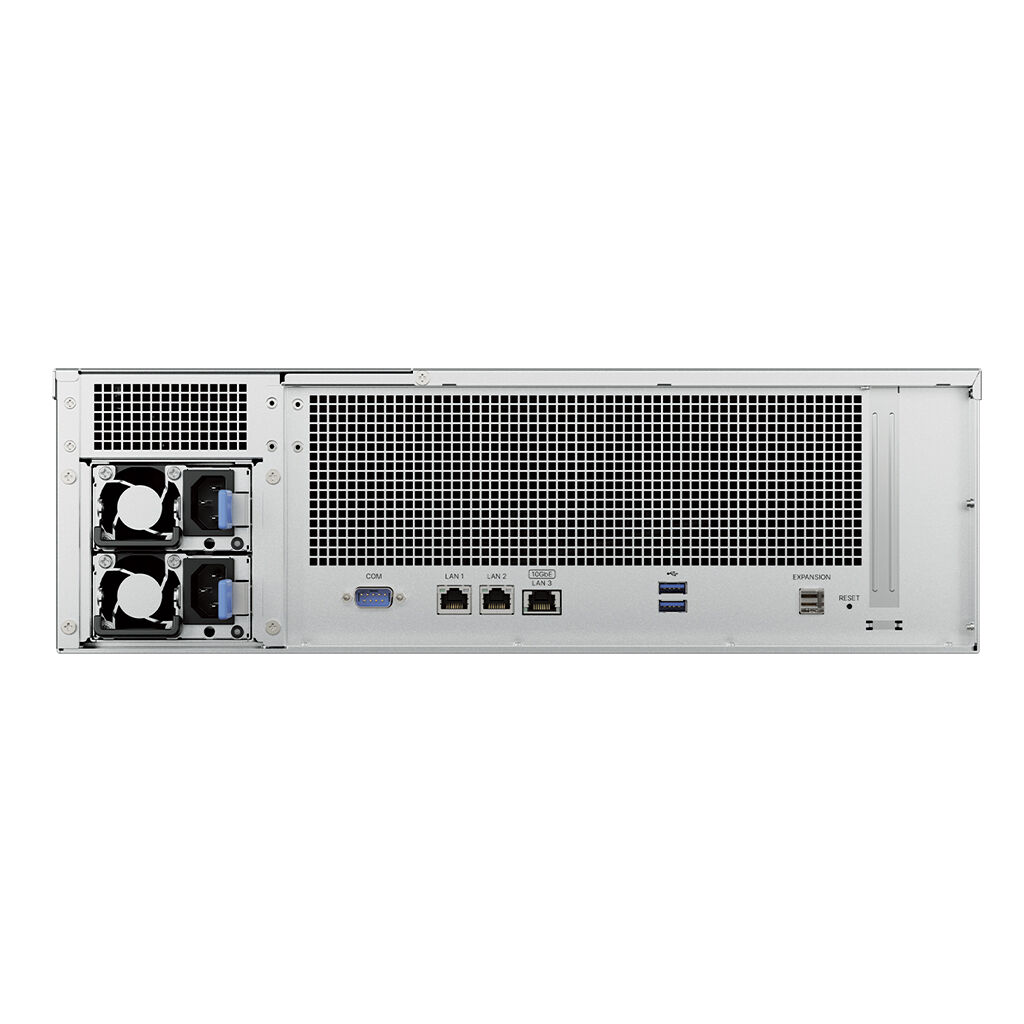

External Ports

RJ-45 1GbE LAN Port 2

RJ-45 10GbE LAN Port 1

USB 3.2 Gen 1 Port 2

Expansion Port 1

Expansion Port Type Mini-SAS HD

Notes MTU value of 1GbE LAN port has a limit of 1500.

PCIe

PCIe Expansion 1 x Gen3 x8 slot (x4 link)

Appearance

Form Factor (RU) 3U

Size (Height x Width x Depth) 132.3 mm x 482 mm x 656.5 mm

Weight 17.3 kg

Rack Installation Support* 4-post 19" rack (Synology Rail Kit - RKS-02 )

Notes The rail kit is sold separately

Others

System Fan 80 mm x 80 mm x 3 pcs

Fan Speed Mode Full-Speed Mode Cool Mode Quiet Mode

Easy Replacement System Fan Yes

Power Recovery Yes

Noise Level* 49.6 dB(A)

Scheduled Power On / Off Yes

Wake on LAN / WAN Yes

Power Supply Unit / Adapter 550 watts

Redundant Power Supply Yes

AC Input Power Voltage 100 V to 240 V AC

Power Frequency 50/60 Hz, Single Phase

Power Consumption 134.48 watts (Access) 50.81 watts (HDD Hibernation)

British Thermal Unit 459.17 BTU/hr (Access) 173.49 BTU/hr (HDD Hibernation)

Notes For more information on how power consumption is measured, refer to this article . Noise testing was conducted with the Synology system fully installed with Synology SATA SSDs and in an idle state. Two G.R.A.S. type 40AE microphones were placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%.

Temperature

Operating Temperature 0°C to 35°C (32°F to 95°F)

Storage Temperature -20°C to 60°C (-5°F to 140°F)

Operating Humidity 8% to 80% RH

Storage Humidity 5% to 95% RH

Certification

Certification FCC CE BSMI VCCI RCM UKCA EAC CCC KC BIS UL

Warranty

Warranty 3-year hardware warranty, extendable to 5 years with EW202

Notes The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more) EW201/EW202 is only available in Asia, Africa, and Oceania. Refer to the Extended Warranty website for details on supported countries/regions. ( Learn more )

Environment

Environment RoHS Compliant

Packaging Content

Packaging Content Main Unit X 1 Accessory Pack X 1 AC Power Cord X 2

Optional Accessories

Optional Accessories DDR4 ECC UDIMM: D4EU02-8G / D4EU02-16G Expansion Units: RX1225RP Enterprise Series 3.5" SATA HDD: HAT5300 Series Plus Series 3.5" SATA HDD: HAT3300 Series Enterprise Series 2.5" SATA SSD: SAT5200 Series M.2 SSD & 10GbE Combo Adapter Card: E10M20-T1 M.2 SSD Adapter Card: M2D20 25GbE Network Interface Card: E25G30-F2 10GbE Network Interface Card: E10G30-F2 / E10G30-T2 / E10G18-T1 Rail Kit Sliding: RKS-02

Notes For multi-module memory configurations, all modules must be identical and share the same model number. Check the Product Manual of your Synology product for recommended memory configurations.

Storage Management

Maximum Single Volume Size 200 TB (32 GB memory required) 108 TB

Maximum Internal Volume Number 32

SSD Read/Write Cache(Determining cache size) Yes

SSD TRIM Yes

Supported RAID Type Synology Hybrid RAID Basic JBOD RAID 0 RAID 1 RAID 5 RAID 6 RAID 10

RAID Migration Basic to RAID 1 Basic to RAID 5 RAID 1 to RAID 5 RAID 5 to RAID 6

Volume Expansion with Larger HDDs Synology Hybrid RAID RAID 1 RAID 5 RAID 6 RAID 10

Volume Expansion by Adding a HDD Synology Hybrid RAID JBOD RAID 5 RAID 6

Global Hot Spare Supported RAID Type Synology Hybrid RAID RAID 1 RAID 5 RAID 6 RAID 10

Notes Volumes over 108 TB require 32 GB of memory or more. Actual maximum storage pool and volume sizes depend on drive sizes used, the number of drive bays available, and the RAID configuration. Usable capacity for each volume will be lower than the maximum volume size and is dependent on the filesystem and the amount of system metadata stored.

File System

Internal Drives Btrfs

External Drives Btrfs ext4 ext3 FAT32 NTFS HFS+ exFAT

File Services

File Protocol SMB AFP NFS FTP WebDAV Rsync

Maximum Number of SMB Connections (FSCT-Based) 560

Windows Access Control List (ACL) Integration Yes

NFS Kerberos Authentication Yes

Notes Connection value of this model is tested with Synology SATA HDD fully populated and all onboard network ports Models with expandable memory are tested with the maximum supported quantity installed. SMB performance was evaluated using Microsoft File Server Capacity Tool (FSCT) version 1.3, with the following configuration: Test workload: HomeFolder scenario provided by the FSCT tool Test duration: 600 seconds Domain controller & FSCT controller: Windows Server 2022 FSCT clients: 8 × Windows 10 machines SMB feature: Directory leasing enabled

Account & Shared Folder

Maximum Local User Accounts 1,024

Maximum Local Groups 256

Maximum Shared Folder 256

Maximum Shared Folder Sync Tasks 12

Hybrid Share

Hybrid Share Folder Number 10

Hyper Backup

Data & Folder Backup Yes

Entire System Backup Yes

High Availability

Synology High Availability Yes

Log Center

Syslog Events per Second 1,000

Virtualization

VMware vSphere ESXi 8.0 U2, ESXi 8.0 U1, ESXi 8.0, ESXi 7.0 U3, ESXi 7.0 U2, ESXi 7.0 U1, ESXi 7.0, ESXi 6.7 U3, ESXi 6.7 U2, ESXi 6.7 U1, ESXi 6.7, ESXi 6.5 U3, ESXi 6.5 U2, ESXi 6.5 U1, ESXi 6.5

Microsoft Hyper-V Windows Server 2022

Citrix XenServer XenServer 8, Citrix Hypervisor 8.2 LTSR CU1

OpenStack Cinder

General Specifications

Supported Protocols SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV

Supported Browsers Chrome Firefox Edge Safari

Supported Language English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文

Notes For an updated list of supported browser versions, check the DSM Technical Specifications .

Central Management System

Central Management System Yes

Synology AI Console

Third-Party AI Model Integration Yes

Maximum De-Identification Rate 500 words per second

Notes De-identification performance measurement: Filters for Credit Card Numbers, IBAN, Individual Taxpayer Identification Number, SSN, and Names applied to a 4,355-word English text. To enable de-identification, your device must have at least 8 GB of memory and Container Manager installed.

Synology Chat

Maximum Number of Users 300

Notes Measured with simulated users, each with an average record of 20,000 messages, emojis, or stickers. The required server response time is below ten seconds. Models with expandable memory are tested with the maximum supported quantity installed.

Download Station

Maximum Concurrent Download Tasks 80

SAN Manager

Maximum iSCSI Target Number 64

Maximum LUN 128

LUN Clone/Snapshot, Windows ODX Yes

Synology MailPlus / MailPlus Server

Free Email Accounts 5 (Additional accounts require purchase of licenses)

Maximum Number of Users 1,100

Notes The suggested maximum number of users is based on the following workload: 20% of users with a 20,000 item mailbox randomly performing actions and receiving 240 emails per day, and 80% of users receiving 20 emails per day. Learn more Models with SSD support are tested with a single SSD volume. Models with expandable memory are tested with the maximum supported quantity installed. Learn more about memory requirements . Operating in high-availability mode will incur additional overhead. Features enabled during evaluation: anti-spam, anti-virus, DNSBL, greylist, content scanning, and full-text search (English).

Media Server

DLNA Compliance Yes

Synology Photos

Facial Recognition Yes

Object Recognition Yes

Snapshot Replication

Maximum Snapshots per Shared Folder 256

Maximum Snapshots per LUN 64

Maximum Snapshots per System 4,096

Maximum Replication Tasks for Shared Folders 32

Maximum Replication Tasks for LUNs 16

Maximum Replication Tasks per System 32

Surveillance Station

Default Licenses 2 (Additional cameras require purchase of licenses)

Maximum IP Cameras and Total FPS (H.264) 1080p: 90 channels, 2250 FPS 3M: 90 channels, 1500 FPS 5M: 90 channels, 900 FPS 4K: 55 channels, 550 FPS

Maximum IP Cameras and Total FPS (H.265) 1080p: 90 channels, 2700 FPS 3M: 90 channels, 2250 FPS 5M: 90 channels, 1500 FPS 4K: 90 channels, 1080 FPS

Notes Performance figures are obtained from testing conducted with the device fully populated with drives, with their default memory configuration, and under a continuous recording setup. Actual system capabilities may vary based on configuration, drive performance, enabled features, and the presence of additional workloads. Use NVR Selector to quickly find a suitable model based on your requirements. The number of video channels that can be viewed simultaneously is double the maximum number of cameras for the same codec and resolution.

Synology Drive

Maximum Number of Users 1,000

Maximum Number of Hosted Files 15,000,000 (applies to files indexed or hosted by Synology Drive . For file access through other standard protocols, refer to the File Services section above)

Notes The suggested maximum number of users is based on the following workload: 20% of users randomly perform file operations (upload, download, move, and delete), and 80% of users are logged in but idle. Learn more Models with SSD support are tested with a single SSD volume. Models with expandable memory are tested with the maximum supported quantity installed. Exceeding the recommended numbers above will not block application operations, but may result in longer response time. Btrfs file system and non-encrypted shared folders were used during the aforementioned testing.

Synology Office

Maximum Number of Users 900

Notes The suggested maximum number of users is based on the following workload: 20% of users are executing random actions at an average of 30-second intervals, and 80% of users are logged in and viewing a file. Learn more Models with SSD support are tested with a single SSD volume. Models with expandable memory are tested with the maximum supported quantity installed. Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM
