24-bay 4U enterprise QuTS hero NAS

QNAP TS-h2477AXU-RP-R7-32G 24-Bay Ryzen 7 PRO 10GbE ZFS NAS

The QNAP TS-h2477AXU-RP-R7-32G is a 24-bay 4U rackmount NAS with an AMD Ryzen 7 PRO 7000 series 8-core/16-thread processor, 32GB DDR5 memory, dual M.2 PCIe Gen 5 slots, dual 10GBASE-T, dual 2.5GbE and dual 800W power.

24-bay 4U NASRyzen 7 PRO 700032GB DDR5Dual 800W power

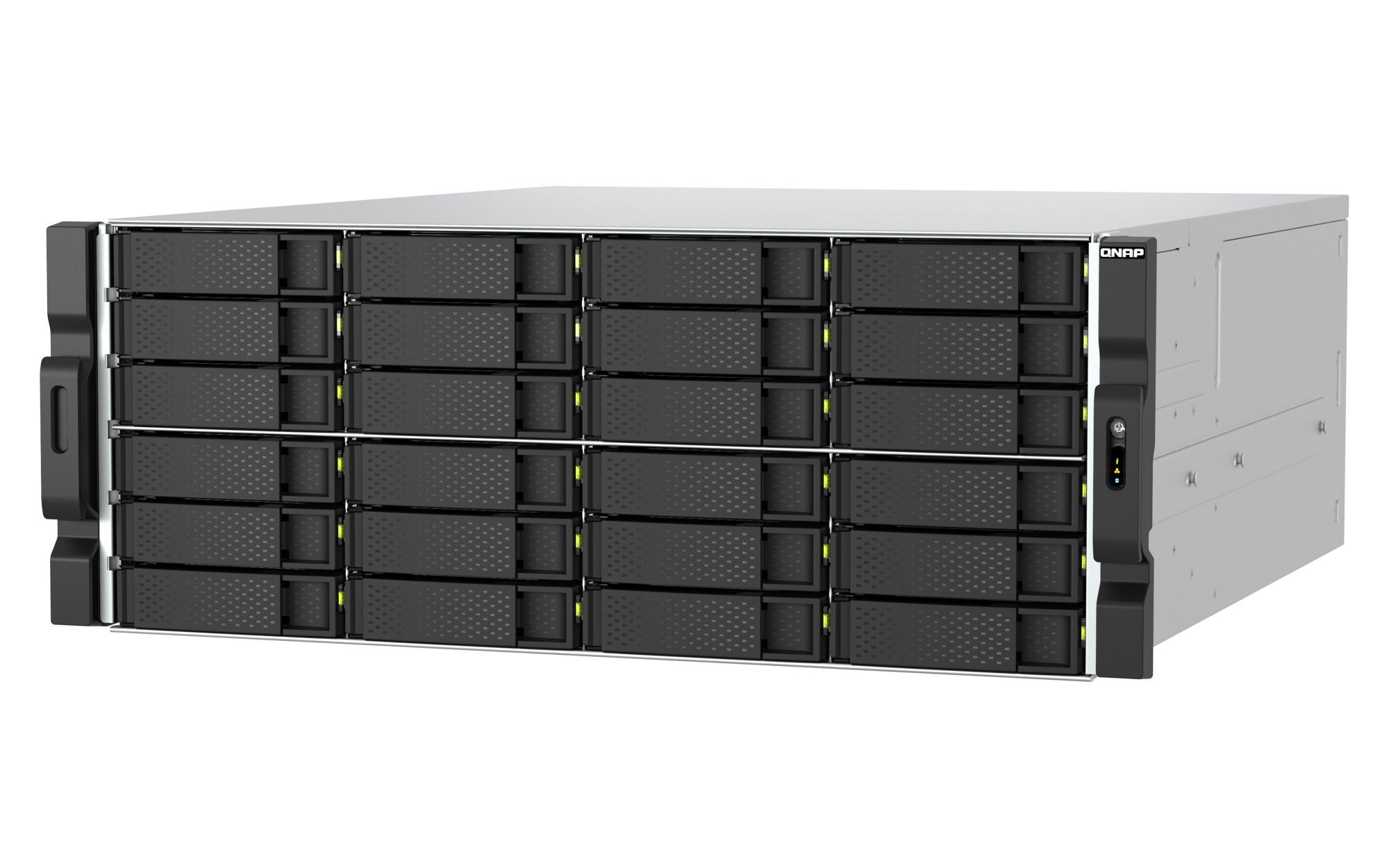

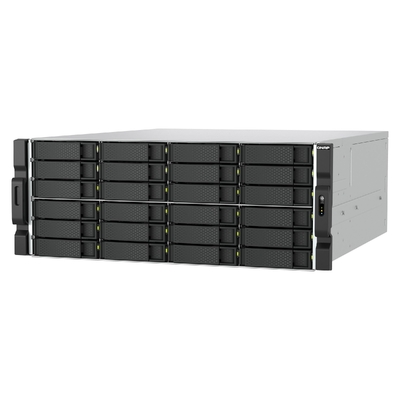

QNAP TS-h2477AXU-RP-R7-32G 24-bay 4U Ryzen 7 PRO 10GbE rackmount NAS

What is the TS-h2477AXU-RP-R7-32G?

It is a high-density ZFS-based QuTS hero storage platform for file servers, virtualisation, long-term archiving, media production and large-scale surveillance recording.

8C / 16TRyzen 7 PRO 7000

24 BaysSATA HDD and SSD

2 × 10GbEPlus dual 2.5GbE

2 × M.2 Gen 5NVMe cache slots

Need help choosing a NAS?

Explore the DeviceDeal NAS Buying Guide

Compare NAS types, storage considerations and practical features before selecting your next network storage system.

Read NAS Buying Guide

Ryzen 7 PRO processing, DDR5 memory and integrated graphics

The AMD Ryzen 7 PRO 7000 series processor provides eight cores, sixteen threads and burst speeds up to 5.3GHz.

This configuration includes 32GB UDIMM DDR5 memory and supports up to 192GB across four slots, with optional ECC memory support.

ECC and non-ECC memory modules cannot be mixed.
AMD Radeon Graphics, hardware-accelerated transcoding and GPU pass-through are listed.
For a dual-DIMM configuration, use a pair of identical compatible DDR5 modules.

Twenty-four SATA bays, dual M.2 PCIe Gen 5 and QuTS hero

Twenty-four hot-swappable 3.5-inch SATA bays support compatible 3.5-inch SATA hard drives and 2.5-inch SATA solid state drives.

Two M.2 2280 PCIe Gen 5 x2 slots support compatible NVMe SSDs from PCIe Gen 3 and above for SSD cache acceleration.

The supplied information does not confirm whether storage drives are included.
M.2 SSD hot swapping is not supported.
The supplied QuTS hero description includes WORM, snapshots, ZFS data protection, deduplication and compression.
The supplied capacity example states up to 600TB usable storage with twenty-four 30TB drives.

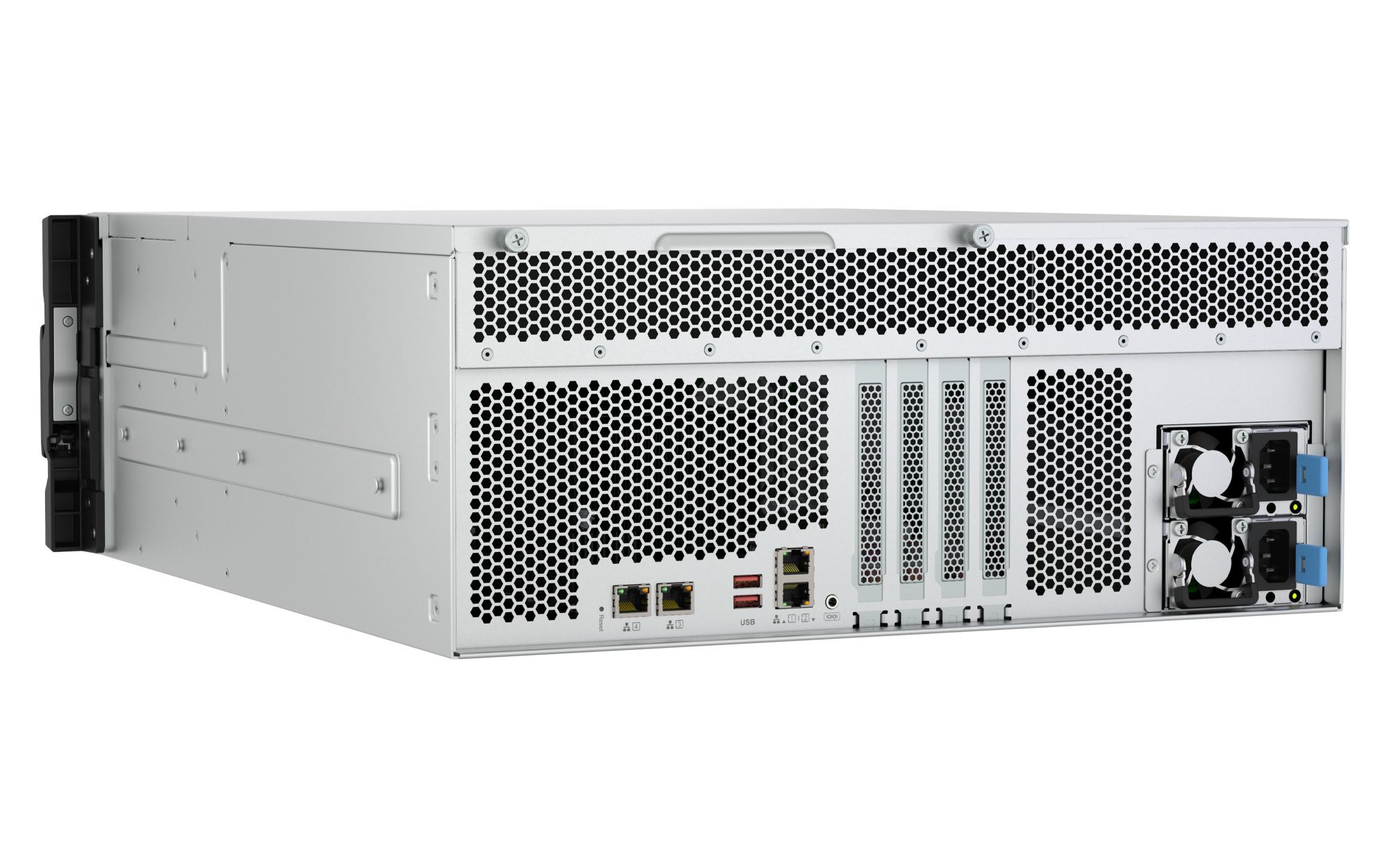

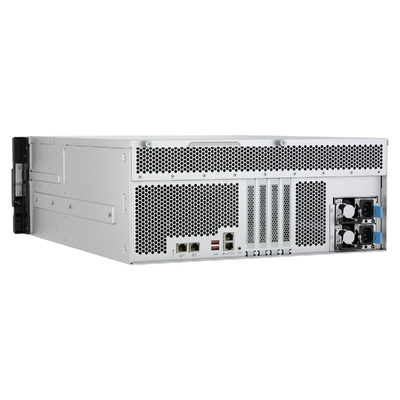

Dual 10GbE, dual 2.5GbE and PCIe Gen 4 expansion

Two 10GBASE-T ports and two 2.5GbE ports provide built-in multi-gigabit networking, with optional 25GbE connectivity listed through a compatible adapter.

Three PCIe Gen 4 slots support compatible network, graphics and storage expansion cards.

Two Type-A USB 3.2 Gen 2 10Gbps ports are included.
Wake on LAN and Jumbo Frame support are listed.
Slot 2 lane width changes depending on whether Slot 1 is in use.
Dual 800W power supply units provide redundant power.

Supplied performance results and scalable capacity

The supplied QNAP Labs results list 4K iSCSI random performance of 1,439,069 read IOPS and 1,045,255 write IOPS, plus 1M SMB sequential throughput of 13,094MB/s read and 12,249MB/s write.

The stated test used 64GB RAM, three QXG-25G2SF-CX6 adapters, QuTS hero h5.2.5.3133, twelve 15.36TB SATA SSDs in RAID 5 and five Windows Server 2019 clients.

Actual results may vary by storage, network, client and workload configuration.
The supplied information states that eight TL-R2400PES-RP 24-bay JBOD units can add 192 drives.
The system is also described as compatible with QNAP SAS and PCIe JBOD expansion units.
The supplied use cases include backup, archiving, media assets, virtualisation and surveillance recording.

Important purchasing and deployment notes

Drive inclusion is not confirmed; verify the exact supplied configuration before purchase.
The 600TB capacity example and QNAP Labs performance results depend on the stated drive, RAID, memory, network and client configurations.
Confirm compatible drives, M.2 SSDs, DDR5 memory, PCIe cards, JBOD enclosures and rail hardware before deployment.
The supplied product information explicitly lists a five-year standard warranty.

Frequently asked questions

What is the QNAP TS-h2477AXU-RP-R7-32G?

It is a 24-bay 4U QuTS hero rackmount NAS with Ryzen 7 PRO processing, 32GB DDR5, dual 10GbE, dual 2.5GbE, dual M.2 PCIe Gen 5 and redundant power.

How many drive bays are included?

It has 24 hot-swappable 3.5-inch SATA bays supporting compatible 3.5-inch SATA hard drives and 2.5-inch SATA solid state drives.

Does the supplied information confirm that drives are included?

No. Drive inclusion is not confirmed, so the exact supplied configuration should be checked before purchase.

Which processor is installed?

It uses an AMD Ryzen 7 PRO 7000 series eight-core, sixteen-thread processor with burst speeds up to 5.3GHz.

How much memory is installed and supported?

This configuration includes 32GB UDIMM DDR5 memory and supports up to 192GB across four slots.

Does it support ECC memory?

Yes. Optional ECC memory is supported, but ECC and non-ECC modules cannot be mixed.

Can M.2 NVMe SSDs be used for caching?

Yes. Two M.2 2280 PCIe Gen 5 x2 slots support compatible NVMe SSDs from PCIe Gen 3 and above for SSD cache acceleration.

Which network ports are built in?

It includes two 10GBASE-T ports and two 2.5GbE ports. Optional 25GbE connectivity is listed through a compatible adapter.

How many PCIe slots are included?

It provides three PCIe Gen 4 slots with supplied x4 and x8 lane configurations.

How far can storage be expanded?

The supplied information states that eight TL-R2400PES-RP 24-bay JBOD units can add 192 drives, and also lists compatible QNAP SAS and PCIe JBOD expansion.

What QNAP Labs performance results are supplied?

The supplied test lists 1,439,069 read and 1,045,255 write IOPS for 4K iSCSI random workloads, plus 13,094MB/s read and 12,249MB/s write for 1M SMB sequential workloads under the stated test configuration.

What manufacturer warranty applies?

The supplied product information explicitly lists a five-year standard warranty, presented as QNAP manufacturer warranty.

(TS-h2477AXU-RP-R7-32G)

Features and highlights

Key capabilities below are organised from the supplied product information for TS-h2477AXU-RP-R7-32G.

Ryzen 7 PRO processor

Eight cores, sixteen threads and burst speeds up to 5.3GHz support enterprise multitasking.

32GB DDR5 memory

Four UDIMM slots support expansion to 192GB and optional ECC memory.

Twenty-four SATA bays

Hot-swappable bays support compatible 3.5-inch SATA hard drives and 2.5-inch SATA SSDs.

Dual M.2 PCIe Gen 5

Two M.2 2280 slots support compatible NVMe SSD cache acceleration.

Dual 10GbE and 2.5GbE

Two 10GBASE-T and two 2.5GbE ports provide built-in multi-gigabit networking.

Dual 800W power

Redundant power supports continuous rackmount business operation.

Important: Drive inclusion is not confirmed. Capacity examples and benchmark results depend on the stated configuration; confirm compatible drives, memory, adapters and expansion units before purchase.

TS-h2477AXU-RP-R7-32G specifications

Specifications below are organised from the supplied QNAP product information for TS-h2477AXU-RP-R7-32G.

Product Platform

Product Type	24-bay 4U rackmount QuTS hero NAS
Operating System	QuTS hero
Supplied Storage Configuration	Drive inclusion is not confirmed in the supplied information.

Processor and Graphics

CPU	AMD Ryzen 7 PRO 7000 series 8-core/16-thread processor, burst up to 5.3GHz
CPU Architecture	64-bit x86
Graphics Processor	AMD Radeon Graphics
Encryption Engine	Yes (AES-NI)
Hardware-Accelerated Transcoding	Yes
GPU Pass-Through	Yes

Memory

System Memory	32GB UDIMM DDR5
Maximum Memory	192GB (4 × 48GB)
Memory Slots	4 × UDIMM DDR5 Optional ECC memory is supported. ECC and non-ECC modules cannot be mixed. For dual-DIMM configurations, use a pair of identical DDR5 modules.

Storage

Drive Bays	24 × 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility	3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives
Hot-Swappable	Yes Hot-swapping is not supported for M.2 SSDs.
M.2 Slots	2 × M.2 2280 PCIe Gen 5 x2 slots Compatible with NVMe SSD PCIe Gen 3 and above.
SSD Cache Acceleration	Supported

Networking

2.5 Gigabit Ethernet	2 × 2.5GbE ports (2.5G/1G/100M/10M)
10 Gigabit Ethernet	2 × 10GBASE-T ports (10G/5G/2.5G/1G/100M)
25 Gigabit Ethernet	Optional via an adapter
Wake on LAN	Yes
Jumbo Frame	Yes

Expansion and Connectivity

PCIe Slots	3 slots Slot 1: PCIe Gen 4 x4 Slot 2: PCIe Gen 4 x8 or Gen 4 x4 Slot 3: PCIe Gen 4 x4 Slot 2 provides PCIe Gen 4 x8 when Slot 1 is not in use, and PCIe Gen 4 x4 when Slot 1 is in use. Slot 1 card dimensions: 250 × 111.15 × 18.76mm / 9.84 × 4.38 × 0.74 inches. Slot 2 card dimensions: 250 × 111.15 × 18.76mm / 9.84 × 4.38 × 0.74 inches. Slot 3 card dimensions: 200 × 111.15 × 23.76mm / 9.84 × 4.38 × 0.94 inches. Wider cards can be installed if the next PCIe slot is not used.
USB Ports	2 × Type-A USB 3.2 Gen 2 10Gbps ports

PCIe Slots

3 slots
Slot 1: PCIe Gen 4 x4
Slot 2: PCIe Gen 4 x8 or Gen 4 x4
Slot 3: PCIe Gen 4 x4 Slot 2 provides PCIe Gen 4 x8 when Slot 1 is not in use, and PCIe Gen 4 x4 when Slot 1 is in use. Slot 1 card dimensions: 250 × 111.15 × 18.76mm / 9.84 × 4.38 × 0.74 inches. Slot 2 card dimensions: 250 × 111.15 × 18.76mm / 9.84 × 4.38 × 0.74 inches. Slot 3 card dimensions: 200 × 111.15 × 23.76mm / 9.84 × 4.38 × 0.94 inches.
Wider cards can be installed if the next PCIe slot is not used.

USB Ports

2 × Type-A USB 3.2 Gen 2 10Gbps ports

Physical Specifications

Form Factor	4U rackmount
LED Indicators	Power status, HDD 124, M.2 SSD 12, status, LAN and storage expansion port status
Buttons	Power, reset
Dimensions (H × W × D)	177.35 × 432.4 × 511.7mm Excludes the ear hook and protruding part of the power supply unit.
Net Weight	18.62kg
Gross Weight	27.74kg

Power and Cooling

Power Supply Unit	800W × 2, 100240V
Fans	3 × 60mm system fans, 12VDC
System Warning	Buzzer

Operating Environment

Operating Temperature	040°C (32104°F)
Storage Temperature	-2070°C (-4158°F)
Relative Humidity	595% RH non-condensing, wet bulb: 27°C (80.6°F)

Warranty and Connections

Standard Warranty	5 years
Maximum Concurrent CIFS Connections	5,000 with maximum memory installed

SKU	TS-h2477AXU-RP-R7-32G
Model #	TS-h2477AXU-RP
Barcode #	885022032143
Brand	QNAP
Shipping Weight	13.8000kg
Shipping Width	0.540m
Shipping Height	0.540m
Shipping Length	0.540m

5-YearQNAP manufacturer warranty

QNAP manufacturer warranty

The supplied product information explicitly lists a 5-year standard warranty for TS-h2477AXU-RP-R7-32G. This product is presented with QNAP manufacturer warranty.

Warranty coverage, eligibility and claim assessment are subject to QNAPs applicable warranty terms. Please retain your DeviceDeal tax invoice as proof of purchase.
