QNAP TS-h3087XU-RP-E2378-64G, 30-Bay 4U rackmount NAS, Intel Xeon
Model # TS-h3087XU-RP-E2378-64G
-
SKU: TS-h3087XU-RP-E2378-64G
- Pick Up Available
- Australian Warranty
- Checkout Securely

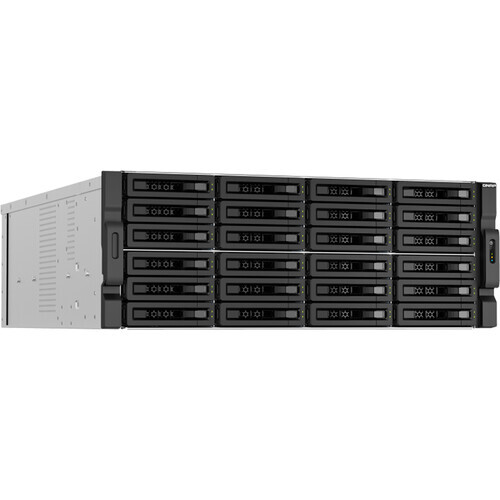

30-bay 4U QuTS hero rackmount NAS
QNAP TS-h3087XU-RP-E2378-64G 30-Bay Xeon 10GbE Hybrid NAS
The QNAP TS-h3087XU-RP-E2378-64G combines twenty-four 3.5-inch SATA bays and six 2.5-inch SATA bays with an Intel® Xeon® E-2378 processor, 64GB ECC DDR4 memory, dual 10GBASE-T, dual 2.5GbE and redundant power.
30 baysQuTS heroDual 10GbERedundant powerQNAP manufacturer warranty
What is the QNAP TS-h3087XU-RP-E2378-64G?
It is a 30-bay 4U rackmount NAS running QuTS hero. The supplied configuration uses an Intel® Xeon® E-2378 8-core/16-thread processor, 64GB ECC DDR4 memory, three PCIe Gen 4 slots and two 800W power supplies.
Feature group 1
Hybrid HDD and SSD storage
The 30-bay architecture separates capacity-focused and performance-focused storage.
Twenty-four SATA bays
The 3.5-inch bays support compatible 3.5-inch SATA hard drives and 2.5-inch SATA solid state drives.
Six dedicated SSD bays
The six 2.5-inch bays support compatible 2.5-inch SATA solid state drives.
SSD acceleration
SSD cache acceleration is supported, and optional M.2 storage can be added with a compatible QM2 PCIe adapter. M.2 SSD hot swapping is not supported.
Feature group 2
QuTS hero data protection
The supplied feature set combines ZFS-based integrity, efficiency and recovery capabilities.
Inline data reduction
Inline deduplication reduces duplicated data to lower storage use and I/O.
Snapshots and SnapSync
Near-limitless snapshots and real-time SnapSync support recovery and remote data protection.
SSD endurance management
QSAL, QNAP SSD Antiwear Leveling, is included in the supplied feature set.
Need help choosing a NAS?
Read NAS Buying Guide
Explore the DeviceDeal NAS Buying Guide
Compare NAS types, storage planning considerations and practical buying factors before selecting a system.
Feature group 3
Networking and PCIe expansion
Built-in multi-gigabit networking and three PCIe Gen 4 slots support demanding business deployments.
Built-in network ports
Two 10GBASE-T ports and two 2.5GbE ports support intensive file access, virtualisation and backup workloads.
Optional network upgrades
The supplied information lists compatible 10GbE, 25GbE and 100GbE expansion options.
Expansion choices
Compatible PCIe cards can add QM2 storage, Fibre Channel connectivity, additional networking, graphics or HDMI output.
Feature group 4
Business workloads
The supplied product information positions this NAS for file services, virtualisation, backup and hybrid cloud workflows.
Virtualisation
Supports virtualisation storage, virtual machines, GPU pass-through and containerised applications.
Business backup
Listed backup targets include Google Workspace, Microsoft 365, VMware and Hyper-V environments.
Hybrid cloud
A cloud storage gateway can use reserved NAS cache space to provide lower-latency access to cloud data.
Frequently asked questions
What is the QNAP TS-h3087XU-RP-E2378-64G?
It is a 30-bay 4U QuTS hero rackmount NAS with an Intel® Xeon® E-2378 processor, 64GB ECC DDR4 memory, built-in 10GbE and redundant power.
How are the 30 drive bays configured?
The chassis provides twenty-four 3.5-inch SATA bays and six 2.5-inch SATA bays.
Which drive types are supported?
The 3.5-inch bays support compatible 3.5-inch SATA hard drives and 2.5-inch SATA SSDs. The 2.5-inch bays support compatible 2.5-inch SATA SSDs.
Which processor is installed?
This configuration uses an Intel® Xeon® E-2378 with eight cores, sixteen threads, a 2.6GHz base frequency and speeds up to 4.8GHz.
How much memory is included and supported?
It includes 64GB ECC DDR4 memory and supports up to 128GB across four ECC UDIMM DDR4 slots.
What network ports are built in?
It includes two 10GBASE-T ports and two 2.5GbE ports.
Can higher-speed networking be added?
Yes. The supplied information lists optional 25GbE connectivity through a compatible PCIe adapter and also references compatible higher-speed network adapters.
How many PCIe expansion slots are available?
There are three PCIe Gen 4 slots: two Gen 4 x4 slots and one Gen 4 x8 slot.
Does it support M.2 SSDs?
M.2 storage is optional through a compatible QM2 PCIe adapter. M.2 SSD hot swapping is not supported.
Does this NAS have redundant power supplies?
Yes. It includes two 800W power supply units.
Which business workloads are supported by the supplied information?
The supplied content lists file services, virtualisation, VDI, virtual machines, containers, business backup and hybrid cloud gateway workflows.
What warranty applies to the TS-h3087XU-RP-E2378-64G?
The supplied specifications list a five-year QNAP manufacturer warranty. Coverage is subject to QNAPs applicable warranty terms.
(TS-h3087XU-RP-E2378-64G)
Features and highlights
Key product details organised from the supplied QNAP information for TS-h3087XU-RP-E2378-64G.
30-bay hybrid architecture
Twenty-four 3.5-inch SATA bays are paired with six dedicated 2.5-inch SATA bays.
Xeon® server processor
The Intel® Xeon® E-2378 provides eight cores, sixteen threads and speeds up to 4.8GHz.
ECC memory platform
This configuration includes 64GB ECC DDR4 and supports up to 128GB.
Four built-in network ports
Two 10GBASE-T and two 2.5GbE ports are included.
Three PCIe Gen 4 slots
Expansion options include networking, QM2 storage and Fibre Channel cards.
Redundant 800W power
Two 800W power supplies support power redundancy.
Purchase check: M.2 storage, graphics output and HDMI output require compatible PCIe adapters. M.2 SSD hot swapping is not supported.
Technical specifications
The following specifications are organised from the supplied product information for QNAP TS-h3087XU-RP-E2378-64G.
Product details
| Brand | QNAP |
|---|---|
| Model / SKU | TS-h3087XU-RP-E2378-64G |
| Product type | 30-bay 4U hybrid-storage rackmount NAS |
Processor and Memory
| CPU | Intel® Xeon® E-2378, 8 cores/16 threads, 2.6GHz, up to 4.8GHz |
|---|---|
| CPU Architecture | 64-bit x86 |
| Graphics Processor | Optional via a PCIe adapter |
| Encryption Engine | Yes (AES-NI) |
| System Memory | 64GB ECC DDR4 |
| Maximum Memory | 128GB (4 x 32GB) |
| Memory Slots | 4 x ECC UDIMM DDR4 For dual-DIMM configurations, use a pair of identical DDR4 modules. |
Storage
| Drive Bays | 30 total: 24 x 3.5-inch SATA + 6 x 2.5-inch SATA |
|---|---|
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives 2.5-inch bays: 2.5-inch SATA solid state drives |
| Hot-Swappable | Yes M.2 SSD hot swapping is not supported. |
| M.2 Slot | Optional via a QM2 PCIe adapter |
| SSD Cache Acceleration | Supported |
| GPU Pass-Through | Yes |
Networking
| 2.5 Gigabit Ethernet | 2 x 2.5GbE ports (2.5G/1G/100M) |
|---|---|
| 10 Gigabit Ethernet | 2 x 10GBASE-T ports (10G/5G/2.5G/1G/100M) |
| 25 Gigabit Ethernet | Optional via a PCIe adapter |
| Wake on LAN | Yes |
Expansion and Connectivity
| PCIe Slots | 3 total: 2 x PCIe Gen 4 x4 + 1 x PCIe Gen 4 x8 Slot 1 card dimensions: 260 x 131.15 x 54.16mm. Slot 2: 300 x 131.15 x 54.16mm. Slot 3: 300 x 131.15 x 18.76mm. Wider cards can be installed if the next PCIe slot is not used. |
|---|---|
| USB Ports | 4 x Type-A USB 3.2 Gen 2, 10Gbps, 5V/1A |
| HDMI Output | Optional via a PCIe adapter |
Physical Specifications
| Form Factor | 4U rackmount |
|---|---|
| LED Indicators | Status, LAN, USB and HDD status |
| Buttons | Power and reset |
| Dimensions (H x W x D) | 176.2 x 441.6 x 630.2mm |
| Net Weight | 23.79kg |
| Gross Weight | 29.13kg |
Power and Cooling
| Power Supply | 2 x 800W PSU |
|---|---|
| Disk Standby Power Consumption | 149.92W |
| Typical Operating Power Consumption | 219.03W |
| Fans | 4 x 80mm, 12VDC |
Operating Environment
| Operating Temperature | 040°C (32104°F) |
|---|---|
| Storage Temperature | -2070°C (-4158°F) |
| Relative Humidity | 595% RH non-condensing, wet bulb: 27°C (80.6°F) |
Warranty and Connections
| Standard Warranty | 5 years |
|---|---|
| Maximum Concurrent CIFS Connections | 11,000 with maximum memory installed |
| SKU | TS-h3087XU-RP-E2378-64G |
| Model # | TS-h3087XU-RP |
| Barcode # | 885022024605 |
| Brand | QNAP |
| Shipping Weight | 9.9900kg |
Five yearsQNAP manufacturer warranty
5-year QNAP manufacturer warranty
The supplied specifications list a 5-year manufacturer warranty for QNAP TS-h3087XU-RP-E2378-64G.
Warranty coverage, eligibility and claim assessment are subject to QNAPs applicable warranty terms. Please retain your DeviceDeal tax invoice as proof of purchase.
