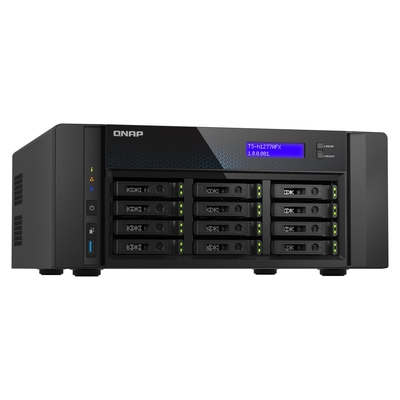

Twelve SATA SSD bays
The hot-swappable 2.5-inch SATA 6Gb/s bays support compatible solid state drives.
QNAP TS-h1277AFX-R7-32G 12-Bay SATA All-Flash Tower NAS - 32GB RAM
Model # TS-h1277AFX-R7-32G
-
SKU: TS-h1277AFX-R7-32G
- Pick Up Available
- Australian Warranty
- Checkout Securely
12-bay SATA all-flash tower NAS
QNAP TS-h1277AFX-R7-32G 12-Bay 10GbE All-Flash NAS
The QNAP TS-h1277AFX-R7-32G is a diskless 12-bay SATA all-flash NAS with an AMD Ryzen 7 9000 Series 8-core/16-thread processor, 32GB DDR5 ECC memory, dual 10GBASE-T, dual 2.5GbE and three PCIe Gen 4 slots.
Diskless 12-bay NASRyzen 7 9000 Series32GB DDR5 ECC5-year warranty
What is the QNAP TS-h1277AFX-R7-32G?
It is a tower all-flash NAS designed for low-latency 4K and 8K editing, visual-effects workflows, team collaboration, large file transfers and virtual desktop infrastructure.
12 Bays2.5-inch SATA all-flash storage
8C / 16TRyzen 7 9000 Series
32GB ECCExpandable DDR5 memory
2 × 10GbEPlus dual 2.5GbE
Need help choosing a NAS?
Read NAS Buying Guide Explore the DeviceDeal NAS Buying Guide
Compare NAS types, storage considerations and practical features before selecting your next network storage system.

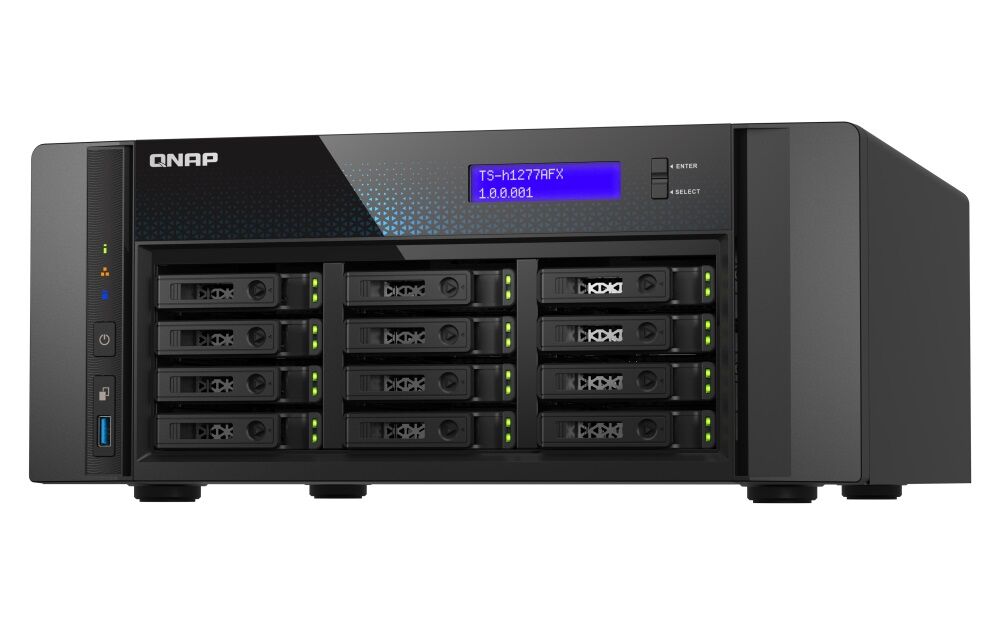

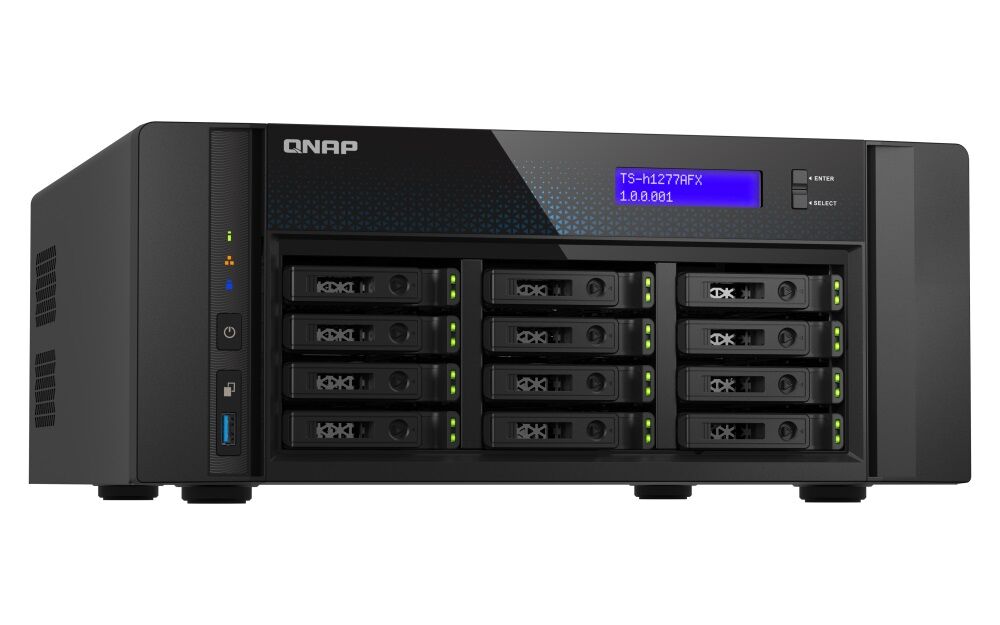

Twelve-bay SATA all-flash storage
Twelve 2.5-inch SATA 6Gb/s drive bays support compatible 2.5-inch SATA solid state drives.
The supplied product information lists storage capacity of up to 184TB and positions the system for large creative projects, collaboration and virtual desktop workloads.
- The system is shipped without SSDs.
- The twelve drive bays are listed as hot-swappable.
- QuTS hero provides SSD optimisation and real-time data reduction features.
Ryzen 7 processing, Radeon graphics and ECC memory
The AMD Ryzen 7 9000 Series processor provides eight cores, sixteen threads, a 3.8GHz base speed and speeds up to 5.5GHz.
This configuration includes 32GB UDIMM DDR5 ECC memory and supports up to 192GB across four DDR5 UDIMM slots.
- AMD Radeon integrated graphics are included.
- Hardware-accelerated transcoding is listed.
- GPU pass-through and SR-IOV support are included.

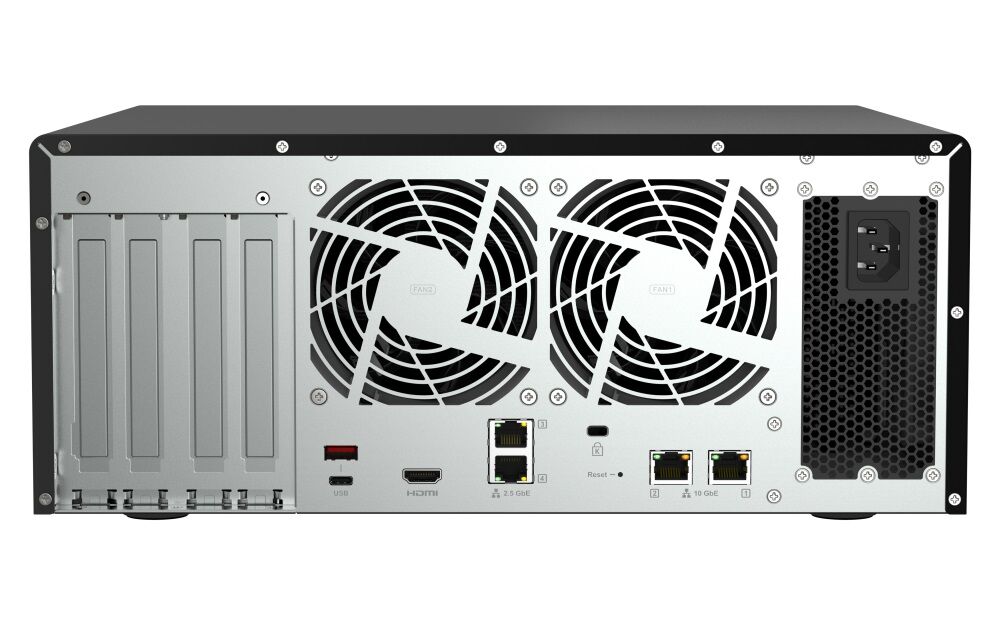

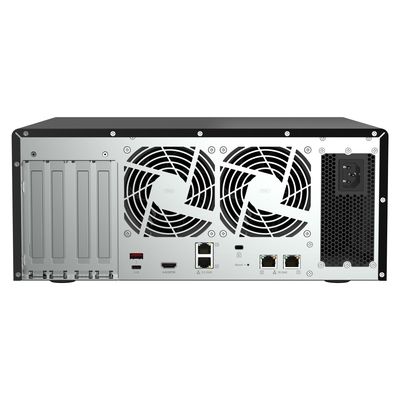

Dual 10GbE, dual 2.5GbE and PCIe Gen 4 expansion
Two 10GBASE-T ports and two 2.5GbE ports provide built-in multi-gigabit connectivity. Optional 25GbE is supported through a compatible PCIe adapter.
Three PCIe Gen 4 slots provide x4 and x8 lane configurations that vary with slot use.
- Wake on LAN is supported through the 2.5GbE ports only.
- One USB 3.2 Gen 1 port and two USB 3.2 Gen 2 ports are listed.
- HDMI 1.4b output supports up to 3840 × 2160 at 30Hz.
QuTS hero data integrity and SSD efficiency
The ZFS-based QuTS hero operating system provides data-integrity and storage-efficiency capabilities for all-flash deployments.
Supplied features include real-time deduplication, SSD optimisation and WORM technology for immutable data.
- The supplied award reference applies to the QuTS hero operating system, not specifically to this NAS model.

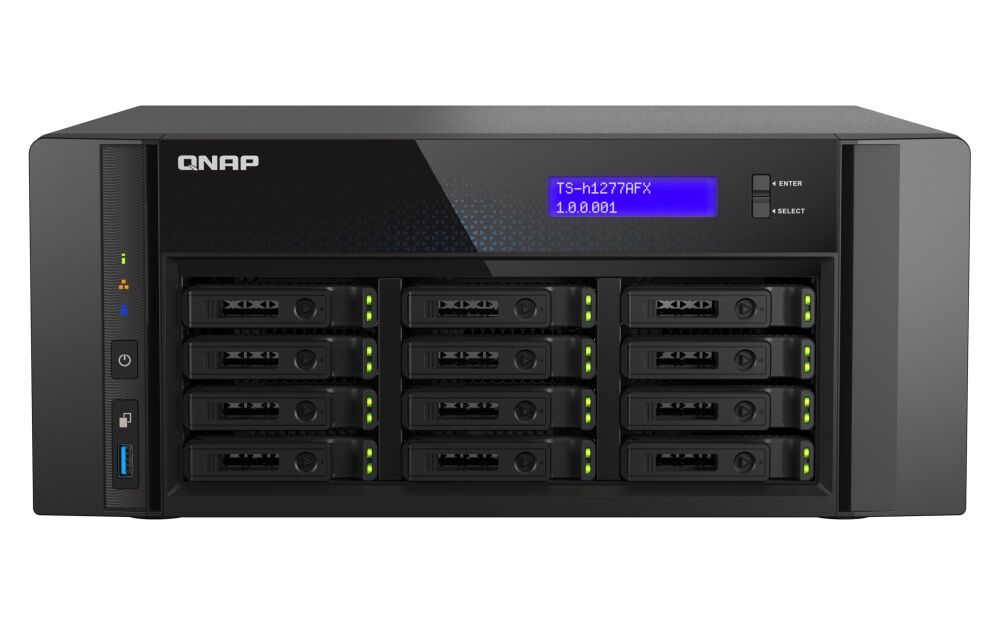

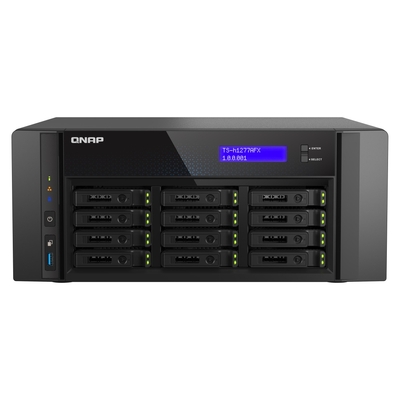

- The tower chassis includes an LCD display, USB Auto Copy button and Kensington security slot.
- Typical operating power is listed as 102.54W with drives fully populated.
Important purchasing and deployment notes
- This system is shipped without SSDs; compatible 2.5-inch SATA SSDs must be purchased separately.
- M.2 NVMe support is optional through compatible PCIe adapters, and M.2 SSDs are not listed as hot-swappable.
- The foot pad is excluded from the supplied chassis dimensions and may add up to 30mm depending on the model.
- Confirm SSD, memory, PCIe card and network compatibility before purchase.
Frequently asked questions
What is the QNAP TS-h1277AFX-R7-32G?
It is a diskless 12-bay SATA all-flash tower NAS with Ryzen 7 processing, 32GB DDR5 ECC memory, dual 10GbE and QuTS hero.
Does this NAS include SSDs?
No. The supplied specifications state that the system is shipped without SSDs.
Which drives are supported?
It supports compatible 2.5-inch SATA solid state drives across twelve SATA 6Gb/s bays.
Which processor is installed?
It uses an AMD Ryzen 7 9000 Series eight-core, sixteen-thread processor running at 3.8GHz and up to 5.5GHz.
How much memory is installed and supported?
It includes 32GB UDIMM DDR5 ECC memory and supports up to 192GB across four DDR5 UDIMM slots.
Are the SSD bays hot-swappable?
Yes. The twelve 2.5-inch SATA drive bays are listed as hot-swappable.
Which network ports are included?
It includes two 10GBASE-T ports and two 2.5GbE ports. Optional 25GbE requires a compatible PCIe adapter.
Does it support PCIe expansion?
Yes. It provides three PCIe Gen 4 slots with x4 and x8 lane configurations that depend on slot use.
Does it include built-in graphics?
Yes. It includes AMD Radeon integrated graphics, hardware-accelerated transcoding and GPU pass-through support.
What display output is available?
It provides one HDMI 1.4b output supporting up to 3840 × 2160 at 30Hz.
What are the chassis dimensions?
The tower chassis measures 157.2 × 368 × 362mm, excluding a foot pad that may add up to 30mm.
What manufacturer warranty applies?
The supplied specifications list a five-year QNAP manufacturer warranty.
(TS-h1277AFX-R7-32G)
Features and highlights
Key capabilities below are organised from the supplied product information for TS-h1277AFX-R7-32G.
Ryzen 7 9000 Series
The eight-core, sixteen-thread processor reaches supplied speeds up to 5.5GHz.
32GB DDR5 ECC
The installed memory can be expanded to a supplied maximum of 192GB.
Dual 10GbE and 2.5GbE
Two 10GBASE-T and two 2.5GbE ports provide built-in multi-gigabit networking.
Three PCIe Gen 4 slots
The expansion slots support supplied x4 and x8 lane configurations.
QuTS hero all-flash features
The supplied feature set includes deduplication, SSD optimisation and WORM.
Important: The NAS is supplied without SSDs. Confirm compatible SATA SSDs, memory, PCIe adapters and network equipment before purchase.
TS-h1277AFX-R7-32G specifications
Specifications below are organised from the supplied QNAP product information for TS-h1277AFX-R7-32G.
Processor and Memory
| CPU | AMD Ryzen 7 9000 Series 8C/16T 3.8 GHz, up to 5.5 GHz |
|---|---|
| CPU Architecture | 64-bit x86 |
| Graphics Processor | AMD Radeon iGPU |
| Encryption Engine | Yes (AES-NI) |
| Hardware-Accelerated Transcoding | Yes |
| System Memory | 32 GB UDIMM DDR5 ECC |
| Maximum Memory | 192 GB (4 x 48GB) |
| Memory Slots | 4 x DDR5 UDIMM |
Storage
| Drive Bays | 12 x 2.5-inch SATA 6Gb/s The system is shipped without SSDs. |
|---|---|
| Drive Compatibility | 2.5-inch SATA solid state drives |
| Hot-Swappable | Yes Not supported for M.2 SSDs. |
| M.2 Slots | Optional via PCIe adapters Compatible with NVMe SSD PCIe Gen 3 and above. Refer to the QNAP compatibility information before purchase. |
| SSD Cache Acceleration | Supported |
Virtualisation and Device Features
| GPU Pass-Through | Yes |
|---|---|
| SR-IOV | Yes |
Networking
| 2.5 Gigabit Ethernet | 2 x 2.5GbE ports (2.5G/1G/100M/10M) |
|---|---|
| 10 Gigabit Ethernet | 2 x 10GBASE-T ports (10G/5G/2.5G/1G/100M) |
| 25 Gigabit Ethernet | Optional via a PCIe adapter |
| Wake on LAN | Yes Supported through the 2.5GbE ports only. |
| Jumbo Frame | Yes |
Expansion and Connectivity
| PCIe Slots | 3 slots Slot 1: PCIe Gen 4 x4 Slot 2: PCIe Gen 4 x8 or Gen 4 x4* Slot 3: PCIe Gen 4 x8 *Slot 2 provides PCIe Gen 4 x8 when Slot 1 is not in use, and PCIe Gen 4 x4 when Slot 1 is in use. Slot 1 and Slot 2 card dimensions: 185 x 111.15 x 18.76 mm. Slot 3 card dimensions: 280 x 111.15 x 18.76 mm. Wider cards can be installed if the next PCIe slot is not used. |
|---|---|
| USB 3.2 Gen 1 Ports | 1 |
| USB 3.2 Gen 2 Ports | 2 x USB 3.2 (1 x Type-C with DPI included, 1 x Type-A), 10Gb/s |
| HDMI Output | 1 x HDMI 1.4b, up to 3840 x 2160 at 30Hz |
Physical Specifications
| Form Factor | Tower |
|---|---|
| LED Indicators | Power/Status, LAN, USB, SSD 112 |
| LCD Display / Button | Yes |
| Buttons | Power, Reset, USB Auto Copy |
| Dimensions (H x W x D) | 157.2 x 368 x 362 mm Dimensions do not include the foot pad. The foot pad may be up to 30 mm high depending on model. |
| Net Weight | 8 kg |
| Gross Weight | 8.9 kg |
| Kensington Security Slot | Yes |
Power and Cooling
| Power Supply Unit | Minimum 500W, 100240V |
|---|---|
| Disk Standby Power Consumption | 69.01 W |
| Typical Operating Power Consumption | 102.54 W Tested with drives fully populated. |
| Fans | 2 x 92mm, 12VDC |
| System Warning | Buzzer |
Environmental
| Operating Temperature | 040°C (32104°F) |
|---|---|
| Storage Temperature | -2070°C (-4158°F) |
| Relative Humidity | 595% RH non-condensing, wet bulb: 27°C (80.6°F) |
Warranty and Connections
| Standard Warranty | 5 years |
|---|---|
| Maximum Concurrent CIFS Connections | 10,000 with maximum memory installed |
| SKU | TS-h1277AFX-R7-32G |
| Barcode # | 885022028580 |
| Brand | QNAP |
| Shipping Weight | 8.9000kg |
5 YearsQNAP manufacturer warranty
5-year QNAP manufacturer warranty
The supplied specifications list a 5-year standard manufacturer warranty for the QNAP TS-h1277AFX-R7-32G.
Warranty coverage, eligibility and claim assessment are subject to QNAPs applicable warranty terms. Please retain your DeviceDeal tax invoice as proof of purchase.
