Fanless industrial NAS for wide-temperature operation

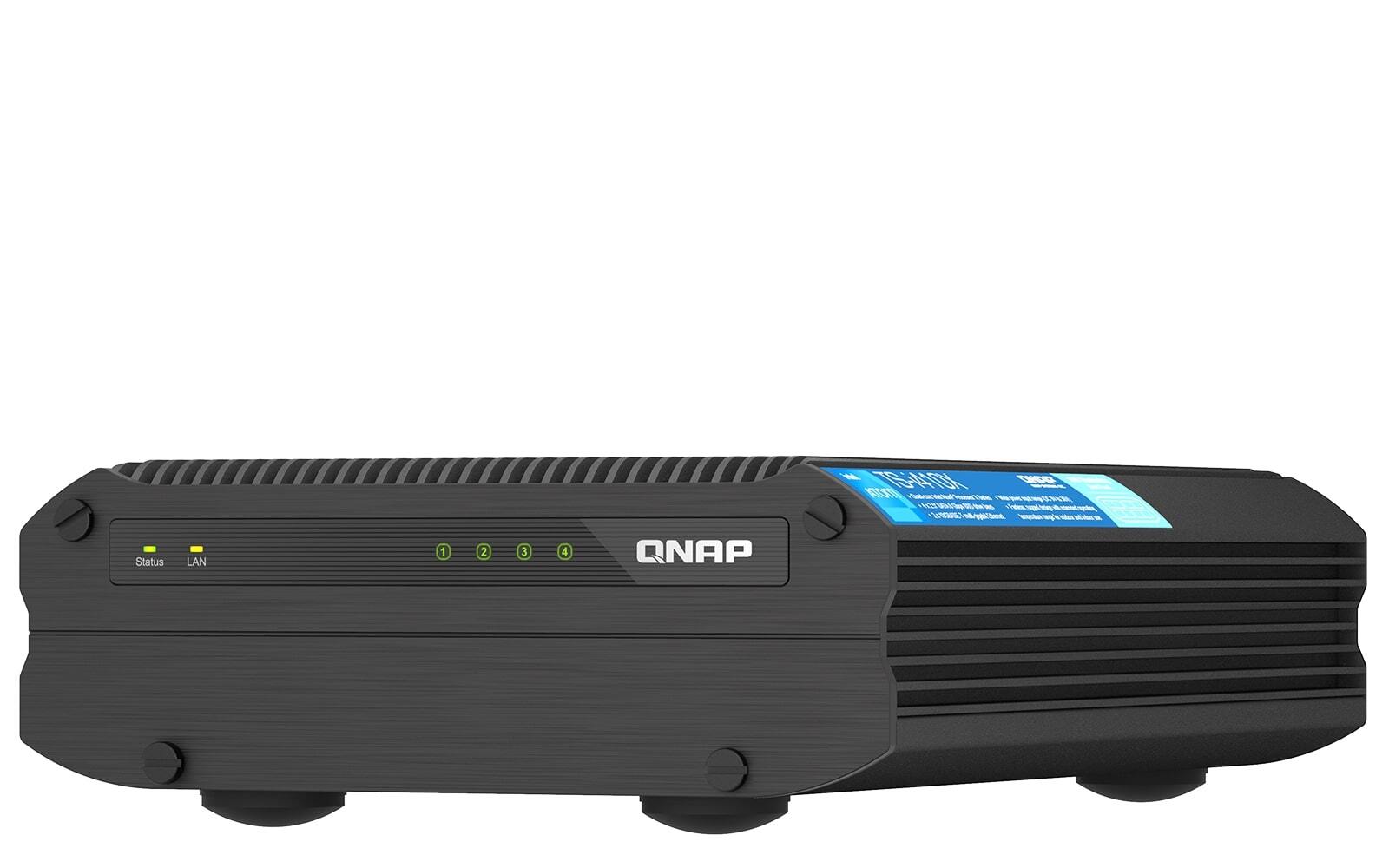

QNAP TS-i410X-8G Fanless Industrial 4-Bay 10GbE NAS

The QNAP TS-i410X-8G is a diskless industrial fanless NAS with an Intel Atom x6425E processor, four hot-swappable 2.5-inch SATA SSD bays, fixed 8GB memory, dual 10GBASE-T, four USB 3.2 Gen 2 ports and 4K HDMI output.

Fanless4 SSD baysDual 10GBASE-T-40°C to 70°CQNAP manufacturer warranty

QNAP TS-i410X-8G diskless four-bay industrial fanless NAS

What is the QNAP TS-i410X-8G?

It is a compact set-top industrial NAS designed for factories, warehouses, transportation and other rugged environments. The supplied operating-temperature range is -40°C to 70°C.

4 SSD baysFour hot-swappable 2.5-inch SATA bays

Atom x6425EFour cores, four threads and burst speeds up to 3.0GHz

Dual 10GBASE-T10G, 5G, 2.5G and 1G connectivity

-40°C to 70°CWide supplied operating-temperature range

Feature group 1

Industrial fanless design

The chassis is intended for rugged locations and wide operating temperatures.

Fanless platform

The TS-i410X uses a fanless design and solid chassis.

Wide temperature range

The supplied operating range is -40°C to 70°C, with storage from -45°C to 85°C.

Deployment environments

The supplied content lists factories, warehouses, transportation and other demanding locations.

Feature group 2

Processor and fixed onboard memory

The industrial platform combines Atom processing, integrated graphics and non-expandable memory.

Intel Atom x6425E

The processor provides four cores, four threads and burst speeds up to 3.0GHz.

Fixed 8GB memory

The 8GB onboard memory is non-expandable, and some RAM is reserved for shared graphics memory.

Hardware acceleration

Intel UHD Graphics, AES-NI encryption and hardware-accelerated transcoding are supported.

Need help choosing a NAS?

Explore the DeviceDeal NAS Buying Guide

Compare NAS types, storage planning considerations and practical buying factors before selecting a system.

Read NAS Buying Guide

Feature group 3

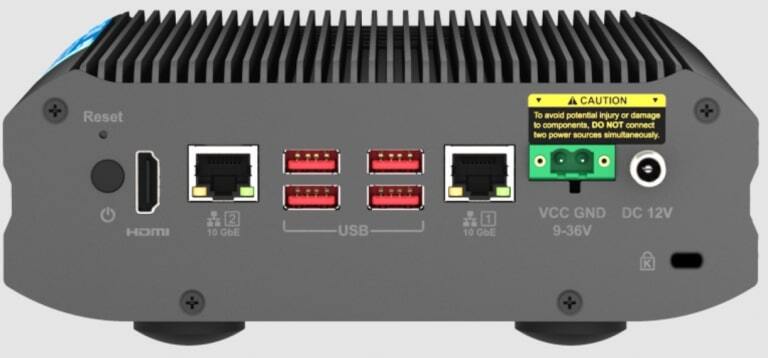

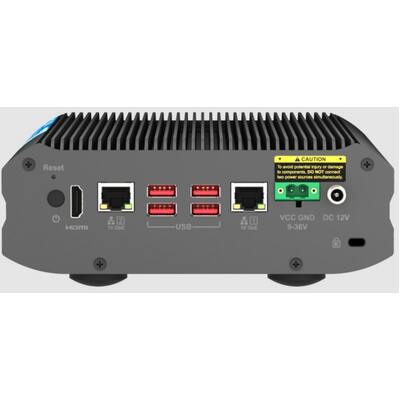

Dual 10GBASE-T and local connectivity

Built-in multi-gigabit ports and USB/HDMI interfaces support file, backup and display workflows.

Two 10GBASE-T ports

Each port supports 10GbE, 5GbE, 2.5GbE and 1GbE connectivity.

Four USB 3.2 Gen 2 ports

The supplied specification lists four ports with speeds up to 10Gbps.

4K HDMI

HDMI 1.4b supports output up to 3840 × 2160 at 30Hz.

Feature group 4

SSD storage and power options

Four SATA SSD bays and two alternative power-input methods support industrial deployment planning.

Four SATA SSD bays

The hot-swappable bays support compatible 2.5-inch SATA solid state drives, with SSD cache acceleration available.

Alternative power inputs

Use either an external power adapter rated at 90W or above, or a 936V DC input.

Safety requirement

Do not connect the external AC adapter and the 936V DC input at the same time.

Frequently asked questions

Does the QNAP TS-i410X-8G include storage drives?

No. It is supplied without storage drives and supports four compatible 2.5-inch SATA solid state drives.

Which processor is installed?

It uses an Intel Atom x6425E four-core, four-thread processor with burst speeds up to 3.0GHz.

Can the memory be upgraded?

No. It includes 8GB onboard memory that is non-expandable.

Which drives does the TS-i410X-8G support?

It supports compatible 2.5-inch SATA solid state drives in four hot-swappable bays.

What network speeds are supported?

The two 10GBASE-T ports support 10GbE, 5GbE, 2.5GbE and 1GbE connections.

What operating-temperature range is specified?

The supplied operating-temperature range is -40°C to 70°C.

What storage-temperature range is specified?

The supplied storage-temperature range is -45°C to 85°C.

Can both power inputs be connected at the same time?

No. Do not connect the external AC power adapter and the 936V DC input simultaneously.

What power options are supported?

Use either an external power adapter rated at 90W or above with AC 100240V input, or a 936V DC input.

Does it support 4K HDMI output?

Yes. HDMI 1.4b supports output up to 3840 × 2160 at 30Hz.

Which USB ports are included?

The supplied specification lists four USB 3.2 Gen 2 ports with speeds up to 10Gbps.

What warranty applies to the TS-i410X-8G?

The supplied specifications list a three-year QNAP manufacturer warranty. Coverage is subject to QNAPs applicable warranty terms.

(TS-i410X-8G)

Features and highlights

Key product details organised from the supplied QNAP information for TS-i410X-8G.

Fanless industrial chassis

Designed for wide-temperature operation without a system fan.

Four hot-swap SSD bays

Compatible 2.5-inch SATA SSDs are supported.

Dual 10GBASE-T

Two multi-gigabit ports support 10G, 5G, 2.5G and 1G.

Fixed 8GB onboard memory

The installed memory is non-expandable.

4K HDMI output

HDMI 1.4b supports up to 3840 × 2160 at 30Hz.

Flexible power input

Use either an external AC adapter or a 936V DC input, but not both simultaneously.

Purchase check: This NAS is supplied without storage drives. Do not connect the external AC power adapter and the 936V DC input simultaneously.

Technical specifications

The following specifications are organised from the supplied product information for QNAP TS-i410X-8G.

Product details

Brand	QNAP
Model / SKU	TS-i410X-8G
Product type	diskless four-bay industrial fanless NAS

Processor and Memory

CPU	Intel Atom x6425E 4-core, 4-thread processor, burst up to 3.0GHz
CPU Architecture	64-bit x86
Graphics Processor	Intel UHD Graphics for 10th Gen Intel processors
Floating Point Unit	Yes
Encryption Engine	Yes, AES-NI
Hardware-Accelerated Transcoding	Yes
System Memory	8GB onboard, non-expandable Some RAM is reserved for use as shared graphics memory.
Maximum Memory	8GB onboard, non-expandable
Flash Memory	4GB with dual-boot OS protection

Storage

Drive Bays	4 x 2.5-inch SATA 6Gb/s, 3Gb/s The system is supplied without storage drives.
Drive Compatibility	2.5-inch SATA solid state drives
Hot-Swappable	Yes
SSD Cache Acceleration Support	Yes

Networking

10 Gigabit Ethernet	2 x 10GBASE-T ports (10G/5G/2.5G/1G)
Wake on LAN	Yes
Jumbo Frame	Yes

Connectivity and Physical Specifications

USB 3.2 Gen 2 Ports	4 ports, up to 10Gbps
HDMI Output	1 x HDMI 1.4b, up to 3840 x 2160 at 30Hz
Form Factor	Set-top design
LED Indicators	Power/status, LAN and SSD 14
Buttons	Power and reset
Dimensions (H x W x D)	62 x 180 x 244mm Dimensions do not include the foot pad, which may be up to 30mm / 1.18 inches high depending on the model.
Net Weight	3.1kg
Gross Weight	3.1kg

Power and Environment

Operating Temperature	-4070°C (-40158°F)
Storage Temperature	-4585°C (-49185°F)
Relative Humidity	595% RH non-condensing, wet bulb: 27°C (80.6°F)
Power Supply	External power adapter, 90W and above, AC 100240V 936V DC input Do not connect both power inputs simultaneously.
Power Consumption: Disk Standby	17.628W
Power Consumption: Typical Operating Mode	25.592W Tested with drives fully populated.
System Warning	Buzzer
Kensington Security Slot	Yes

Warranty and Connections

Standard Warranty	3 years
Maximum Concurrent CIFS Connections	1,500 with maximum memory installed

SKU	TS-i410X-8G
Model #	TS-i410X
Barcode #	885022023813
Brand	QNAP
Shipping Weight	3.7000kg
Shipping Width	0.330m
Shipping Height	0.190m
Shipping Length	0.270m
Shipping Cubic	0.016929000m3

Three yearsQNAP manufacturer warranty

3-year QNAP manufacturer warranty

The supplied specifications list a 3-year manufacturer warranty for QNAP TS-i410X-8G.

Warranty coverage, eligibility and claim assessment are subject to QNAPs applicable warranty terms. Please retain your DeviceDeal tax invoice as proof of purchase.
