Intel quad-core processing
The Celeron N5095 four-core processor bursts up to 2.9GHz and includes AES-NI and hardware transcoding.
QNAP TS-464U-8G 4CORE 2.9GHZ, 8GB RAM, 4X SATA, 2X 2.5GBE, 1X PCIE, 1X HDMI, 4X USB
Model # TS-464U-8G
-
SKU: TS-464U-8G
- Pick Up Available
- Australian Warranty
- Checkout Securely

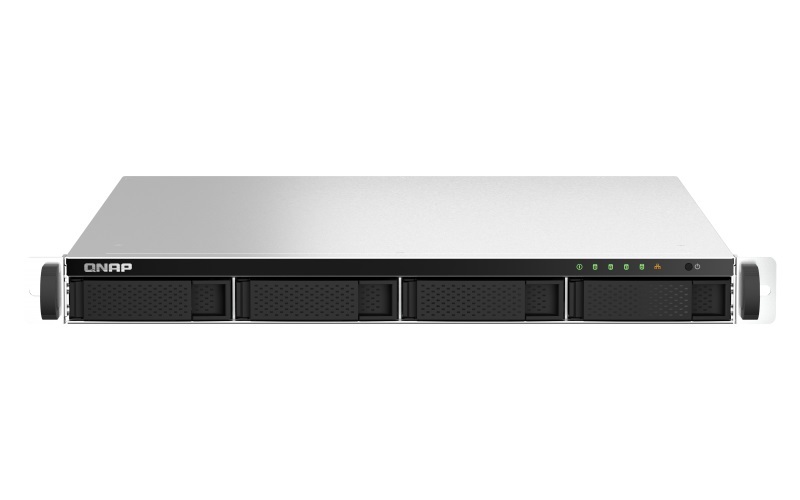

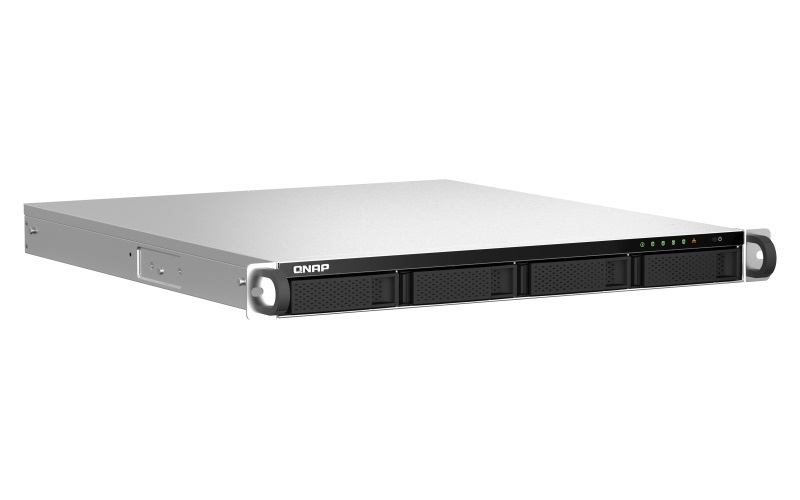

4-bay 1U rackmount NAS with PCIe expansion
QNAP TS-464U-8G 4-Bay 2.5GbE Rackmount NAS with PCIe
A 1U NAS with an Intel Celeron N5095 quad-core processor, 8GB DDR4 memory, dual 2.5GbE, PCIe Gen 3 expansion, HDMI and 10Gbps USB.
4 drive baysDual 2.5GbEPCIe Gen 3 x23-year manufacturer warranty
What is the QNAP TS-464U-8G?
The TS-464U-8G is a four-bay 1U rackmount NAS for file services, backup, containerised applications, virtualisation and multimedia display. It combines a quad-core Intel processor, 8GB memory, dual 2.5GbE and a PCIe expansion slot.
4 BaysHot-swappable SATA storage
2 × 2.5GbEPort Trunking support
PCIe Gen 3 x2Expansion slot
8GB to 16GBExpandable memory
Need help choosing a NAS?
Read NAS Buying Guide Explore the DeviceDeal NAS Buying Guide
Compare NAS types, storage considerations and practical features before selecting your next network storage system.
Quad-core processing, memory and encryption
The Intel Celeron N5095 four-core, four-thread processor bursts up to 2.9GHz. The supplied 8GB SODIMM DDR4 memory can be expanded to 16GB.
- Intel AES-NI supports hardware-accelerated encryption.
- Intel UHD Graphics provides hardware-accelerated transcoding.
- The supplied specifications list 1,500 maximum concurrent CIFS connections with maximum memory installed.
Dual 2.5GbE networking for rackmount workflows
Two built-in 2.5GbE ports support 2.5G, 1G, 100M and 10M network speeds. Port Trunking can combine the two interfaces for supplied bandwidth up to 5Gbps.
- The supplied workload examples include large file transfers, backup and restore, and multimedia transfer or editing.
- Wake on LAN and Jumbo Frame support are listed.
- QNAP laboratory file-transfer results list 295MB/s download and 293MB/s upload using one 2.5GbE connection.

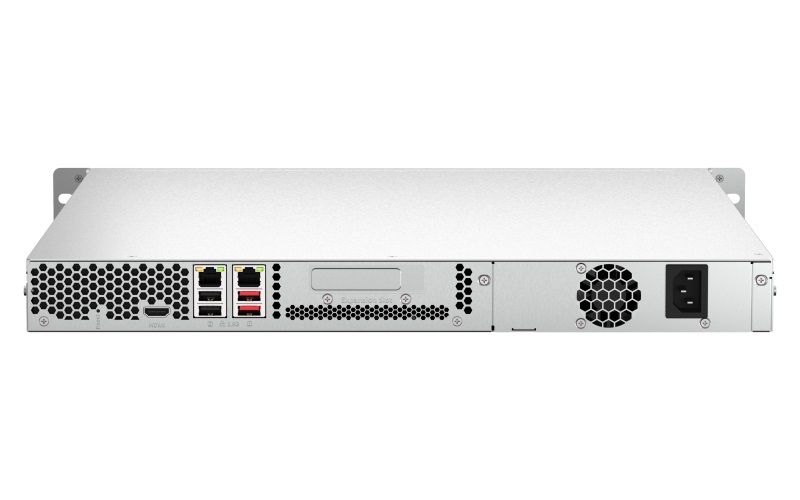

PCIe expansion, HDMI and USB connectivity
One PCIe Gen 3 x2 slot supports compatible Multi-Gig network cards, QM2 cards and USB 3.2 Gen 2 cards described in the supplied information.
- Optional 5GbE or 10GbE networking can be added through supported adapters or PCIe cards.
- M.2 SSD support is optional through a compatible PCIe adapter rather than built into the chassis.
- One HDMI 1.4b output, two USB 3.2 Gen 2 Type-A ports and two USB 2.0 ports are included.
Snapshots, containers and operating-system options
The supplied information describes snapshots, container applications, Qtier, SSD caching and storage expansion through compatible QNAP expansion units.
- The NAS uses QTS by default.
- Switching to QuTS hero is supported starting from QTS 5.2.2.
- The supplied information lists VMware Ready, Microsoft Hyper-V, Citrix and Veeam Ready.
The 2026 award statement in the supplied content applies to the QuTS hero operating system, not specifically to the TS-464U.
Important purchasing and deployment notes
- The supplied source does not state whether hard drives are included, so no diskless claim has been added.
- The TS-464U-8G does not list built-in M.2 slots; M.2 support is optional through a compatible PCIe adapter.
- Optional 5GbE or 10GbE requires supported network hardware.
- The supplied performance results were measured in QNAP laboratories under the stated configuration and may vary.
Frequently asked questions
What is the QNAP TS-464U-8G?
It is a four-bay 1U rackmount NAS with an Intel Celeron N5095 quad-core processor, 8GB memory, dual 2.5GbE, PCIe expansion and HDMI output.
How many drive bays does the TS-464U-8G have?
It has four hot-swappable 3.5-inch SATA 6Gb/s and 3Gb/s bays supporting 3.5-inch SATA hard drives and 2.5-inch SATA solid state drives.
Are hard drives included with the TS-464U-8G?
The supplied product information does not state whether hard drives are included. Confirm the required compatible drives before ordering.
Which processor is installed?
It uses an Intel Celeron N5095 four-core, four-thread processor with burst speeds up to 2.9GHz.
How much memory is installed and supported?
The supplied configuration includes 8GB SODIMM DDR4 memory and supports up to 16GB using two 8GB modules.
Which network ports are included?
It includes two 2.5GbE ports supporting 2.5G, 1G, 100M and 10M network speeds.
Can the two 2.5GbE ports be combined?
Yes. The supplied information states that Port Trunking can provide combined bandwidth up to 5Gbps.
Does the TS-464U-8G have built-in M.2 slots?
No built-in M.2 slot is listed. The supplied specifications state that M.2 support is optional through a compatible PCIe adapter.
What PCIe expansion is available?
It includes one PCIe Gen 3 x2 slot for compatible expansion cards, including supported network, QM2 or USB cards.
Which HDMI and USB ports are included?
It provides one HDMI 1.4b output, two USB 3.2 Gen 2 Type-A ports at 10Gbps and two USB 2.0 ports.
Can the TS-464U-8G run QuTS hero?
Yes. It uses QTS by default and supports switching to QuTS hero starting from QTS 5.2.2.
What warranty applies to the TS-464U-8G?
The supplied specifications list a three-year QNAP manufacturer warranty.
(TS-464U-8G)
Features and highlights
Key capabilities below are organised from the supplied product information for TS-464U-8G.
Dual 2.5GbE ports
Two multi-gigabit interfaces support Port Trunking and supplied combined bandwidth up to 5Gbps.
PCIe Gen 3 expansion
One PCIe Gen 3 x2 slot supports compatible networking, QM2 and USB expansion cards.
Rackmount storage
Four hot-swappable SATA bays are integrated into a 1U rackmount chassis.
HDMI and 10Gbps USB
One HDMI 1.4b output and two USB 3.2 Gen 2 Type-A ports support local display and external storage.
QTS or QuTS hero
QTS is used by default, with supported switching to QuTS hero from QTS 5.2.2.
Important: The supplied source does not state whether drives are included. M.2 support is optional through a PCIe adapter rather than built into the NAS.
TS-464U-8G specifications
Specifications below are organised from the supplied QNAP product information for TS-464U-8G.
Processor and Memory
| CPU | Intel® Celeron® N5095 4-core/4-thread processor, burst up to 2.9GHz |
|---|---|
| CPU Architecture | 64-bit x86 |
| Graphics Processor | Intel® UHD Graphics |
| Encryption Engine | Yes (AES-NI) |
| Hardware-Accelerated Transcoding | Yes |
| System Memory | 8GB SODIMM DDR4Since 2024/01 |
| Maximum Memory | 16GB (2 x 8GB) |
Storage
| Drive Bays | 4 x 3.5-inch SATA 6Gb/s, 3Gb/s |
|---|---|
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-Swappable | YesNot supported for M.2 SSD. |
| M.2 Slot | Optional via a PCIe adapter |
| SSD Cache Acceleration | Supported |
Networking
| 2.5 Gigabit Ethernet | 2 x 2.5GbE ports (2.5G/1G/100M/10M) |
|---|---|
| 5 Gigabit Ethernet | Optional via network adapter |
| 10 Gigabit Ethernet | Optional via network adapter or PCIe expansion card |
| Wake on LAN | Yes |
| Jumbo Frame | Yes |
Expansion and Connectivity
| PCIe Slot | 1 x PCIe Gen 3 x2 Card dimensions: 210 x 68.9 x 18.76mm / 8.27 x 2.71 x 0.74 inches. |
|---|---|
| USB 2.0 Ports | 2 |
| USB 3.2 Gen 2 Ports | 2 x Type-A USB 3.2 Gen 2 (10Gbps) |
| HDMI Output | 1 x HDMI 1.4b |
Physical Specifications
| Form Factor | 1U rackmount |
|---|---|
| LED Indicators | HDD 14, status, LAN, expansion and power |
| Buttons | Power and reset |
| Dimensions (H x W x D) | 43.3 x 430 x 479mm |
| Net Weight | 7.52kg |
| Gross Weight | 9.46kg |
Power and Cooling
| Power Supply Unit | 250W x 1, 100240V |
|---|---|
| Disk Standby Power Consumption | 22.285W |
| Typical Operating Power Consumption | 36.81WTested with drives fully populated. |
| Fans | 2 x 40mm, 12VDC |
| System Warning | Buzzer |
Operating Environment
| Operating Temperature | 040°C (32104°F) |
|---|---|
| Storage Temperature | -2070°C (-4158°F) |
| Relative Humidity | 595% RH non-condensing, wet bulb: 27°C (80.6°F) |
Warranty and Connections
| Standard Warranty | 3 years |
|---|---|
| Maximum Concurrent CIFS Connections | 1,500 with maximum memory installed |
Important notes
| Drive inclusion | The supplied source does not state whether hard drives are included. |
|---|---|
| M.2 support | M.2 SSD support is optional through a compatible PCIe adapter. |
| Memory installation | Use QNAP memory modules with identical specifications where more than one memory slot is used. |
| Performance scope | QNAP laboratory file-transfer figures may vary with the actual environment. |
| SKU | TS-464U-8G |
| Model # | TS-464U |
| Barcode # | 885022024568 |
| Brand | QNAP |
| Shipping Weight | 9.5000kg |
| Shipping Width | 0.270m |
| Shipping Height | 0.270m |
| Shipping Length | 0.270m |
3 YearsQNAP manufacturer warranty
3-year QNAP manufacturer warranty
The supplied specifications list a 3-year standard manufacturer warranty for the QNAP TS-464U-8G.
Warranty coverage, eligibility and claim assessment are subject to QNAPs applicable warranty terms. Please retain your DeviceDeal tax invoice as proof of purchase.
