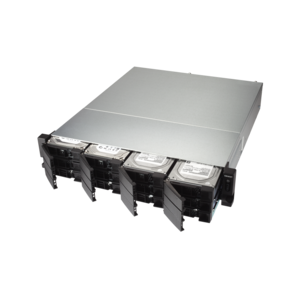

12-bay rackmount storage

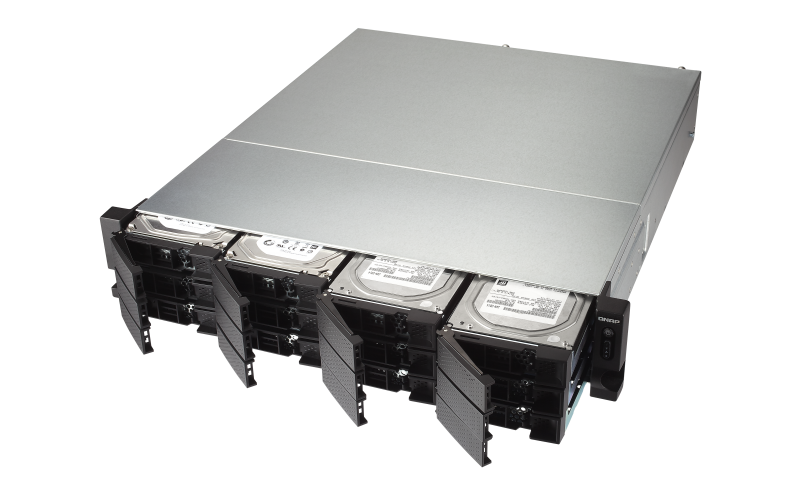

Twelve SATA bays support 3.5-inch HDDs, 2.5-inch HDDs and 2.5-inch SSDs.

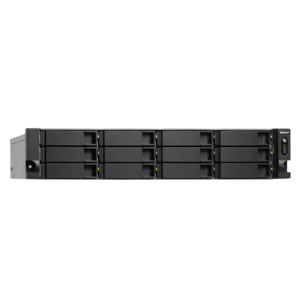

QNAP TS-1232PXU-RP-4G 12 Bay 2U Rackmount NAS (NO DISK) 4GB
Model # TS-1232PXU-RP-4G
-
SKU: TS-1232PXU-RP-4G
$3,235.00
Stock Availability
🟢Live
ONLINE: ✓ In Stock
Vermont VIC: ✓ In Stock
(Click & Collect Available)
(Click & Collect Available)
You Might Want To Add
- Pick Up Available
- Australian Warranty
- Checkout Securely

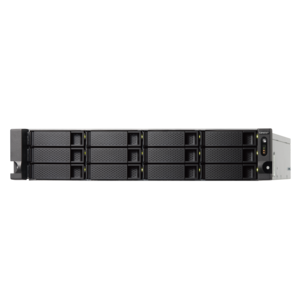

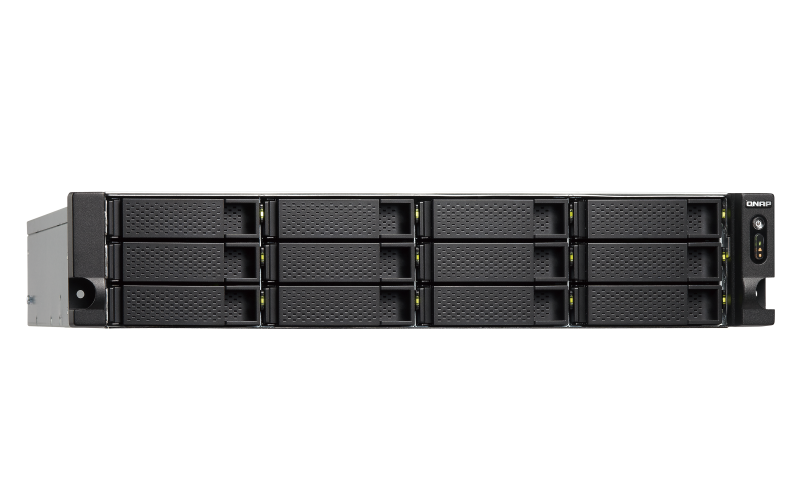

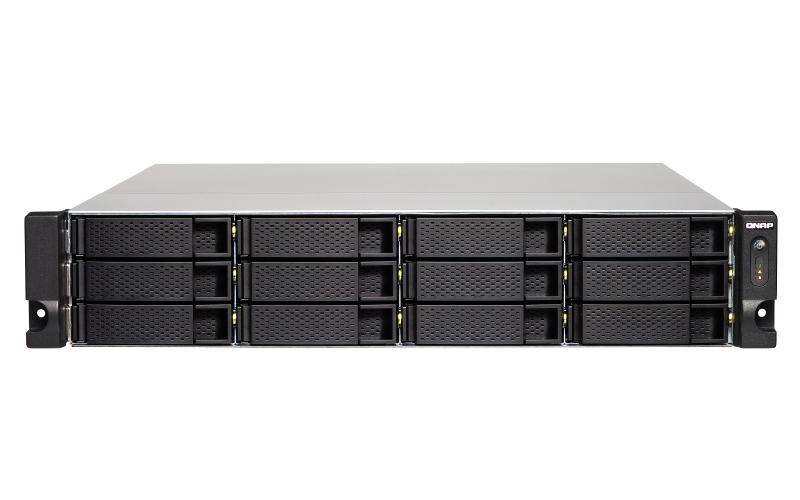

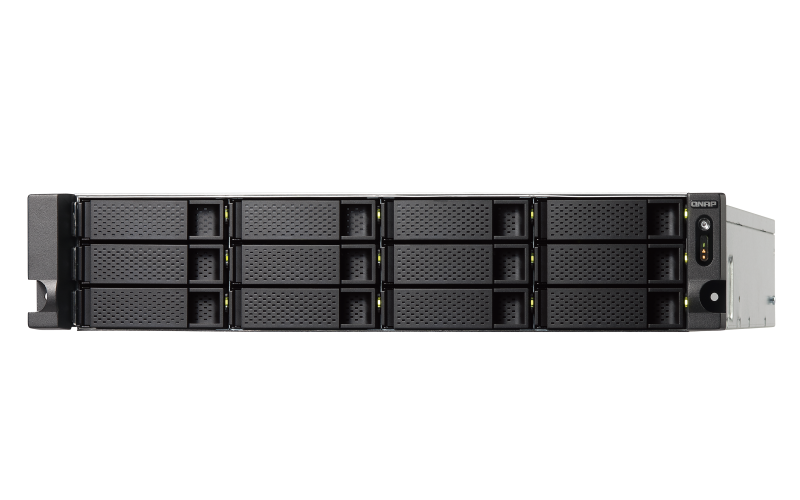

12-bay 2U rackmount NAS
QNAP TS-1232PXU-RP-4G 12-Bay 2U Rackmount NAS
A diskless 12-bay rackmount NAS with a 1.7GHz AnnapurnaLabs quad-core processor, 4GB DDR4 memory, dual 10GbE SFP+, dual 2.5GbE and redundant 250W power supplies.
12 baysDual 10GbE SFP+Dual 2.5GbE3-year manufacturer warranty
What is the QNAP TS-1232PXU-RP-4G?
It is a diskless 12-bay, 2U rackmount NAS powered by an AnnapurnaLabs Alpine AL324 64-bit ARM Cortex-A57 quad-core 1.7GHz processor. This configuration includes 4GB DDR4 memory, two 10GbE SFP+ ports, two 2.5GbE ports, one PCIe Gen 2 x2 slot and dual 250W power supplies.
12 baysSATA HDD and SSD support
2 × 10GbESFP+ network ports
2 × 2.5GbERJ45 network ports
Dual 250WRedundant power supplies
Need help choosing a NAS?
Read NAS Buying Guide Explore the DeviceDeal NAS Buying Guide
Compare NAS types, storage considerations and practical features before selecting your next network attached storage solution.

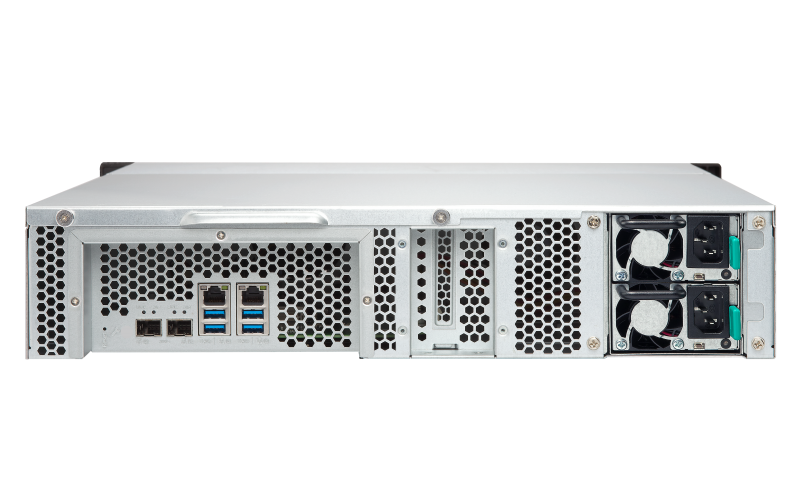

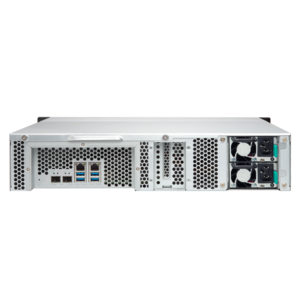

High-speed networking for shared storage
Two 10GbE SFP+ ports and two 2.5GbE RJ45 ports provide built-in options for higher-bandwidth file sharing and team collaboration. The 2.5GbE ports support 2.5G, 1G, 100M and 10M speeds.
- Wake on LAN is supported through the 2.5GbE ports only.
- Jumbo Frame support is included.
- The supplied information also references optional QNAP 10GbE, 5GbE and 2.5GbE expansion options.
Backup, synchronisation and data protection
The supplied product information lists Hybrid Backup Sync for backup and synchronisation, Boxafe for Google Workspace and Microsoft 365 enterprise accounts, and snapshot protection for recovery from accidental deletion and malware attacks.
- Hybrid Backup Sync supports backup and synchronisation to other NAS devices, servers and cloud storage.
- Boxafe is listed for emails, cloud drives, contacts and calendars.
- Snapshots record system status and data for protection and recovery.
PCIe and storage expansion
One PCIe Gen 2 x2 slot supports a compatible QNAP expansion card for additional networking, SSD caching capabilities or wireless connectivity. Capacity can be expanded with supplied QNAP TR RAID expansion enclosures or TL JBOD units, and cloud gateway support is listed for hybrid-cloud workflows.
- Optional M.2 support is available through a PCIe adapter.
- The supplied specification warns that PCIe bandwidth limitations will restrict NAS 10GbE performance.
- Four USB 3.2 Gen 1 ports are included.
Supplied SMB signing acceleration results
The source states that QTS 5.1.0 supports AES-128-GMAC acceleration for SMB 3.1.1 signing. In the supplied CrystalDiskMark 1MB read test, the TS-1232PXU-RP-4G recorded 68 MB/s with AES-CMAC and 738 MB/s with AES-128-GMAC.
- Client: Windows Server 2022, AMD EPYC 7232P 3.0GHz, 128GB DDR4 and 10GbE NICs.
- NAS test storage: Samsung 860 PRO 512GB drives in RAID 5.
- QTS 5.1.0 was used for GMAC and QTS 5.0.1 for CMAC.
Important buying and deployment notes
- The product name identifies this NAS as supplied without disks; compatible drives are required.
- Use only QNAP memory modules to maintain system performance and stability.
- The PCIe Gen 2 x2 bandwidth limitation may restrict performance from an added 10GbE card.
- Supplied benchmark figures depend on the listed test environment and should not be treated as universal performance.
Frequently asked questions
What is the QNAP TS-1232PXU-RP-4G?
It is a diskless 12-bay, 2U rackmount NAS with an AnnapurnaLabs Alpine AL324 quad-core 1.7GHz processor, 4GB DDR4 memory, dual 10GbE SFP+, dual 2.5GbE and redundant power.
Does the TS-1232PXU-RP-4G include hard drives?
No. The supplied product name identifies it as a no-disk NAS, so compatible drives must be added separately.
Which drives are supported?
Its twelve 3.5-inch SATA bays support 3.5-inch SATA hard drives, 2.5-inch SATA hard drives and 2.5-inch SATA solid state drives.
Which processor is installed?
It uses an AnnapurnaLabs Alpine AL324 64-bit ARM Cortex-A57 four-core processor running at 1.7GHz.
How much memory is included and supported?
It includes 4GB UDIMM DDR4 memory and supports up to 16GB using one 16GB UDIMM DDR4 module.
Which network ports are included?
It provides two 10GbE SFP+ ports and two 2.5GbE RJ45 ports supporting 2.5G, 1G, 100M and 10M speeds.
Does the TS-1232PXU-RP-4G support Wake on LAN?
Yes. The supplied specifications state that Wake on LAN is supported through the 2.5GbE ports only.
Does it support PCIe expansion?
Yes. It has one PCIe Gen 2 x2 slot, although the supplied specification warns that PCIe bandwidth limitations will restrict NAS 10GbE performance.
Which USB ports are included?
The NAS includes four USB 3.2 Gen 1 ports.
Which backup and protection features are listed?
The supplied information lists Hybrid Backup Sync, Boxafe for Google Workspace and Microsoft 365 enterprise accounts, and snapshot protection.
Does it have redundant power supplies?
Yes. It includes two 250W power supply units rated for 100240V input.
What warranty applies to the TS-1232PXU-RP-4G?
The supplied specifications list a three-year QNAP manufacturer warranty.
(TS-1232PXU-RP-4G)
Features and highlights
Key supplied capabilities and purchasing considerations for this QNAP product.
Dual 10GbE plus dual 2.5GbE
Two SFP+ 10GbE ports and two RJ45 2.5GbE ports are built in.
Quad-core ARM processor
An AnnapurnaLabs Alpine AL324 four-core 1.7GHz processor powers the system.
Backup and snapshot tools
Hybrid Backup Sync, Boxafe and snapshot protection are listed in the supplied information.
Redundant power
Two 250W power supply units support rack deployment.
3-year manufacturer warranty
The supplied specifications list a three-year QNAP manufacturer warranty.
Key points to review
- Diskless system; compatible drives are required.
- One PCIe Gen 2 x2 slot is provided.
- PCIe bandwidth limitations can restrict added 10GbE performance.
- Maximum memory is 16GB.
QNAP TS-1232PXU-RP-4G Specifications
Review the supplied processor, memory, storage, networking, expansion, physical, power, environmental and warranty details.
Processor and Memory
| CPU | AnnapurnaLabs Alpine AL324 64-bit ARM Cortex-A57 4-core 1.7GHz processor |
|---|---|
| CPU architecture | 64-bit ARM |
| Encryption engine | Yes |
| System memory | 4GB UDIMM DDR4 |
| Maximum memory | 16GB (1 × 16GB) |
| Memory slot | 1 × UDIMM DDR4 |
Storage
| Drive bays | 12 × 3.5-inch SATA 6Gb/s, 3Gb/s |
|---|---|
| Drive compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | Yes; not supported for M.2 SSD |
| M.2 slot | Optional via a PCIe adapter |
| SSD cache acceleration | Supported |
Networking
| 2.5 Gigabit Ethernet | 2 × 2.5GbE RJ45 ports (2.5G/1G/100M/10M) |
|---|---|
| 10 Gigabit Ethernet | 2 × 10GbE SFP+ ports |
| Wake on LAN | Yes; supported through the 2.5GbE ports only |
| Jumbo Frame | Yes |
Expansion and Connectivity
| PCIe slot | 1 × PCIe Gen 2 x2 |
|---|---|
| PCIe limitation | The supplied specification states that PCIe bandwidth limitations will restrict NAS 10GbE performance. |
| Supported card dimensions | 220 × 68.9 × 18.76mm / 8.67 × 2.71 × 0.74 inches |
| USB ports | 4 × USB 3.2 Gen 1 |
Physical Specifications
| Form factor | 2U rackmount |
|---|---|
| LED indicators | HDD 112, status, LAN and storage expansion |
| Buttons | Power and reset |
| Dimensions (H × W × D) | 88.6 × 432 × 511mm; excludes the ear hook and protruding part of the power supply unit |
| Net weight | 12.94kg |
| Gross weight | 14.94kg |
Power and Cooling
| Power supply | 250W × 2, 100240V |
|---|---|
| Typical operating power | 83.57W; tested with drives fully populated |
| Fans | 2 × 70mm, 12VDC |
| System warning | Buzzer |
Operating Environment
| Operating temperature | 040°C (32104°F) |
|---|---|
| Storage temperature | -2070°C (-4158°F) |
| Relative humidity | 595% RH non-condensing, wet bulb: 27°C (80.6°F) |
Warranty and Connections
| Standard warranty | 3 years |
|---|---|
| Maximum concurrent CIFS connections | 700 with maximum memory installed |
Supplied SMB Signing Test
| Test type | CrystalDiskMark 1MB read throughput |
|---|---|
| AES-CMAC read | 68 MB/s |
| AES-128-GMAC read | 738 MB/s |
| Client | Windows Server 2022; AMD EPYC 7232P 3.0GHz; 128GB DDR4; 10GbE NICs |
| NAS test storage | Samsung 860 PRO 512GB drives in RAID 5 |
| QTS versions | QTS 5.1.0 for GMAC and QTS 5.0.1 for CMAC |
Use only QNAP memory modules to maintain system performance and stability. Unsupported modules may degrade performance, cause errors or prevent the operating system from starting. Product images are illustrative, and designs and specifications are subject to change without notice.
| SKU | TS-1232PXU-RP-4G |
| Model # | TS-1232PXU-RP |
| Barcode # | 4713213518120 |
| Brand | QNAP |
| Shipping Weight | 15.0000kg |
| Shipping Width | 0.260m |
| Shipping Height | 0.720m |
| Shipping Length | 0.560m |
QNAP3-year manufacturer warranty
QNAP manufacturer warranty
The QNAP TS-1232PXU-RP-4G is supplied with a three-year QNAP manufacturer warranty.
Warranty coverage, eligibility and claim assessment are subject to QNAP's applicable warranty terms. Please retain your DeviceDeal tax invoice as proof of purchase.
