Scalable 4-bay edge storage solution
Download Datasheet
Fast and reliable
Over 2,000/1,300 MB/s seq. read/write2, built-in 4 x 1GbE, and up to 192 TB raw storage after expansion3,4
Flexible configuration
Add 4 extra drive bays, 10/25GbE ports, and SSD cache5 volumes whenever needed
Versatile business application platform
Back up endpoints, manage up to 40 IP cameras6, or safely sync and share files across sites

(RS826RP-PLUS)

Fast and reliable
Over 2,000/1,300 MB/s seq. read/write2, built-in 4 x 1GbE, and up to 192 TB raw storage after expansion3,4


Flexible configuration
Add 4 extra drive bays, 10/25GbE ports, and SSD cache5 volumes whenever needed


Versatile business application platform
Back up endpoints, manage up to 40 IP cameras6, or safely sync and share files across sites



Hardware Specifications

RS826RP+

RS826+

CPU
CPU Model AMD Ryzen V1500B AMD Ryzen V1500B
CPU Quantity 1 1
CPU Cores 4 4
CPU Threads 8 8
CPU Architecture 64-bit 64-bit
CPU Frequency 2.2 GHz 2.2 GHz
Hardware Encryption Engine

Memory
System Memory 4 GB DDR4 ECC SODIMM 4 GB DDR4 ECC SODIMM
Memory Module Pre-installed 4 GB (4 GB × 1) 4 GB (4 GB × 1)
Total Memory Slots 2 2
Maximum Memory Capacity 32 GB (16 GB x 2) 32 GB (16 GB x 2)

Notes
  • Synology may revise pre-installed memory module specifications in response to component lifecycle and supply conditions. All revised components undergo the same rigorous validation to ensure equivalent compatibility, stability, and performance.
  • Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
  • For multi-module memory configurations, all modules must be identical and share the same model number. Check the Product Manual of your Synology product for recommended memory configurations.
  • Synology may revise pre-installed memory module specifications in response to component lifecycle and supply conditions. All revised components undergo the same rigorous validation to ensure equivalent compatibility, stability, and performance.
  • Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
  • For multi-module memory configurations, all modules must be identical and share the same model number. Check the Product Manual of your Synology product for recommended memory configurations.

Storage
Drive Bays 4 4
Maximum Drive Bays with Expansion Unit 8 (RX426 × 1) 8 (RX426 × 1)
Drive Type (See all supported drives)
  • 3.5" SATA HDD
  • 2.5" SATA SSD
  • 3.5" SATA HDD
  • 2.5" SATA SSD
Hot Swappable Drive*

Notes
  • Compatible drives are mandatory. Please consult our compatibility list before purchasing hard drives. For more details, please refer to this article.
  • SSD cache can be enabled with select compatible SSD. See the compatibility list for model-specific support and details. SSDs are sold separately.
  • Compatible drives are mandatory. Please consult our compatibility list before purchasing hard drives. For more details, please refer to this article.
  • SSD cache can be enabled with select compatible SSD. See the compatibility list for model-specific support and details. SSDs are sold separately.

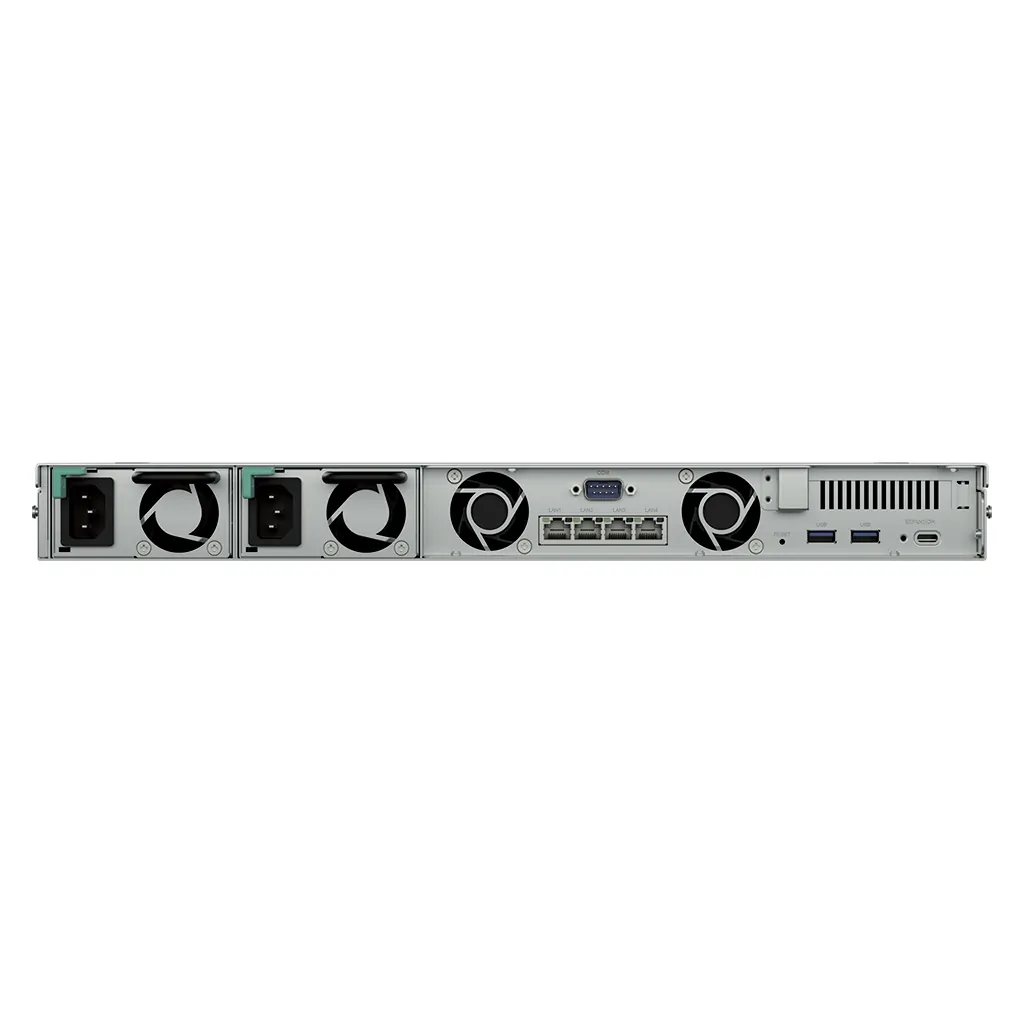

External Ports
RJ-45 1GbE LAN Port 4 4
USB 3.2 Gen 1 Port 2 2
Expansion Port 1 1
Expansion Port Type USB Type-C USB Type-C

PCIe
PCIe Expansion 1 x Gen3 x8 slot (x4 link) 1 x Gen3 x8 slot (x4 link)

Appearance
Form Factor (RU) 1U 1U
Size (Height x Width x Depth) 44 mm × 480 mm × 518.6 mm 44 mm × 480 mm × 492.6 mm
Weight 8.0 kg 6.4 kg
Rack Installation Support* 4-post 19" rack (Synology Rail Kit - RKM114/RKS-02) 4-post 19" rack (Synology Rail Kit - RKM114/RKS-02)

Notes

 The rail kit is sold separately The rail kit is sold separately

Others
System Fan 40 mm × 40 mm × 2 pcs 40 mm × 40 mm × 3 pcs
Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
Power Recovery
Noise Level 41.2 dB(A) 26.5 dB(A)
Scheduled Power On / Off
Wake on LAN / WAN
Power Supply Unit / Adapter 150 watts 150 watts
Redundant Power Supply   -
AC Input Power Voltage 100 V to 240 V AC 100 V to 240 V AC
Power Frequency 50/60 Hz, Single Phase 50/60 Hz, Single Phase
Power Consumption 46.07 watts (Access)
20.10 watts (HDD Hibernation)		 37.73 watts (Access)
15.57 watts (HDD Hibernation)
British Thermal Unit 157.10 BTU/hr (Access)
68.54 BTU/hr (HDD Hibernation)		 128.66 BTU/hr (Access)
53.09 BTU/hr (HDD Hibernation)

Notes
  • For more information on how power consumption is measured, refer to this article.
  • Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle state. Two G.R.A.S. Type 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
  • For more information on how power consumption is measured, refer to this article.
  • Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle state. Two G.R.A.S. Type 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%

Temperature
Operating Temperature 0°C to 35°C (32°F to 95°F) 0°C to 35°C (32°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F) -20°C to 60°C (-5°F to 140°F)
Operating Humidity 8% to 80% RH 8% to 80% RH
Storage Humidity 5% to 95% RH 5% to 95% RH

Certification

  • FCC
  • CE
  • BSMI
  • VCCI
  • RCM
  • UKCA
  • EAC
  • CCC
  • KC
  • BIS
  • UL
  • FCC
  • CE
  • BSMI
  • VCCI
  • RCM
  • UKCA
  • EAC
  • CCC
  • KC
  • BIS
  • UL

Warranty
  3-year hardware warranty, extendable to 5 years with EW202 3-year hardware warranty, extendable to 5 years with EW202

Notes
  • The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
  • EW201/EW202 is only available in Asia, Africa, and Oceania. Refer to the Extended Warranty website for details on supported countries/regions. (Learn more)
  • The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
  • EW201/EW202 is only available in Asia, Africa, and Oceania. Refer to the Extended Warranty website for details on supported countries/regions. (Learn more)

Environment
  RoHS Compliant RoHS Compliant

Packaging Content

  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 2
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 1

Optional Accessories


Notes

 For multi-module memory configurations, all modules must be identical and share the same model number. Check the Product Manual of your Synology product for recommended memory configurations. For multi-module memory configurations, all modules must be identical and share the same model number. Check the Product Manual of your Synology product for recommended memory configurations.

Notes:

  1. Model specifications are subject to change without prior notice.
  2. The figures are based on Synology internal testing. Each performance test is done individually. No other services or applications are processed at the same time.
  3. The actual performance may be lower than lab testing figure due to differences in server configuration, deployment, and the number of active operations.
  4. If usage requirements exceed the specifications above, please contact our regional partners for professional advice.
SKU RS826RP-PLUS
Barcode # 4711174726929
Brand SYNOLOGY
Shipping Weight 9.9900kg
Shipping Width 0.580m
Shipping Height 0.610m
Shipping Length 0.210m

Manufacturer Warranty: 3 Years Manufacturer Warranty

Be The First To Review This Product!

Help other Device Deal users shop smarter by writing reviews for products you have purchased.

Write a product review

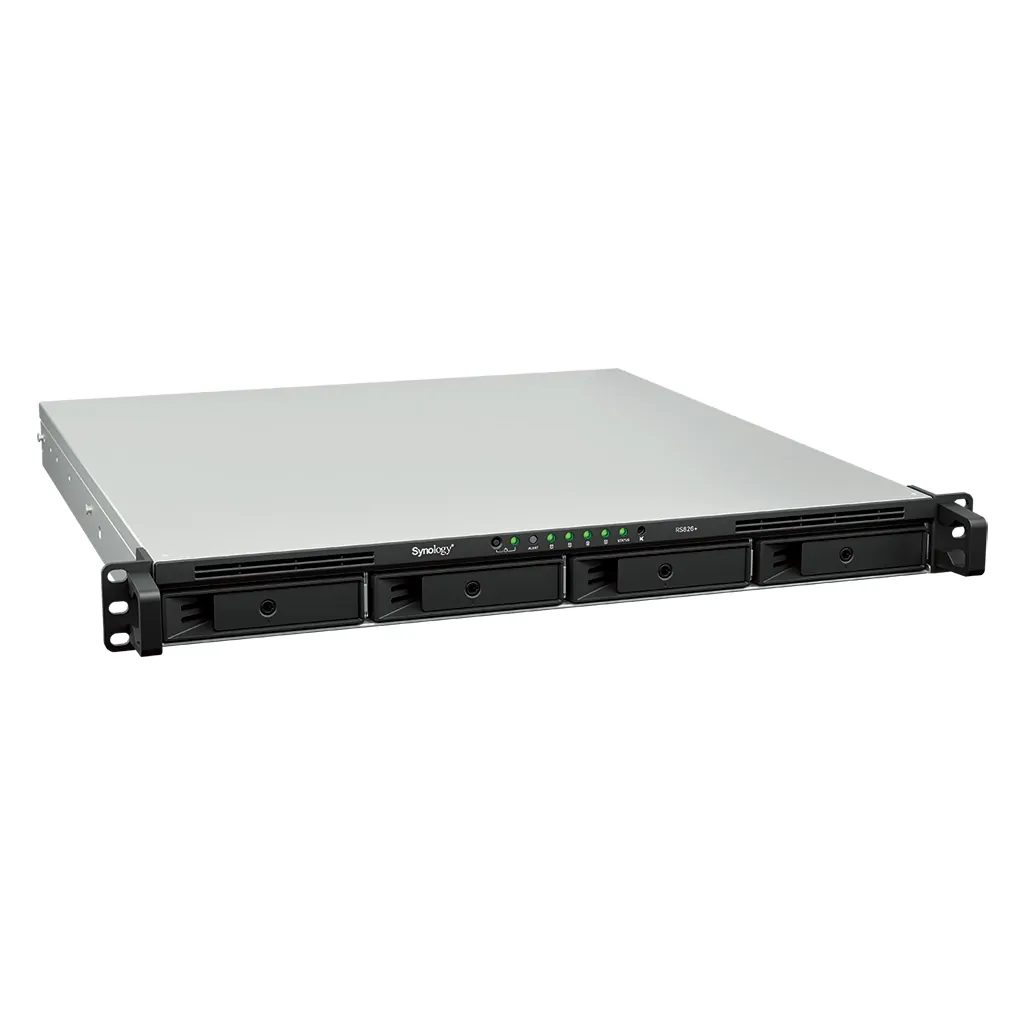

Synology RS826RP+ 4-Bay Diskless 1U Rackmount Scalable edge NAS with AMD Ryzen and Redundant PSU

Model # RS826RP+

  • SKU: RS826RP-PLUS

$2,724.00
$3,199.00
SAVE $475.00 (15%)
In Stock
